Tappan
Electric Range

Model # TEB500CCB3 Official Tappan electric wall oven - 5995285839

Here are the diagrams and repair parts for Official Tappan TEB500CCB3 electric wall oven - 5995285839, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

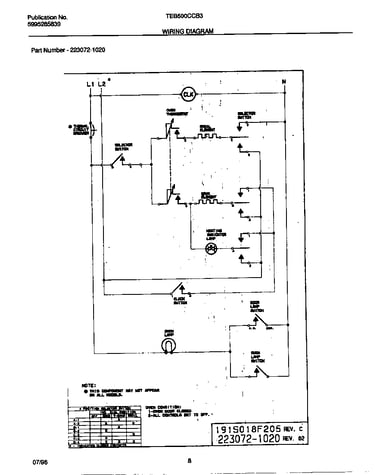

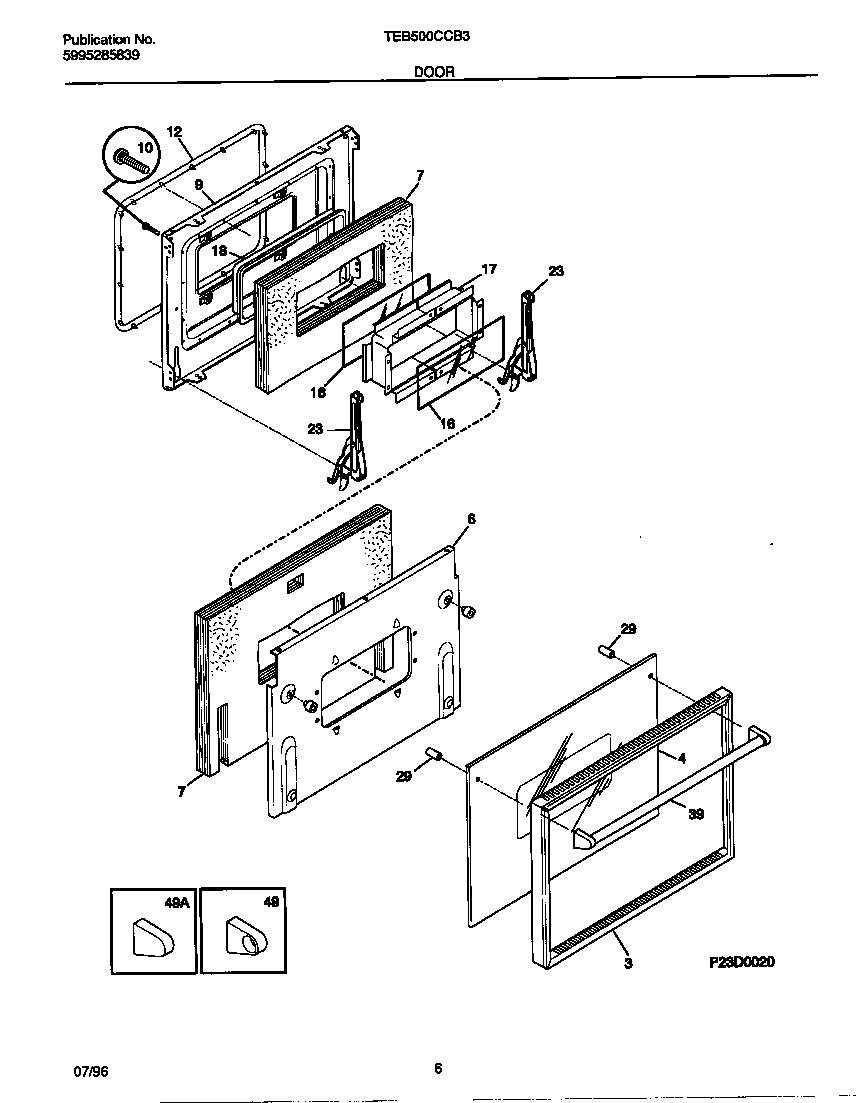

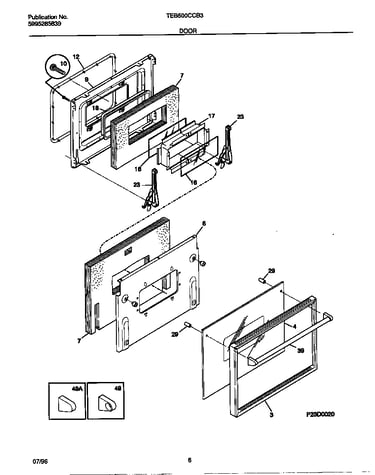

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 88 parts  |

Element 3202440
#67A

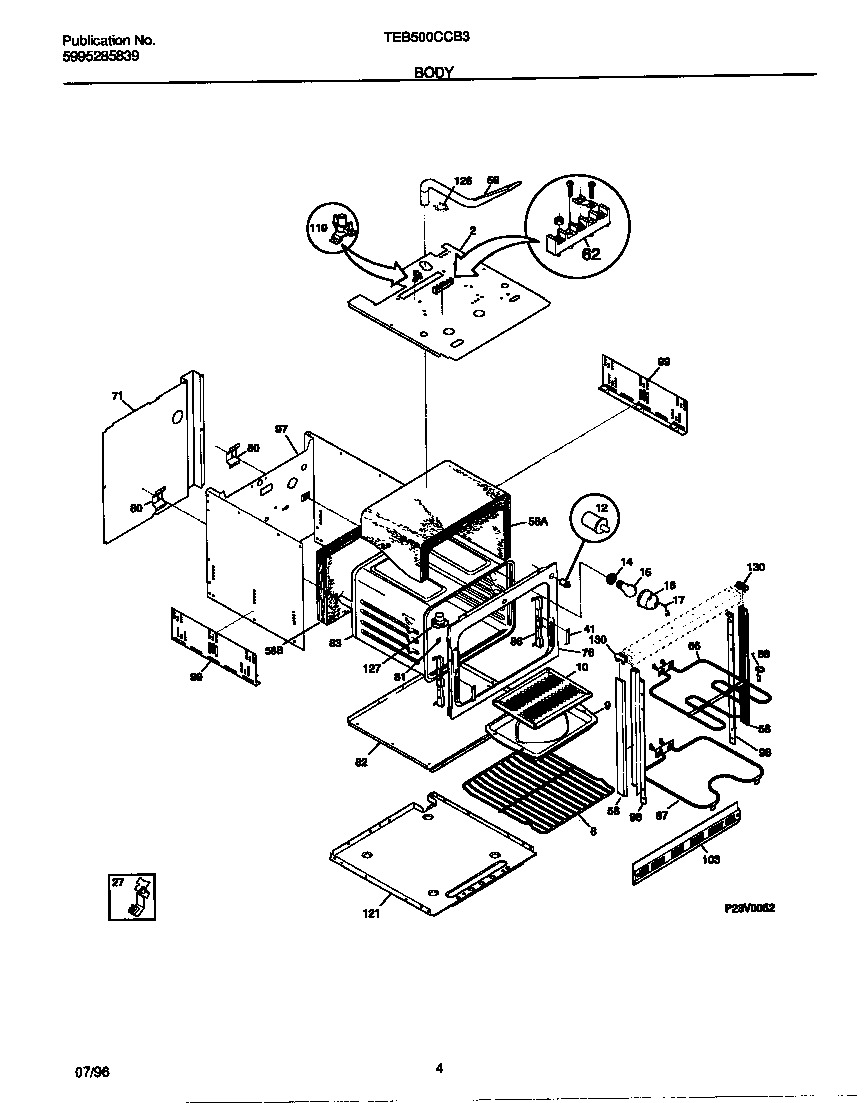

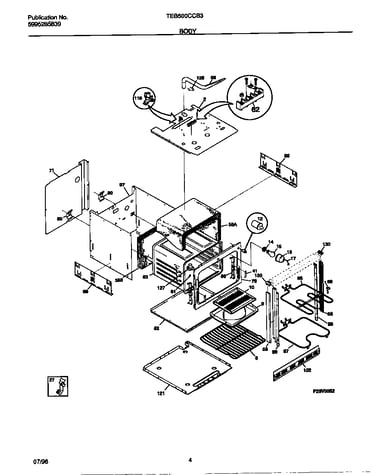

Body diagram

Element

Part #3202440

Replaced by #318255101

?
Manufacturer substitution
This part replaces 3202440. Substitute parts can look different from the original.
BEST SELLER
$137.08
7% OFF Phone Price : $147.08
In Stock
Cover 3201911
#16

Body diagram

Cover

Part #3201911

Replaced by #5304524341

?
Manufacturer substitution
This part replaces 3201911. Substitute parts can look different from the original.
BEST SELLER
$13.90
13% OFF Phone Price : $15.90
In Stock
Wall Oven Door Switch 5301314211
#12

Body diagram

Wall oven door switch

Part #5301314211

$64.33
7% OFF MSRP : $69.49
In Stock
Range Oven Control Thermostat Bulb Clip 5303284616
#27

Body diagram

Range oven control thermostat bulb clip

Part #5303284616

This item is not returnable
$9.59
9% OFF Phone Price : $10.59
In Stock
Adapter Assembly 5303310525
#127

Body diagram

Adapter assembly

Part #5303310525

Replaced by #318317100

?
Manufacturer substitution
This part replaces 5303310525. Substitute parts can look different from the original.
$61.19
8% OFF Phone Price : $66.19
In Stock
Range Screw, #10-24 X 1/2-in 08002868

#NI

All parts diagram

Range screw, #10-24 x 1/2-in

Part #08002868

$15.66
11% OFF Phone Price : $17.66
In Stock
Screw 5303292005
#69

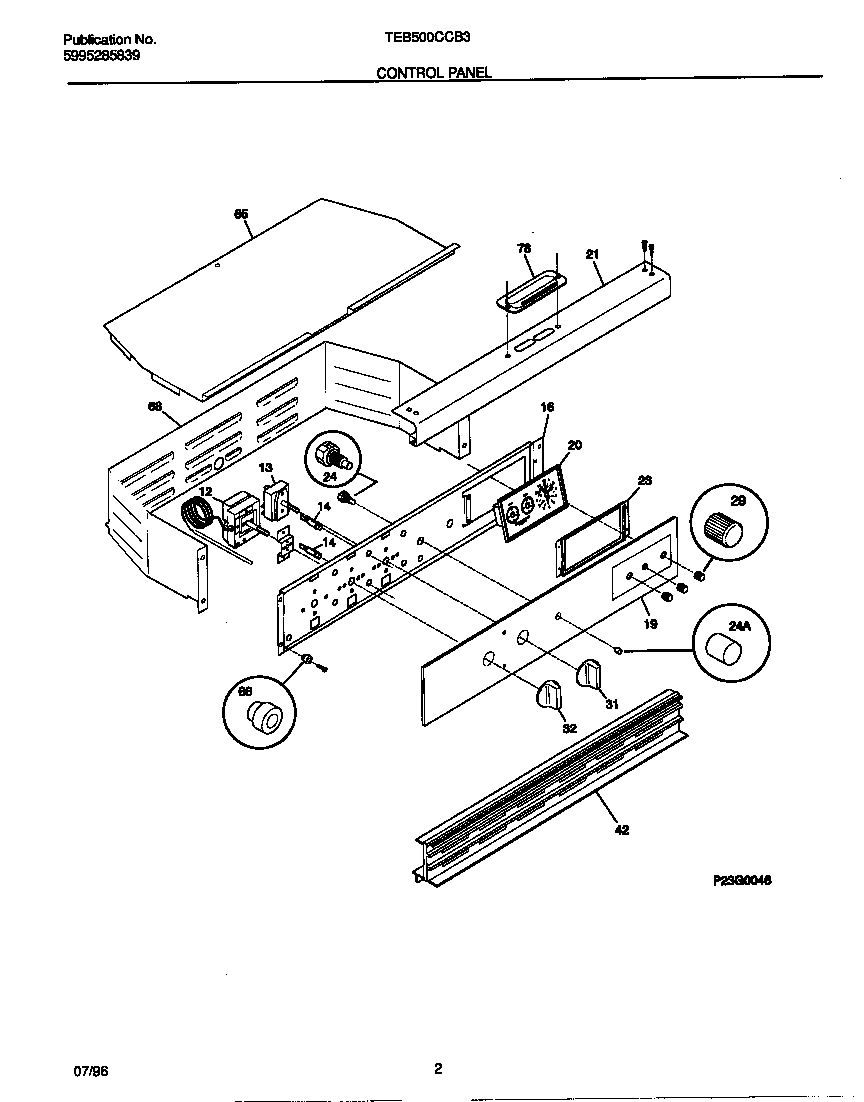

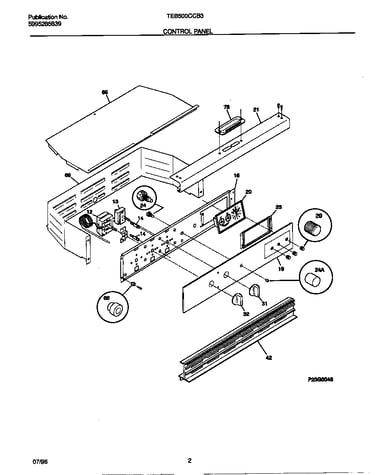

Control panel diagram

Screw

Part #5303292005

This item is not returnable
In Stock
Wall Oven Door Hinge Receiver 3201631
#86

Body diagram

Wall oven door hinge receiver

Part #3201631

In Stock
Range Screw 5303308456

#NI

All parts diagram

Range screw

Part #5303308456

In Stock
Control Housing 5303302397
#68

Control panel diagram

Control housing

Part #5303302397

In Stock
