White-Westinghouse
Dehumidifier

Model # MED40P3 Official White-Westinghouse dehumidifier - 5995242152

Here are the diagrams and repair parts for Official White-Westinghouse MED40P3 dehumidifier - 5995242152, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 56 parts  |

Relay 5303273998
#6

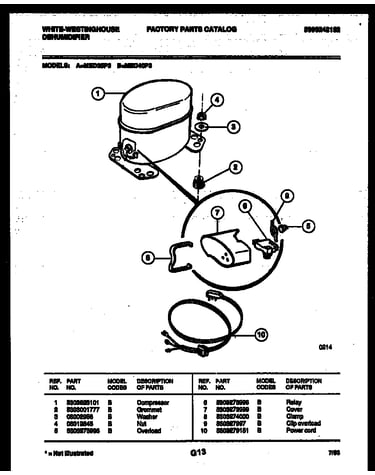

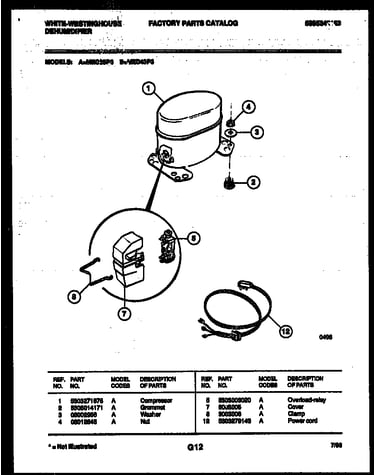

Compressor parts diagram

Relay

Part #5303273998

Replaced by #216594300

?
Manufacturer substitution
This part replaces 5303273998. Substitute parts can look different from the original.
$53.69
9% OFF Phone Price : $58.69
In Stock
Screw 08016435
Screw

Part #08016435

This item is not returnable
In Stock
Electronic Harness 5303289839
#33

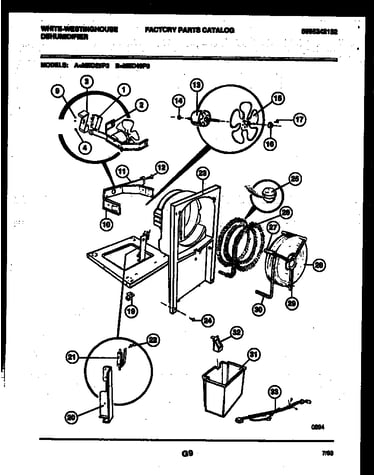

Air, water and condensing parts diagram

Electronic harness

Part #5303289839

In Stock
Room Air Conditioner Lock Nut 08007481
#14

Air, water and condensing parts diagram

Room air conditioner lock nut

Part #08007481

This item is not returnable
In Stock
Screw 3001801
#4

Air, water and condensing parts diagram

Screw

Part #3001801

Replaced by #5303007620

?
Manufacturer substitution
This part replaces 3001801. Substitute parts can look different from the original.
In Stock
Screw 5308007473
#17

Air, water and condensing parts diagram

Screw

Part #5308007473

Replaced by #5304455651

?
Manufacturer substitution
This part replaces 5308007473. Substitute parts can look different from the original.
In Stock
Screw 08007670
#22

Air, water and condensing parts diagram

Screw

Part #08007670

The manufacturer no longer makes this part, and there's no substitute part

Evaporator 5303279277
#28

Air, water and condensing parts diagram

Evaporator

Part #5303279277

The manufacturer no longer makes this part, and there's no substitute part

Light Lens 08012705
#6

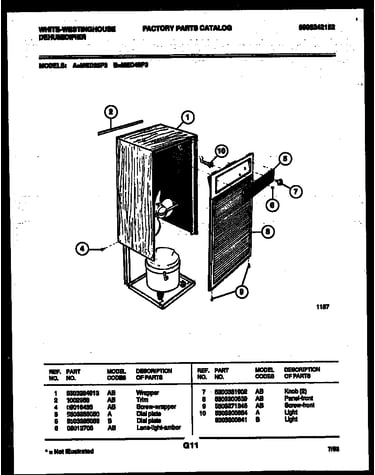

Cabinet and control parts diagram

Light lens

Part #08012705

The manufacturer no longer makes this part, and there's no substitute part

Clip Overload 530327997
#9

Compressor parts diagram

Clip overload

Part #530327997

The manufacturer no longer makes this part, and there's no substitute part
