Frigidaire FFLE39C1QW0 stacked laundry center Parts

For the Frigidaire FFLE39C1QW0 stacked laundry center, the most common reason clothes stay damp is restricted airflow from the lint screen through the vent to the outdoor hood. Fixing venting issues (crushed duct, long run, clogged hood) usually restores normal drying and prevents overheating.

• Clean the lint screen before every load; do not run the dryer with a blocked, damaged, or missing screen.
• Confirm the dryer exhausts outdoors and the outdoor hood damper opens freely.
• Replace plastic or foil venting with 4-inch rigid or semi-rigid metal duct.
• Check the vent hose behind the unit for kinks, crushing, or a loose connection.
• Remove lint buildup at the outdoor exhaust opening and the surrounding area.

Your installation should use a 4-inch (102 mm) metal duct and an approved vent hood with a swing-out damper. Keep at least 12 inches (30.5 cm) of clearance between the vent hood and the ground or other obstructions. Review the venting section in the installation guide.

If airflow is good and drying is still poor, a heat-limiting device may be opening due to overheating or may have failed. On this model, common heat-related parts include the dryer inlet thermal limiter 137032600 and the dryer thermal limiter 134120900. Always correct airflow problems first so the replacement part does not fail again.

Restricted venting can cause excessive drying times and overheating. Keeping the exhaust path clear improves drying performance, reduces energy use, and helps protect components like the heating element and thermostats.

Last updated: February 2026

A leak from underneath your Frigidaire FFLE39C1QW0 stacked laundry center is usually caused by a loose or damaged fill hose connection, a drain hose problem (kink, clog, or siphoning), or a leak in the drain pump area. Start by tightening hose connections and checking for cracks or rubbing.

• Unplug the laundry center before inspecting underneath.
• Check and tighten the hot and cold fill hose connections at the faucet and at the washer.
• Confirm the rubber sealing washers are installed inside the hose couplings.
• Inspect the drain hose for kinks, splits, or a loose connection at the pump.
• Look for water tracks or mineral marks to pinpoint the drip path.

If the drain hose standpipe is too short, the washer can siphon and overflow at the drain. For this style of unit, the standpipe must be at least 33 inches (84 cm) high to help prevent siphoning. Use the installation guide to confirm the correct drain hose height and routing for FFLE39C1QW0.

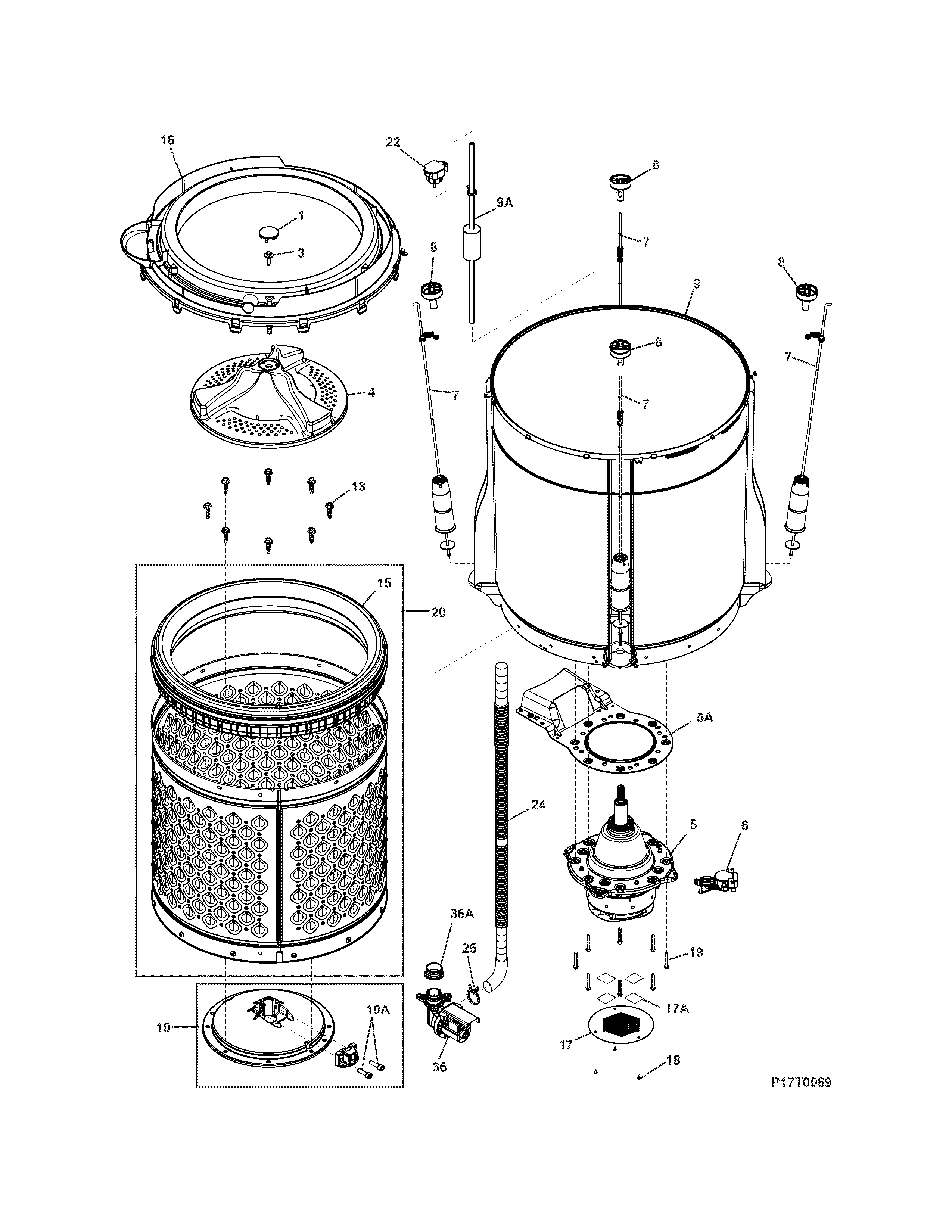

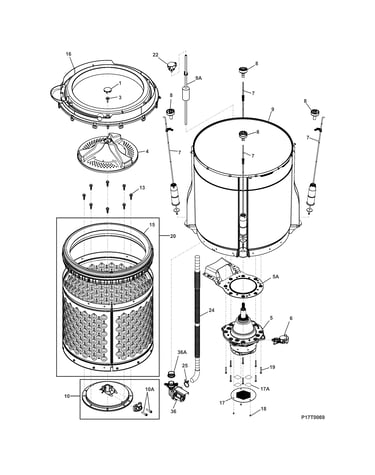

If hoses and the standpipe check out, the next most common “underneath” leak point is the drain pump. On this model, the replacement part to look at is the laundry center washer drain pump 5304524452.

Bottom leaks can quickly damage flooring and can also lead to poor draining or slow draining. Fixing the source early helps prevent bigger issues like repeated overflow at the standpipe or water reaching electrical components.

Last updated: February 2026

Frigidaire front load washers are made under the Frigidaire brand, which is part of Electrolux. For your Frigidaire stacked laundry center model FFLE39C1QW0, the manufacturer family is Electrolux, and Frigidaire is the brand name used on the appliance.

When you’re identifying replacement parts or looking up troubleshooting steps, use the exact model number FFLE39C1QW0. That ensures you match the correct Frigidaire and Electrolux-built design.

• Use the model number on the rating label, not just “Frigidaire”
• Match parts by symptom (won’t heat, won’t tumble, won’t drain)
• Confirm whether you’re working on the washer section or dryer section
• Follow the safety and operating guidance in the owner's manual

These are typical wear items on a stacked laundry center like FFLE39C1QW0 (availability varies):

Electrolux ownership matters because it helps explain why Frigidaire parts, wiring layouts, and troubleshooting steps are consistent across many Frigidaire and related-brand laundry products. Using the correct model number keeps you from ordering a similar-looking part that does not fit.

Last updated: February 2026

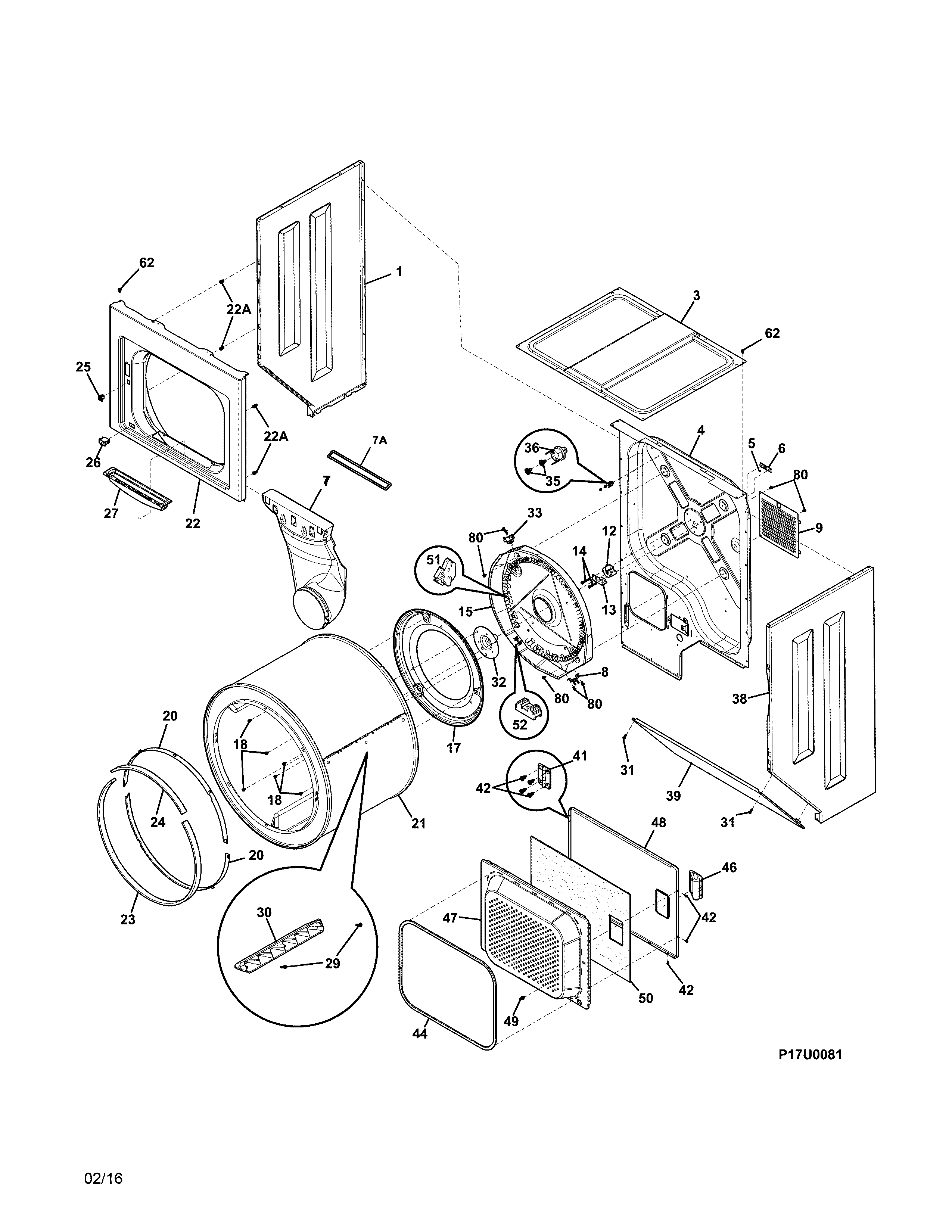

On the Frigidaire FFLE39C1QW0 stacked laundry center, the “front panel” most people remove is the dryer front access panel (used for venting and quick service access). You remove it by taking out the retaining screws, lifting the panel to release the tabs, then pulling it off; see the installation guide for the exact fastener locations.

• Unplug the laundry center or switch off power at the breaker.
• Pull the unit forward enough to work safely and avoid stressing the vent.
• Remove the retaining screws that secure the front access panel to the cabinet.
• Lift the panel upward until the tabs disengage from the cabinet.
• Pull the panel away and set it aside.
• Reinstall by engaging the tabs first, then lowering the panel and reinstalling the screws.

This model is a stacked unit; the installation instructions describe removing the dryer front access panel for venting access. “Washer front panel” removal is a deeper cabinet disassembly and is handled differently.

• Keep the unit upright; use two people if you need to tip or reposition it.
• Support the panel as you lift it so tabs do not crack.
• Do not pull on wiring; if you see harnesses attached, stop and reposition the panel.

Removing the correct panel prevents broken tabs and stripped screws, and it gives you the right access for venting and common dryer service tasks on the FFLE39C1QW0.

Last updated: February 2026
