KitchenAid KOSC504ESS01 electric oven Parts

To reset your KitchenAid wall oven model KOSC504ESS01, we recommend doing a power reset: turn the oven off, cut power at the breaker for about 1 minute, then restore power. This clears many control glitches, blank displays, and unresponsive keypads.

Quick reset steps (power reset)

• Press Cancel/Off to stop any active cooking cycle.
• Turn OFF the oven circuit breaker (or remove the fuse) for 60 seconds.
• Turn the breaker ON.
• Wait for the control to fully reboot; the display may be blank briefly.
• Set the clock if prompted.

If the reset does not fix it

A reset helps when the control is “stuck”, but it will not correct a failed part. Check these common causes:

• Oven will not heat: a failed bake element is common; inspect for blisters or breaks on the range bake element WPW10207398.
• Cooling fan runs constantly or is noisy: the blower can be the issue; listen for grinding or rattling from the oven blower assembly WPW10176670.
• Door will not unlock after self-clean: the lock mechanism can bind or fail; the range oven door lock assembly WPW10195934 is the typical fix.
• Display or keypad still unresponsive: a control or membrane switch problem is likely (wiring and connectors also matter).

What the reset actually does (and why it matters)

A breaker reset removes power from the electronic control board so it can reboot and reload its normal operating state. This often restores normal operation after a power flicker, error condition, or a frozen touch response.

Reset vs repair: what to expect

Situation	Reset helps?	What to check next
Blank or frozen display	Yes	Power supply, control connections
Oven not heating	Sometimes	Bake element, wiring, control output
Door locked after clean	Sometimes	Door lock assembly, latch alignment
Fan noise or overheating	No	Blower assembly, airflow obstructions

Related troubleshooting help

For error-code and control-related symptoms, we use this as a starting point for KitchenAid diagnostics: KitchenAid slide-in electric range error codes.

Last updated: February 2026

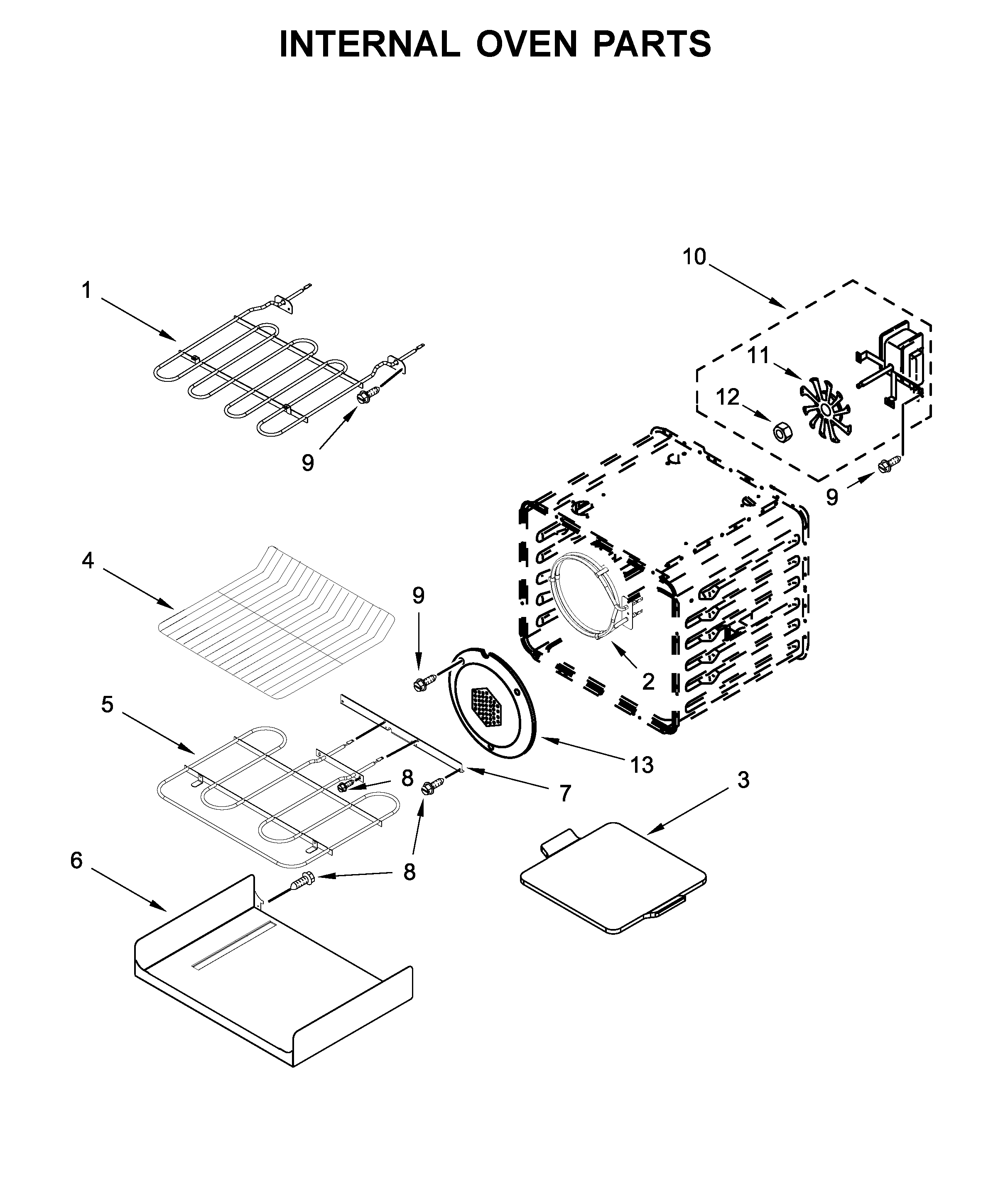

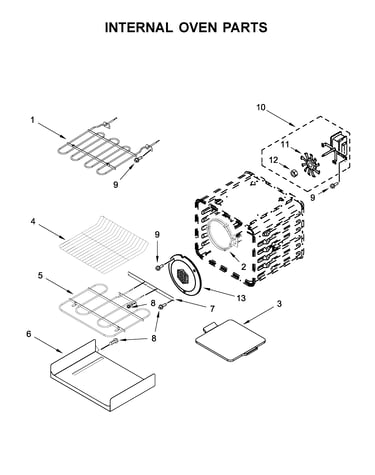

An electric oven like the KitchenAid KOSC504ESS01 is built around heating elements, airflow parts, lighting, and door hardware that work together to heat evenly and safely. The most common service parts include the bake element, convection fan parts, control components, and door hinges or locks.

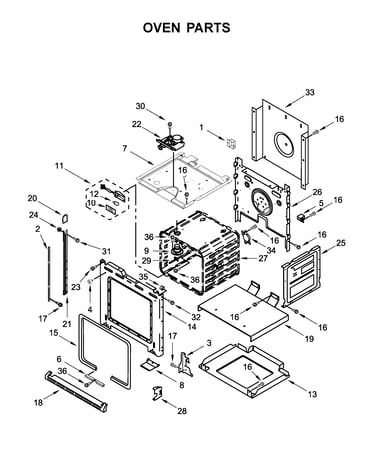

Core parts you will find in most electric wall ovens

• Bake element: primary heat source for baking (bottom of the oven cavity)
• Broil element: high-heat top element for broiling and browning
• Convection system: fan motor, fan blade, and fan cover to circulate hot air
• Temperature sensing and controls: sensor, wiring harness, and electronic control board

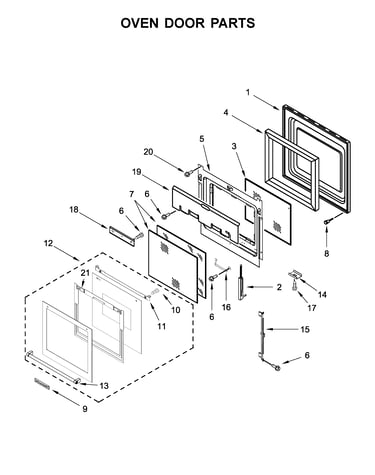

• Door system: hinges, gasket/bumper, and (on some models) a door lock for self-clean
• Lighting: oven light bulb and lens/cover
• Racks and rack supports: hold cookware at different positions

Examples of model-related parts for KOSC504ESS01

These are common parts customers replace when an oven will not heat, runs hot, or has door issues:

Symptom	Common part involved	Example part for this model
Oven will not bake or heats unevenly	Bake element	Range bake element WPW10207398
Cooling fan noisy or not running	Blower/cooling fan assembly	Oven blower assembly WPW10176670
Door will not unlock after clean	Door lock assembly	Range oven door lock assembly WPW10195934
Oven light out	Light bulb	Wall oven light bulb WPW10169757
Door not closing smoothly	Door hinge	Oven door hinge WP9760571

Why it matters

Knowing the main oven parts helps you troubleshoot faster and order the right replacement the first time. For example, a weak bake element can cause long preheat times, while a failing blower can lead to overheating around the control area.

Quick safety checks before you inspect parts

• Turn off power at the breaker (wall ovens are typically 240V)
• Let the oven cool completely
• Avoid touching exposed terminals or wiring
• If you smell burning insulation or see melted wiring, stop and have the unit serviced
• Use the model number KOSC504ESS01 when matching parts to your oven

Last updated: February 2026

A KitchenAid wall oven like model KOSC504ESS01 typically lasts 10 to 15 years with normal household use. Lifespan depends most on heat exposure, ventilation, and how often high-heat cycles are used; consistent cleaning and prompt repair of heating or cooling issues extend service life.

Typical lifespan and what affects it

Most electric wall ovens fall into a predictable range; the difference between 8 years and 18 years is usually maintenance and operating conditions.

• Heavy use (daily baking/roasting) shortens lifespan faster than occasional use
• Frequent self-cleaning and high-heat use accelerates wear on electronics and door components
• Poor cabinet ventilation can overheat the control area
• Power surges can damage the control board and membrane switch
• Ignoring early symptoms (slow preheat, uneven baking, noisy fan) leads to bigger failures

What usually fails first (and what it looks like)

These are common wear items and symptoms we see on electric wall ovens.

Symptom	Likely area	Example part for KOSC504ESS01
Long preheat or no bake heat	Bake heating circuit	Range bake element WPW10207398
Oven shuts down or runs hot around controls	Cooling/airflow	Oven blower assembly WPW10176670
Door won’t unlock after clean	Door lock system	Range oven door lock assembly WPW10195934
Oven light out	Lamp	Wall oven light bulb WPW10169757

Maintenance that adds years

We recommend these habits to reduce stress on the heating system, door, and electronics.

• Keep the door gasket area clean so the door seals tightly
• Avoid running back-to-back high-heat cycles when possible
• Use cookware that fits the rack and allows airflow (reduces hot spots)
• If you notice slow preheat, test and replace the bake element early
• Make sure the cooling fan runs during and after baking; address unusual fan noise promptly

Why it matters

A wall oven is built to be repaired; replacing a failed heating element, blower, or door lock at the right time often restores normal performance and helps you reach the full 10 to 15 year lifespan.

Last updated: February 2026
