White-Westinghouse
Electric Wall Oven

Model # KB122G4 Official White-Westinghouse built-in oven - lw32087060

Here are the diagrams and repair parts for Official White-Westinghouse KB122G4 built-in oven - lw32087060, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 81 parts  |
Clip 145T025P01

#NI

All parts diagram

Clip

Part #145T025P01

Replaced by #5303284616

?
Manufacturer substitution
This part replaces 145T025P01. Substitute parts can look different from the original.
This item is not returnable
$9.59 |
9% OFF Phone Price : $10.59
In Stock
Wall Oven Broil Element 220T017P02
#17

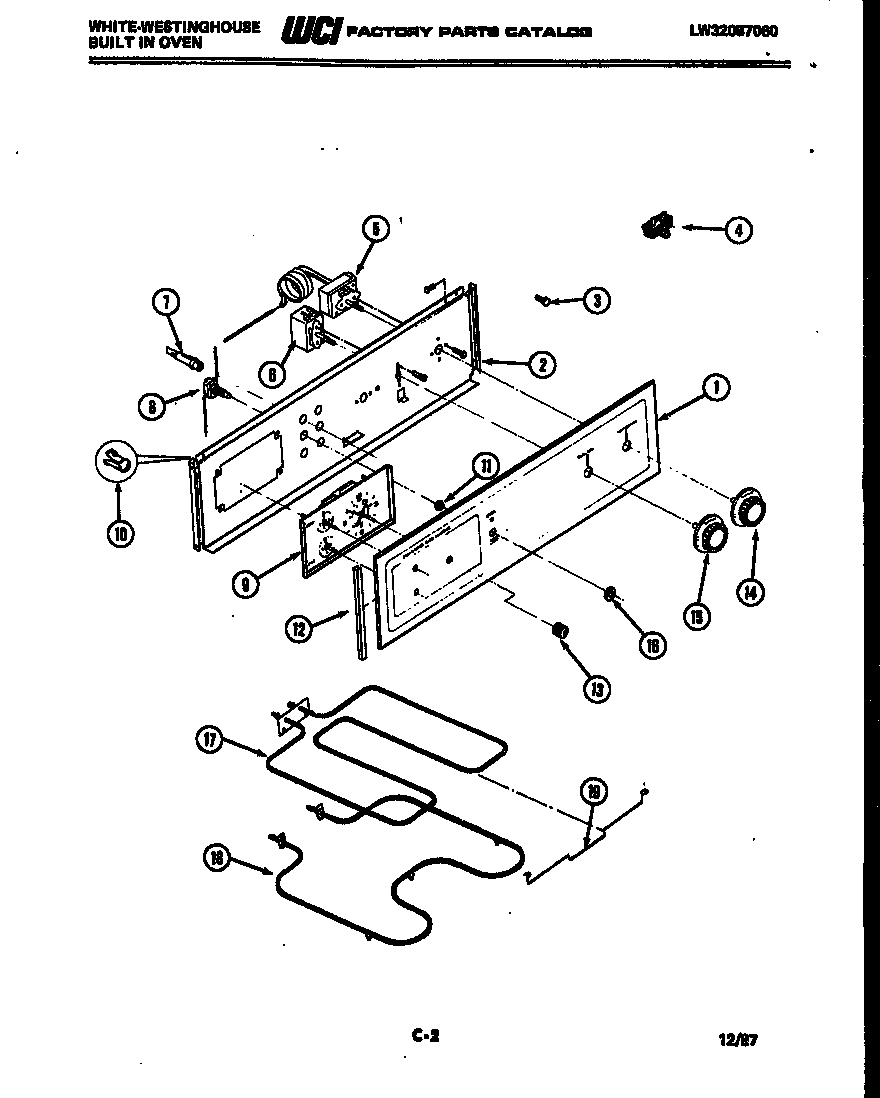

Broiler parts and control panel diagram

Wall oven broil element

Part #220T017P02

$121.49 |
9% OFF Phone Price : $133.49
In Stock
Screw 636T096P23
#3

Broiler parts and control panel diagram

Screw

Part #636T096P23

Replaced by #5303292005

?
Manufacturer substitution
This part replaces 636T096P23. Substitute parts can look different from the original.
This item is not returnable
$4.92
In Stock
Cap 123T065P03
#16

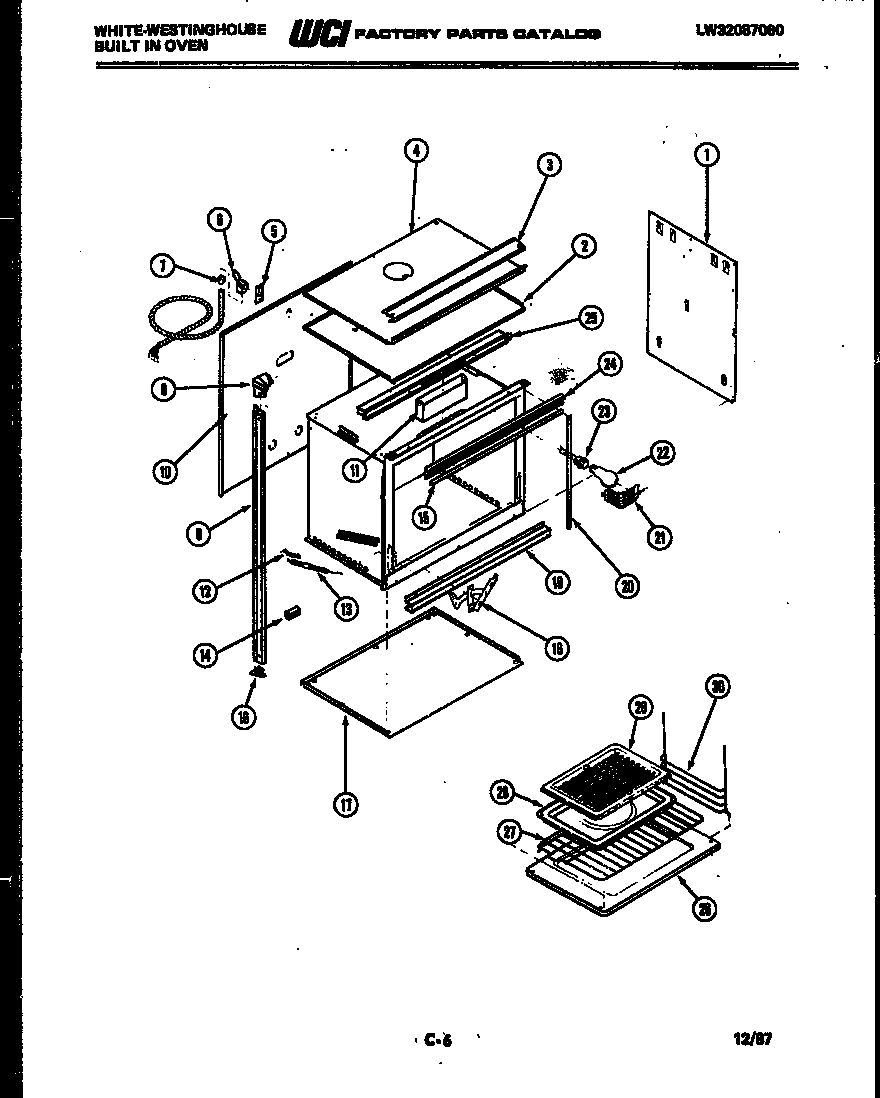

Body parts diagram

Cap

Part #123T065P03

The manufacturer no longer makes this part, and there's no substitute part

Cap 123T065P04
#16

Body parts diagram

Cap

Part #123T065P04

The manufacturer no longer makes this part, and there's no substitute part

Spacer 665T127P01
#12

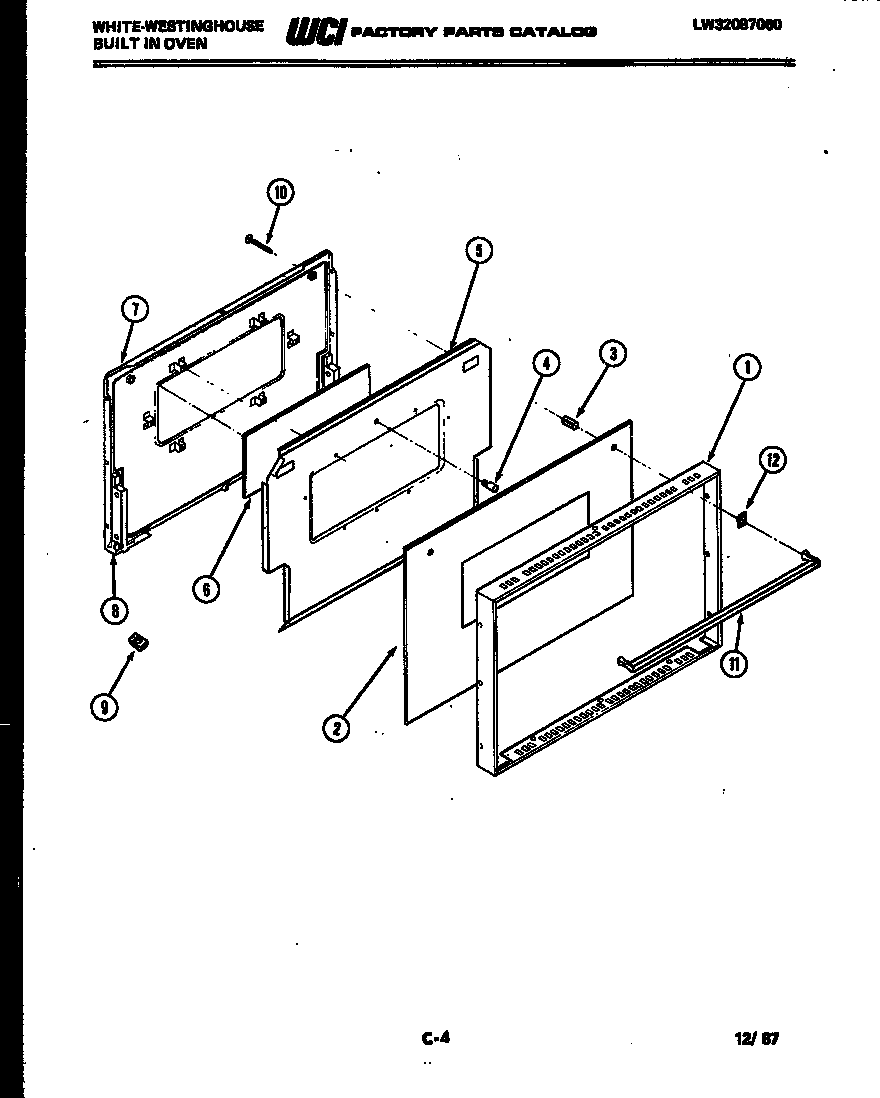

Door parts diagram

Spacer

Part #665T127P01

The manufacturer no longer makes this part, and there's no substitute part

Switch 695T164P10
#8

Broiler parts and control panel diagram

Switch

Part #695T164P10

The manufacturer no longer makes this part, and there's no substitute part

Bracket-spring Adj L And R (2) 072T476F01
#12

Body parts diagram

Bracket-spring adj l and r (2)

Part #072T476F01

The manufacturer no longer makes this part, and there's no substitute part

Handle 296T055P09
#11

Door parts diagram

Handle

Part #296T055P09

The manufacturer no longer makes this part, and there's no substitute part

Thermostat 720T031P10
#5

Broiler parts and control panel diagram

Thermostat

Part #720T031P10

The manufacturer no longer makes this part, and there's no substitute part
