Model #GLEH1642FS4 Official Frigidaire stacked laundry center
Here are the diagrams and repair parts for Frigidaire GLEH1642FS4 stacked laundry center, as well as links to manuals and error code tables, if available.
There are a couple of ways to find the part or diagram you need:
- Click a diagram to see the parts shown on that diagram.
- In the search box below, enter all or part of the part number or the part’s name.
Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.
We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.
For DIY troubleshooting advice and repair guides, visit our repair help section.

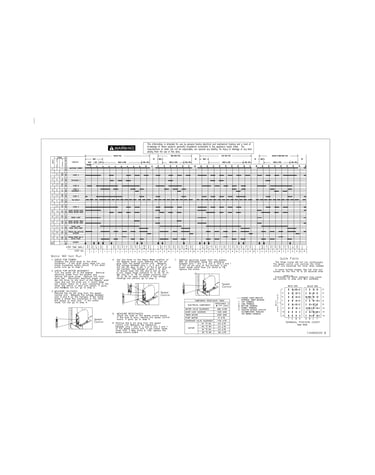

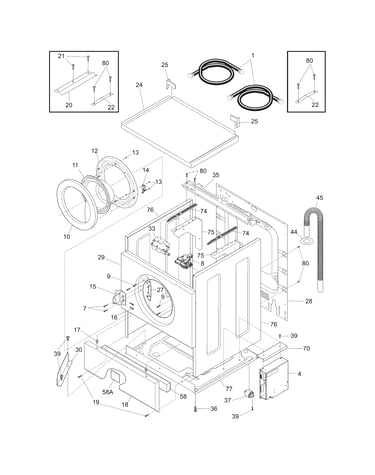

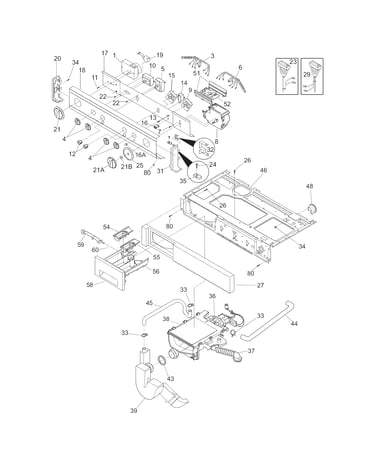

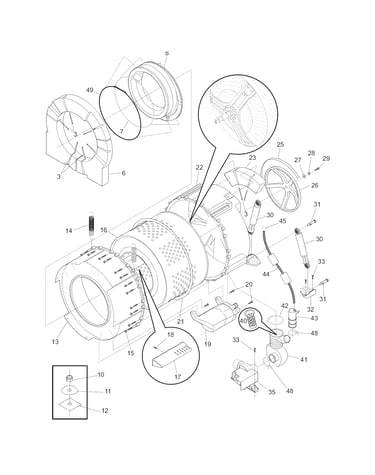

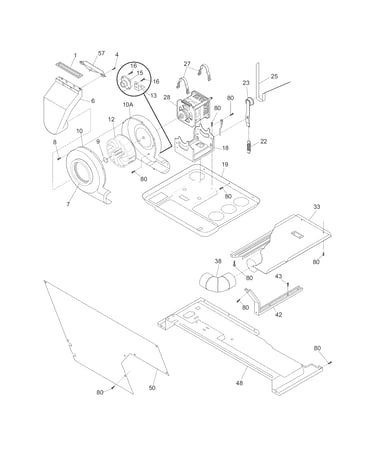

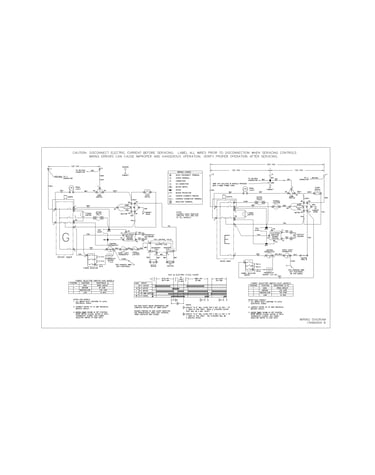

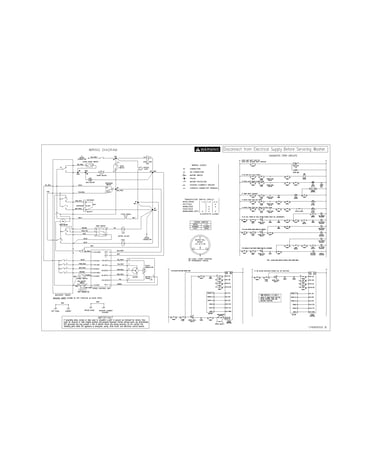

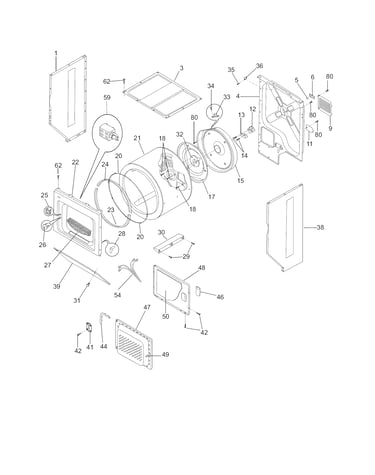

Model Diagram and Schematics
Search within this model
?
This is the number corresponding to the part on the diagram / schematic
Parts List
Showing 10 of 201 parts
Dryer drum belt
Part #134503900
Replaced by #134503600
?
Manufacturer substitution
This part replaces 134503900. Substitute parts can look different from the original.
In Stock
$14.79 |
18% OFF
MSRP: $18.00
Dryer lint filter
Part #131359600
Replaced by #5304516871
?
Manufacturer substitution
This part replaces 131359600. Substitute parts can look different from the original.
In Stock
$39.61 |
11% OFF
Phone Price: $44.61
Dryer drum bearing (replaces 5303281008, q000143951, wq143951)
Part #131825900
This item is not returnable
In Stock
$5.59 |
15% OFF
Phone Price: $6.59
Door lock switch
Part #131763245
Replaced by #131763256
?
Manufacturer substitution
This part replaces 131763245. Substitute parts can look different from the original.
In Stock
$121.56 |
8% OFF
Phone Price: $131.56
Shock absorber
Part #134999010
Replaced by #5304485917
?
Manufacturer substitution
This part replaces 134999010. Substitute parts can look different from the original.
In Stock
$34.55 |
13% OFF
Phone Price: $39.55
Dryer high-limit thermostat (replaces 73204267)
Part #3204267
In Stock
$72.98 |
6% OFF
Phone Price: $77.98
Dryer drum glide
Part #131963900
Replaced by #137513300
?
Manufacturer substitution
This part replaces 131963900. Substitute parts can look different from the original.
In Stock
$28.98 |
15% OFF
Phone Price: $33.98
Dryer idler assembly
Part #131863100
Replaced by #5304507499
?
Manufacturer substitution
This part replaces 131863100. Substitute parts can look different from the original.
In Stock
$34.09 |
13% OFF
Phone Price: $39.09
In Stock
$49.89 |
9% OFF
Phone Price: $54.89
Recommended maintenance parts and accessories
Symptoms common to all laundry centers
Main causes: unbalanced load, broken suspension springs or shocks, worn snubber ring
Main causes: door not fully shut, bad door switch, faulty push-to-start switch, wiring failure, bad drive motor, blown fuse, control failure
Main causes: clogged drain system, blocked drain hose, bad drain pump
Main causes: broken lid switch or lid lock, faulty drive motor, drain system problem, broken drive system components
Main causes: control system failure, broken heating element, bad gas valve coils, gas supply failure, voltage supply problem, blown fuse
Main causes: broken dryer drive belt, weak drive motor, binding drum seals
Main causes: blocked exhaust vent, clogged lint screen, bad timer, moisture sensing problems, weak gas valve coils, bad heating element
Main causes: bad lid switch or lid lock, drive motor failure, broken motor coupler, bad timer, faulty electronic control board
Main causes: lack of water supply, failed lid switch or lid lock, bad water level pressure switch, control system failure, bad water valve
