For Kenmore refrigerator model 10686392310, the most reliable way to get the exact cubic-foot capacity is to look it up in the product specifications section of the 10686392310 use and care guide. If you cannot find the capacity listed, you can estimate it by measuring the interior and converting cubic inches to cubic feet.

Use the model number the right way

The model number helps you pull the correct spec sheet or manual, but it usually does not translate directly into cubic feet.

• Use the full model number: 10686392310 (all digits matter)
• Check the rating label inside the fresh food section for the model and serial
• Look in the manual for “capacity,” “product dimensions,” or “specifications”
• If you only find exterior dimensions, use the measurement method below for an estimate

How to estimate cubic feet by measuring the interior

Measure the usable interior space (not the outside cabinet). Use inches.

• Fresh food section: width x depth x height
• Freezer section: width x depth x height
• Multiply each section to get cubic inches
• Add the two sections together
• Divide by 1,728 (12 x 12 x 12) to convert to cubic feet

Quick formula

What you measure	Math	Result
Total interior volume	(L x W x H) in inches	cubic inches
Convert to cubic feet	cubic inches ÷ 1,728	cubic feet (estimated)

Why your estimate may not match the published capacity

Published capacity is typically based on standardized measurement methods and may differ from “usable” space.

• Shelves, drawers, and air channels reduce usable volume
• Door bins and ice maker components affect storage space
• Interior shapes are not perfect rectangles, so measuring is approximate

Related help for Kenmore refrigerators

If you are using the model number to troubleshoot features (like cooling or controls), our Kenmore 106 model refrigerator error codes guide can help you narrow down symptoms by code.

Last updated: January 2026

On the Kenmore 10686392310 top-mount refrigerator, the upper part is the freezer compartment. It is the section designed to keep foods frozen, and it also supplies cold air that circulates down into the fresh food (refrigerator) compartment.

What you will find in the upper (freezer) section

The freezer compartment typically includes features that help store frozen foods and manage airflow.

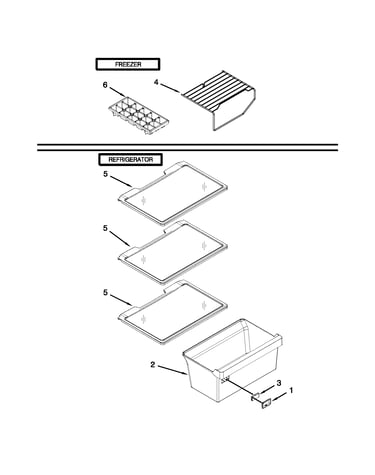

• Freezer shelf (for organizing frozen items)
• Freezer door bins (for smaller packages)
• Air vents that move cold air between freezer and refrigerator sections
• Freezer temperature control (often located on the back wall of the freezer)

How the freezer affects refrigerator cooling

This model uses airflow between compartments: cool air enters and circulates through the freezer, and some of that air moves into the refrigerator section through a vent. Blocking vents with food packages can cause warm temperatures in the refrigerator.

Symptom	Common cause in the freezer area	What to do
Refrigerator section too warm	Freezer vents blocked	Clear space around vents and allow airflow
Freezer too warm or low ice production	Freezer control set too warm	Adjust the freezer control slightly colder
Doors do not close easily	Refrigerator not leveled correctly	Adjust front levelers so the cabinet tilts slightly to the rear

Why it matters

Knowing the freezer is the “upper part” helps with troubleshooting. Many cooling complaints that seem like a refrigerator problem (warm fresh food, weak airflow) start with freezer airflow, freezer control settings, or door sealing.

For control locations and recommended settings, use the 10686392310 owner’s manual.

Last updated: January 2026

For Kenmore refrigerator model 10686392310, the correct water filter is the one specified for that exact model in the parts list and documentation. Use your model number to match the filter style and connections, then install and flush the system per the 10686392310 owner's manual.

How to identify the right filter for your refrigerator

Use these checks to avoid ordering the wrong cartridge:

• Confirm the model number on the rating label inside the fresh food compartment: 10686392310
• Check whether your refrigerator uses an internal cartridge filter, an inline filter, or no filter at all
• Match the filter’s physical style (twist-in, push-in, or inline) and end connections
• If ice tastes or smells off, a filter can help with minerals and odor issues (the manual notes minerals such as sulfur may require a filter)
• After installing a new filter, discard the first batches of ice and allow time for fresh ice production

Quick compatibility checklist (what must match)

What you compare	What to look for	Why it matters
Model number	10686392310	Ensures the filter is designed for your exact Kenmore configuration
Filter type	Internal vs inline	Determines where it installs and what fittings it uses
Connection style	Twist-lock, push-in, compression fittings	Prevents leaks and fit issues
Water quality needs	Minerals, odor, taste	Helps decide whether filtration is needed for better ice and water

Installation and first-use tips

These steps prevent air in the line and reduce odd taste after a filter change:

• Turn off the ice maker during the swap if your model has one
• Install the filter fully seated (a partial seat can cause leaks or low flow)
• Flush water through the dispenser if equipped; if not, dump the first 1 to 2 full ice bins
• Expect up to 24 hours for normal ice production after changes or interruptions
• If you have new plumbing connections, discard early ice because it can be discolored or off-flavored

Why it matters

A “close” filter match can still leak, restrict water flow, or fail to filter correctly. Matching by model number first is the most reliable way to get the correct Kenmore water filter and protect the ice maker and water system.
