Samsung RF34H9960S4/AA-02 refrigerator Parts

On the Samsung RF34H9960S4 refrigerator, RD typically means a forced defrost for the refrigerator (fresh food) evaporator only, while FD is a broader forced defrost that runs a full defrost routine (commonly including the freezer side and, on many models, the ice maker heater). These are service-mode options used to quickly melt frost during troubleshooting.

What RD vs. FD does (practical meaning)

When you select a forced defrost option, the refrigerator temporarily changes normal operation to help clear ice buildup.

• RD (refrigerator defrost): Targets frost in the fresh food compartment evaporator area.
• FD (force defrost): More comprehensive; used when icing could involve multiple sections.
• During forced defrost, cooling is interrupted; you may notice fans and the compressor stop.
• Water from melted frost should drain to the drain pan; if it does not, you can get leaks or refreezing.

For model-specific button sequences and display behavior, we recommend using the RF34H9960S4 manual.

Quick comparison

Option	Area affected	Best time to use
RD	Fresh food section	Frost on refrigerator back wall, warm fridge with freezer OK
FD	System-wide defrost routine	Heavy icing, airflow blocked, repeated icing after power reset

Safety and best practices

• Remove or protect perishable food; temperatures can rise during defrost.
• Place towels near the front if you have had water dripping issues.
• Do not chip ice with sharp tools; you can puncture an evaporator or liner.
• If icing returns quickly, check for door seal gaps, blocked vents, or a defrost system problem.

Why it matters

Choosing RD vs. FD helps you defrost the right section faster. RD is useful for targeted fresh food icing; FD is the better choice when you suspect a broader airflow or defrost issue affecting overall cooling.

Last updated: January 2026

For Samsung refrigerators like model RF34H9960S4, the most common service issues we see are cooling problems (fresh food too warm or freezer not freezing), ice maker troubles, and water leaks. These often trace back to airflow restrictions from frost buildup, fan issues, or a sealed-system/compressor problem.

What this usually looks like

• Fridge section warms up but freezer seems closer to normal
• Freezer warms up and ice cream gets soft
• Ice maker stops producing or clumps ice
• Water pooling under crisper drawers or on the floor
• Unusual buzzing, rattling, or clicking sounds

Quick checks we recommend first (no parts yet)

Use these steps before assuming a major failure; they apply well to RF34H9960S4:

• Confirm the unit is not in demo or cooling-off mode (see RF34H9960S4 manual).
• Make sure doors fully seal; a small gap can cause frost and warm temps.
• Set temperatures to typical targets: 37°F fresh food, 0°F freezer.
• Clear blocked vents; do not pack food tightly against rear air towers.
• Vacuum dust from condenser area if accessible.

Common causes and what to suspect

Symptom	Most likely area	Typical next step
Warm fridge, freezer OK	Evaporator airflow or defrost	Check for frost blanket, listen for fan
Warm freezer and fridge	Sealed system or compressor	Verify compressor runs, check error codes
Water under drawers	Defrost drain restriction	Clear drain path and ice buildup
Ice maker not making ice	Water supply or ice maker system	Check water flow, filter, ice room frost

When the compressor becomes the focus

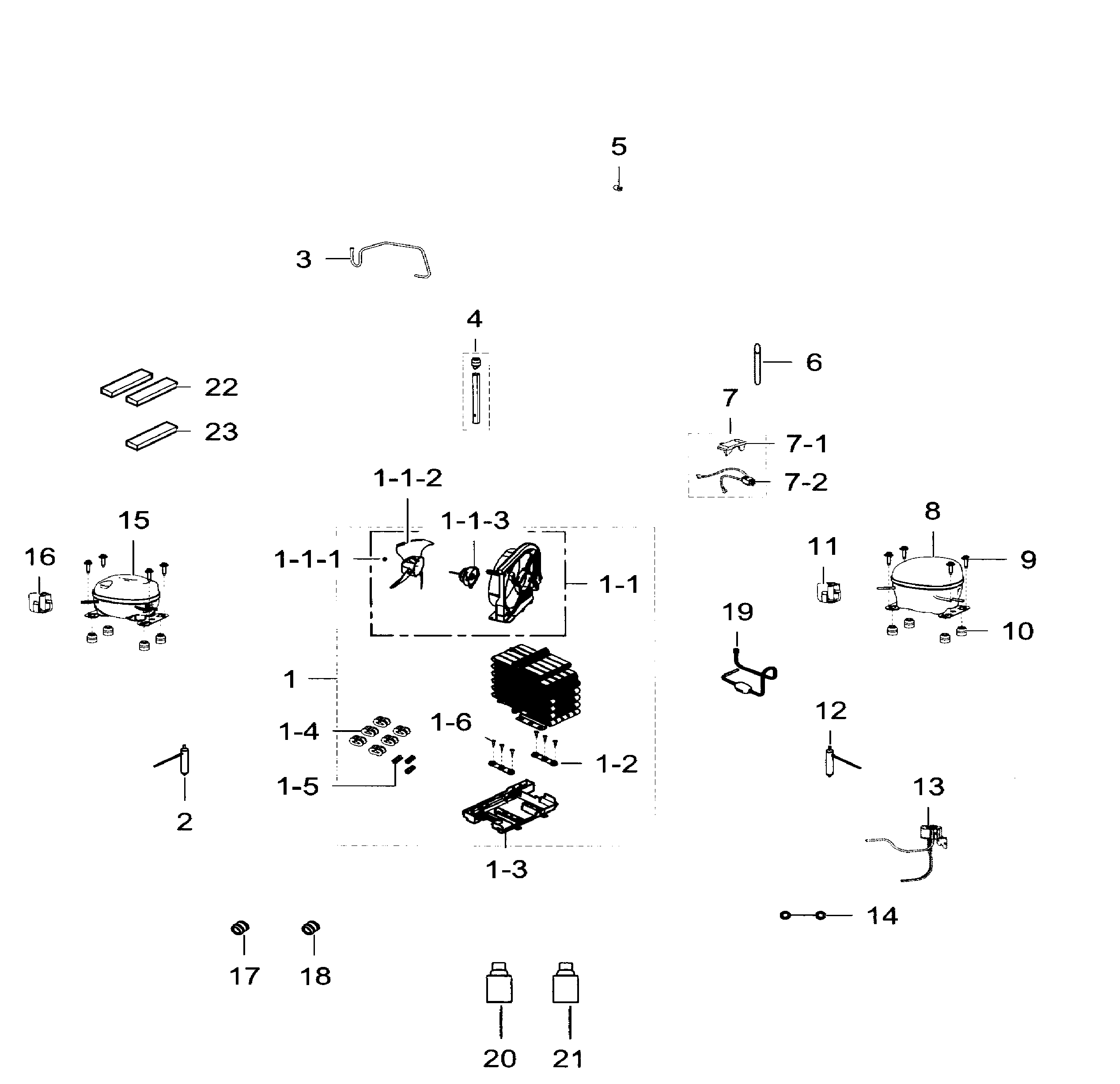

If both compartments are warm and the compressor is not running normally (or runs constantly with poor cooling), the sealed system may need professional diagnosis. For this model, compatible compressor options include Samsung refrigerator compressor MKV190CL2BASH and refrigerator compressor NC1MV43AMPASH.

Why it matters

Cooling and ice issues can look similar, but the fix can range from a simple airflow/defrost correction to a compressor-level repair. Starting with the basic checks helps avoid unnecessary parts and protects food safety.

Last updated: January 2026

On the Samsung RF34H9960S4, a “bottom ice maker” reset typically means the ice maker located in the lower compartment area. We reset it by removing the ice bucket, pressing and holding the ice maker Test button until it chimes, then reinstalling the bucket and allowing time for a harvest cycle. For location details, use the RF34H9960S4 manual.

Steps to reset the lower (bottom-area) ice maker

• Open the lower compartment/drawer where the ice bucket is installed.
• Remove the ice bucket; lift slightly while pulling if it feels stuck.
• Find the Test button on the ice maker module (commonly on the front edge or underside of the ice maker housing).
• Press and hold Test until you hear a chime (often about 3 to 10 seconds).
• Reinstall the ice bucket fully so it seats straight.
• Close the drawer and wait for ice production to resume.

What to check before and after the reset

• Ice Off is not enabled (if your control panel has this option).
• The bucket is fully seated and not jammed by clumped ice.
• The compartment temperature is cold enough for ice making.
• The ice maker mold and fill area are not blocked by frost.
• Give it time; a full recovery can take a few hours.

What you should see after pressing Test

Result	What it usually means	What we recommend
Chime and the mechanism cycles	Test/reset started	Wait for the next fill and harvest
No chime	Button not held long enough or no power to ice maker	Try again, then verify cooling and power
Cycles but no ice later	Water supply or freezing issue	Check water flow, filter condition, and ice blockage

Why it matters

A test/reset forces the ice maker to run a diagnostic harvest cycle. That helps clear minor control glitches and confirms the motor and ejector sequence are responding, which narrows the problem to water supply, temperature, or an ice blockage.

If it still will not make ice

• Verify the household water shutoff valve is fully open.
• If your model has a dispenser, dispense water to confirm flow.
• Look for a frozen fill tube or an ice jam in the mold.
• Use the troubleshooting steps in why your Samsung fridge stopped making ice and how to fix it.

Last updated: January 2026
