Model # WWP1170CAW Official GE portable washer

Here are the diagrams and repair parts for Official GE WWP1170CAW portable washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

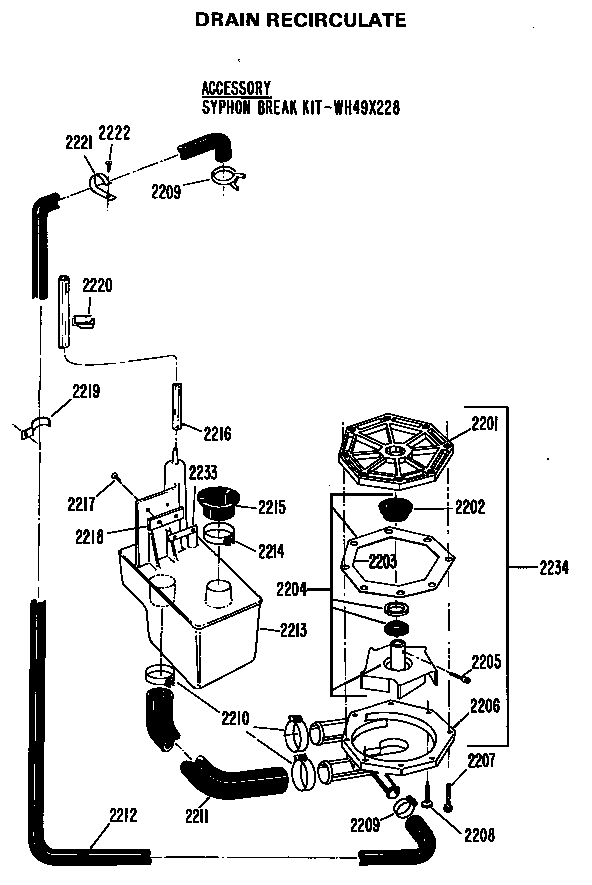

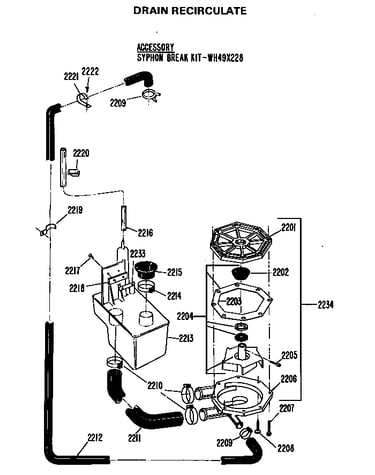

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 158 parts  |
Snap Ring WH1X2321
#2428

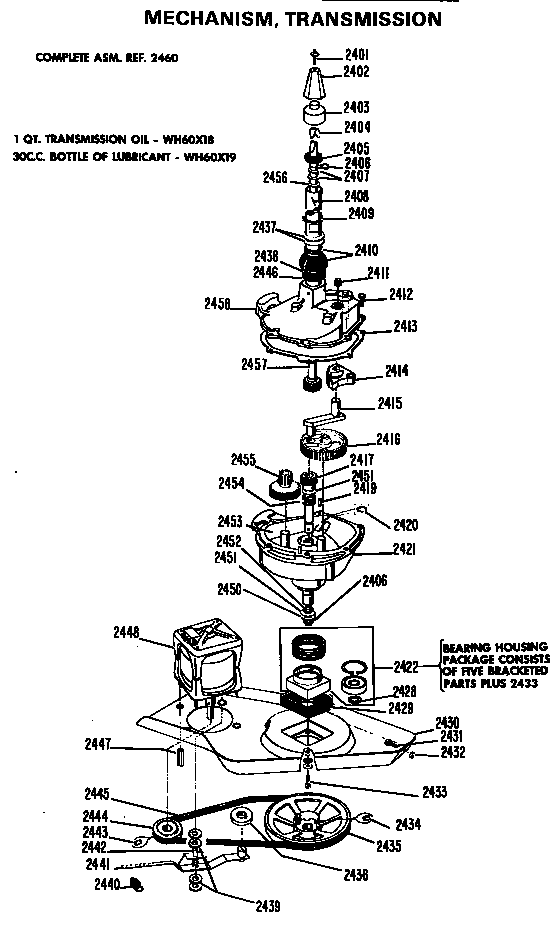

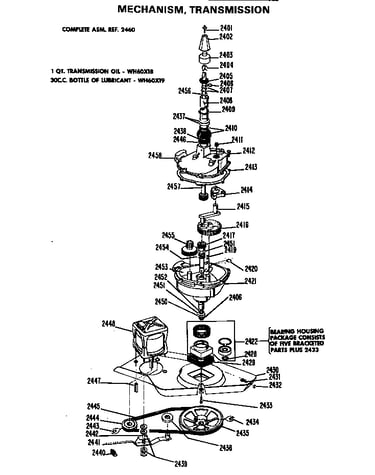

Mechanism, transmission diagram

Snap ring

Part #WH1X2321

This item is not returnable
$2.49
In Stock
Washer Hose Clamp Kit WH1X2036
Washer hose clamp kit

Part #WH1X2036

$11.59 |
15% OFF Phone Price : $13.59
In Stock
Speed Nut WH2X978
#2019

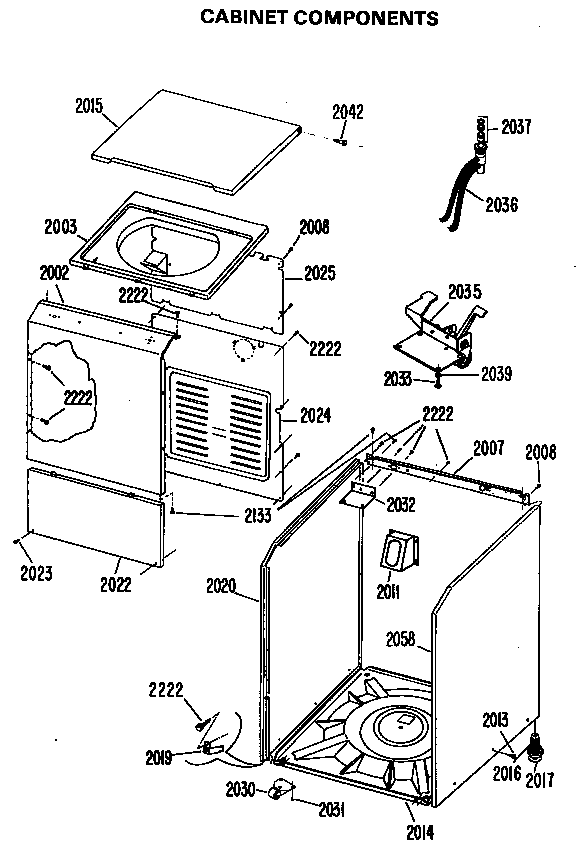

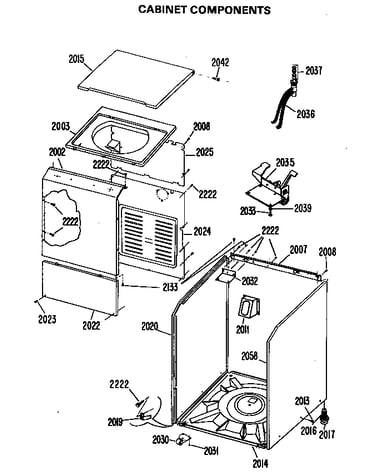

Cabinet components diagram

Speed nut

Part #WH2X978

This item is not returnable
$2.49
In Stock
Felt Washer WH2X1029
#2446

Mechanism, transmission diagram

Felt washer

Part #WH2X1029

This item is not returnable
$2.49
In Stock
Lock Plate WH1X2309
#2309

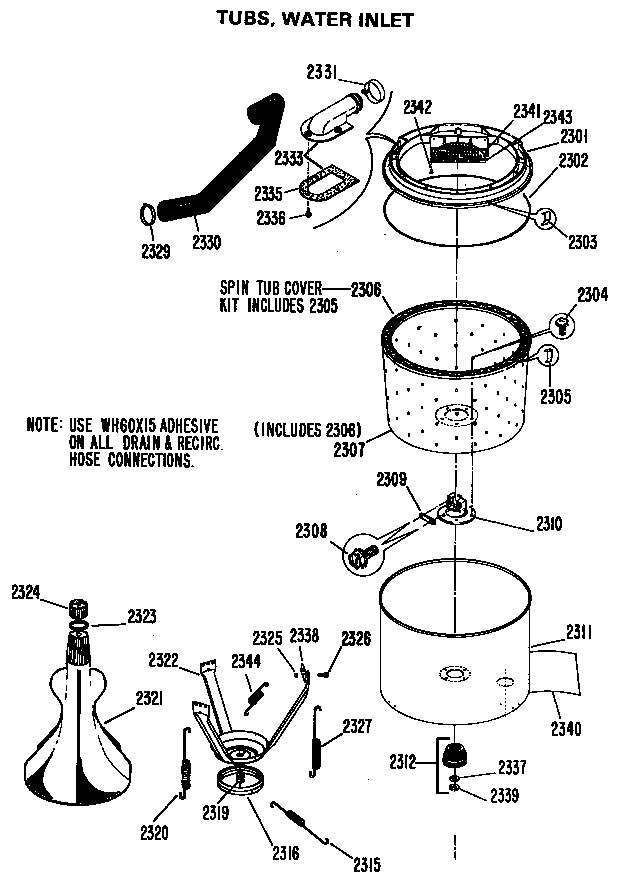

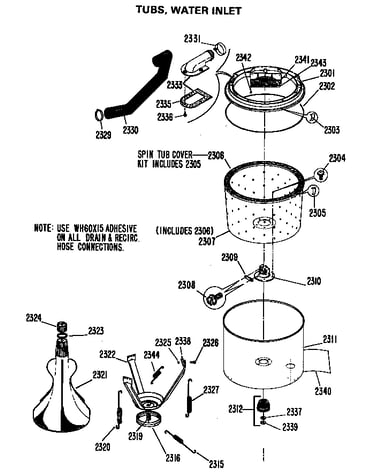

Tubs, water inlet diagram

Lock plate

Part #WH1X2309

$27.49
In Stock
Use And Care Guide 49-9451

#NI

All parts diagram

Use and care guide

Part #49-9451

Replaced by #49-9451-1

?
Manufacturer substitution
This part replaces 49-9451. Substitute parts can look different from the original.
This item is not returnable
$2.29
In Stock
Washer WH2X1026
#2439

Mechanism, transmission diagram

Washer

Part #WH2X1026

The manufacturer no longer makes this part, and there's no substitute part

Retainer Caster WH9X21
#2035

Cabinet components diagram

Retainer caster

Part #WH9X21

The manufacturer no longer makes this part, and there's no substitute part

Hanger Cord WH1X2328
#2132B

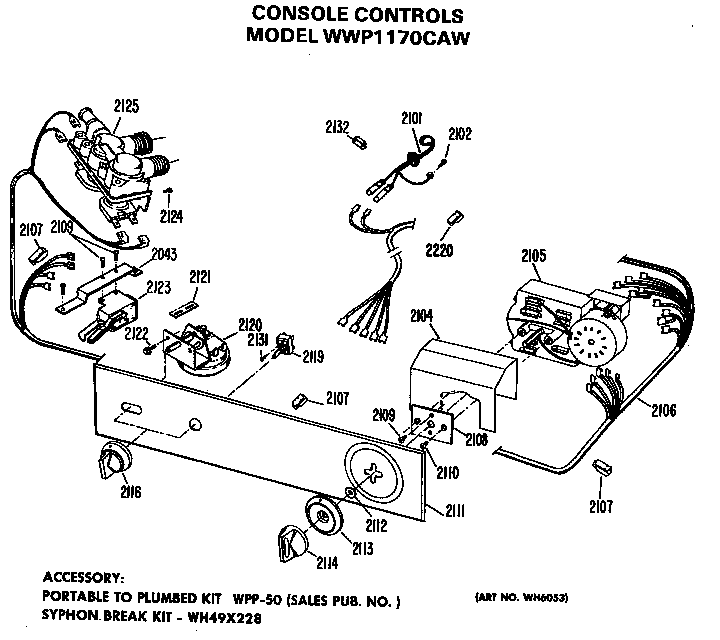

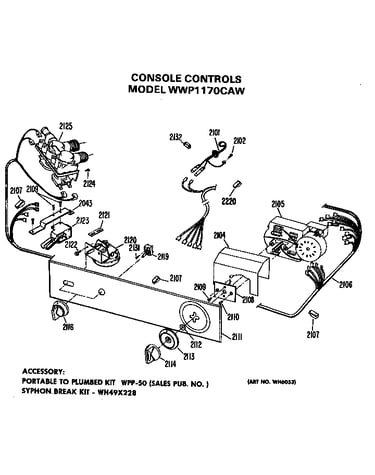

Console controls diagram

Hanger cord

Part #WH1X2328

The manufacturer no longer makes this part, and there's no substitute part

Spacer WH1X2339
#2112

Console controls diagram

Spacer

Part #WH1X2339

The manufacturer no longer makes this part, and there's no substitute part
