Model #WA40J3000AW/A2-11 Official Samsung washer

Here are the diagrams and repair parts for Samsung WA40J3000AW-A2-11 washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

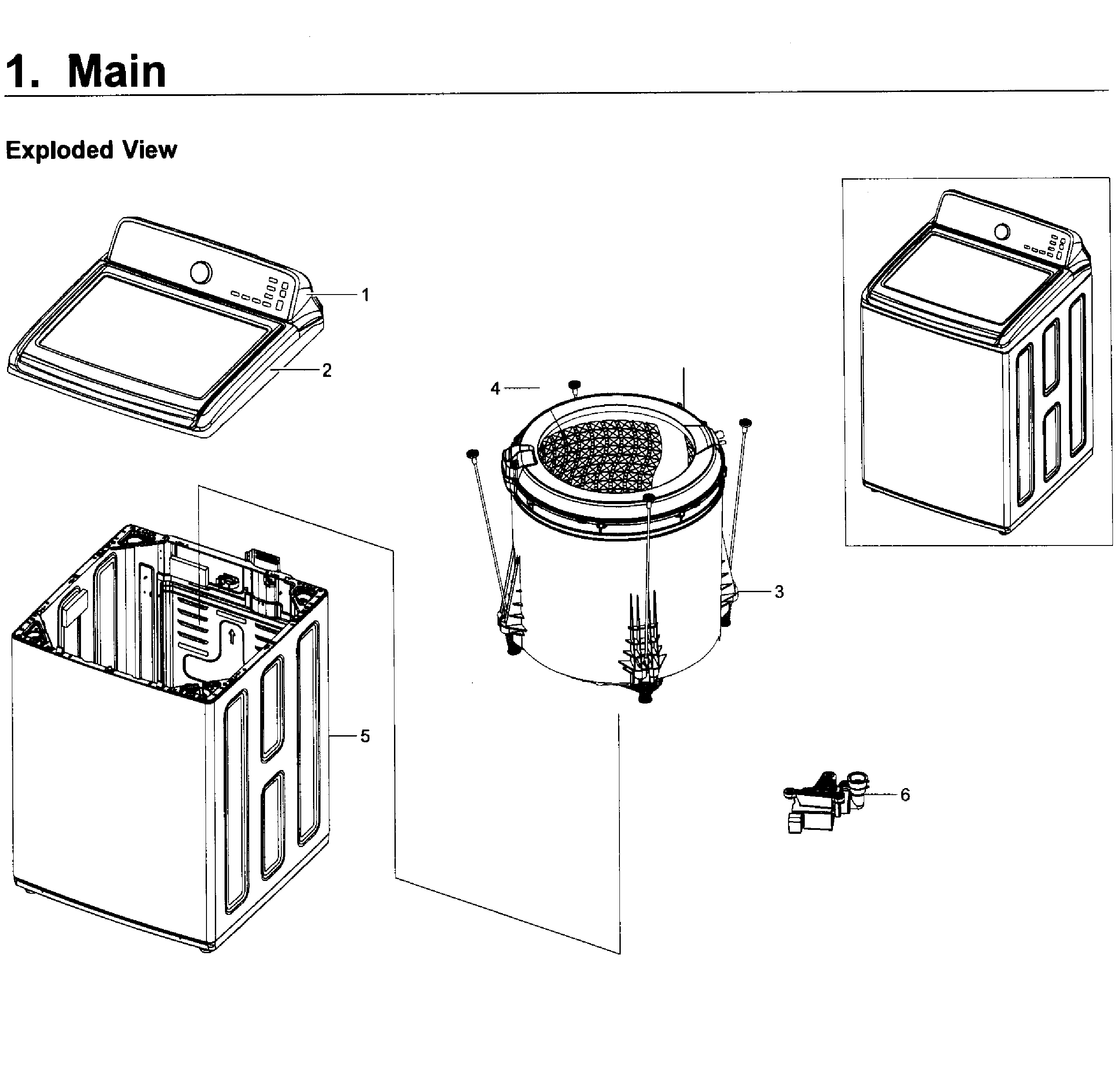

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Showing 10 of 124 parts

Washer Drain Hose (replaces DC97-18682A, DC97-18682B)#6

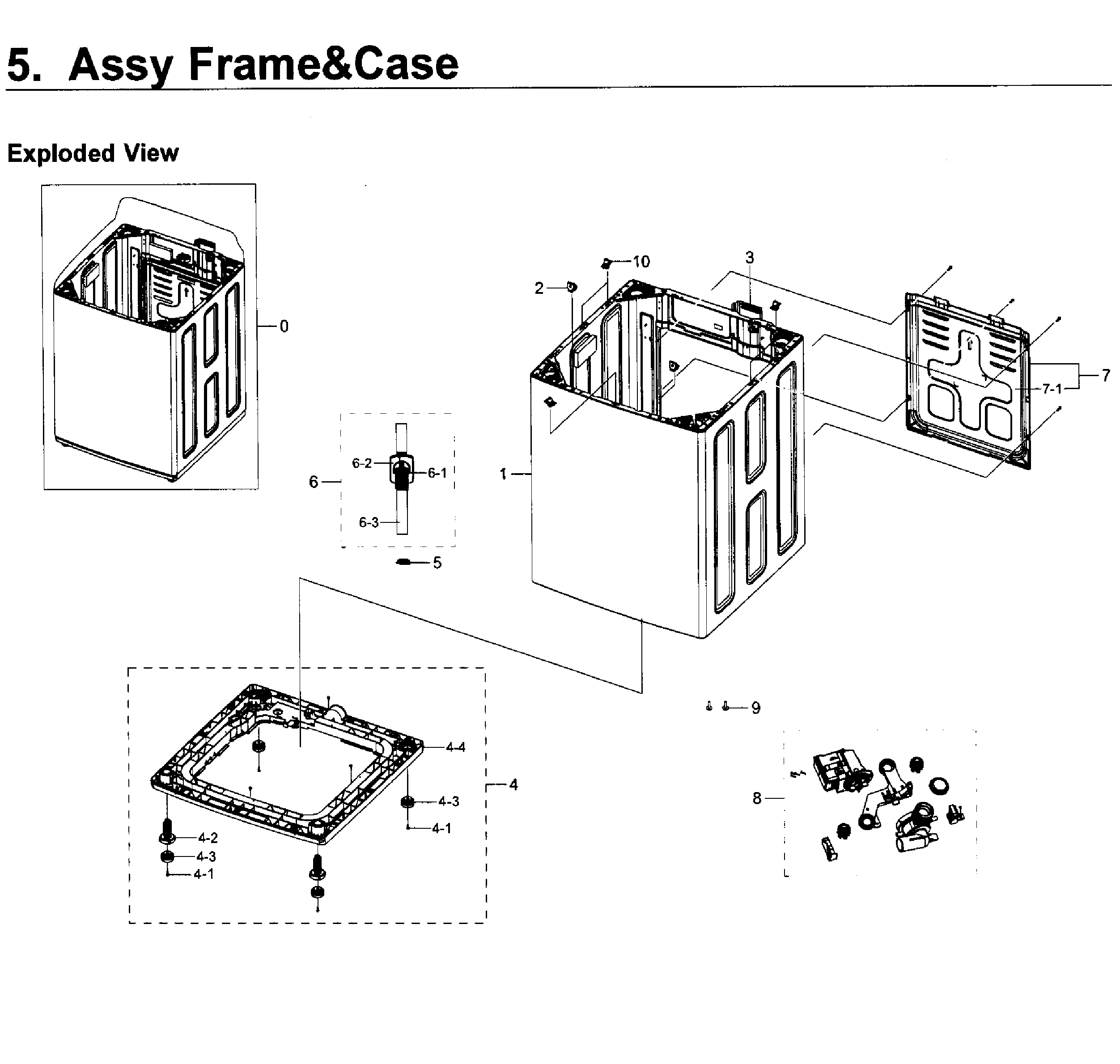

Frame & case Diagram

Washer drain hose

Part #DC97-18682B
Replaced by #DC97-18682D
?
Manufacturer substitution
This part replaces DC97-18682B. Substitute parts can look different from the original.
BEST SELLER
In Stock
$58.73 |
8% OFF
Phone Price: $63.73
Washer Drain Hose (replaces DC97-18682A, DC97-18682B)#6-3

Frame & case Diagram

Drain hose

Part #DC67-00808A
Replaced by #DC97-18682D
?
Manufacturer substitution
This part replaces DC67-00808A. Substitute parts can look different from the original.
BEST SELLER
In Stock
$58.73 |
8% OFF
Phone Price: $63.73
Washer Drain Pump Assembly (replaces DC97-17349B)

See All Related Diagrams

In Stock
$128.79 |
7% OFF
Phone Price: $138.79
Refrigerator Screw

See All Related Diagrams

Refrigerator screw

Part #6002-000213
BEST SELLER
This item is not returnable
In Stock
$2.26
Washer Drive Pulley#2-4

Tub parts Diagram

Washer drive pulley

Part #DC96-01361A
BEST SELLER
In Stock
$24.19 |
17% OFF
Phone Price: $29.19
Washer Thermistor#1-92

Tub parts Diagram

Washer thermistor

Part #DC90-10128N
BEST SELLER
In Stock
$34.27 |
13% OFF
Phone Price: $39.27
Washer Leveling Leg#4-2

Frame & case Diagram

Washer leveling leg

Part #DC61-01722B
BEST SELLER
This item is not returnable
In Stock
$6.09 |
14% OFF
Phone Price: $7.09

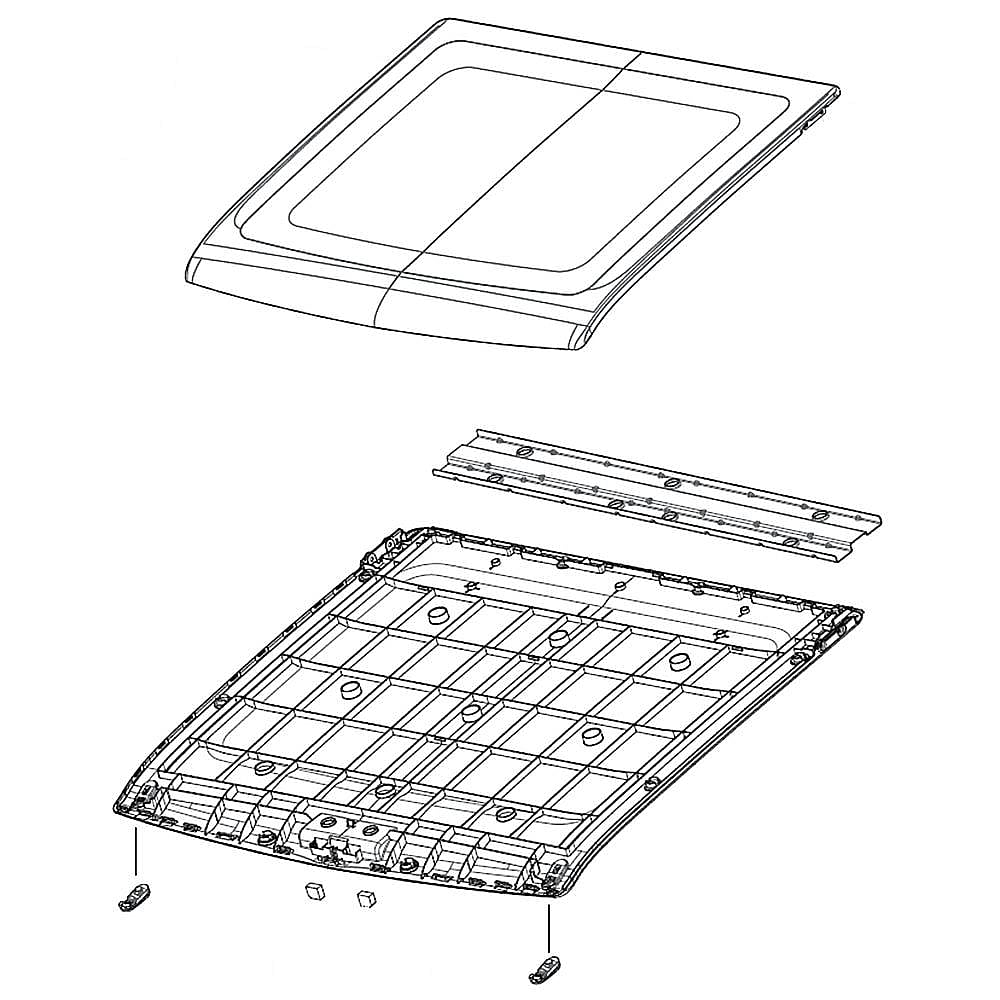

Washer Lid Assembly#1-9

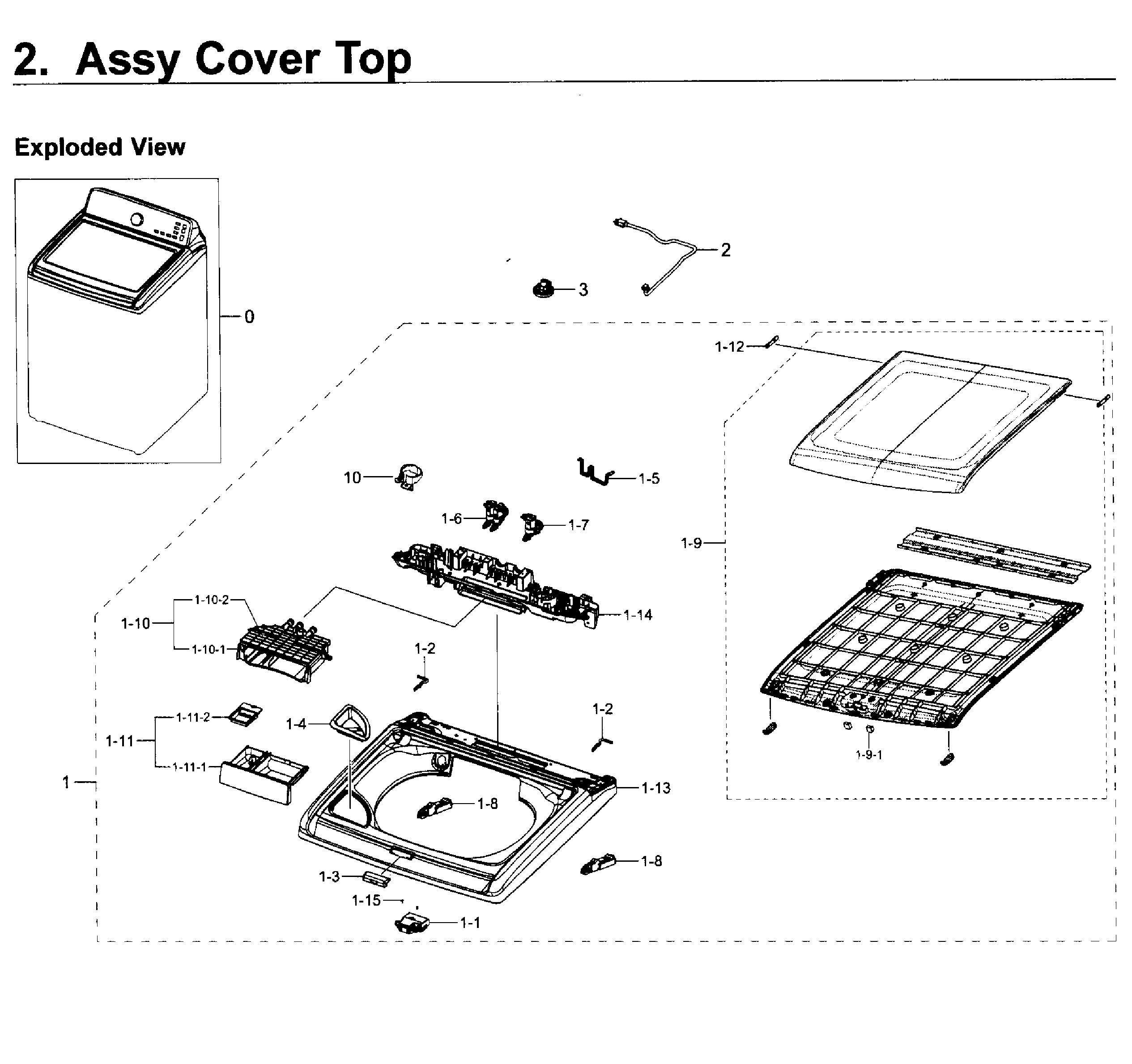

Cover-top Diagram

Washer lid assembly

Part #DC97-17133D
BEST SELLER
In Stock
$137.79 |
7% OFF
Phone Price: $147.79
Washer Bolt#1-3

Tub parts Diagram

Washer bolt

Part #DC60-40133A
BEST SELLER
This item is not returnable
In Stock
$5.69 |
15% OFF
Phone Price: $6.69
Washer Drive Belt#2-2

Tub parts Diagram

Washer drive belt

Part #DC66-10170B
BEST SELLER
In Stock
$33.29 |
13% OFF
Phone Price: $38.29
