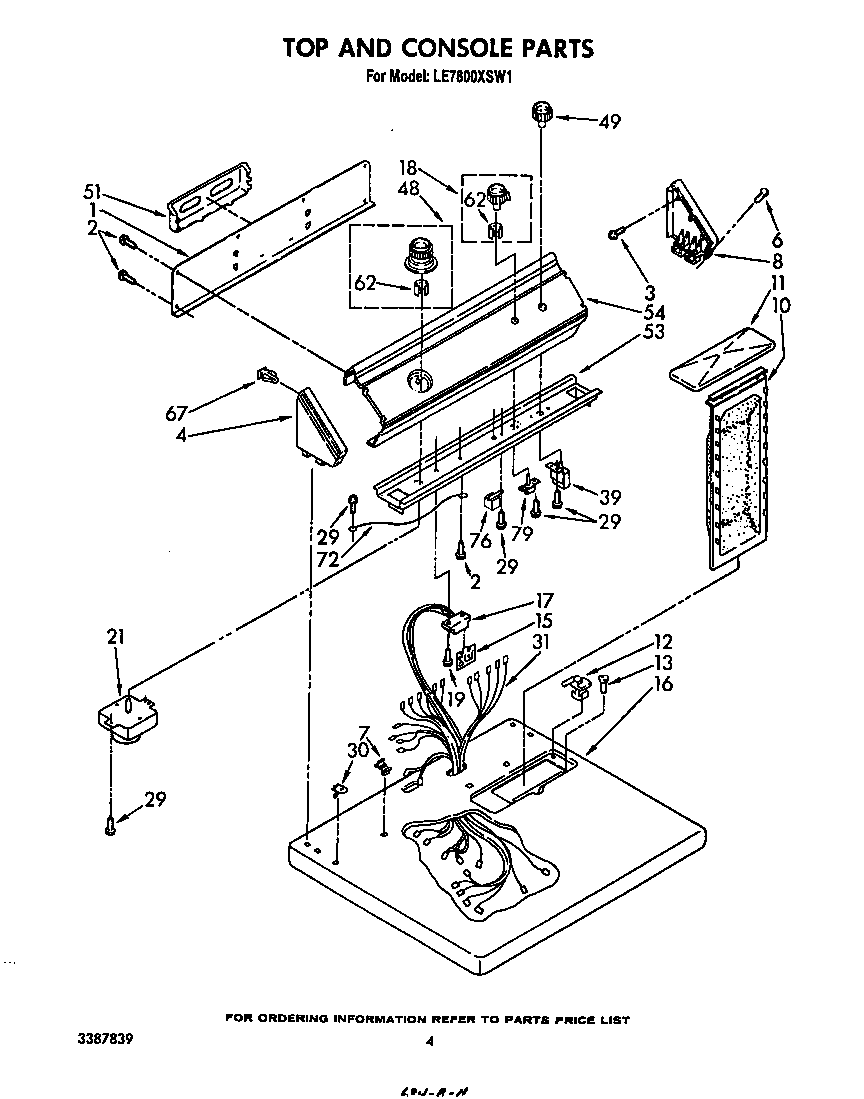

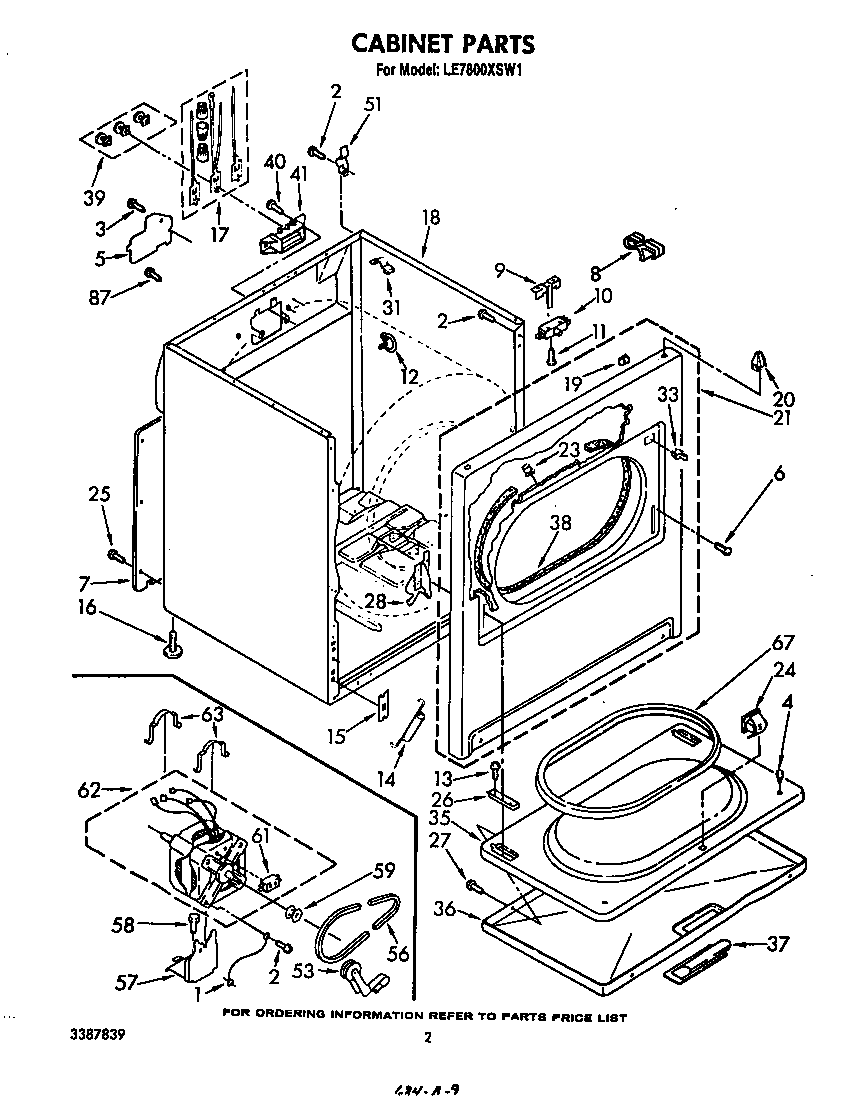

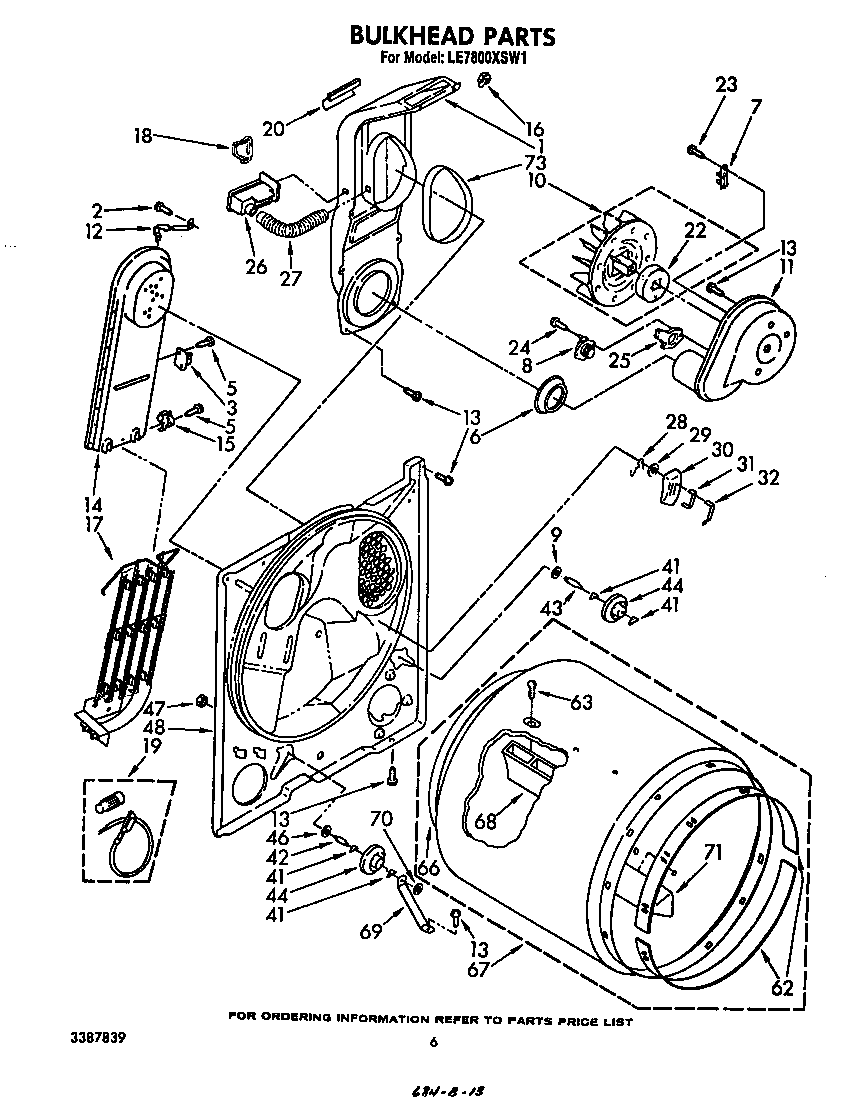

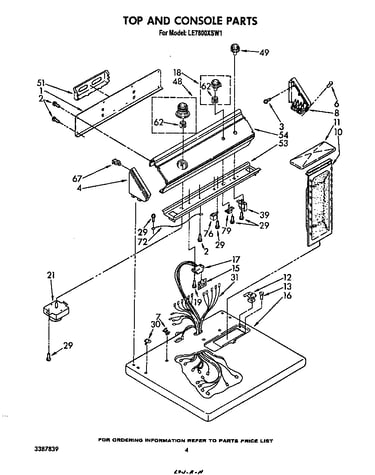

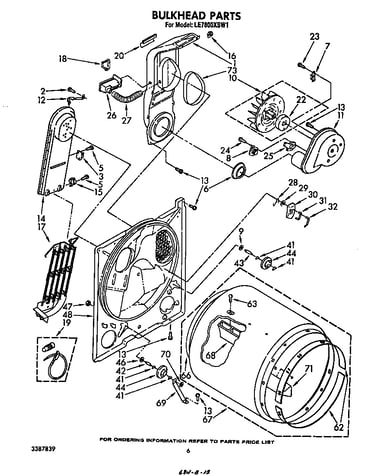

Whirlpool LE7800XSW1 dryer Parts

On a Whirlpool LE7800XSW1 dryer, error code F3 E3 points to a temperature sensing problem (the dryer is not reading temperature correctly). We start by resetting power, then checking airflow and the heating circuit wiring; those are the most common causes.

Quick reset (do this first)

• Turn OFF the dryer’s circuit breaker(s) for 1 minute.
• Turn the breaker(s) ON.
• Start a Timed Dry cycle.
• Watch the display for about 1 minute to confirm the code does not return.

What to check next (most common causes)

• Airflow restriction: Clean the lint screen; confirm the vent hood flap opens and airflow is strong.
• Overheating from poor venting: Long dry times, very hot cabinet, or a burning smell usually means the vent needs cleaning.
• Loose or damaged wiring at the heater: Inspect connections at the heating element and thermostats; repair any burnt terminals.
• Failed thermal safety parts: If the dryer overheated, a thermal cut-off can open and trigger temperature-related faults.

Parts that often solve the problem

If you find heat-circuit damage or an open safety device, these model-matched parts are common fixes:

Symptom you notice	Likely area	Part to consider
Dryer ran hot, then stopped heating	Thermal safety opened	Cut-off 279769
Burnt or loose heater terminals	Heater wiring/terminals	Dryer heating element wire kit 279457

Why it matters

F3 E3 is usually tied to temperature control. If airflow is restricted or a heater connection is failing, the dryer can overheat, shut down heating, and keep throwing the code. Fixing venting and heat-circuit issues restores normal drying and helps prevent repeat failures.

Helpful DIY reference

For Whirlpool dryer fault patterns and what they mean, use our Whirlpool electronic control model dryer error codes guide.

Last updated: February 2026

Your Whirlpool dryer’s model number is on the appliance ID tag; on most Whirlpool dryers like model LE7800XSW1, it’s found around the door opening on the front panel. Match the full model number exactly before ordering parts such as the dryer door switch W10820036.

Where to look on a Whirlpool dryer

Check these common ID-tag locations in order:

• Around the door opening (front panel, near the latch area)
• On the inside face of the dryer door
• On the cabinet frame just behind the door
• On the back panel (less common)

What to write down (so parts fit)

Record the information exactly as printed on the tag:

• Model number (example: LE7800XSW1)
• Serial number (helps confirm production series)
• Type/voltage markings (useful for electrical parts)

Quick check: model vs. serial

Item	What it does	Used for
Model number	Identifies the exact dryer design	Picking correct diagrams and parts
Serial number	Identifies production run	Verifying compatible revisions

Why it matters

Whirlpool often uses similar-looking cabinets across multiple dryers; one character difference in the model number can change the correct belt, heating circuit parts, or door components.

Last updated: March 2026

The average lifespan of a Whirlpool electric dryer like model LE7800XSW1 is 13 years. Regular vent cleaning and timely replacement of wear items (belt, idler pulley, thermal fuse) help the dryer reach that service life.

What affects lifespan the most

These factors have the biggest impact on how long a dryer lasts:

• Airflow and venting (restricted vents overheat the heater and safety fuses)
• Load size (overloading strains drum support and drive components)
• Lint control (lint buildup increases heat and motor load)
• Usage frequency (multiple loads daily shortens wear-part intervals)
• Preventive maintenance (cleaning and inspection prevents secondary damage)

Common wear parts to expect over time

Part	What you may notice	Example part for LE7800XSW1
Drive belt	Drum won’t tumble, squealing	Belt 341241
Idler pulley	Chirping, belt slipping	Dryer idler pulley WP691366
Thermal fuse	Dryer won’t run or stops	Fuse WP3392519
Blower wheel	Poor airflow, rumbling	Dryer blower wheel WP694089

Why it matters

Knowing the typical lifespan helps you decide whether a repair is cost-effective. On a dryer near the 13-year mark, replacing a belt or fuse is often worthwhile; major motor or drum support repairs may be a bigger decision.

Last updated: March 2026
