Model # 6657242600 Official Kenmore compactor

Here are the diagrams and repair parts for Official Kenmore 6657242600 compactor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

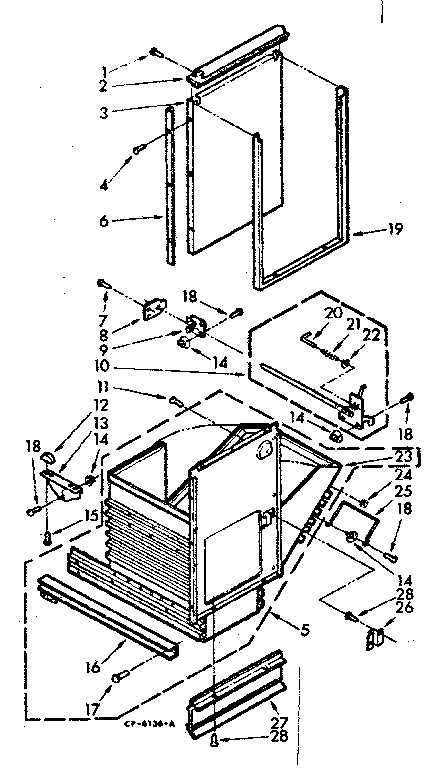

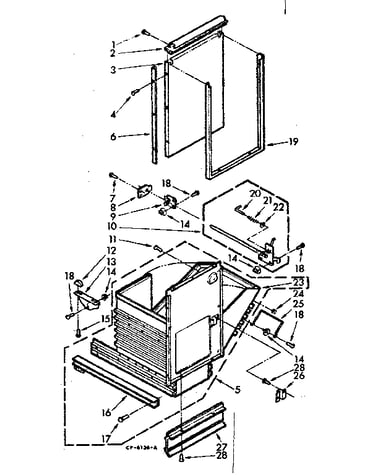

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 141 parts  |

Appliance Touch-up Paint, 0.6-oz (white) (replaces 21020, 72017r, 8006, W10813125, Y058028) 72017

#NI

All parts diagram

Appliance touch-up paint, 0.6-oz (white) (replaces 21020, 72017r, 8006, w10813125, y058028)

Part #72017

BEST SELLER
$8.29
11% OFF Phone Price : $9.29
In Stock
Blower Vent 608050
#22

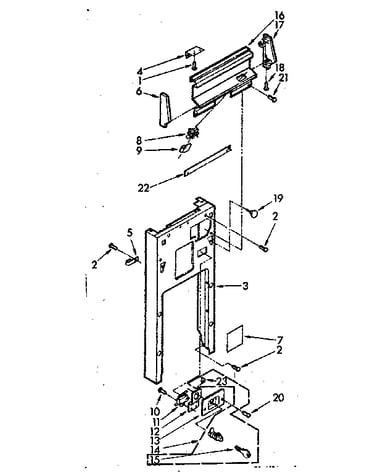

Panel & control assembly diagram

Blower vent

Part #608050

Replaced by #1006168

?
Manufacturer substitution
This part replaces 608050. Substitute parts can look different from the original.
$395.09
$10.00 OFF Phone Price : $405.09
In Stock
Screw 343641
#2

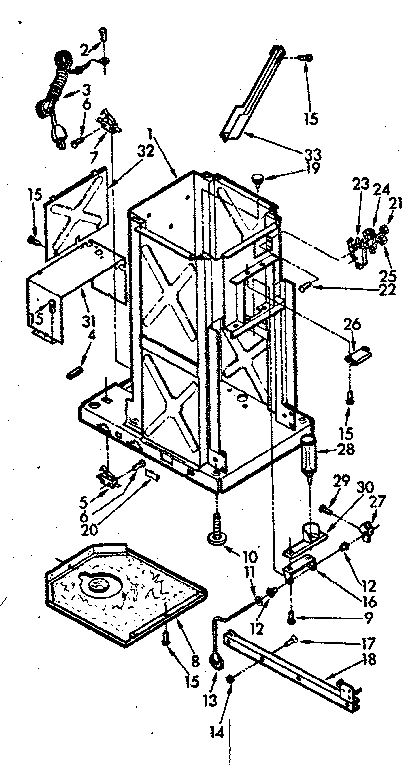

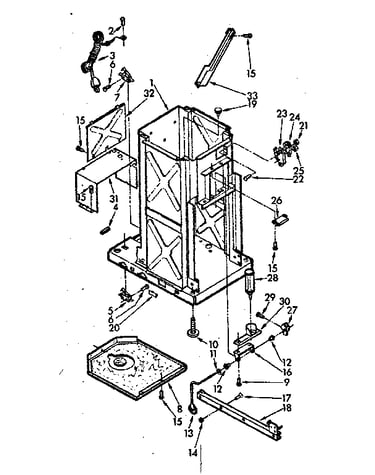

Frame assembly diagram

Screw

Part #343641

The manufacturer no longer makes this part, and there's no substitute part

Clip, Carriage Bolt 775766
#6

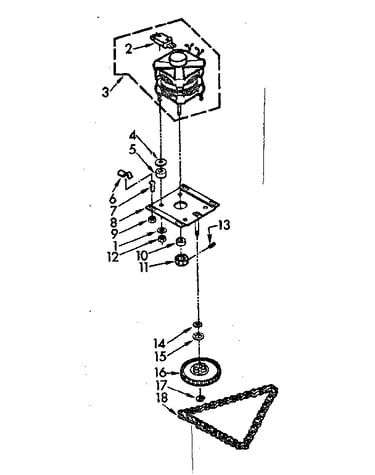

Motor diagram

Clip, carriage bolt

Part #775766

The manufacturer no longer makes this part, and there's no substitute part

Avocado, Base 350191

#NI

All parts diagram

Avocado, base

Part #350191

The manufacturer no longer makes this part, and there's no substitute part

Nut, 6-32 134530
#21

Frame assembly diagram

Nut, 6-32

Part #134530

The manufacturer no longer makes this part, and there's no substitute part

Bolt Leveler 776101
#10

Frame assembly diagram

Bolt leveler

Part #776101

The manufacturer no longer makes this part, and there's no substitute part

Lock Nut 776037
#1

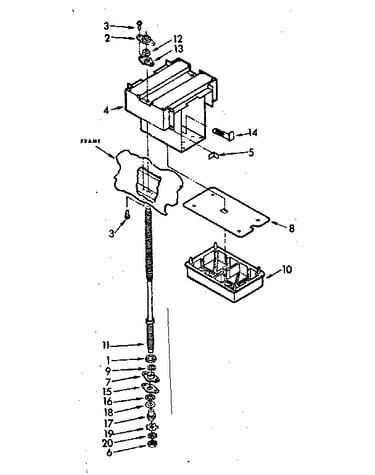

Power screw and ram assembly diagram

Lock nut

Part #776037

The manufacturer no longer makes this part, and there's no substitute part

Sprocket 15 Tooth 775632
#19

Power screw and ram assembly diagram

Sprocket 15 tooth

Part #775632

The manufacturer no longer makes this part, and there's no substitute part

Switch, Drawer Safety 775803
#7

Frame assembly diagram

Switch, drawer safety

Part #775803

The manufacturer no longer makes this part, and there's no substitute part
