GE GTL18JCPRRBS refrigerator - p series Parts

The most common issues we see with the GE GTL18JCPRRBS top-mount refrigerator are warm temperatures (fresh food or freezer), frost buildup on the freezer back wall, water leaking inside or under the unit, and unusual fan or compressor-area noises. Many of these problems trace back to airflow, defrost, or door-seal issues; use the GTL18JCPRRBS owner's manual for model-specific checks and settings.

• Refrigerator warm, freezer OK: restricted airflow from the freezer, evaporator fan issue, or frost-clogged evaporator
• Freezer warm, refrigerator warm: condenser fan not moving air, dirty condenser area, or sealed-system/compressor problem
• Frost or ice sheet on freezer back wall: defrost system problem (heater, defrost control, or drain icing)
• Water under crisper or on floor: clogged/iced defrost drain or drain trough issue
• Buzzing, rattling, or grinding: fan blade hitting ice/debris, worn fan motor, or loose parts

If your troubleshooting points to a failed component, these model-matched parts are commonly involved:

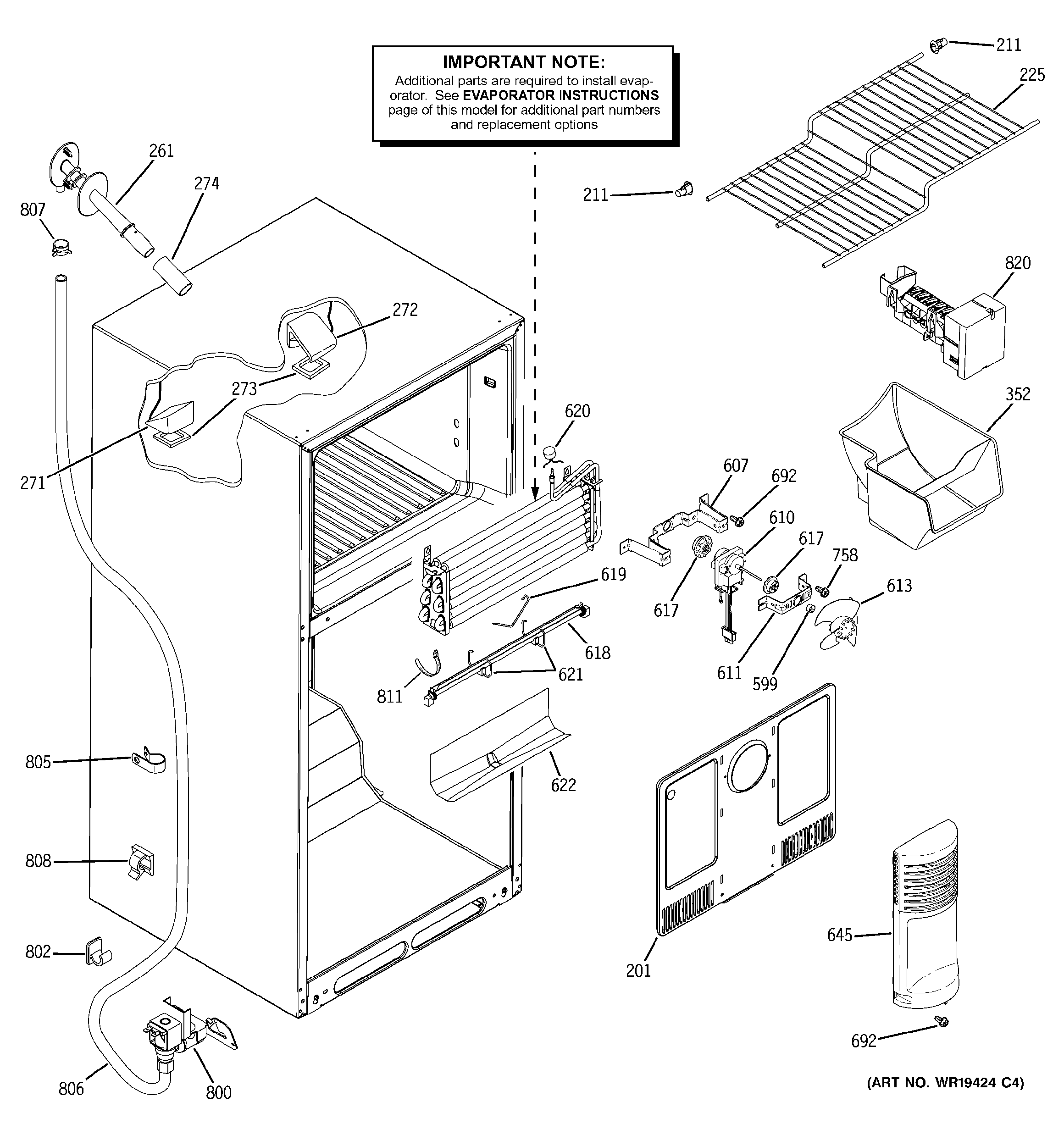

• Refrigerator evaporator fan motor WR60X10172 (moves cold air through the freezer and into the fresh-food section)

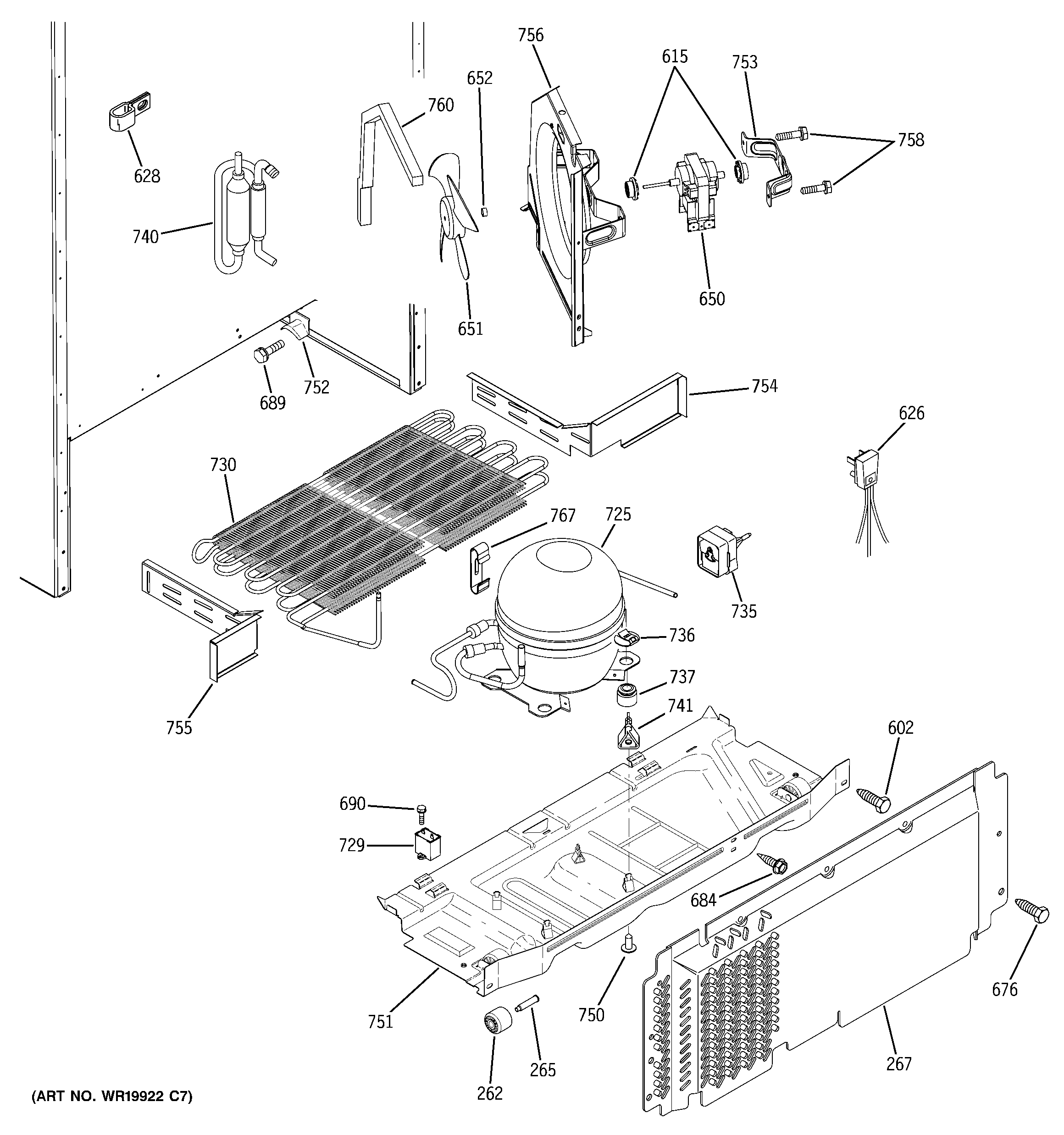

• Refrigerator condenser fan motor WR60X10170 (cools the condenser and helps the compressor run efficiently)
• Refrigerator defrost heater WR51X10038 (melts frost off the evaporator coils)
• Refrigerator defrost control WR9X502 (controls defrost timing)

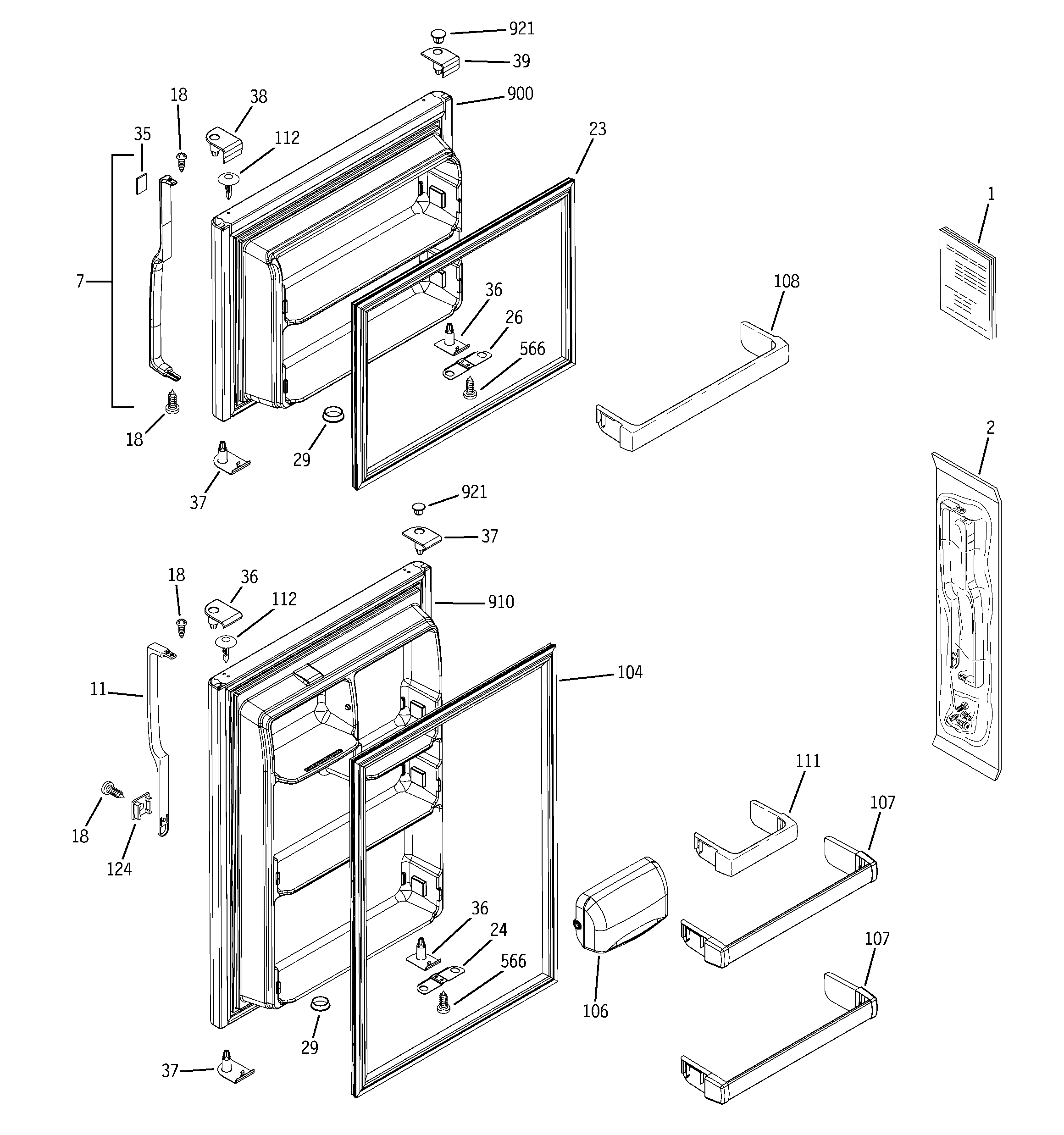

• Refrigerator freezer door gasket (black) WR24X10185 (prevents warm, moist air leaks that cause frost)

1. Confirm controls are set to normal mid-range and vents are not blocked by food.
2. Check door closing and gasket seal with a paper-strip test around the perimeter.
3. Listen for the evaporator fan in the freezer and the condenser fan near the compressor.
4. Look for heavy frost on the freezer back panel (strong defrost clue).
5. If leaking, inspect for ice in the drain area and clear the drain path.

Catching airflow, defrost, and gasket problems early helps prevent food spoilage, reduces energy use, and avoids compressor strain that can turn a simple repair into a major one.

Last updated: March 2026

A top-mount fridge freezer is a refrigerator design where the freezer compartment is on top and the fresh-food (refrigerator) compartment is below. Your GE GTL18JCPRRBS is a top-mount style, which typically offers simple controls, strong freezer performance, and easy access to everyday refrigerated items.

In a top-mount unit, cold air is produced in the freezer area and circulated to the refrigerator section through vents and airflow channels.

Common features you will see:

• Freezer door on top; refrigerator door on bottom
• Temperature controls located in the fresh-food section on many models
• Air vents that move cold air from freezer to refrigerator
• A defrost system that periodically melts frost from the evaporator

For model-specific control locations and settings, use the GTL18JCPRRBS owner's manual.

Top-mount refrigerators are popular because they are straightforward to use and maintain.

Benefits vs. other styles:

• Usually lower purchase and repair cost than many side-by-side or French door models
• Fewer complex features on many versions (simpler troubleshooting)
• Good freezer storage for bulk items

Knowing you have a top-mount layout helps narrow down common symptoms and causes.

Examples:

• If food freezes in the refrigerator section, items may be too close to the air vent or the control may be set too cold.
• If temperatures are warm, airflow can be restricted by overpacked shelves or frequent door openings.
• If you hear a normal “orange glow” in the freezer, it can be the defrost heater operating during a defrost cycle.

Last updated: January 2026

An 18 cubic foot top-mount refrigerator like the GE GTL18JCPRRBS is typically a full-size unit that measures about 28 to 33 inches wide, 65 to 69 inches tall, and 30 to 34 inches deep (depth varies most with handles and door swing). For exact dimensions and clearance needs, use the GTL18JCPRRBS owner's manual.

Capacity (18 cu. ft.) describes interior storage volume, not the outside cabinet size. Most 18 cu. ft. top-freezer models fall into these common ranges:

• Width: 28 to 33 inches
• Height: 65 to 69 inches
• Depth (cabinet): 28 to 32 inches
• Depth (with handles/doors): 30 to 34 inches
• Recommended rear clearance: often 1 inch or more for airflow (confirm for your kitchen)

Use a tape measure and capture three numbers:

• Width: widest point of the cabinet (then re-check including handles)
• Height: floor to top of hinge cover (if present)
• Depth: front of cabinet to back (then re-check including handles)

Also measure your path in and out:

• Doorway width
• Hallway turns
• Cabinet opening width and height

Getting the outside dimensions right prevents fit issues in a cabinet opening and helps avoid problems with door swing, airflow, and leveling. It also helps when planning repairs or replacements for door-related parts like the refrigerator door hinge nylon washer WR01X27364.

Last updated: January 2026
