Whirlpool WFW9300VU02 washer Parts

On the Whirlpool WFW9300VU02 front-load washer, there is no lid lock; it uses a door lock. To “reset” a door lock issue, we cancel the cycle with PAUSE/CANCEL (often twice), let the washer drain if needed, then restart the cycle. See the button sequences in the owner's manual.

Quick reset steps (WFW9300VU02)

• Press PAUSE/CANCEL twice to cancel the cycle; the washer powers down and the door unlocks (it may drain first if water level or temperature is high).
• If you need to drain first: press PAUSE/CANCEL twice, press POWER, select DRAIN/SPIN, then press START (about 1 second). The door unlocks after spin.
• If Controls lock is on: press and hold CONTROLS LOCK/UNLOCK for 3 seconds to unlock the controls.
• Close the door firmly, select your cycle, then press START (about 1 second).

What to check if the door still will not unlock

• Wait for automatic draining to finish (hot water or a high water level delays unlocking).
• Make sure the door is fully closed and nothing is caught in the gasket/boot.
• Check for a failed door lock mechanism; replacement is common when the lock will not engage or release.

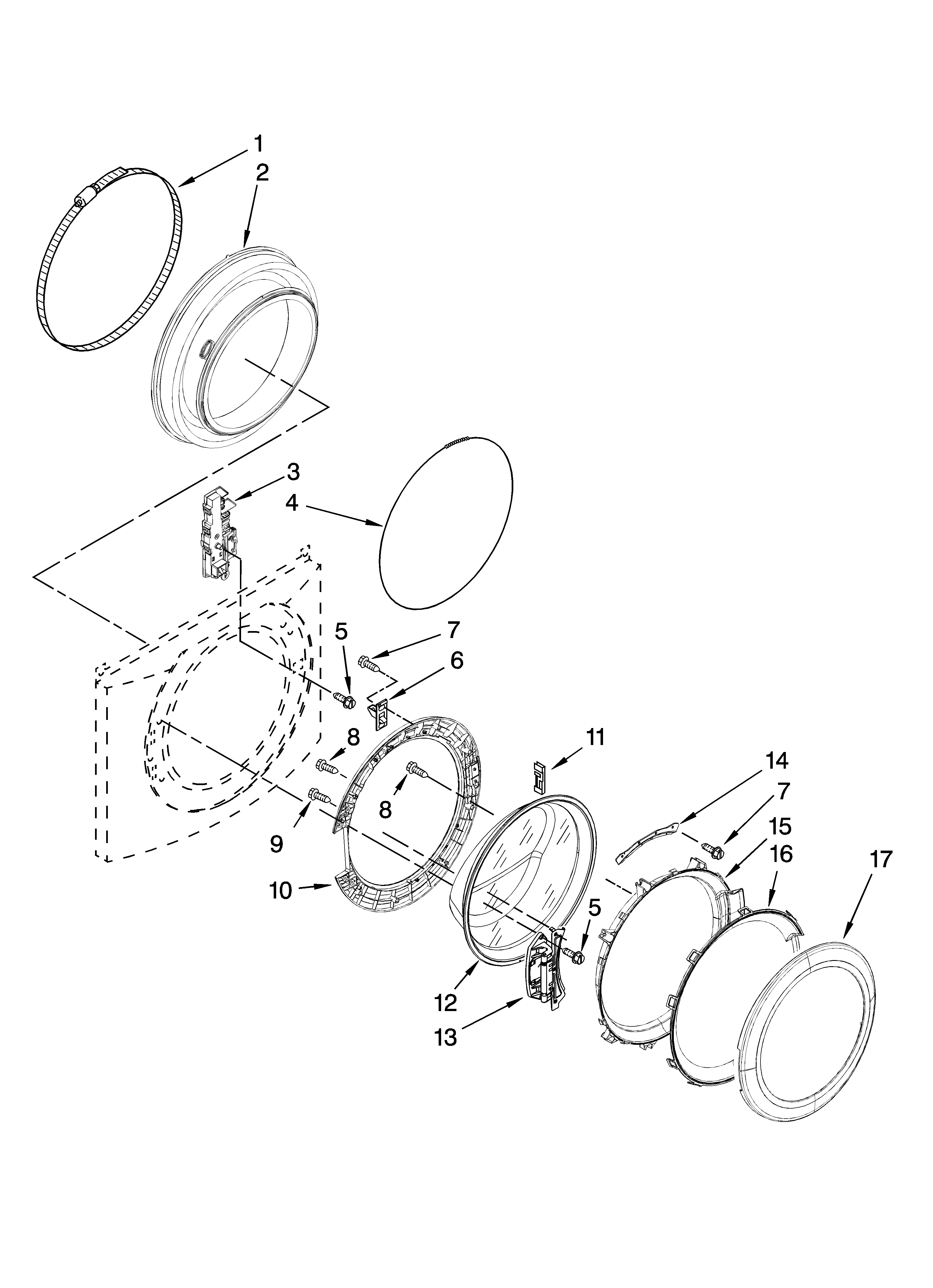

Common parts related to door-lock problems

Symptom	Most likely area	Part we often replace
Door will not lock, cycle will not start	Door lock assembly	Washer door lock WP8183270
Door does not close smoothly or sags	Door hinge	Washer door hinge WP8183202
Door leaks or items catch at opening	Door boot (gasket)	Washer door boot WP8182119

Why it matters

The door lock is a safety feature. If the washer senses an unsafe condition (water level, temperature, or a lock/control issue), it keeps the door locked to prevent spills and injury.

Last updated: February 2026

On the Whirlpool WFW9300VU02 front-load washer, the most common issues are water-inlet, draining, and door-lock problems. These often appear as F20 (inlet), F21 (drain), or F22 (door lock) error codes, and many are fixed with basic hose, load, and detergent checks in the owner's manual.

Most common problems (and typical causes)

• F20 water inlet problem: faucets not fully open, clogged inlet screens, kinked or frozen fill hoses
• F21 drain problem: kinked, frozen, or clogged drain hose; drain hose installed too high (over 96 inches)
• F22 front door lock: door not fully latched, laundry caught at the opening, overloaded basket
• SUD routine active: non-HE detergent or too much detergent
• Noise or vibration: washer not level, feet not set correctly, single bulky item causing imbalance

Quick checks before replacing parts

• Turn both water faucets fully on; straighten any kinked fill hoses.
• Clean the inlet hose screens at the washer connections.
• Inspect the drain hose for kinks or clogs; keep standpipe height at 96 inches or less.
• Close the door firmly; remove items caught at the door opening.
• Use only HE detergent; reduce the amount if you see excess suds.

Symptom-to-cause guide

Symptom	Most likely cause	First action
Won’t fill or fills slowly	Water supply restriction (F20)	Open faucets; clean inlet screens
Won’t drain or spin	Drain restriction or hose too high (F21)	Clear drain hose; verify height
Won’t start; door won’t lock	Door not fully latched (F22)	Re-close door; reduce load

Parts that are commonly involved

If the problem repeats after the checks above, these model-matched parts are often involved:

• Washer door boot WP8182119 (leaks at the door opening, poor seal)
• Washer door lock WP8183270 (won’t latch, intermittent locking)

Why it matters

On the WFW9300VU02, correcting hose routing, load size, and HE detergent use prevents repeat error codes, long cycle times, odors, and unnecessary part replacement.

Last updated: February 2026

The model number for your Whirlpool washer is printed on the model and serial number label on the machine. For accurate parts matching and troubleshooting on WFW9300VU02, copy the complete model number and the serial number exactly as shown.

Where to look on the washer

On Whirlpool front-load washers like WFW9300VU02, the model/serial label is typically found in one of these spots:

• Around the door opening (on the cabinet frame behind the door)
• Along the inside edge of the washer door
• On the back panel of the washer cabinet
• Behind the lower access panel area (less common)

For diagrams and label references, use the WFW9300VU02 owner's manual.

How to record it correctly

Write down both numbers before you shop for parts or schedule service:

• Complete model number (letters and numbers, including any suffix)
• Serial number (used to identify production date and version)
• Purchase/installation date (helpful for maintenance and records)

Quick check table

What to capture	Example format	Why we need it
Model number	WFW9300VU02	Ensures correct parts list and fit
Serial number	Alphanumeric string	Helps match the right revision
Date	Month/Year	Useful for service history

Why it matters

Whirlpool often uses similar-looking designs across multiple washer models; one digit difference can change the correct door boot, door lock, or control board. Using the exact model number helps you select the right replacement parts the first time.

Last updated: March 2026
