Kenmore 2537034341G bottom-mount refrigerator Parts

The Kenmore 2537034341G is a French door, bottom-freezer refrigerator; the freezer size (capacity and exact interior space) varies by configuration and is listed in the product specifications for this model. For the exact freezer capacity and dimensions, use the 2537034341G use & care guide.

When customers ask how big the freezer is, they usually mean one of these:

• Freezer capacity (cubic feet)
• Freezer drawer interior dimensions (usable width, depth, height)
• Overall refrigerator dimensions (to fit a cabinet opening)
• Basket and bin sizes (how much food fits in each section)

The most reliable place to confirm the exact numbers for Kenmore model 2537034341G is the specifications section in the 2537034341G use & care guide.

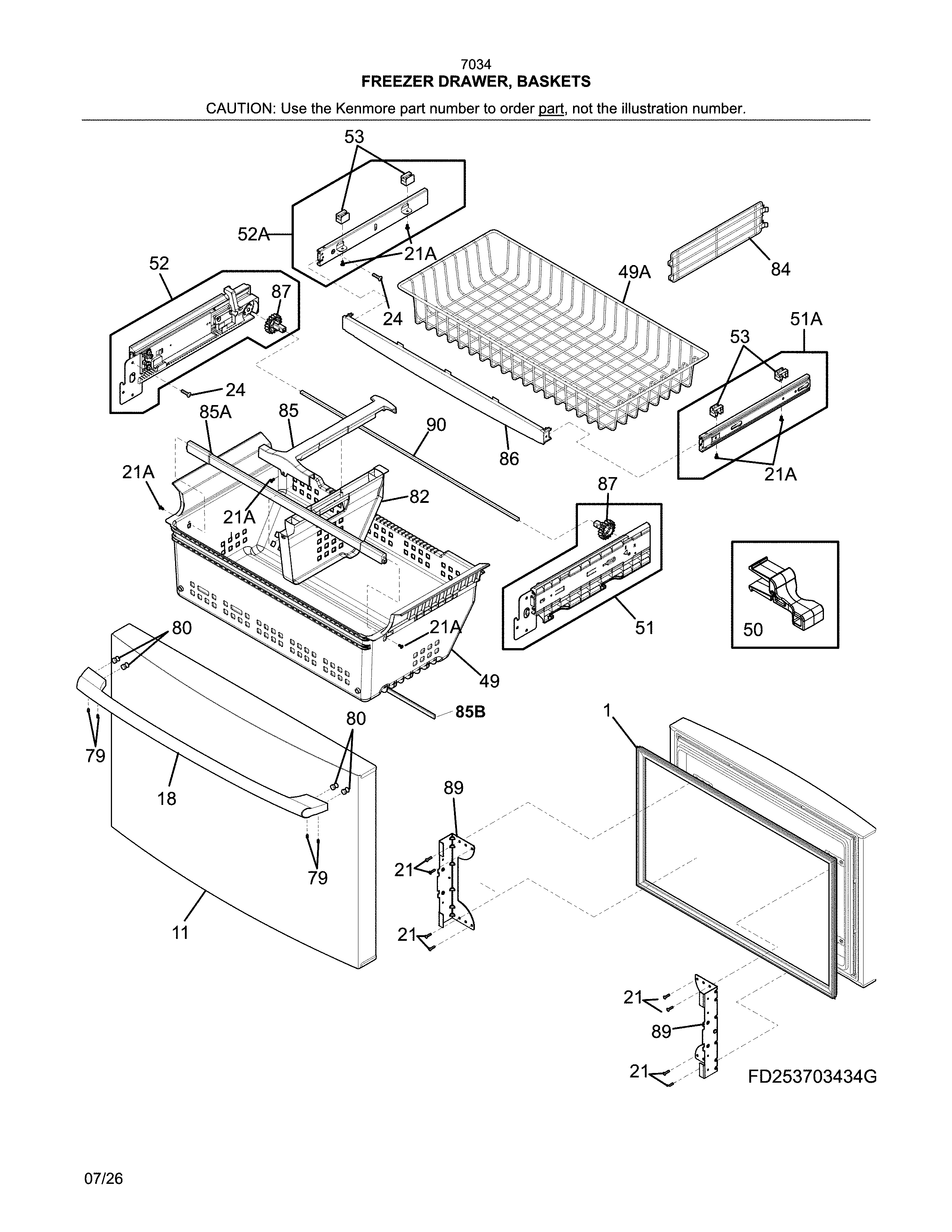

Most Kenmore 253-series French door bottom-freezer refrigerators are full-size units with a wide refrigerator section on top and a pull-out freezer drawer below. Freezer space is designed for:

• Stacked frozen food storage in a lower drawer
• One or more sliding baskets
• Better organization than a top-freezer layout

Getting the correct freezer size helps with kitchen fit (width and depth), airflow clearance, and expectations for storage. It also prevents installation issues, especially if doors or the freezer drawer must be removed to move the refrigerator into place.

Last updated: February 2026

Kenmore refrigerators, including model 2537034341G, typically do not have one universal “reset button.” Instead, you reset the refrigerator by using the control panel’s default settings reset (when equipped) or by power-cycling the unit to clear a control glitch and restore normal operation.

If your refrigerator has the default settings option on the user interface, you can reset settings back to factory defaults.

• On dispenser-style controls, select default and press and hold set for 3 seconds.
• On non-dispenser controls, use default settings to reset temperatures, display, and tones.
• If Control locked is on, unlock controls first or the reset will not respond.
• This reset changes settings; it does not remove power from the refrigerator.

For the exact button layout on your version of the control panel, use the 2537034341G owner's manual.

A hard reset is the most reliable way to clear a temporary electronic glitch.

• Unplug the refrigerator from the wall outlet.
• Wait 5 minutes.
• Plug it back in and allow 24 hours for temperatures to fully stabilize.
• If the display shows OFF, turn cooling back on at the control panel.

Using the correct reset prevents unnecessary parts replacement and helps you quickly narrow the problem to settings, a control lockout, or a real failure (like a cooling or ice maker issue).

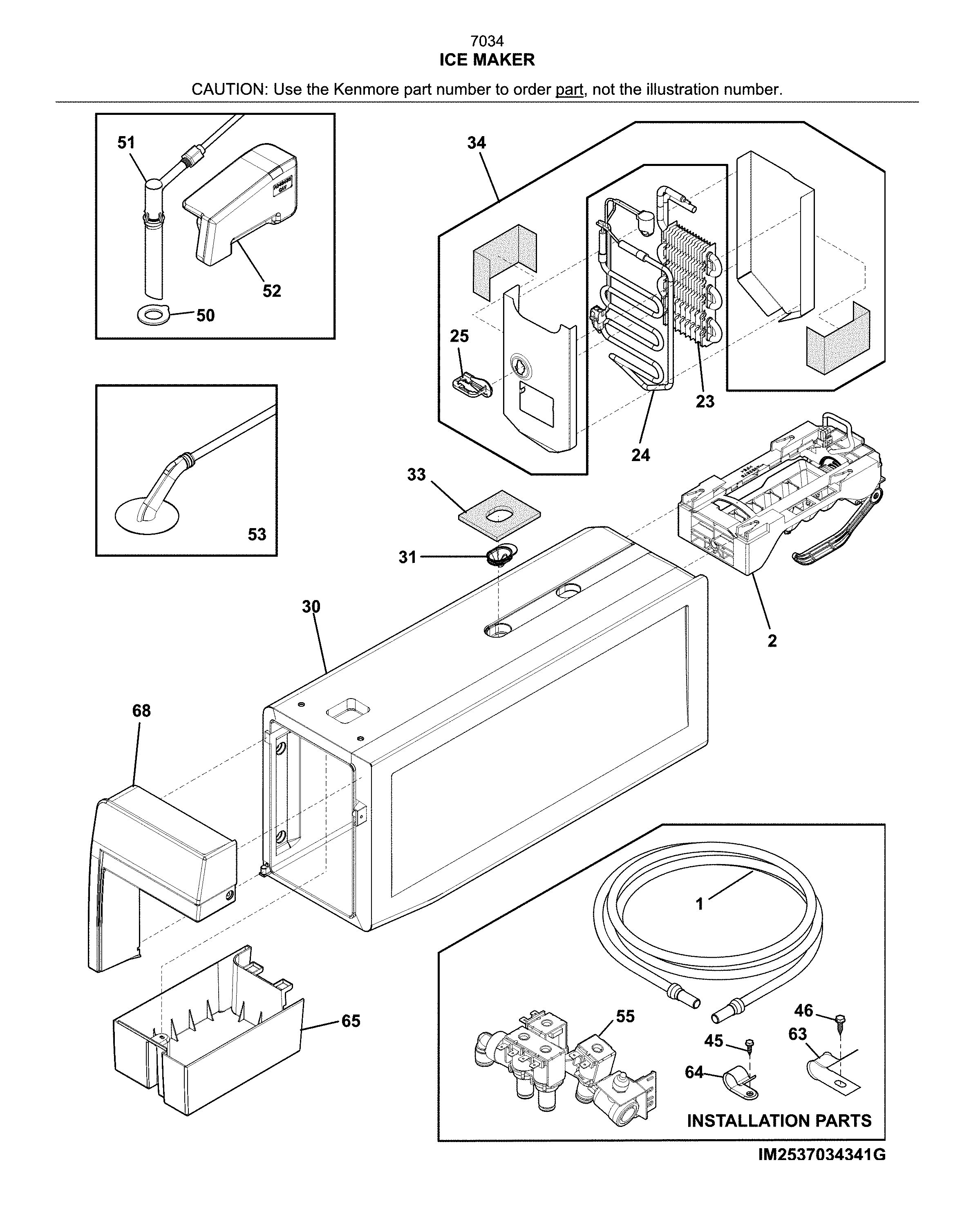

If you are troubleshooting ice production after a reset, the refrigerator ice maker 243297613 is a common replacement part for this model when the ice maker itself has failed.

Last updated: February 2026

A Kenmore Elite refrigerator typically lasts 13 years. With steady maintenance (clean airflow paths, good door sealing, and correct temperatures), many units run 10 to 15 years before major repairs become more common; use the 2537034341G owner's manual for model-specific care and operating guidance.

Most refrigerator aging issues show up in a few systems first:

• Sealed system/compressor wear (cooling becomes weak or inconsistent)
• Evaporator fan and airflow problems (warm fridge, noisy operation)
• Defrost system issues (frost buildup, poor cooling)
• Door gasket leaks (moisture, frost, longer run times)
• Ice maker/water system wear (slow fill, no ice, leaks)

These steps reduce run time and stress on the compressor:

• Keep the toe grille and vents clear for airflow (blocked airflow raises operating temps).
• Avoid installing where temps drop below 55°F or rise above 110°F (performance suffers).
• Keep doors closing tightly; replace a worn gasket such as the frigidaire refrigerator freezer door gasket (gray) 5304537408 if you feel air leaks.
• Replace the air filter on schedule if equipped; the refrigerator door air filter EAFCBF helps control odors that can linger in plastics.
• If you use the ice maker, use a reliable water supply line (copper or braided stainless is preferred).

A refrigerator that runs warmer than normal or runs constantly can shorten compressor life and increase energy use. Good airflow, tight door seals, and stable room temperature are the biggest controllable factors for long-term reliability.

Last updated: February 2026

Water pooling inside the bottom of your Kenmore 2537034341G refrigerator is usually caused by a clogged defrost drain, warm air leaking past a door gasket, or excess moisture collecting and running down to the lowest point. We use the troubleshooting steps in the owner's manual to pinpoint the source.

• Clogged defrost drain: Meltwater from the defrost cycle cannot flow to the drain pan, so it backs up into the fresh food section.
• Door not sealing: A torn, warped, or dirty gasket lets humid air in, creating extra condensation that can drip and pool.
• Food moisture and normal drawer condensation: The manual notes that some water in drawers can be normal when produce drains or releases moisture.
• Water filter or water line seepage (if equipped): Small leaks can track along surfaces and show up as a puddle at the bottom.

1. Check the puddle location: Is it under crisper drawers, near the back wall, or near the door?
2. Inspect the door seal: Look for gaps, rips, or debris; close a dollar bill in the door and confirm it grips evenly.
3. Look for ice or sludge at the drain area: A blocked drain often leaves a sheet of ice or standing water near the bottom/back.
4. Confirm temperatures: Target about 37°F in the refrigerator and 0°F in the freezer; warmer temps increase condensation.
5. If you have an ice maker/water line: Check fittings and tubing for dampness; installation guidance recommends copper or stainless braided tubing instead of 1/4-inch plastic.

Pooling water can lead to odors, ice buildup, and temperature swings that affect food safety. Fixing the drain or sealing issue restores normal defrost water flow and reduces condensation.
