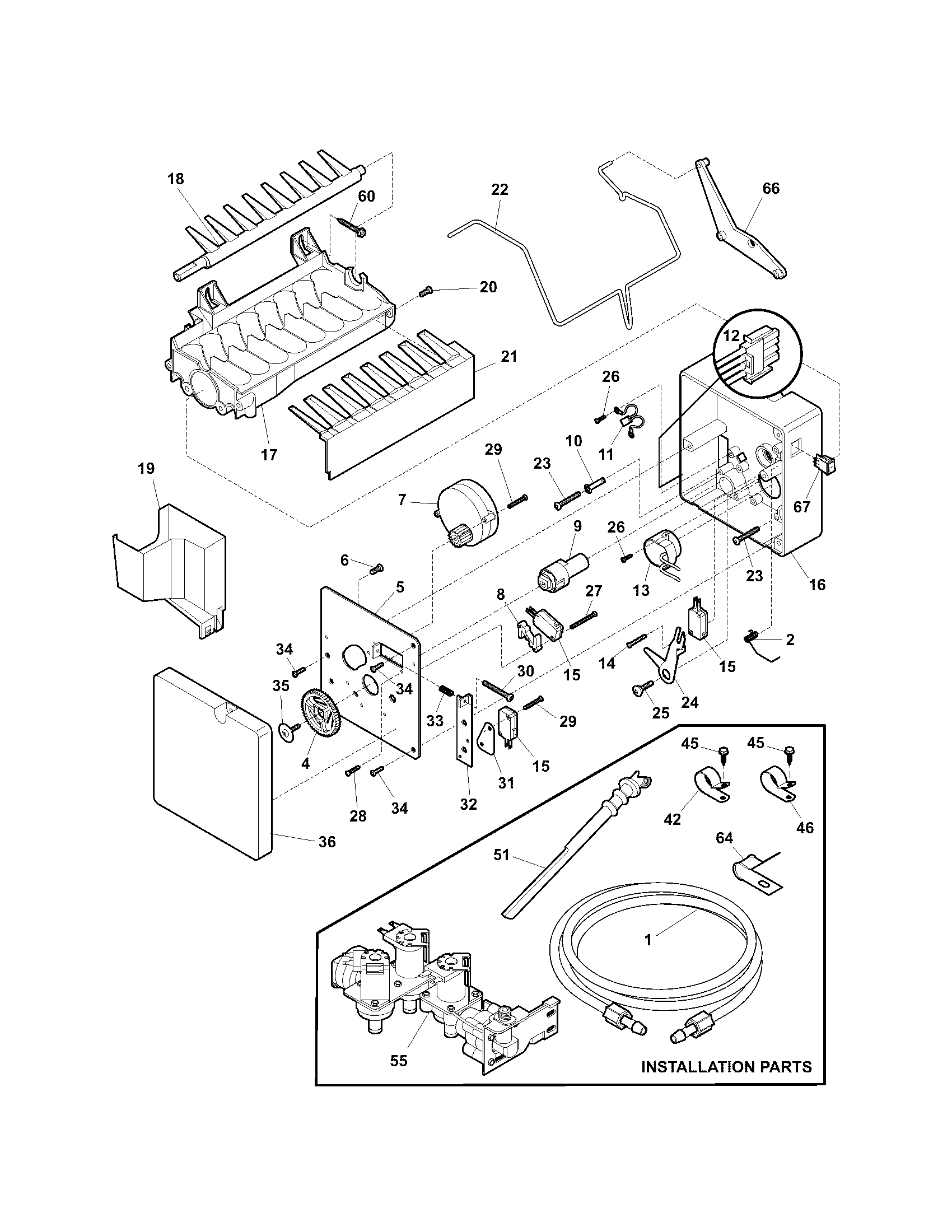

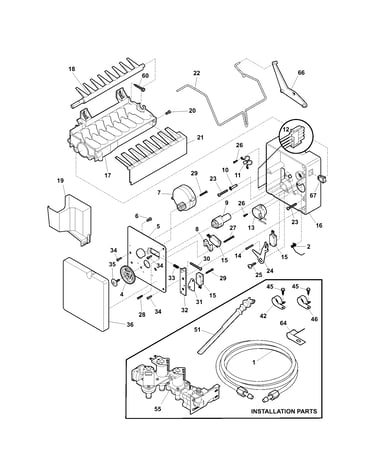

How to replace an ice maker in a side by side refrigerator?
To replace the ice maker in your Kenmore 25354669403 side-by-side refrigerator, we shut off power and water, remove the ice bin, unplug the ice maker harness, swap the ice maker assembly, then restore water and power. Discard the first batches of ice.
Before you start
- Unplug the refrigerator or switch off the breaker.
- Turn off the household water supply valve.
- Remove the ice storage bin by lifting up and out.
- Do not use the ice chute as a handle; keep fingers out of the chute (edges can be sharp).
- Keep the ice maker switch Off (O) until water is back on and leak-free.
Replacement steps (typical procedure)
- Remove any shelves or bins blocking access to the ice maker.
- Disconnect the ice maker wiring harness plug.
- Remove the mounting screws; lift the ice maker off the mounting tabs/bracket.
- Move any matching reusable pieces (such as a shutoff arm or bracket, if equipped) to the new ice maker.
- Set the new ice maker onto the mounting tabs; tighten screws and reconnect the harness.
- Turn the water back on and check for leaks.
- Restore power; switch the ice maker On (I).
After installation: what’s normal
- First cubes can be discolored or taste odd after plumbing is opened; discard them.
- If cubes clump or the dispenser jams, remove the bin and shake to separate cubes.
- Normal sounds include motor running, water filling, and ice dropping.
| Issue after replacement | Likely cause | What to do |
|---|---|---|
| No ice | Switch Off, water valve closed, freezer too warm | Switch On, open valve, confirm freezer temp |
| Small or hollow cubes | Restricted water flow | Replace filter, verify strong water flow |
| Dispenser jam | Ice melted and refroze | Empty bin; never use sharp tools |
Parts that commonly affect ice production
- Refrigerator water inlet valve assembly 242252702 (controls water to the ice maker)
- Genuine Kenmore refrigerator water filter WF2CB (a clogged filter restricts flow)
Why it matters
Ice makers need steady water flow and a cold freezer. Correct installation and careful water restoration prevent leaks, weak ice production, and dispenser jams. For switch locations and diagrams, use the owner's manual.
Last updated: February 2026
Where is the model number on a Kenmore side by side refrigerator?
On Kenmore side-by-side refrigerator model 25354669403, the model number is printed on the serial plate located inside the refrigerator (fresh food) compartment. Open the refrigerator door and look along the interior walls near the top front area for the label.
How to find it quickly
- Open the fresh food (refrigerator) door, not the freezer door
- Look for a serial plate/label inside the compartment
- Check the upper interior area first (near the front edge)
- Use a flashlight; labels can be hard to see against white plastic
- Write down both the model and serial numbers for parts lookup
What the label typically shows
Most Kenmore labels include both identifiers on the same plate.
| Item on label | What it’s used for | Example format |
|---|---|---|
| Model number | Matching parts and diagrams | 25354669403 |
| Serial number | Identifying production run | Letters and numbers |
Why it matters
We use the exact model number to match the correct Kenmore parts list, diagrams, and compatible replacements (like a water filter, door gasket, or temperature sensor). Even small model-number differences can change which parts fit.
If you still do not see the plate
- Remove items from the top shelf area to improve visibility
- Check both left and right interior walls of the fresh food section
- Look near the crisper area only after checking the upper interior first
- Confirm you are reading the model number, not a patent or certification number
- Use the location details shown in the owner's manual
Last updated: February 2026
Where is the on/off switch on Kenmore Ice Maker?
On Kenmore model 25354669403, the ice maker On/Off switch is on the ice maker itself, located at the top of the freezer compartment near the ice maker and ice container. Press the switch to “O” for Off and “I” for On (not the wire shutoff arm). See the owner's manual for the exact location diagram.
How to find it quickly
- Open the freezer door fully.
- Look at the top area of the freezer, where the ice maker and ice bin sit.
- Locate the small On/Off power switch on the ice maker housing.
- Press to “O” to stop ice production.
- Press to “I” to resume ice production.
- Leave the wire signal arm alone; it is designed to stop automatically when the bin is full.
What the switch does (and what it does not)
| Control | What it does | What to know |
|---|---|---|
| Ice maker On/Off switch | Turns ice production on or off | Use this for normal shutoff and cleaning |
| Wire signal arm | Automatically stops when bin is full | Do not use it as a manual On/Off control |
When we recommend turning the ice maker Off
- Before connecting the refrigerator to the water supply
- Any time the household water supply is shut off
- When cleaning the freezer or the ice bin
- During vacations or extended time away
- If you will shut the ice maker off long-term (also shut off the water supply valve)
Why it matters
Using the correct On/Off switch prevents dispenser jams, avoids running the ice maker without water, and helps keep ice tasting fresh. After installation and cooling, ice production typically begins within about 24 hours, and a full bin can take about 2 days with no usage.
Last updated: February 2026
Why is my Kenmore side by side ice maker not working?
If the ice maker in your Kenmore 25354669403 side-by-side refrigerator isn’t making ice, the most common causes are the ice maker switch being off, the household water valve being closed or restricted, the freezer not being cold enough, or a clogged ice and water filter.
Quick checks we recommend first
- Confirm the ice maker power switch is set to On.
- Make sure the freezer is cold enough for ice production (ice makers stop when temps are too warm).
- Verify the household water supply valve is fully open.
- Check whether the door is closing completely (warm air leaks can affect ice production).
- Dispense water at the door (if water is slow or not dispensing, the issue is usually supply or filtration).
What the manual says (model-specific)
For model 25354669403, the troubleshooting steps focus on these items:
| Symptom | What to check | What it points to |
|---|---|---|
| No ice at all | Ice maker switch Off | Switch needs to be turned On |
| No ice and no water at dispenser | Household water valve closed | Water supply issue |
| No ice but dispenser water is slow | Filter restriction | Replace the filter |
| Ice production is low | Freezer not cold enough | Temperature or airflow problem |
| No ice after recent plumbing work | Saddle valve clogged/restricted | Valve needs cleaning or replacement |
For the exact control locations and any model-specific notes, use the owner's manual.
Parts that commonly fix “no ice” on this model
If your dispenser water flow is weak or the ice maker is not filling, these parts are common fixes:
- Replace the clogged water filter: genuine Kenmore refrigerator water filter WF2CB
- If water is not entering the ice maker (and supply is good), test/replace the inlet valve: refrigerator water inlet valve assembly 242252702
Why it matters
An ice maker depends on two things: cold freezer temperature and steady water flow. A slightly warm freezer or a restricted filter can stop ice production completely, even when the rest of the refrigerator seems to cool normally.
Last updated: February 2026
