Model # MDE7658AYQ Official Maytag washer

Here are the diagrams and repair parts for Official Maytag MDE7658AYQ washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

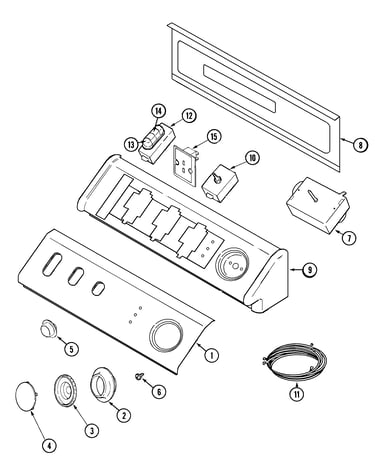

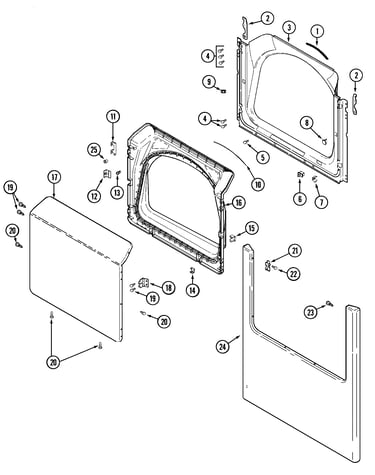

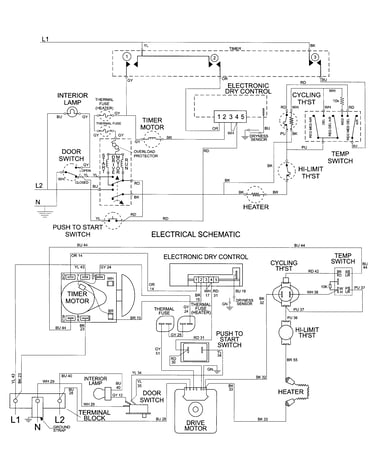

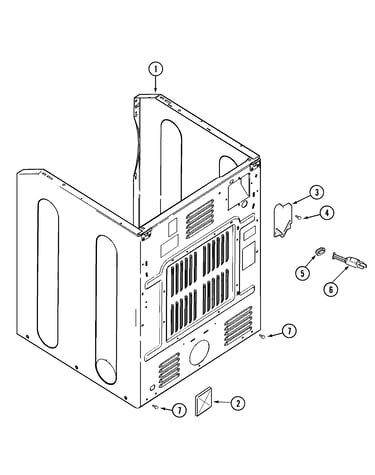

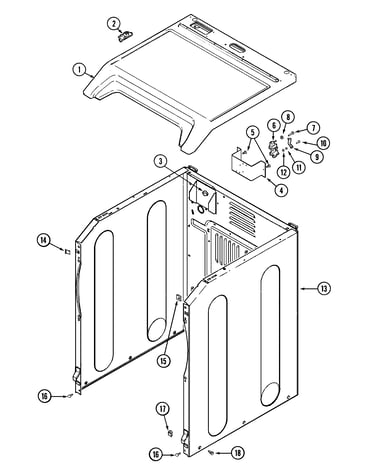

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 161 parts  |
Roller W/bea 303373
#24

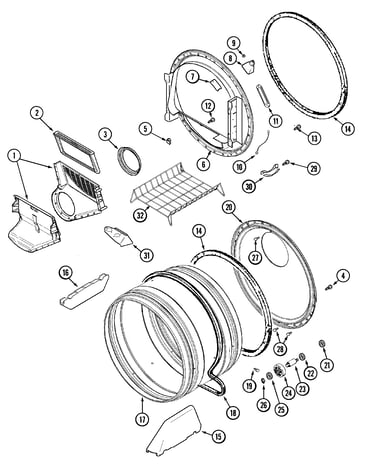

Tumbler diagram

Roller w/bea

Part #303373

Replaced by #12001541

?
Manufacturer substitution
This part replaces 303373. Substitute parts can look different from the original.
BEST SELLER
$26.68 |
16% OFF Phone Price : $31.68
In Stock
Dryer Drum Light Bulb 22002263
#8A

Tumbler diagram

Dryer drum light bulb

Part #22002263

Replaced by #WP22002263

?
Manufacturer substitution
This part replaces 22002263. Substitute parts can look different from the original.
BEST SELLER
$18.02 |
18% OFF MSRP : $22.00
In Stock
Belt, Tumble 33001777
#18

Tumbler diagram

Belt, tumble

Part #33001777

Replaced by #WP33002535

?
Manufacturer substitution
This part replaces 33001777. Substitute parts can look different from the original.
BEST SELLER
$27.88 |
16% OFF MSRP : $33.00
In Stock
Idler Pulley 33001783
#21

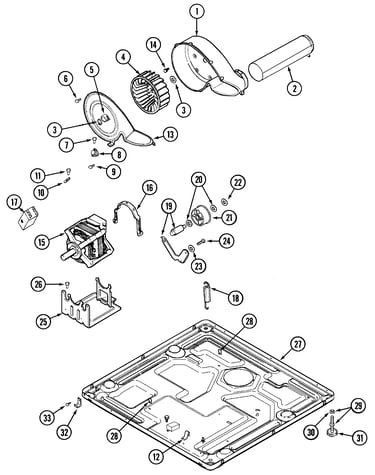

Motor drive diagram
