Model # 6877A Official Eureka upright vacuum cleaner

Here are the diagrams and repair parts for Official Eureka 6877A upright vacuum cleaner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 71 parts  |

Motor Stra 38377
#16

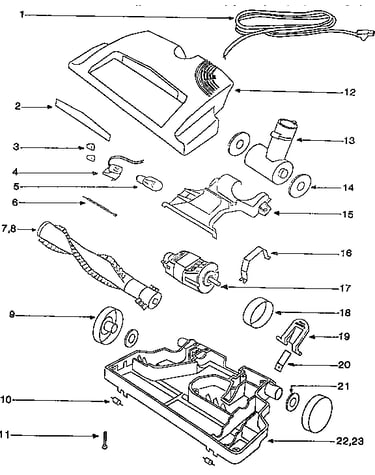

Base assembly diagram

Motor stra

Part #38377

The manufacturer no longer makes this part, and there's no substitute part

Bag Clip 56750-1
#4

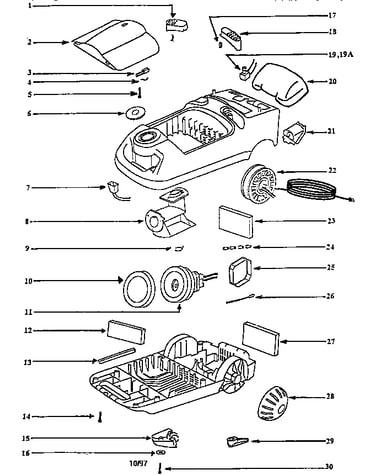

Unit parts diagram

Bag clip

Part #56750-1

The manufacturer no longer makes this part, and there's no substitute part

Screw 53257-1
#9

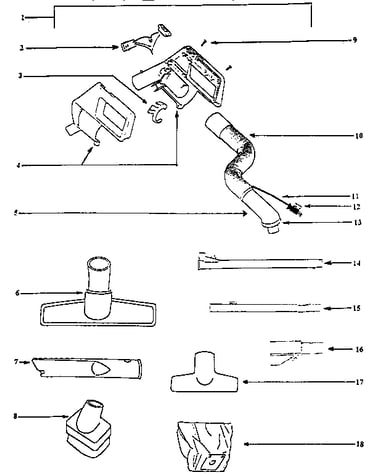

Attachment parts diagram

Screw

Part #53257-1

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Wheel, Rear 37434-2
#9

Base assembly diagram

Vacuum wheel, rear

Part #37434-2

The manufacturer no longer makes this part, and there's no substitute part

Air Duct 27398-1
#15

Base assembly diagram

Air duct

Part #27398-1

The manufacturer no longer makes this part, and there's no substitute part

Switch & C 38346
#2

Attachment parts diagram

Switch & c

Part #38346

The manufacturer no longer makes this part, and there's no substitute part

Washer 56376
#16

Unit parts diagram

Washer

Part #56376

The manufacturer no longer makes this part, and there's no substitute part

Felt Washer 56180
#21

Base assembly diagram

Felt washer

Part #56180

The manufacturer no longer makes this part, and there's no substitute part

Carpet Cleaner Screw, 10-pack 53197-1
#14

Unit parts diagram

Carpet cleaner screw, 10-pack

Part #53197-1

The manufacturer no longer makes this part, and there's no substitute part

Wiring Connection 26730-8
#7

Unit parts diagram

Wiring connection

Part #26730-8

The manufacturer no longer makes this part, and there's no substitute part
