Craftsman 502257040 yard & garden tractor Parts
Here are the diagrams and repair parts for Craftsman 502257040 yard & garden tractor, as well as links to manuals and error code tables, if available.
By Schematic
By Part

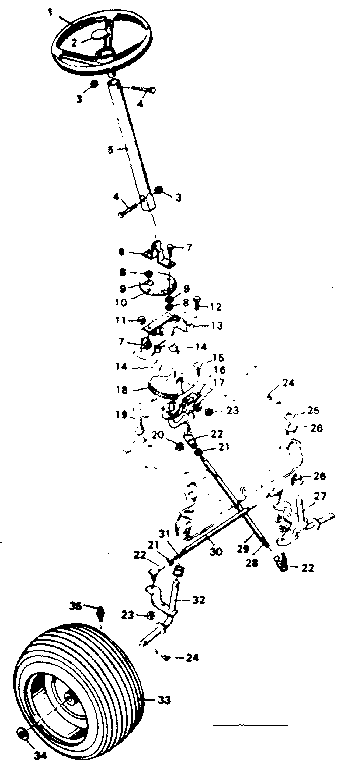

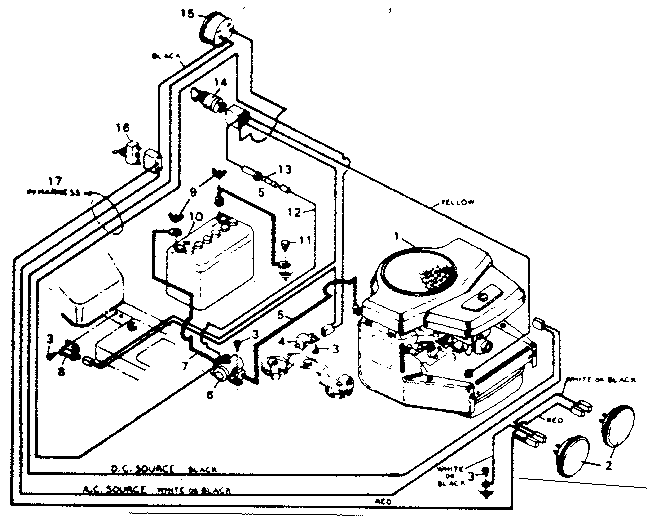

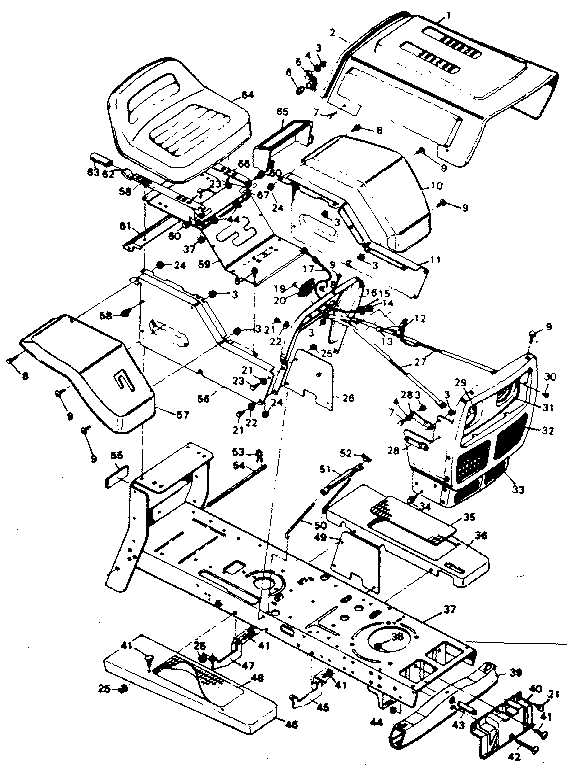

SELECT DIAGRAM
Browse Parts for 502257040 Riding Mowers & Tractors

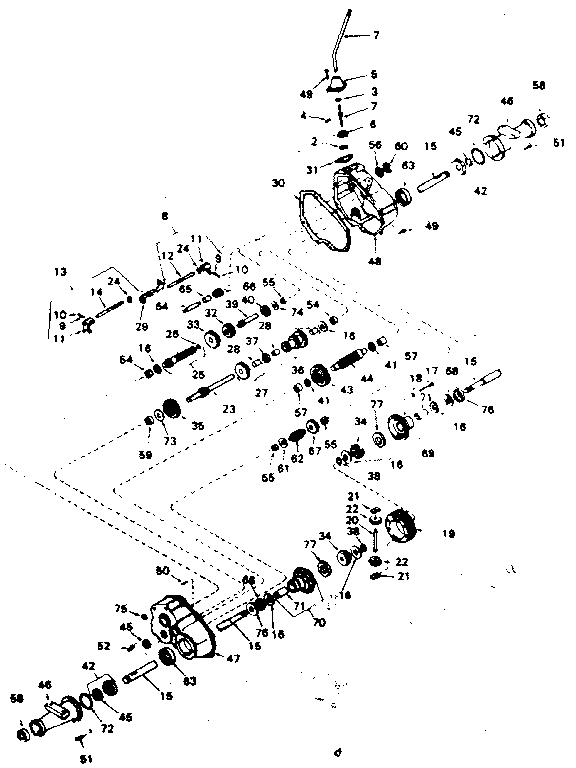

Peerless transaxle diagram
Washer
Part #780007Replaced by #780007
Manufacturer substitutionThis part replaces 780007. Substitute parts can look different from the original.This item is not returnableIn Stock$4.60
Qty
Peerless transaxle diagram
Snap Ring
Part #792018Replaced by #792018
Manufacturer substitutionThis part replaces 792018. Substitute parts can look different from the original.This item is not returnableIn Stock$4.37QtyPeerless transaxle diagram
Input Shaft
Part #776067Replaced by #776067

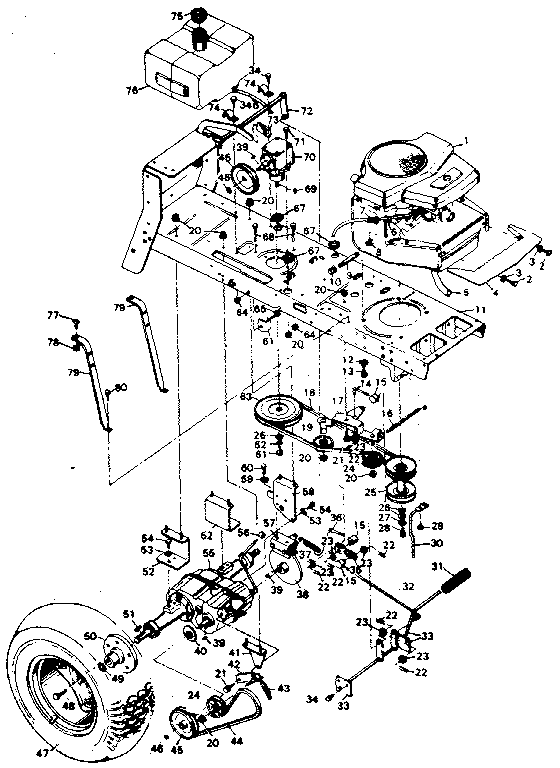

Manufacturer substitutionThis part replaces 776067. Substitute parts can look different from the original.In Stock$71.47QtyDrive assembly diagram
Key
Part #20697Replaced by #20697MA
Manufacturer substitutionThis part replaces 20697. Substitute parts can look different from the original.In Stock$7.83QtyPeerless transaxle diagram
Output Gear
Part #778036Replaced by #778036
Manufacturer substitutionThis part replaces 778036. Substitute parts can look different from the original.In Stock$70.64QtyPeerless transaxle diagram
Ball
Part #792004Replaced by #792004
Manufacturer substitutionThis part replaces 792004. Substitute parts can look different from the original.This item is not returnableIn Stock$4.37QtyPeerless transaxle diagram
Seal Retainer
Part #788021Replaced by #788021
Manufacturer substitutionThis part replaces 788021. Substitute parts can look different from the original.In Stock$27.38QtyPeerless transaxle diagram
Spacer
Part #786024Replaced by #786024

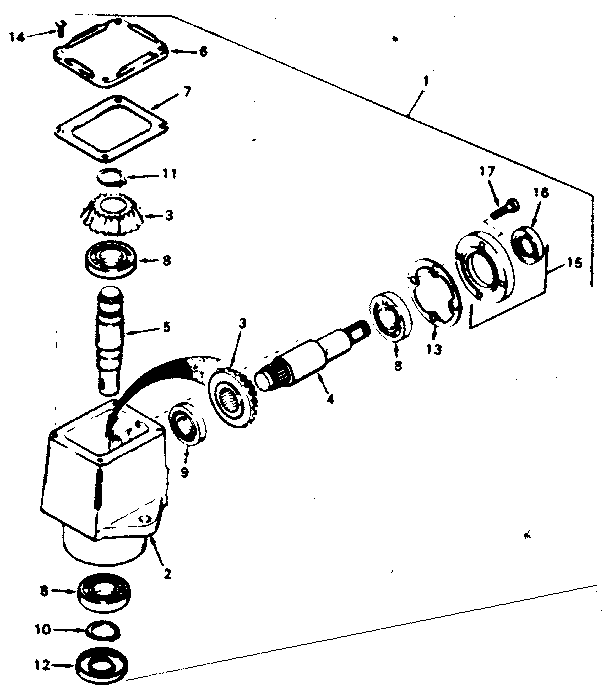

Manufacturer substitutionThis part replaces 786024. Substitute parts can look different from the original.This item is not returnableIn Stock$4.49QtyPeerless right angle drive diagram
Gasket
Part #788028Replaced by #788028
Manufacturer substitutionThis part replaces 788028. Substitute parts can look different from the original.This item is not returnableIn Stock$6.09QtyPeerless right angle drive diagram
Bearing
Part #780034Replaced by #780034
Manufacturer substitutionThis part replaces 780034. Substitute parts can look different from the original.In Stock$40.56Qty
Most common symptoms to help you fix your riding mowers & tractors
Choose a symptom to see related riding mower and lawn tractor repairs.
Main causes: damaged tie rods, bent or worn wheel spindle, worn front axle, damaged sector gear assembly…
Main causes: dead battery, stale fuel, bad starter solenoid, ignition system problem, bad ignition interlock switch, clo…
Main causes: worn or broken blade belt, broken belt idler pulley, blade clutch cable failure, bad PTO switch, damaged ma…
Main causes: engine overfilled with oil, leaky head gasket or sump gasket, damaged carburetor seals, cracked fuel pump, …
Main causes: punctured tire or inner tube, leaky valve stem, damaged wheel rim…
Main causes: unlevel mower deck, dull or damaged cutting blades, worn mandrel pulleys, bent mower deck, engine needs tun…
Main causes: worn or broken ground drive belt, bad seat switch, transaxle freewheel control engaged, transaxle failure, …
Main causes: faulty battery, bad alternator…
Main causes: shift lever needs adjustment, neutral control needs adjustment…
