KitchenAid KEMS377XBL2 electric wall oven

KitchenAid KEMS377XBL2 electric wall oven Parts

Here are the diagrams and repair parts for KitchenAid KEMS377XBL2 electric wall oven, as well as links to manuals and error code tables, if available.

By Schematic
By Part

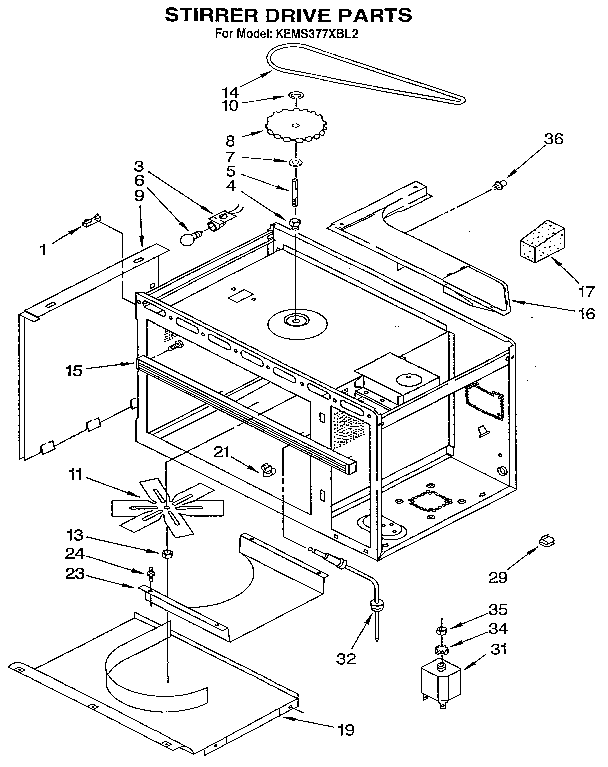

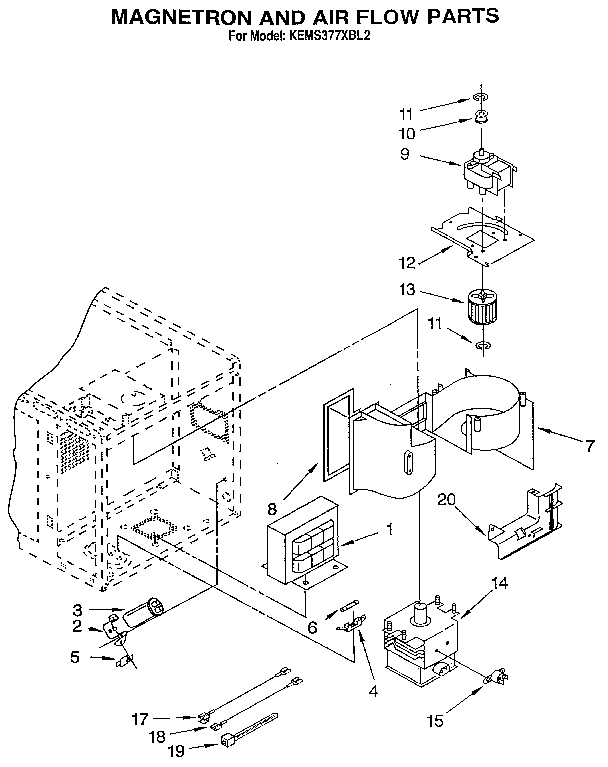

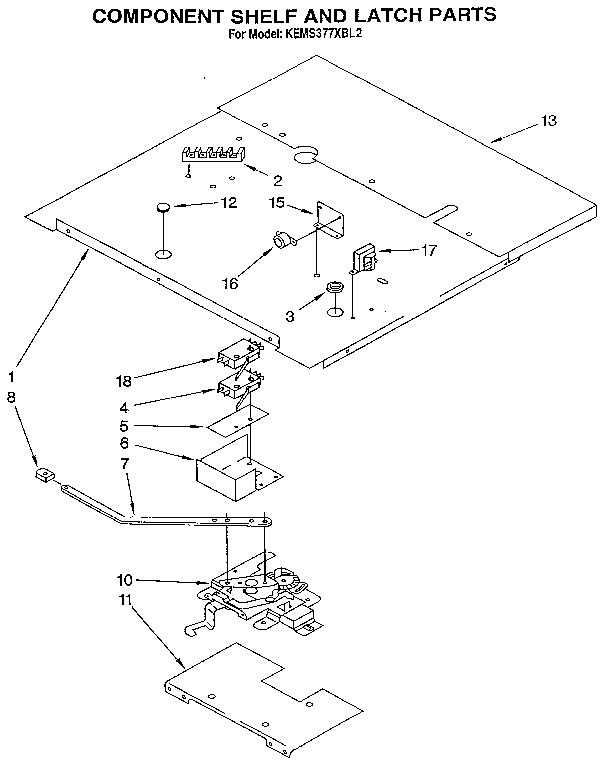

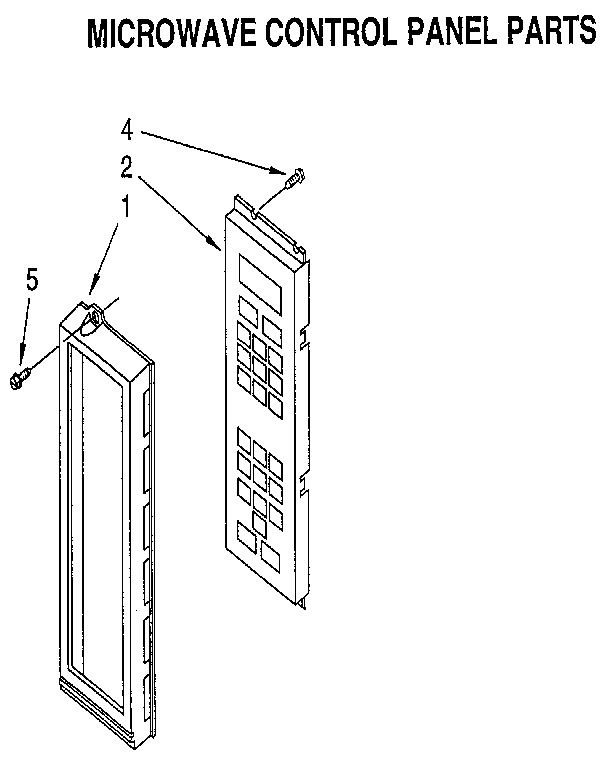

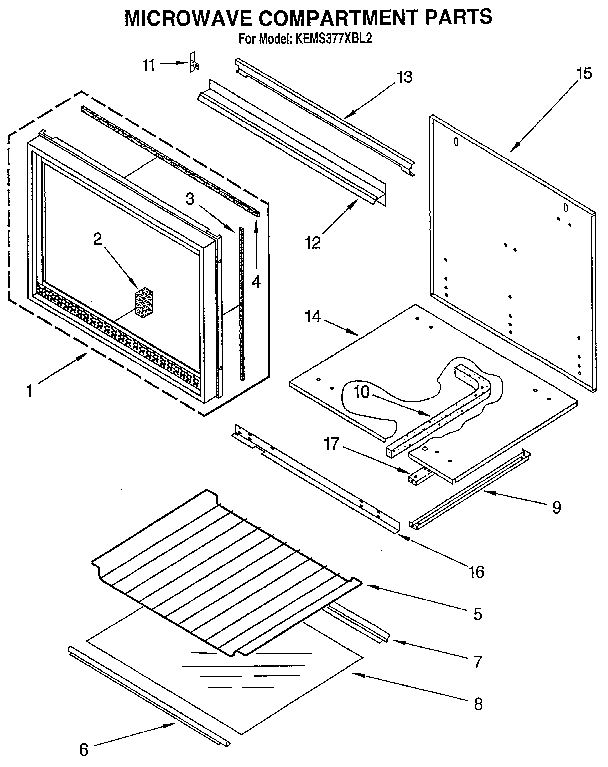

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for KEMS377XBL2 Wall Ovens

  • Appliance Porcelain Touch-up Paint, 1-qt (white) for KitchenAid KEMS377XBL2 - Part 799344

    #NI

    All parts diagram

    Paint 1qt

    Part #799344

    Replaced by #799344

    Info Icon
    Manufacturer substitution
    This part replaces 799344. Substitute parts can look different from the original.
    In Stock
    $131.86
    8% OFF Phone Price : $143.86Info Icon
    Minus Item
    Qty
    Plus Item
  • Kenmore Dishwasher Screw for KitchenAid KEMS377XBL2 - Part 303776

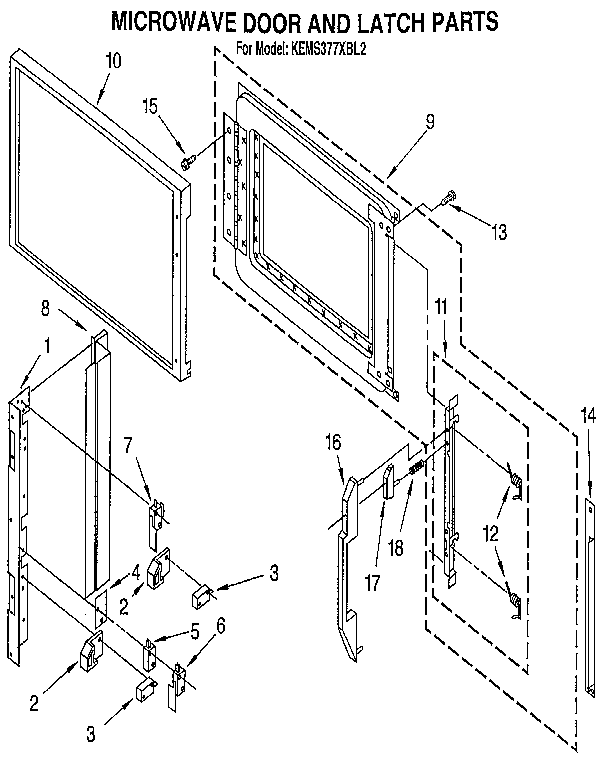

    Microwave door and latch diagram

    Screw

    Part #313811

    Replaced by #303776

    Info Icon
    Manufacturer substitution
    This part replaces 313811. Substitute parts can look different from the original.
    In Stock
    $9.24
    10% OFF Phone Price : $10.24Info Icon
    Minus Item
    Qty
    Plus Item
  • Appliance Touch-up Paint, 0.6-oz (black) for KitchenAid KEMS377XBL2 - Part 72032

    #NI

    All parts diagram

    Touch-up Paint (black)

    Part #72032

    Replaced by #72032

    Info Icon
    Manufacturer substitution
    This part replaces 72032. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $11.08
    15% OFF Phone Price : $13.08Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Oven Control Thermostat Bulb Clip for KitchenAid KEMS377XBL2 - Part 98005642

    Oven diagram

    Clip Bulb

    Part #313382

    Replaced by #98005642

    Info Icon
    Manufacturer substitution
    This part replaces 313382. Substitute parts can look different from the original.
    In Stock
    $70.85
    Minus Item
    Qty
    Plus Item
  • Appliance Screw, #8-32 X 0.29-in for KitchenAid KEMS377XBL2 - Part WPW10068250

    Microwave door and latch diagram

    Screw

    Part #311777

    Replaced by #WPW10068250

    Info Icon
    Manufacturer substitution
    This part replaces 311777. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $5.89
    15% OFF Phone Price : $6.89Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Bake Element for KitchenAid KEMS377XBL2 - Part WP661416

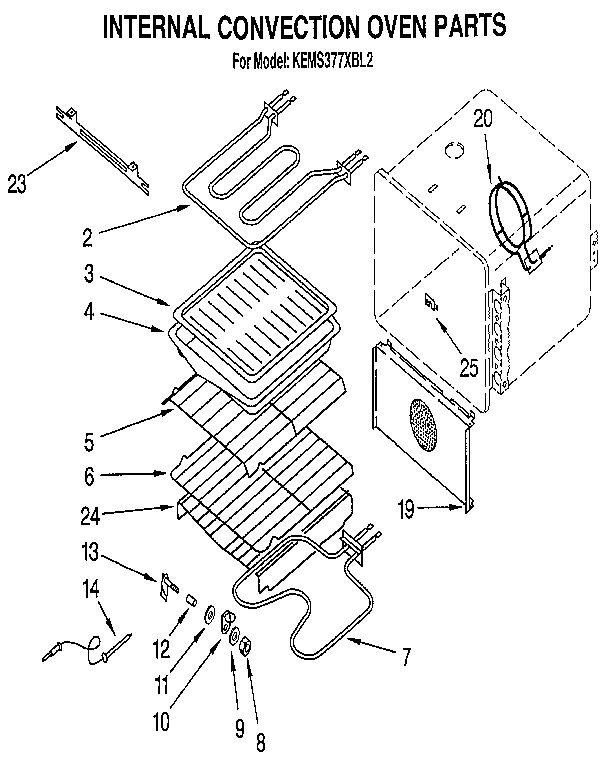

    Internal convection oven diagram

    Range Bake Element

    Part #661416

    Replaced by #WP661416

    Info Icon
    Manufacturer substitution
    This part replaces 661416. Substitute parts can look different from the original.
    In Stock
    $92.31
    6% OFF Phone Price : $98.31Info Icon
    Minus Item
    Qty
    Plus Item
  • Washer Wire Harness Retainer for KitchenAid KEMS377XBL2 - Part 16515

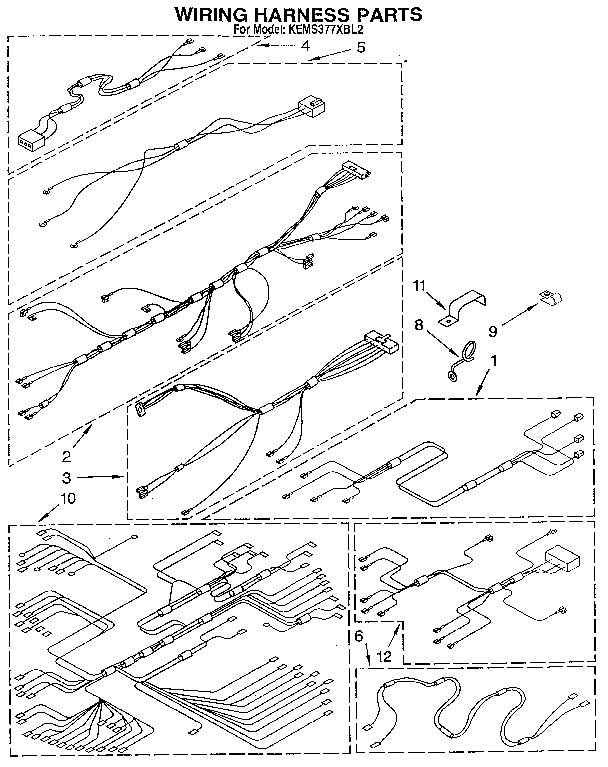

    Wiring harness diagram

    Clip

    Part #313438

    Replaced by #16515

    Info Icon
    Manufacturer substitution
    This part replaces 313438. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $22.61
    21% OFF Phone Price : $28.61Info Icon
    Minus Item
    Qty
    Plus Item
  • Screw for KitchenAid KEMS377XBL2 - Part WP486579

    Screw

    Part #155023

    Replaced by #WP486579

    Info Icon
    Manufacturer substitution
    This part replaces 155023. Substitute parts can look different from the original.
    In Stock
    $28.99
    Minus Item
    Qty
    Plus Item
  • Bulb for KitchenAid KEMS377XBL2 - Part 8009

    Oven diagram

    Light Bulb

    Part #311255

    Replaced by #8009

    Info Icon
    Manufacturer substitution
    This part replaces 311255. Substitute parts can look different from the original.
    In Stock
    $35.61
    Minus Item
    Qty
    Plus Item
  • Fan Motor for KitchenAid KEMS377XBL2 - Part 4173612

    Convection fan diagram

    Fan Motor

    Part #4173612

    The manufacturer no longer makes this part, and there's no substitute part
