No. Whirlpool ovens are not all the same size; widths, heights, depths, and cutout requirements vary by model and by whether it is a wall oven, range, or built-in unit. Your Whirlpool RB100PXYB5 is a 24-inch electric built-in wall oven, so it typically uses a smaller cabinet cutout than 27-inch or 30-inch models.

Most Whirlpool single wall ovens fall into a few common size groups:

• 24-inch wall ovens: usually smaller capacity and smaller cutout
• 27-inch wall ovens: mid-size, common in many kitchens
• 30-inch wall ovens: largest common width for single wall ovens
• Double wall ovens: taller cutout and different electrical and cabinet requirements

Typical exterior and cutout dimensions vary by series, trim style, and installation method, so we recommend measuring your existing opening before ordering a replacement oven.

Use a tape measure and record these dimensions (in inches):

• Cabinet cutout width (left to right)
• Cabinet cutout height (top to bottom)
• Cabinet cutout depth (front to back)
• Front frame or trim overlap (how much the oven face covers the cabinet)
• Electrical supply location and clearance behind the oven

Wall ovens must match the cabinet cutout closely. If the cutout is too small, the oven will not install; if it is too large, you can end up with gaps around the trim and mounting issues.

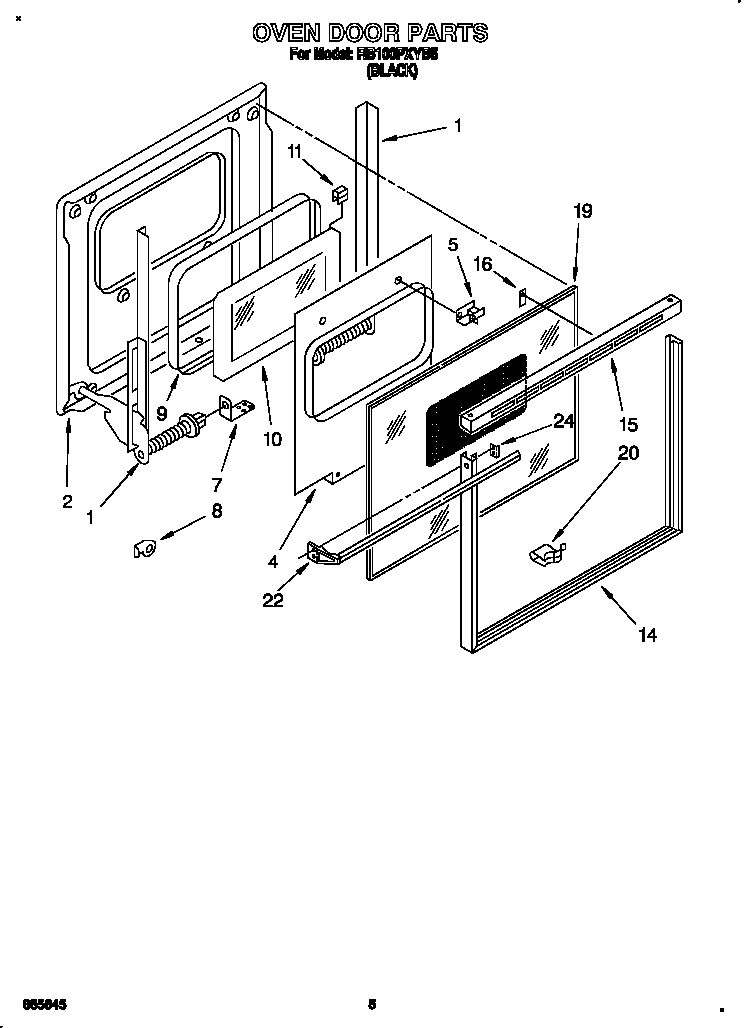

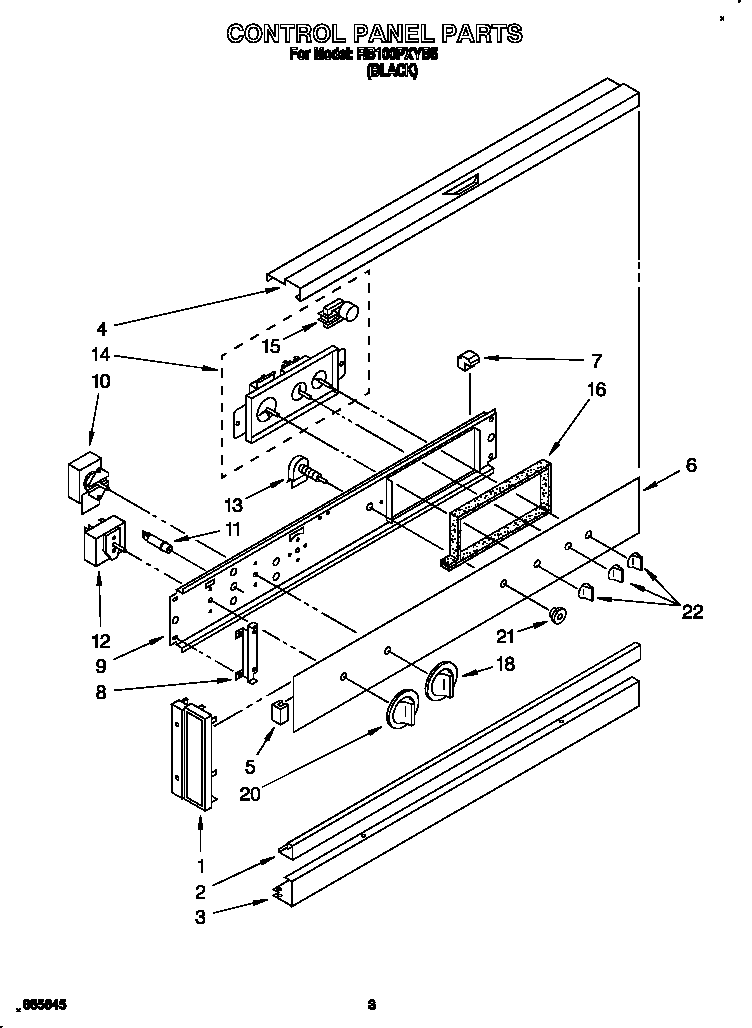

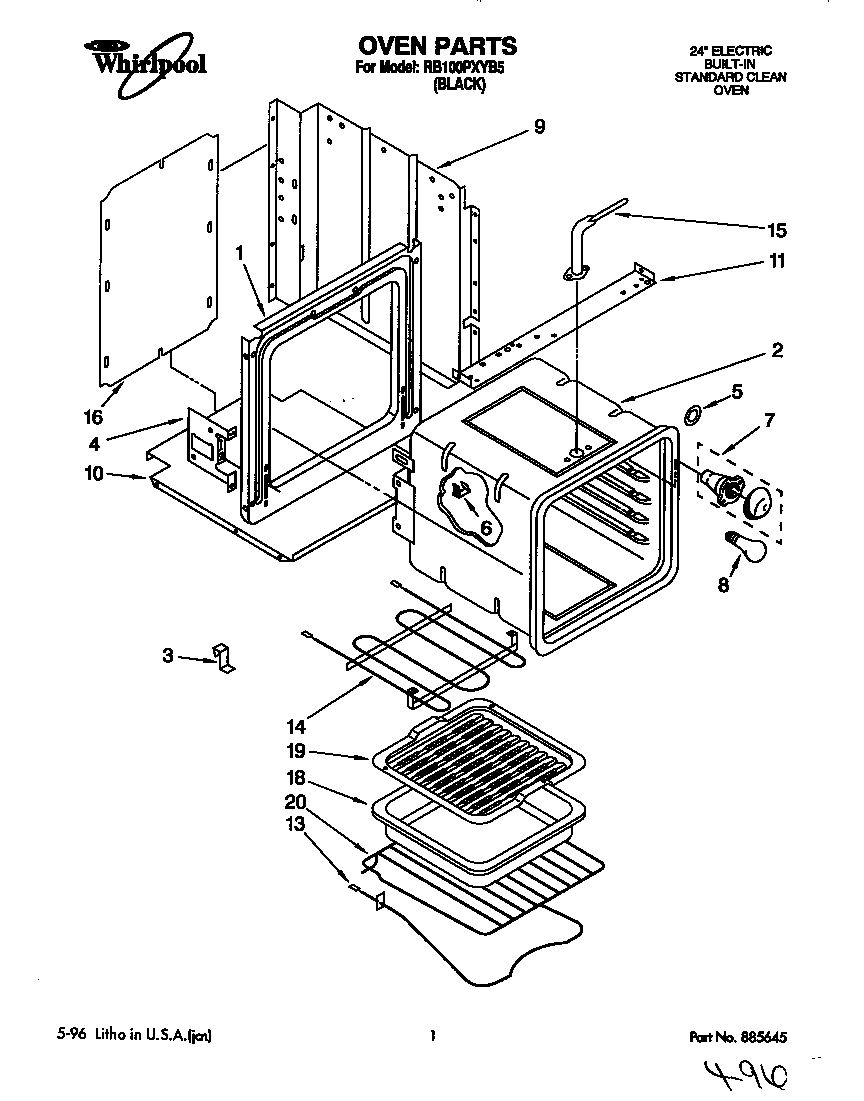

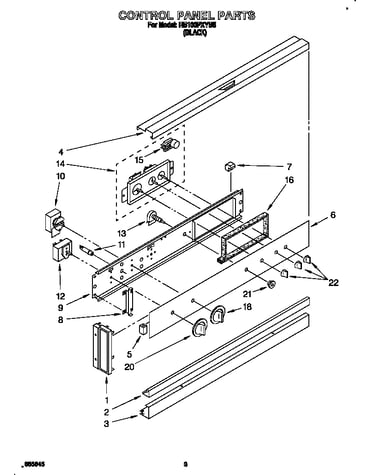

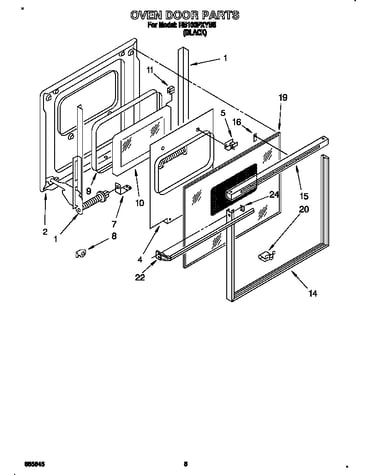

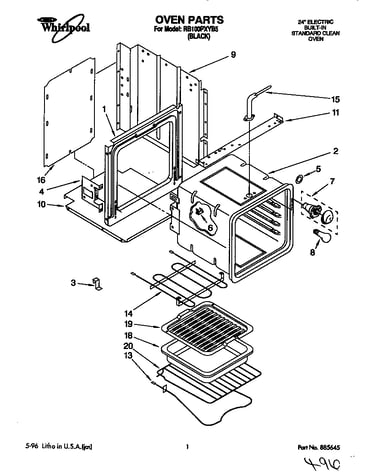

If you are repairing instead of replacing the oven, you can order RB100PXYB5 replacement parts from the parts list for this model, or search by model number on Sears PartsDirect. Common items include the range broil element WP660579 and light bulb 8009.

Last updated: February 2026

Most Whirlpool cooking appliances (including wall ovens like model RB100PXYB5) typically last about 13 to 15 years with normal use and basic maintenance. If your oven is heating unevenly, taking longer to preheat, or has failing lights, replacing a few common parts can extend usable life.

A Whirlpool wall oven’s life expectancy depends most on heat stress, electrical connections, and how often it runs at high temperatures (broil, long bakes).

Common factors that shorten lifespan:

• Frequent self-clean or very high-heat use (even on standard-clean models, high heat still stresses parts)
• Loose or overheated wiring connections
• Slamming the door or worn door seal letting heat escape
• Heavy spills that carbonize and damage surfaces
• Power surges or repeated breaker trips

If the cabinet and insulation are still solid, many “old oven” symptoms are part-related.

Watch for:

• Broil works but bake struggles, or vice versa
• Uneven browning or hot spots
• Oven light stops working (bulb or socket)
• Burning smell near wiring or intermittent operation
• Door not sealing well, causing long preheat times

For Whirlpool RB100PXYB5, these are frequent fixes when the oven still has good structure:

• Range broil element WP660579 (no broil or weak broil)
• Oven unit 326791 (bake heat problems)
• Light bulb 8009 and light socket W11594027 (no interior light)
• Cooking appliance 14-gauge splicing wire, 200-degree c (red) 242831 (heat-damaged wiring repairs)

Knowing the typical 13 to 15 year lifespan helps you decide whether a targeted repair (like an element or light circuit) is worth it. For RB100PXYB5, ordering the exact-fit parts from the model’s parts list prevents mismatches; for broader model searches, use Sears PartsDirect.

Last updated: February 2026

If your Whirlpool RB100PXYB5 electric wall oven is not heating, the most common causes are a failed bake element, a failed broil element, a power supply issue (missing 240V), or burned wiring/connectors. Start with breaker checks, then inspect and test the heating elements.

• Confirm you selected Bake or Broil and set a temperature.
• Cancel Delay Start or special modes (if used).
• Make sure the door is fully closed.
• Reset the double-pole 240V breaker; a half-tripped breaker can leave lights working but no heat.

• Bake element open: oven will not heat in Bake; element may look blistered or cracked. Consider the oven unit 326791.
• Broil element open: Broil will not heat; some ovens also preheat poorly. Consider the range broil element WP660579.

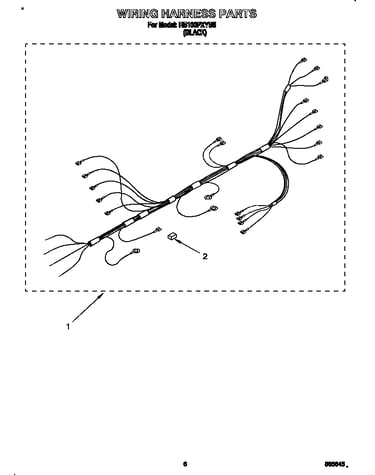

• Burned wire/terminal: melted connector or brittle insulation near an element. Use high-temp repair wire such as cooking appliance 14-gauge splicing wire, 200-degree c (red) 242831.

Turn off power at the breaker before removing panels.

• Inspect element terminals for discoloration or loose connections.
• Use a multimeter to check continuity through each element; an open reading means the element is bad.
• If elements test good, check for proper supply voltage at the oven connection (live-voltage testing is for trained techs).

Helpful reference: how to use a multimeter to test electrical parts video

An oven that will not heat is usually an electrical open (element or wiring) or a missing leg of 240V power. Testing first prevents replacing good parts and helps restore safe, consistent cooking.

You can order RB100PXYB5 parts from the parts list for this model, or search by model number on Sears PartsDirect.
