Model #DBLR333GG6WW GE gas dryer

Here are the diagrams and repair parts for GE DBLR333GG6WW gas dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

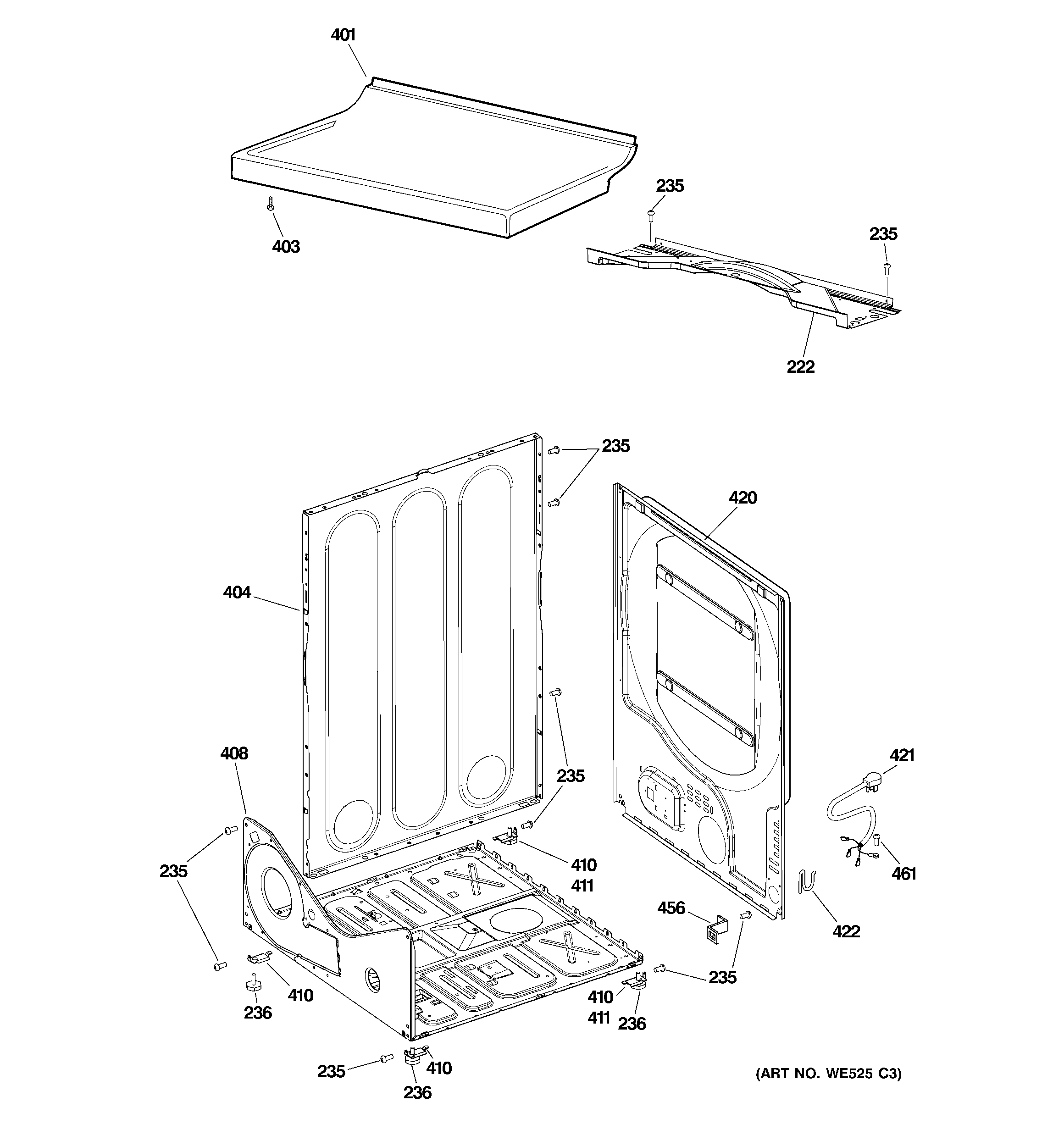

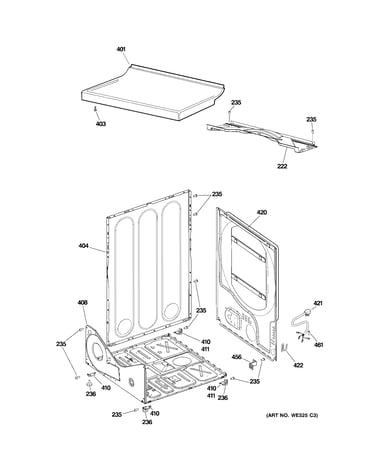

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

    Showing 10 of 113 parts

    Dryer Drum Belt

    #213

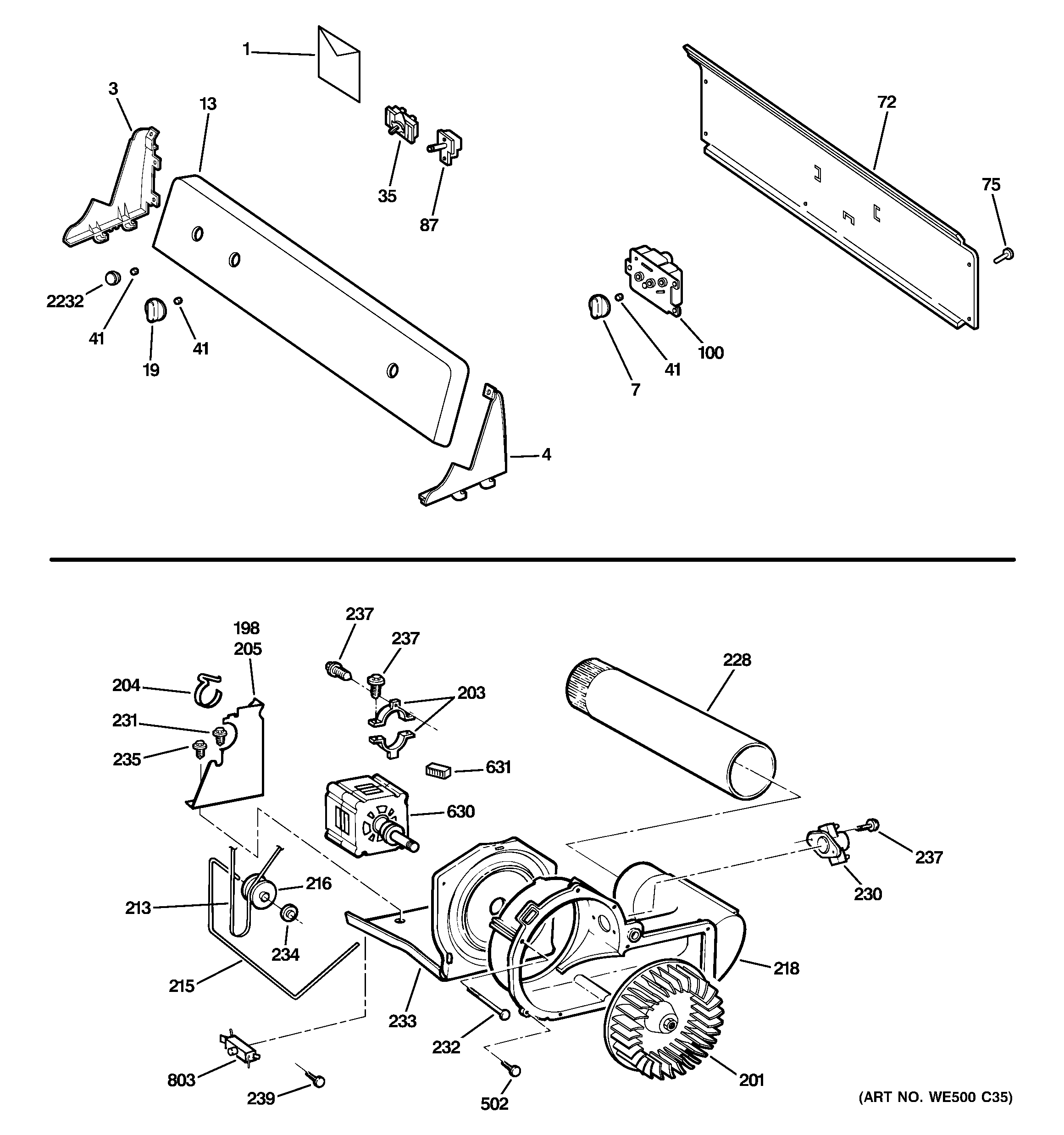

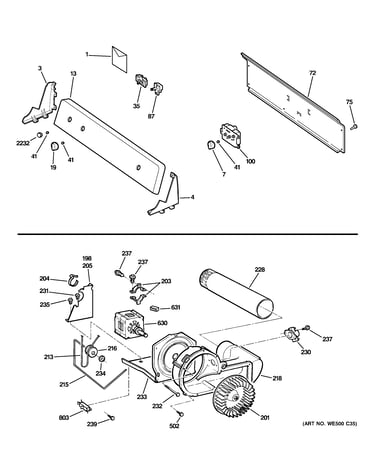

    Backsplash, blower & motor assembly Diagram

    Dryer drum belt

    Part #WE12M29
    $31.99

    In Stock

    Dryer Drum Front Glide Pad

    #316

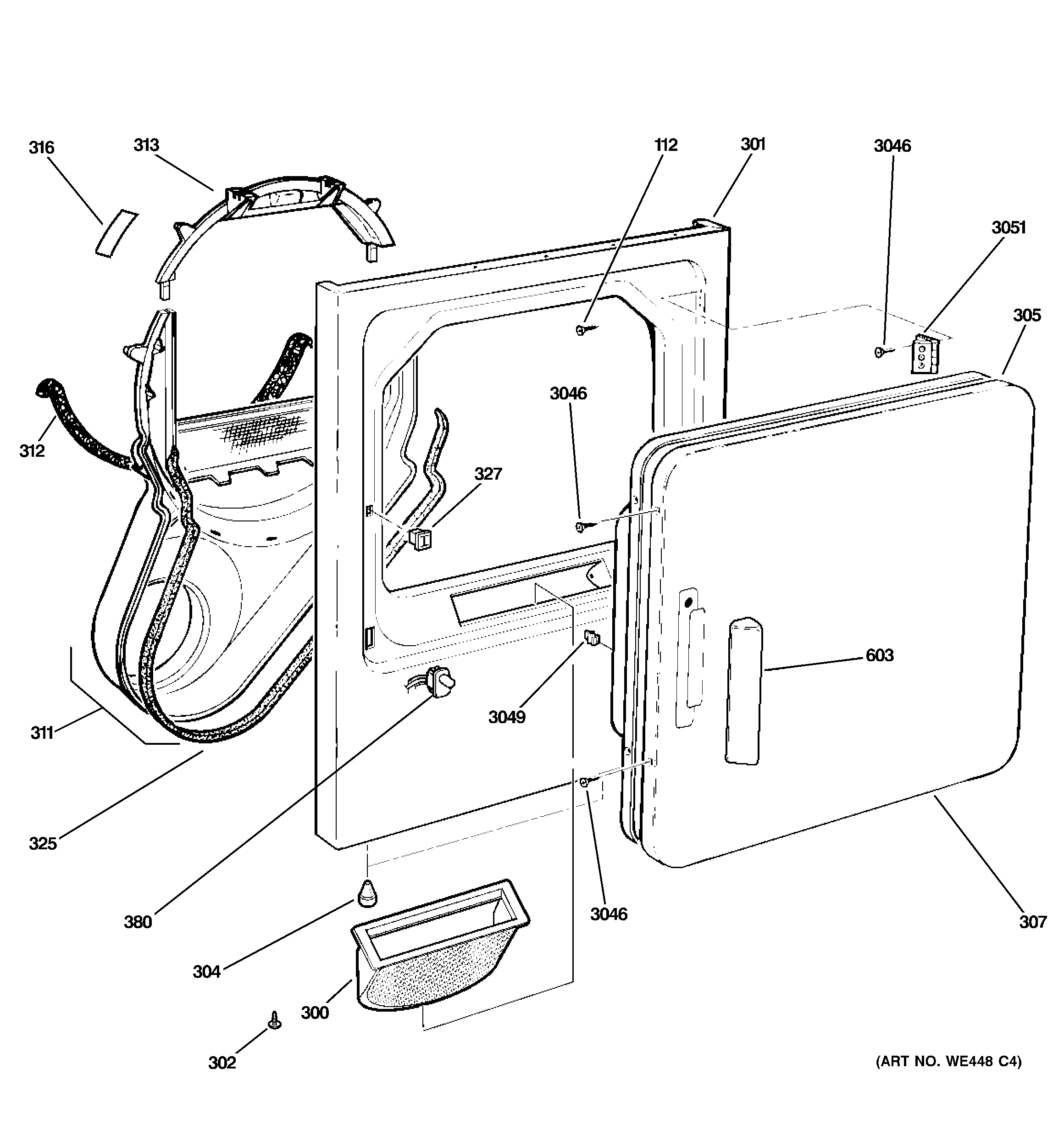

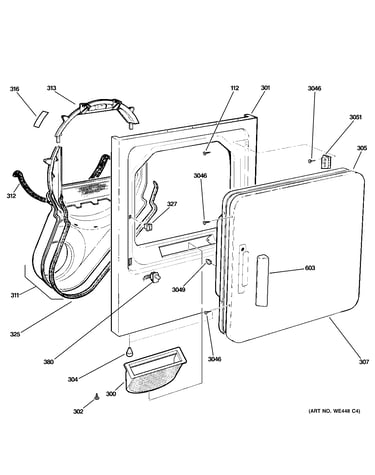

    Front panel & door Diagram

    $9.49

    In Stock

    Dryer Drum Bearing, Front

    #313

    Front panel & door Diagram

    $51.99

    In Stock

    Dryer Timer Knob

    #7

    Backsplash, blower & motor assembly Diagram

    Dryer timer knob

    Part #WE1M654
    $28.99

    In Stock

    Dryer High-Limit Thermostat

    #507

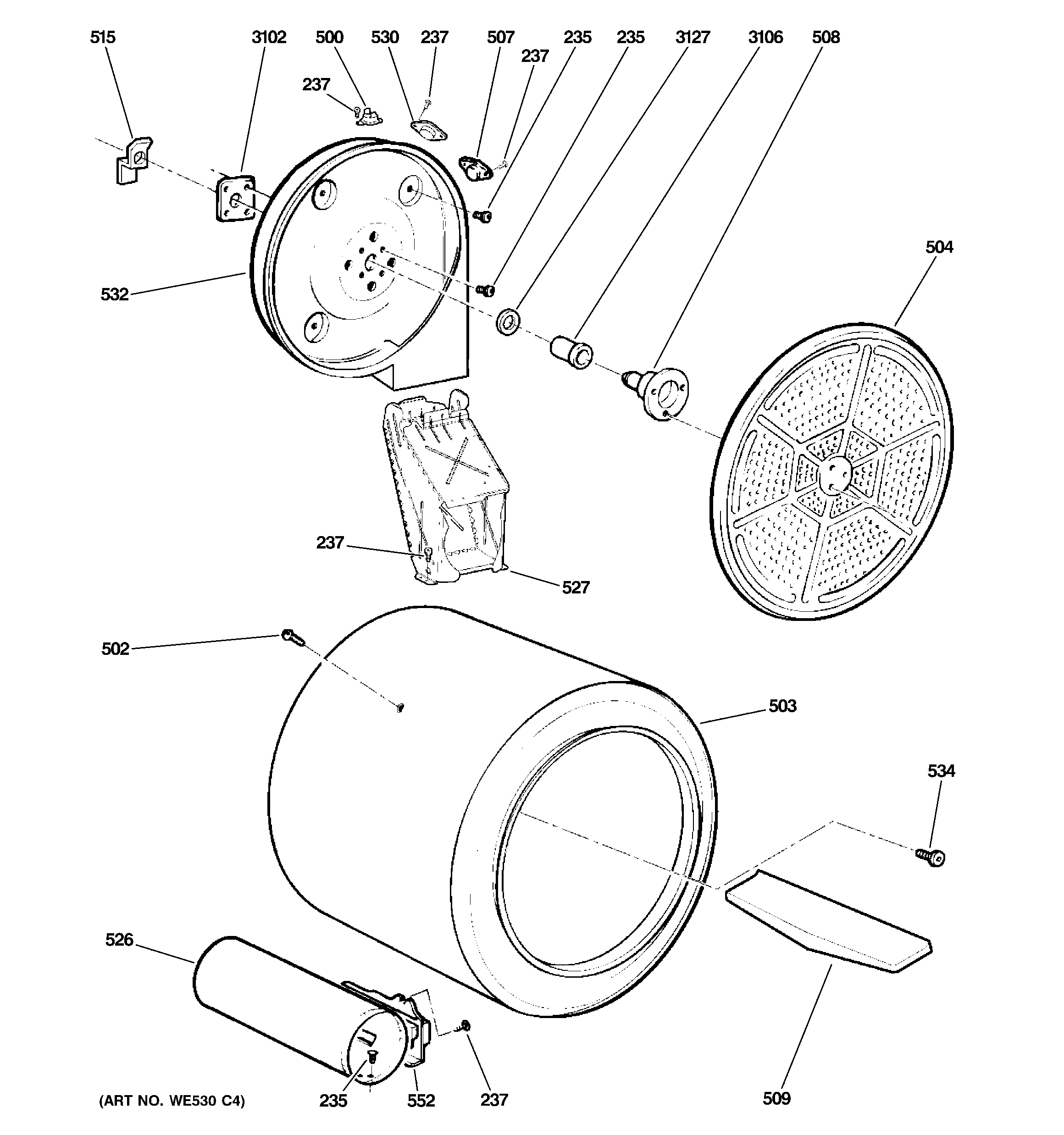

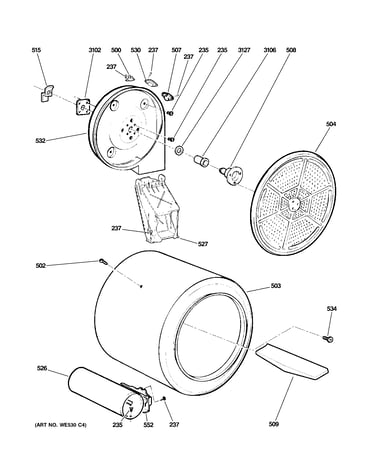

    Drum Diagram

    $36.99

    In Stock

    Dryer Rear Bearing O-Ring

    #3127

    Drum Diagram

    Dryer rear bearing o-ring

    Part #WE1M461
    This item is not returnable
    $3.99

    In Stock

    Dryer Safety Thermostat

    #530

    Drum Diagram

    $25.47

    In Stock

    Dryer Push-to-Start Button

    #2232

    Backsplash, blower & motor assembly Diagram

    Dryer push-to-start button

    Part #WE1M659
    This item is not returnable
    $4.39

    In Stock

    Dryer Radiant Sensor

    #552

    Drum Diagram

    Dryer radiant sensor

    Part #WE4X448
    $50.99

    In Stock

    Washer Screw

    #502

    Backsplash, blower & motor assembly Diagram

    Washer screw

    Part #WE2M174
    This item is not returnable
    $5.08

    In Stock

    Symptoms common to all dryers

    Choose a symptom to see related dryer repairs.

    Main causes: door switch failure, lack of power, broken belt, blown thermal fuse, bad drive motor, control system failure
    Main causes: lack of electrical power, bad power cord, wiring failure, bad control board, blown thermal fuse, bad door switch
    Main causes: bad drum support roller, damaged idler pulley, broken blower fan blade, worn drum glide bearing, bad drive motor

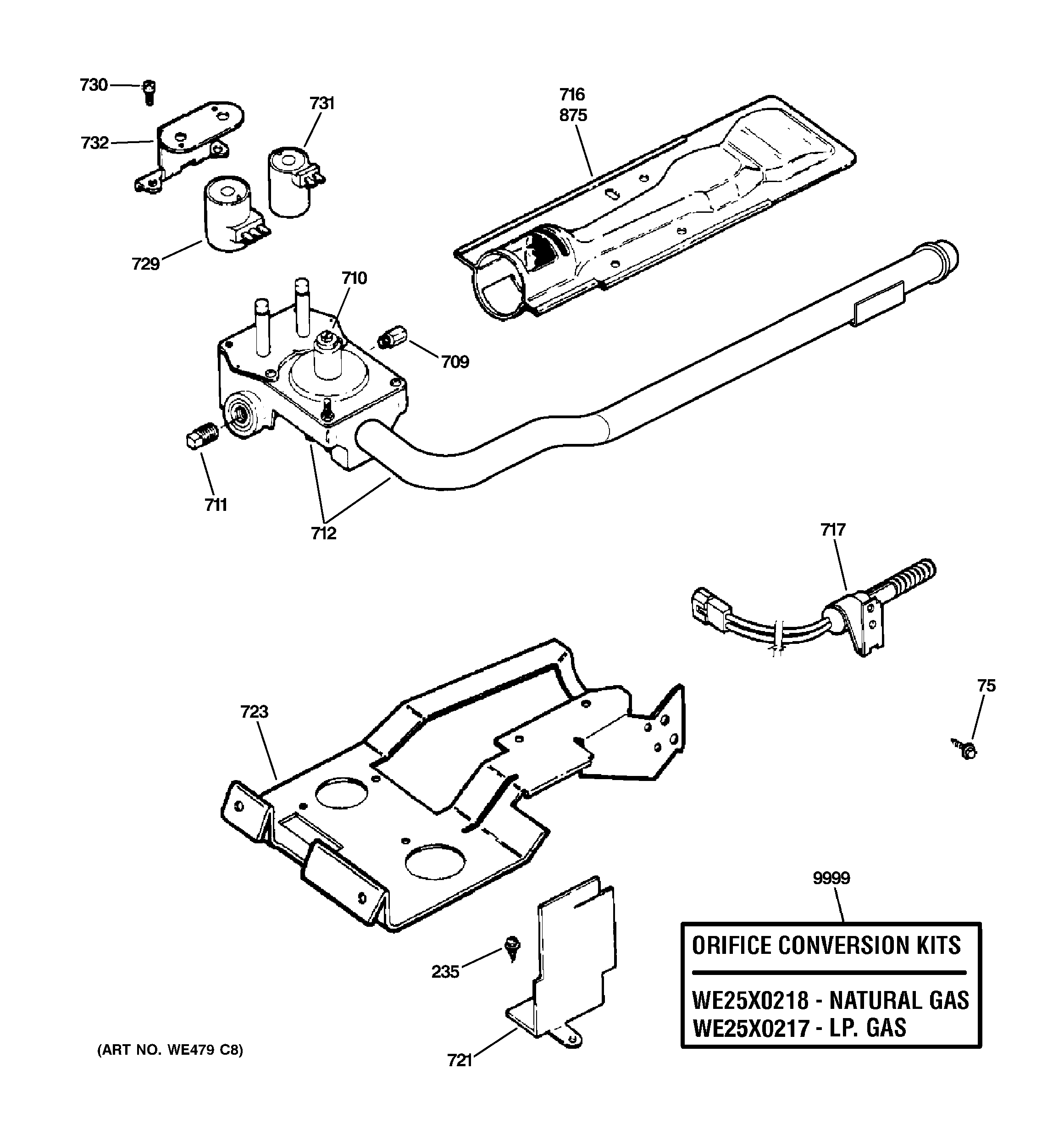

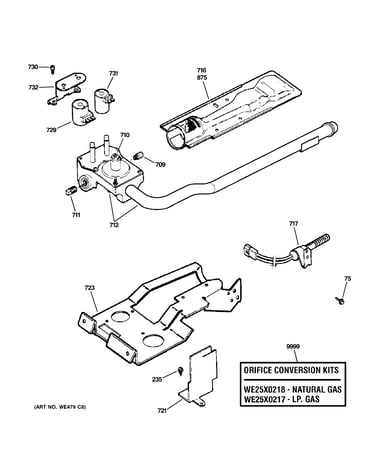

    Main causes: bad gas valve coils, broken heating element, tripped safety thermostat or fuse, bad operating thermostat, control failure
    Main causes: bad timer or electronic control board, door switch failure
    Main causes: clogged exhaust vent, bad motor relay, loose dryer door catch, bad door switch, control system failure, faulty drive motor
    Main causes: damaged door strike, worn door catch
    Main causes: clogged exhaust system, heating system failure, deposits on moisture sensor, control system failure
