Kenmore 11020904990 washer Parts
Here are the diagrams and repair parts for Kenmore 11020904990 washer, as well as links to manuals and error code tables, if available.
Owner’s manual
Error CodesBy Schematic
By Part

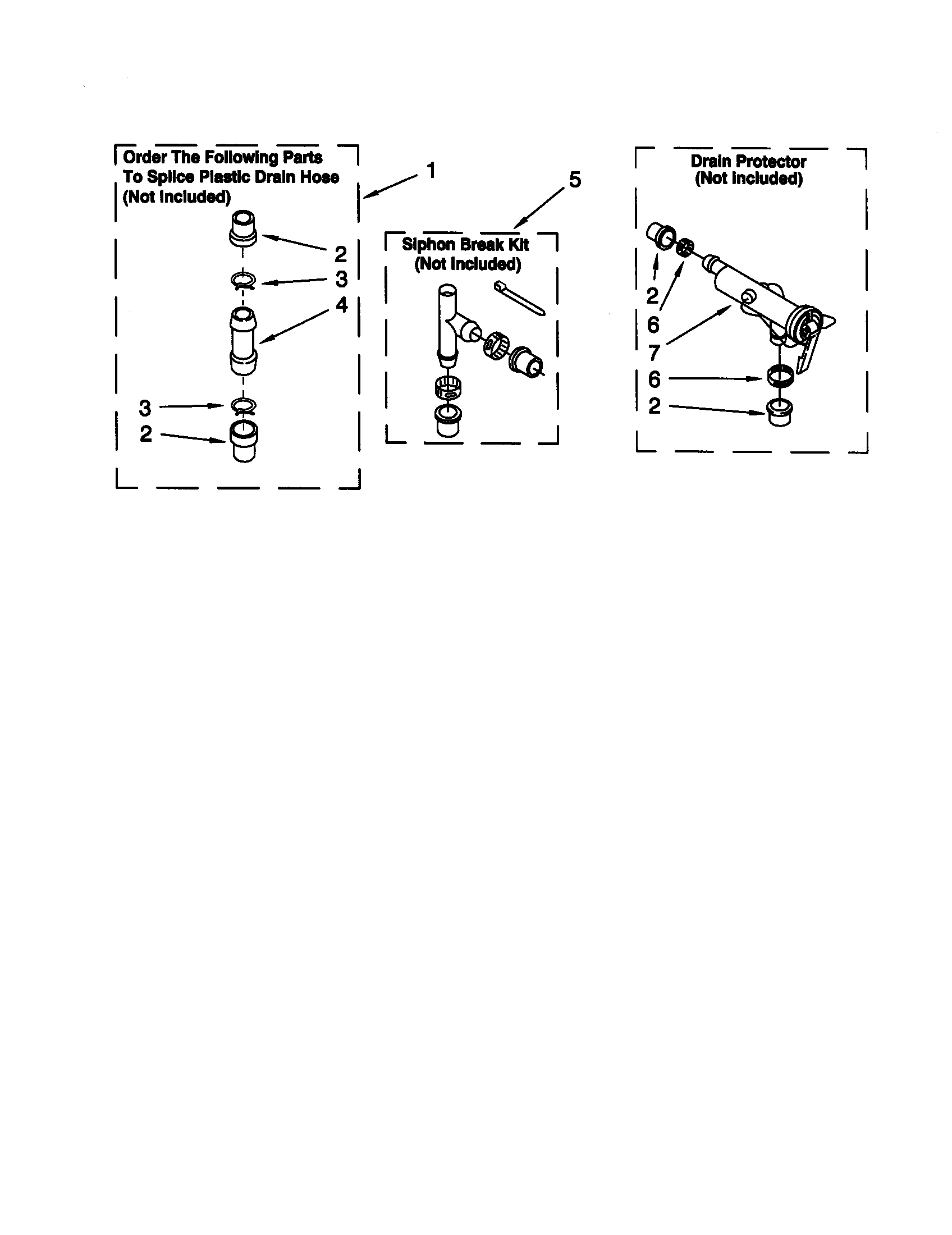

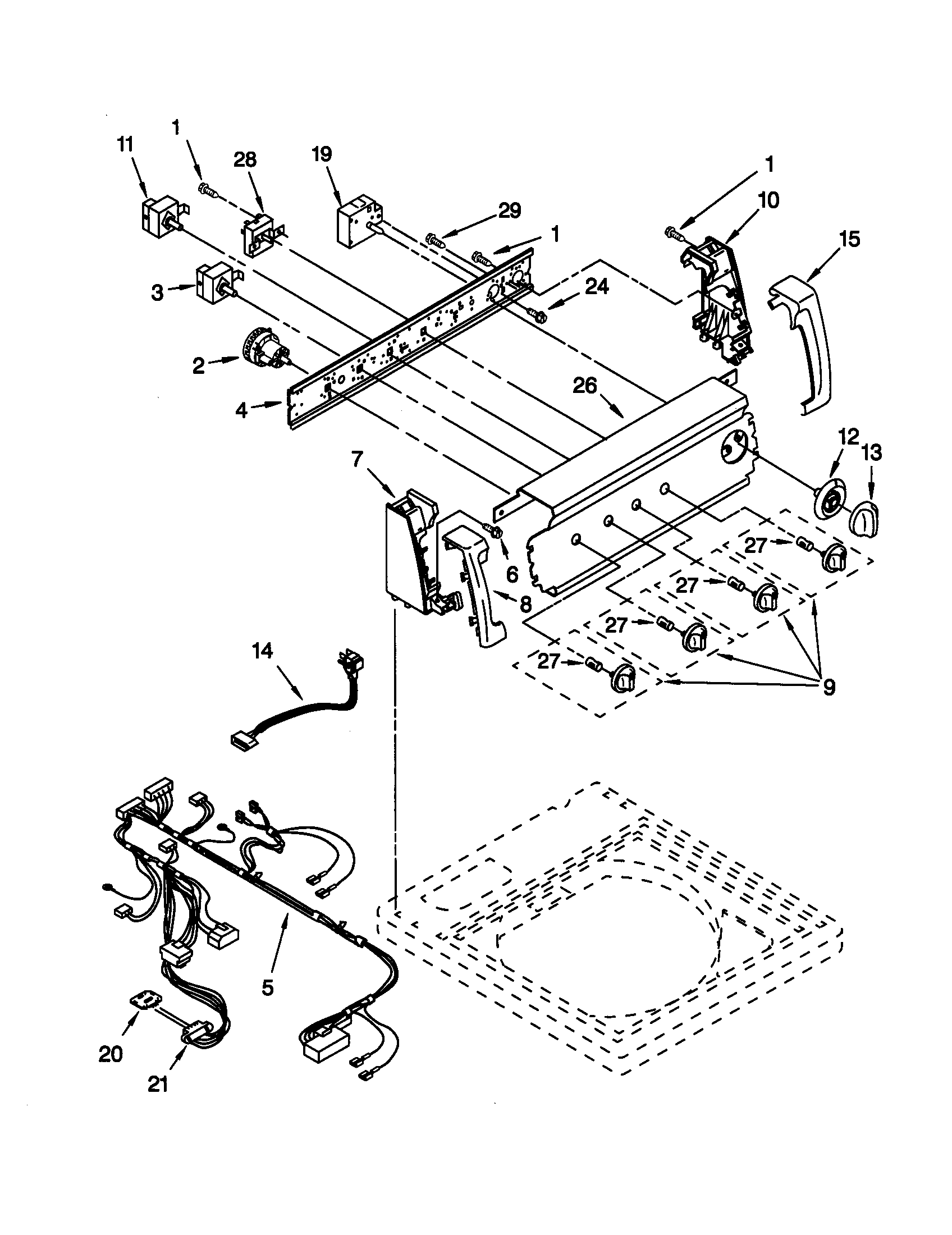

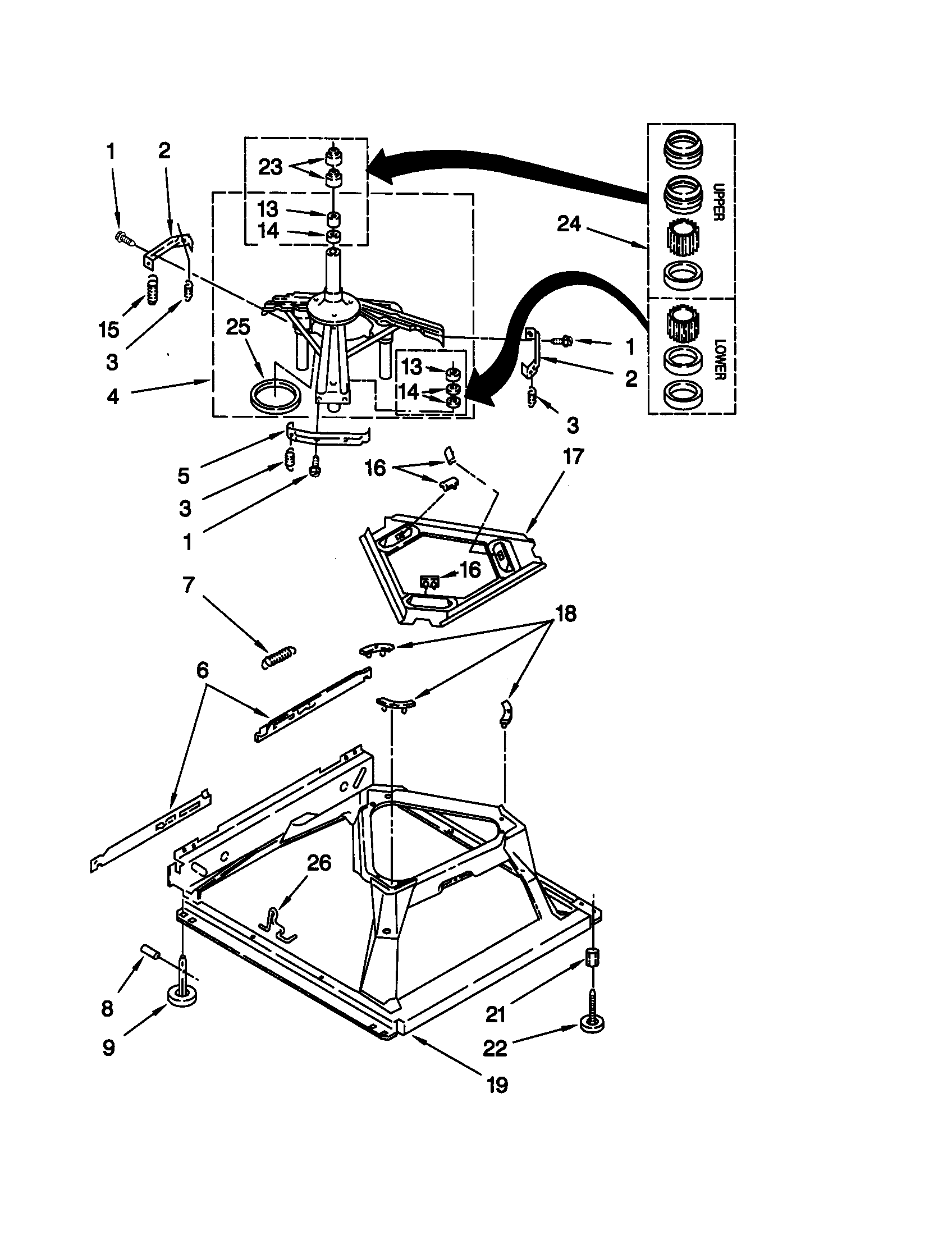

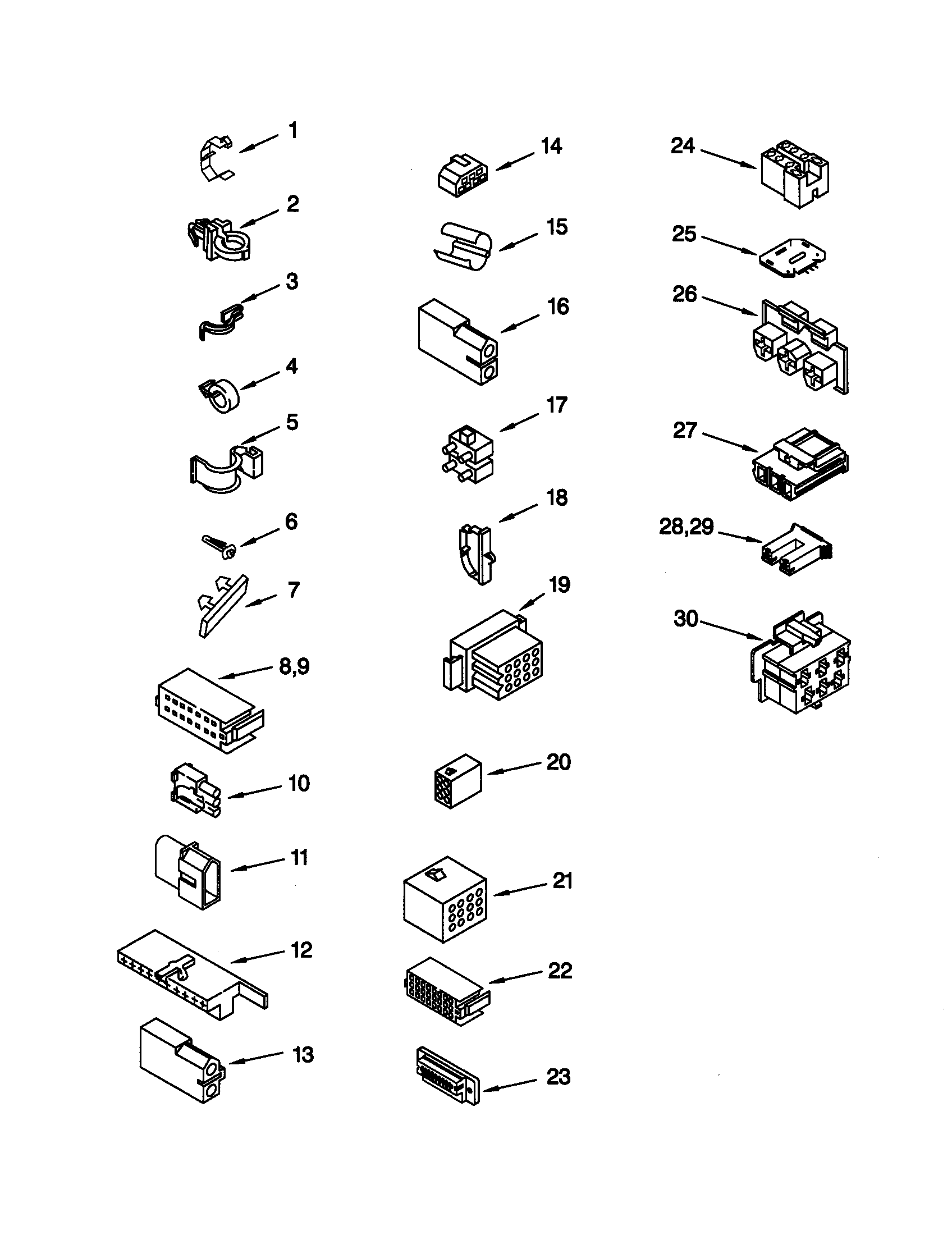

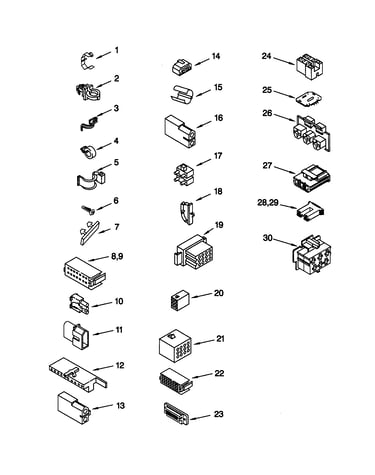

SELECT DIAGRAM
Browse Parts for 11020904990 Washer

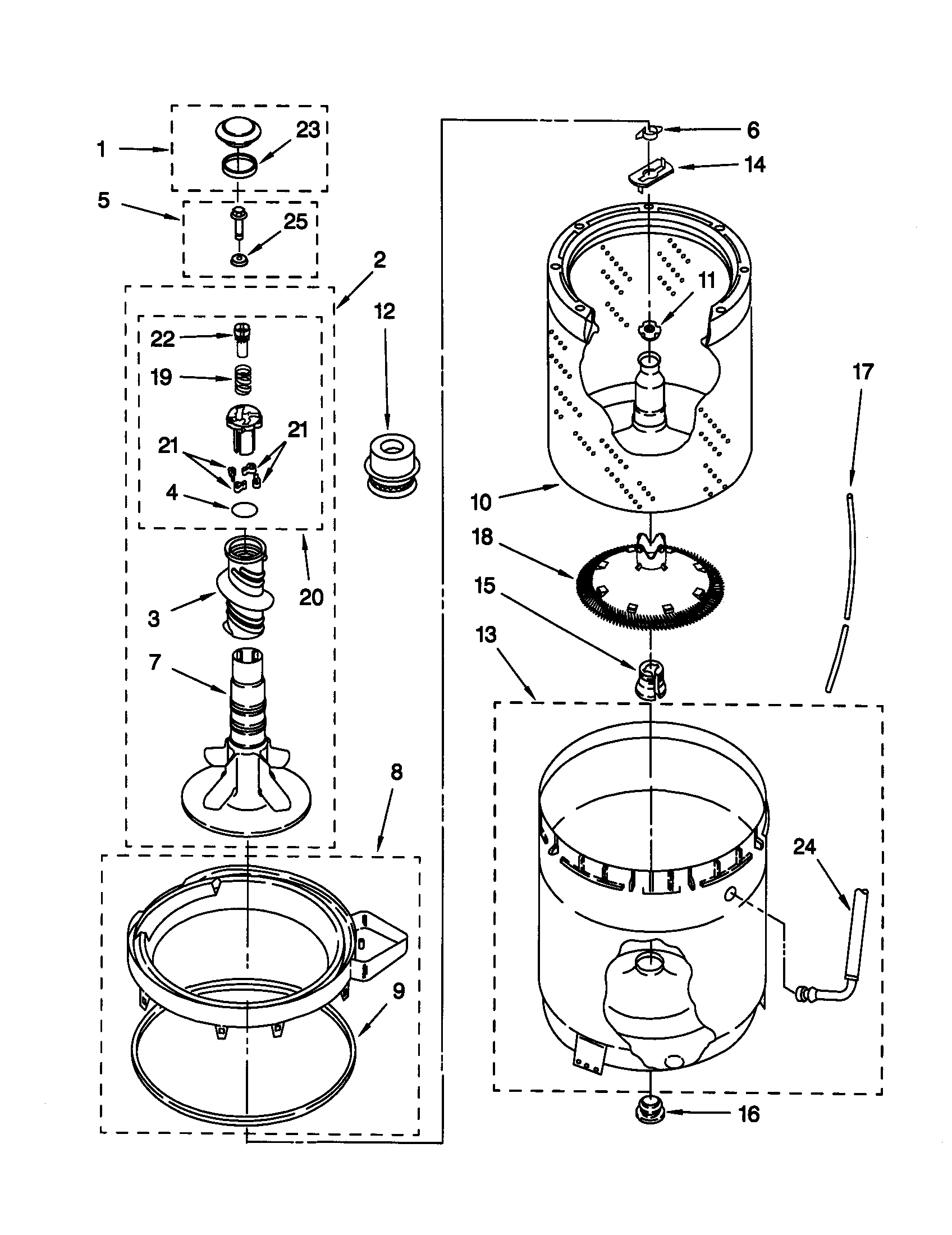

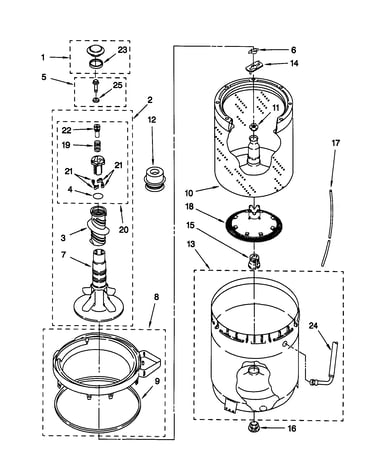

Agitator/basket/tub diagram
Agitator Dog
Part #3366877Replaced by #80040
Manufacturer substitutionThis part replaces 3366877. Substitute parts can look different from the original.In Stock$25.6919% OFF Phone Price : $31.69
Qty

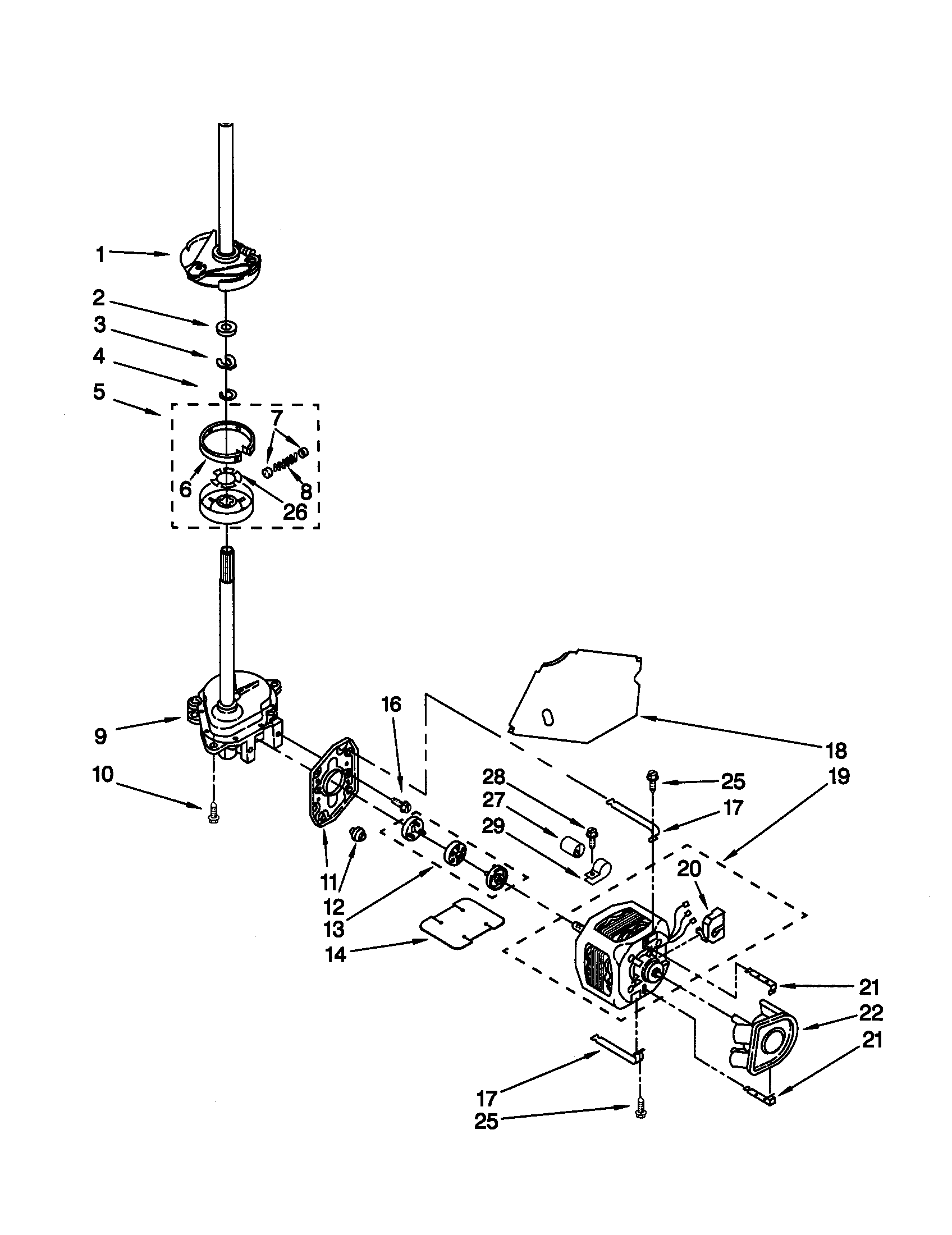

Brake/clutch/gearcase/motor/pump diagram
Clutch
Part #3951311Replaced by #285785
Manufacturer substitutionThis part replaces 3951311. Substitute parts can look different from the original.In Stock$20.0023% OFF Phone Price : $26.00QtyBrake/clutch/gearcase/motor/pump diagram
Gear Case
Part #3360630Replaced by #3360629

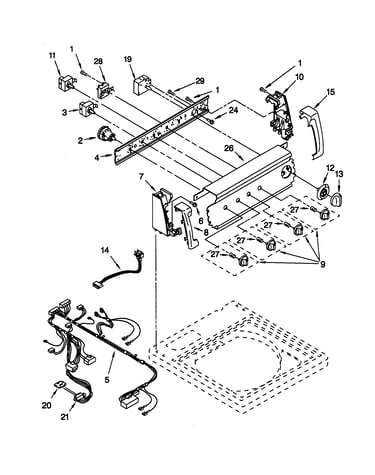

Manufacturer substitutionThis part replaces 3360630. Substitute parts can look different from the original.In Stock$300.59$12.00 OFF Phone Price : $312.59QtyTop and console diagram

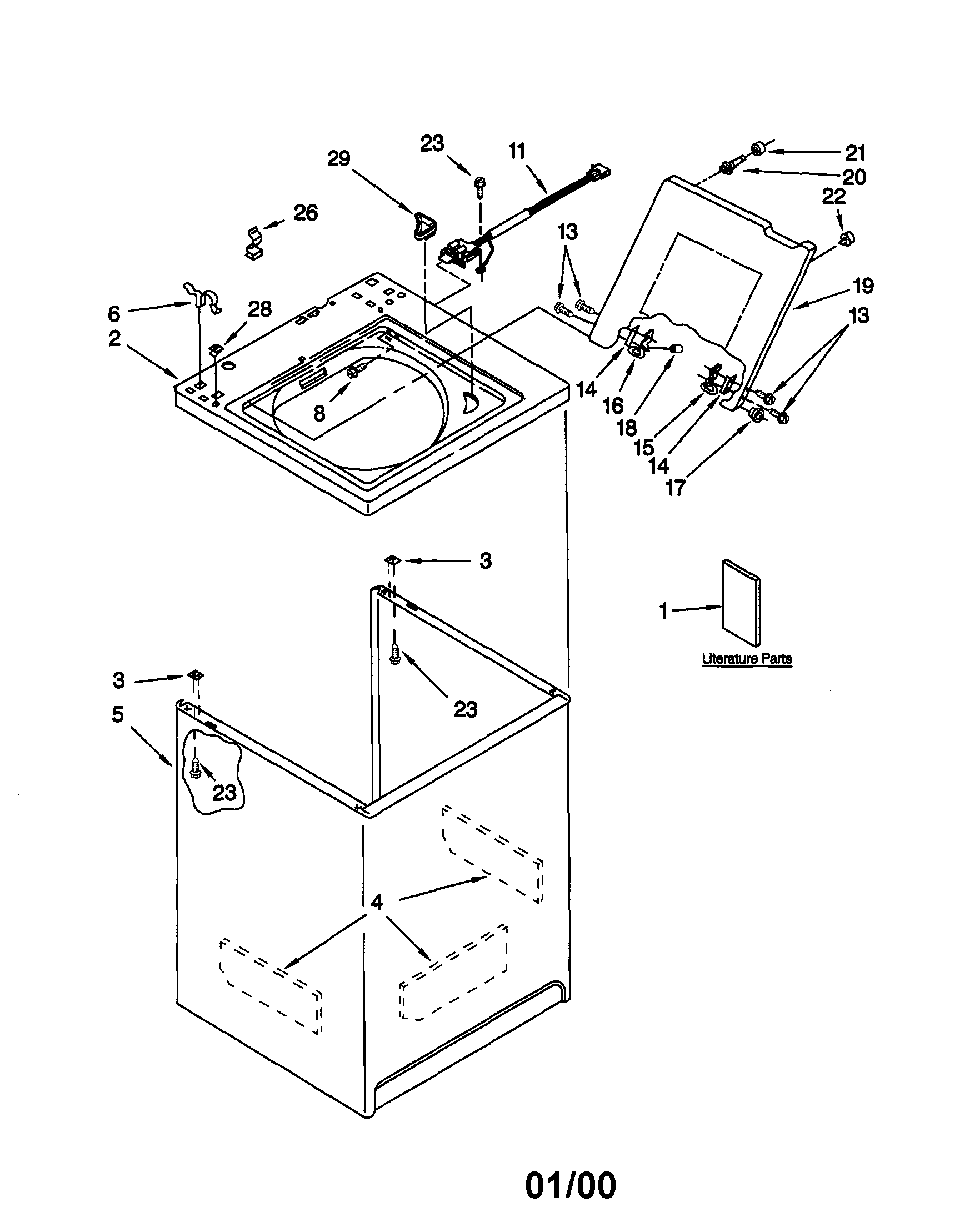

Washer Lid Switch
Part #3949238Replaced by #WP3949238
Manufacturer substitutionThis part replaces 3949238. Substitute parts can look different from the original.In Stock$35.0315% OFF Phone Price : $41.03QtyBrake/clutch/gearcase/motor/pump diagram
Washer Drain Pump
Part #3363394Replaced by #WP3363394
Manufacturer substitutionThis part replaces 3363394. Substitute parts can look different from the original.In Stock$38.6513% OFF Phone Price : $44.65QtyAgitator/basket/tub diagram
Washer Drive Block
Part #389140Replaced by #WP389140
Manufacturer substitutionThis part replaces 389140. Substitute parts can look different from the original.In Stock$21.1522% OFF Phone Price : $27.15QtyBrake/clutch/gearcase/motor/pump diagram
Drive Basket
Part #388952Replaced by #W10820043

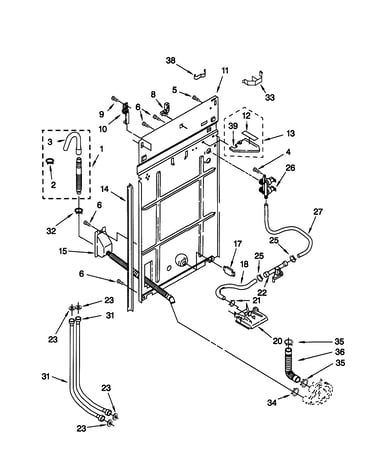

Manufacturer substitutionThis part replaces 388952. Substitute parts can look different from the original.In Stock$133.768% OFF Phone Price : $145.76QtyRear panel diagram

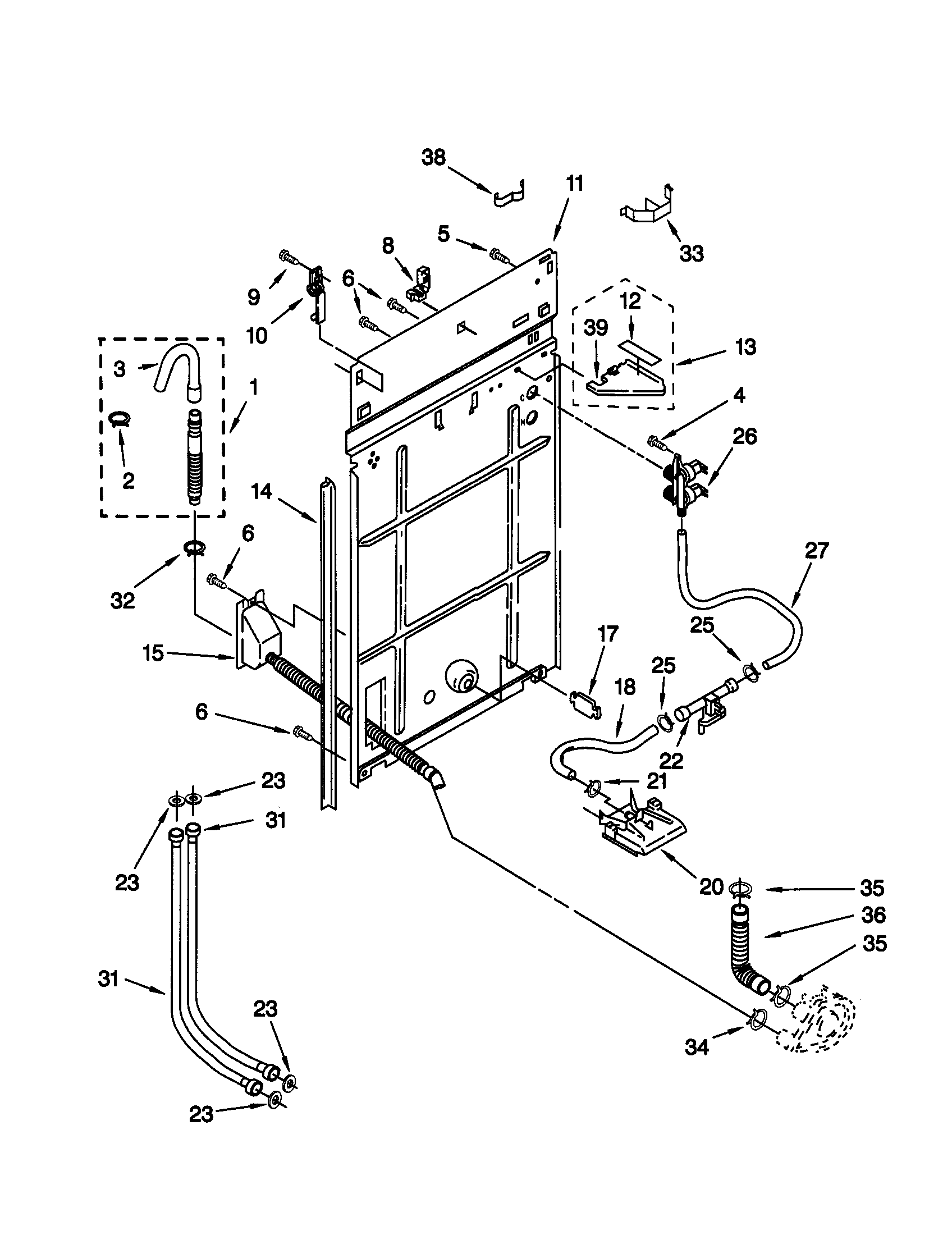

Washer Inlet Valve
Part #3952164Replaced by #285805
Manufacturer substitutionThis part replaces 3952164. Substitute parts can look different from the original.In Stock$25.0519% OFF Phone Price : $31.05QtyAgitator/basket/tub diagram
Washer Tub Gasket
Part #383727Replaced by #W10814296
Manufacturer substitutionThis part replaces 383727. Substitute parts can look different from the original.This item is not returnableIn Stock$4.3119% OFF Phone Price : $5.31QtyAgitator/basket/tub diagram
Washer Spanner Nut
Part #21366Replaced by #WP21366
Manufacturer substitutionThis part replaces 21366. Substitute parts can look different from the original.This item is not returnableIn Stock$7.4312% OFF Phone Price : $8.43Qty
