LG LFXS30796D/00 refrigerator Parts

For the LG LFXS30796D, a bottom-mount (bottom-freezer) design is typically “better” if you want everyday fresh-food items at eye level and easier organization; a top-mount is often “better” if you want a simpler layout and usually a lower purchase cost. See the LFXS30796D manual for features and layout details specific to this refrigerator.

How top-mount and bottom-mount compare

• Bottom-mount (like LFXS30796D): refrigerator section is higher, freezer is a pull-out drawer.
• Top-mount: freezer is on top, refrigerator is below.
• Both styles: can be reliable and efficient when properly installed, leveled, and maintained.

Feature	Top-mount freezer	Bottom-mount freezer (LFXS30796D style)
Everyday access	More bending for fresh food	Less bending for fresh food
Freezer access	Easier reach	Drawer-style access
Organization	Simpler bins/shelves	Often more zones and drawers
Typical cost	Usually lower	Usually higher

Which one is “better” for your household?

Choose bottom-mount if you:

• Use fresh food more than frozen food
• Want wide shelves and easier organization for meal prep
• Prefer a freezer drawer for bulk frozen storage

Choose top-mount if you:

• Want a straightforward layout with fewer compartments
• Prefer the freezer at eye level
• Want a style that is often more budget-friendly

Why it matters

The “best” refrigerator style is the one that matches how you cook and shop. Since the LFXS30796D is a bottom-mount French door refrigerator, it is designed to prioritize fresh-food convenience and day-to-day access.

Last updated: January 2026

On LG model LFXS30796D, DHF (often shown as dH F) indicates the refrigerator is detecting a defrost heater/defrost cycle problem, meaning frost is not being melted as expected. This can lead to ice buildup on the evaporator and reduced airflow, so cooling performance can drop.

What DHF usually points to on LFXS30796D

A DHF message is tied to the defrost system that keeps the evaporator from icing over. Use the troubleshooting and error-code sections in the LFXS30796D manual to confirm the display behavior and any model-specific reset steps.

Common causes include:

• Heavy frost/ice buildup restricting airflow through the evaporator cover
• A failed defrost heater
• A failed defrost sensor/thermistor
• Loose wiring connections at the evaporator area
• A control issue that is not initiating or completing defrost

Quick checks you can do before replacing parts

Start with simple, no-parts checks to avoid unnecessary repairs:

• Power cycle the refrigerator (unplug for 5 minutes, then restore power)
• Make sure doors close fully and gaskets seal (warm air leaks increase frost)
• Check for blocked vents from overpacked food
• Listen for the evaporator fan running (air movement matters as much as temperature)
• If you see heavy frost on the rear interior panel, plan on inspecting the defrost components

Parts commonly involved (when DHF keeps returning)

If DHF returns after a reset and you confirm frost buildup, these model-compatible parts are often involved:

• Refrigerator defrost heater MEE62225112
• Refrigerator defrost sensor assembly 6615JB2005R

Symptom-to-part guide

What you notice	What it often means	Part to check first
Thick frost on back wall, weak airflow	Defrost not working	Defrost heater or defrost sensor
DHF comes back quickly after reset	Defrost circuit not heating	Defrost heater
Temps swing, intermittent DHF	Sensor reading issue	Defrost sensor assembly

Why it matters

The defrost system protects cooling performance. When defrost fails, ice can insulate the evaporator and block airflow, which makes the compressor run longer and can cause warm refrigerator temps even if the freezer still seems cold.

Last updated: January 2026

On the LG LFXS30796D bottom-mount refrigerator, a common issue customers notice is a cooling imbalance: the fresh food section gets too warm while the freezer stays very cold. This often points to an airflow, fan, or defrost-sensing problem rather than just an incorrect temperature setting. See the LFXS30796D owner's manual for control panel and troubleshooting details.

Quick checks we recommend first (no parts)

• Make sure the unit is not in Display Mode (store mode), which disables cooling.
• Keep food packages from blocking interior air vents in the refrigerator section.
• Confirm both doors close fully and the gaskets seal all the way around.
• After changing settings, wait 24 hours for temperatures to stabilize.
• Clean dust from the condenser area to help the system release heat.

Likely causes when the freezer is cold but the fridge is warm

What you notice	Most likely area	What to check next
Fridge warm, freezer OK	Airflow from freezer to fridge	Evaporator fan airflow, ice buildup, duct path
Frost/ice on back wall	Defrost system	Defrost heater, defrost sensor, airflow across evaporator
Temps swing, little frost	Temperature sensing/control	Sensors, fan cycling, control response

If you suspect a defrost-related problem on this model, compatible parts include the refrigerator defrost sensor assembly 6615JB2005R and the refrigerator defrost heater MEE62225112.

Why it matters

A warm refrigerator compartment can spoil food quickly even when the freezer seems normal. Restoring proper airflow and defrost operation also helps prevent constant running, excess frost, and higher energy use.

Helpful related DIY content

• LG bottom freezer refrigerator error codes
• Diagnosing refrigerator evaporator fan problems video

Last updated: January 2026

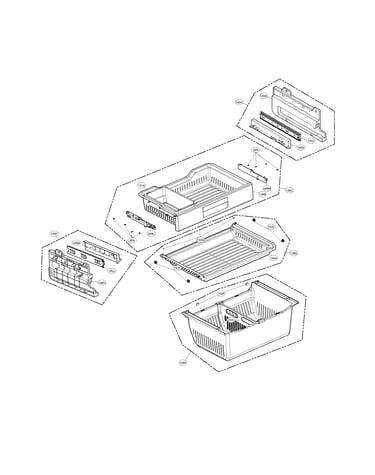

On the LG LFXS30796D, the main disadvantages of a bottom-freezer layout are physical access and space: you typically bend more to reach frozen foods in the lower drawer, you may lift heavier items up from a low position, and you need clear floor space in front for the drawer to fully extend. For a diagram of the compartments and drawer handling, see the LFXS30796D manual.

Common disadvantages with bottom-freezer designs

• More bending or squatting to reach items in the freezer drawer and lower baskets
• Heavier lifting when removing large frozen items from a low drawer
• More “digging” through stacked items if the drawer is not organized
• More clearance needed in front of the refrigerator when the freezer drawer is open
• Frozen items can warm faster during loading if the drawer is left open longer

Bottom freezer vs. top freezer: quick comparison

Feature	Bottom freezer (LFXS30796D style)	Top freezer style
Fresh food access	Easier, at eye and waist level	Often requires more bending
Freezer access	More bending, drawer format	Easier reach, door format
Open-door clearance	Drawer needs forward space	Door swing needs side space
Organization	Baskets and dividers help a lot	Shelves are often simpler

Tips to reduce the downsides

• Keep everyday frozen foods in the upper basket area so you bend less
• Put heavy items toward the front of the drawer to reduce awkward lifting
• Use bins to prevent items from getting buried
• If you notice odors when the doors are opened often, replace the fresh air filter on schedule; LG refrigerator air filter ADQ73214408 fits this model

Why it matters

Bottom-freezer refrigerators prioritize easy access to fresh food, but the tradeoff is freezer ergonomics and clearance. Knowing these limits helps you decide if the layout fits your kitchen space and daily routines.

Last updated: January 2026
