Model # CPEF3077QFD Official Frigidaire electric freestanding range

Here are the diagrams and repair parts for Official Frigidaire CPEF3077QFD electric freestanding range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 146 parts  |

Universal/multiflex (frigidaire) Range Surface Element Control Switch (replaces 316021501, 5304506425) 316436001
#54A

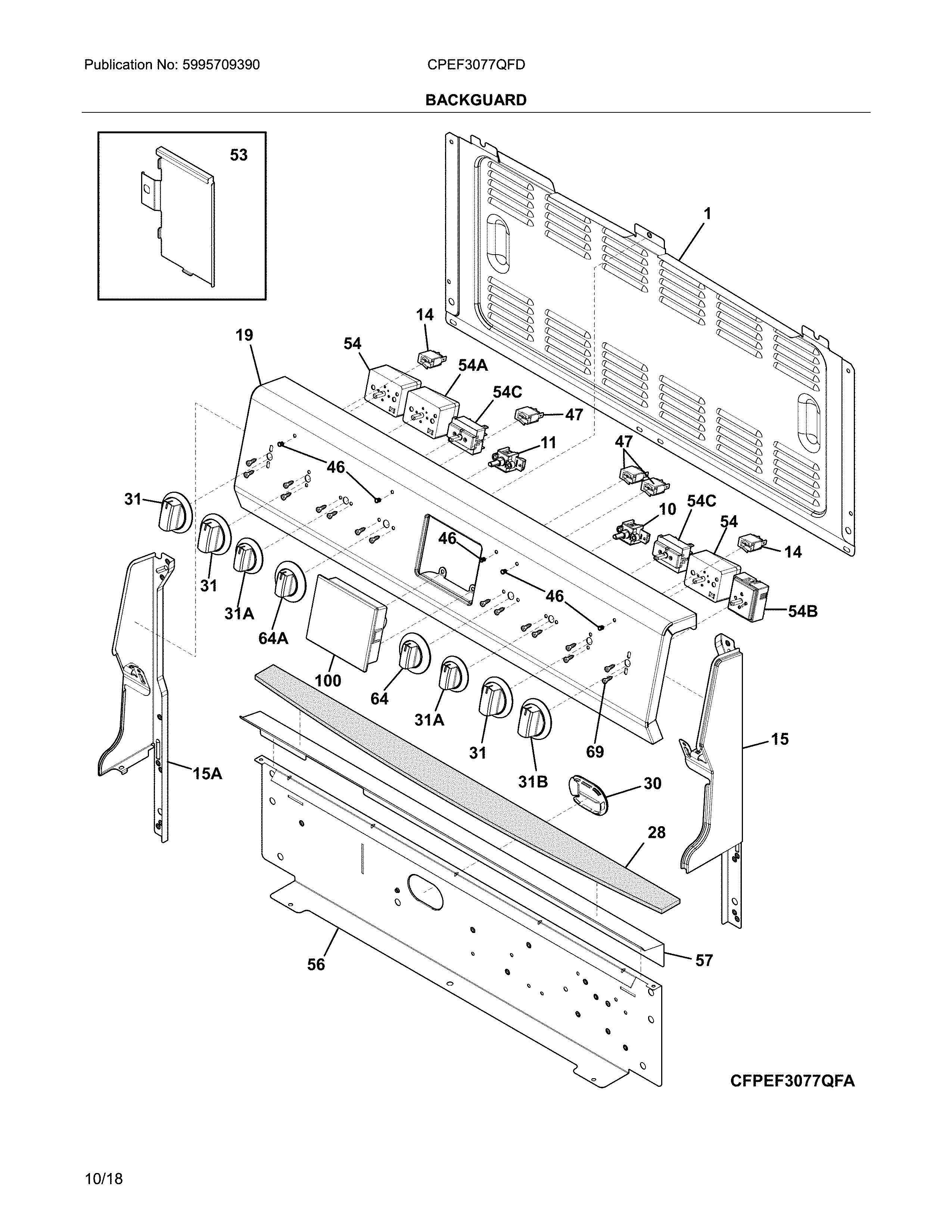

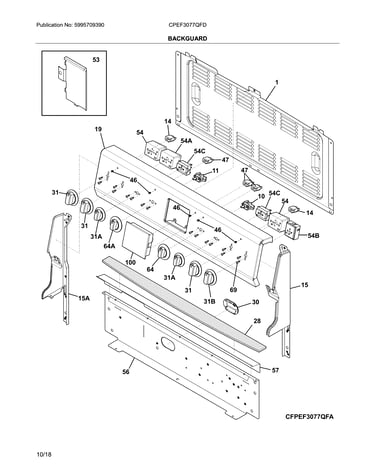

Backguard diagram

Universal/multiflex (frigidaire) range surface element control switch (replaces 316021501, 5304506425)

Part #316436001

BEST SELLER
$36.15
14% OFF Phone Price : $42.15
In Stock
Universal/multiflex (frigidaire) Range Oven Temperature Sensor (replaces 316490003) 316490000
#37

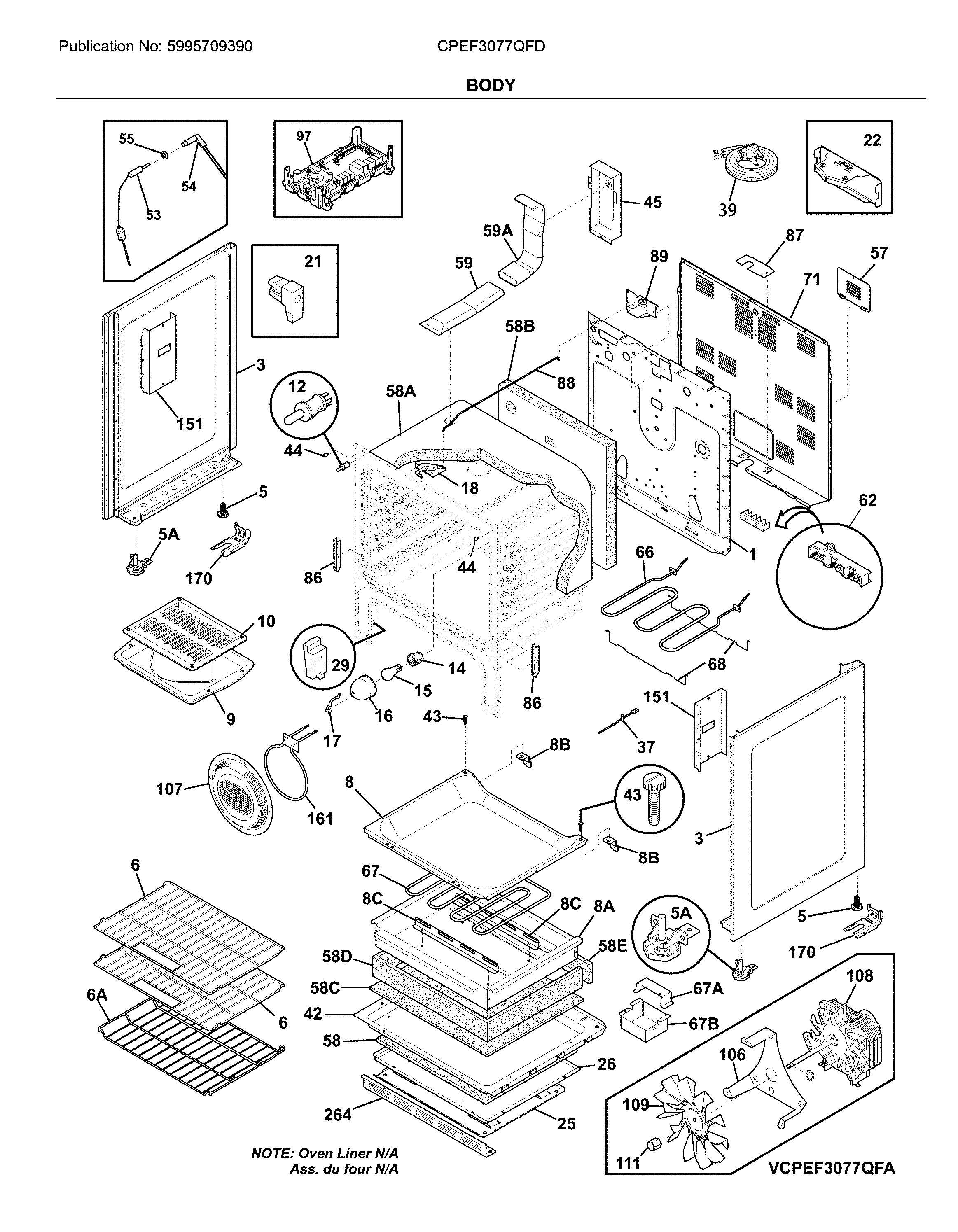

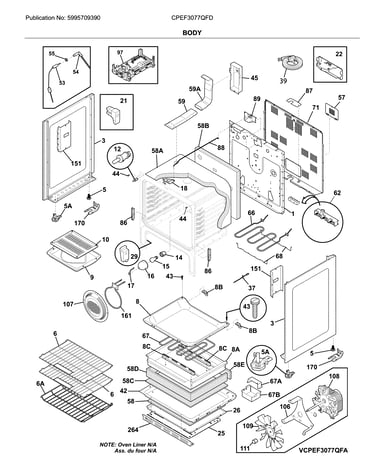

Body diagram

Universal/multiflex (frigidaire) range oven temperature sensor (replaces 316490003)

Part #316490000

BEST SELLER
$33.05
15% OFF Phone Price : $39.05
In Stock
Range Surface Element Control Switch (replaces 316238200) 316238201
#54B

Backguard diagram

Range surface element control switch (replaces 316238200)

Part #316238201

BEST SELLER
$75.89
7% OFF Phone Price : $81.89
In Stock
Range Oven Door Inner Glass 316117502
#8

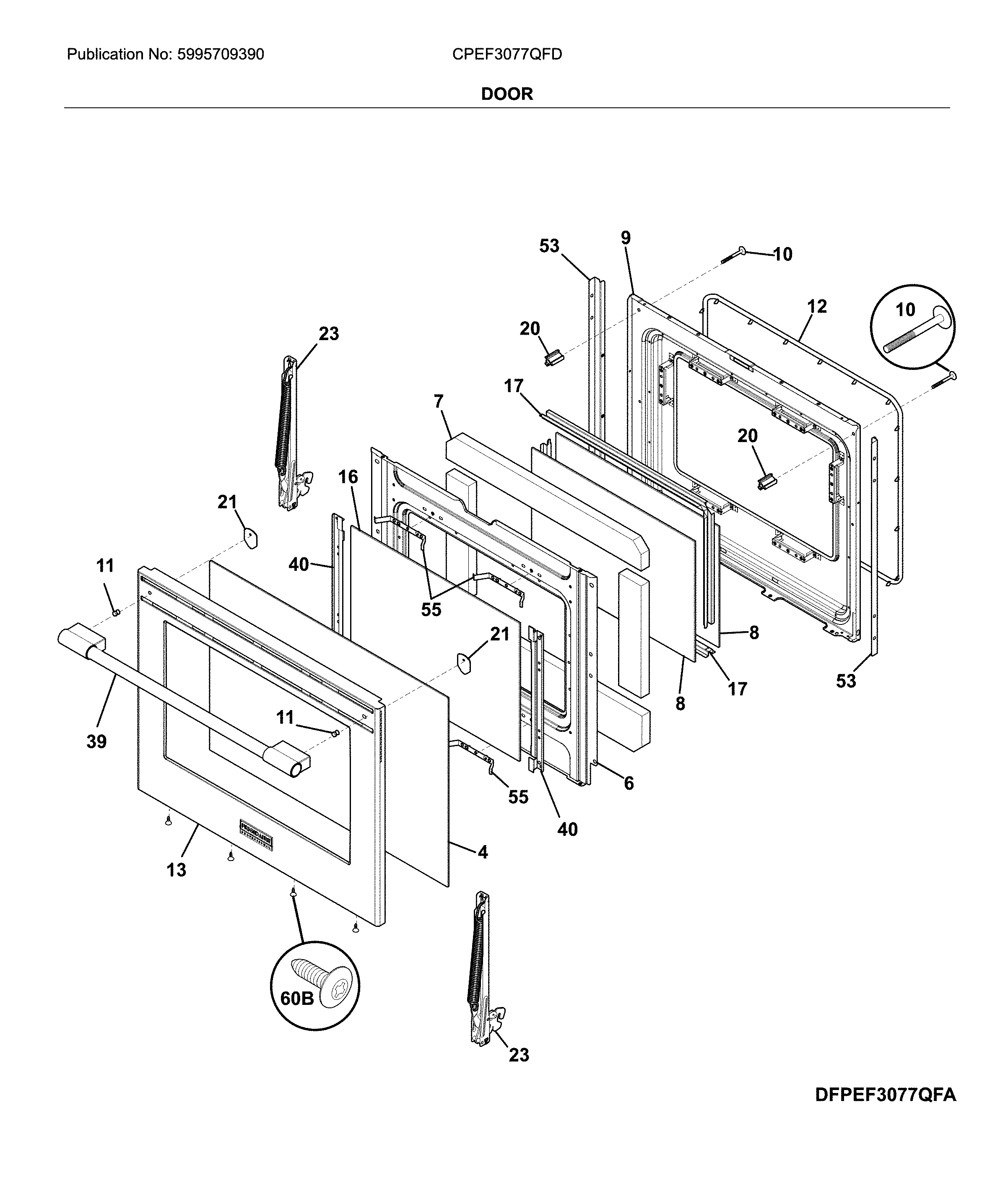

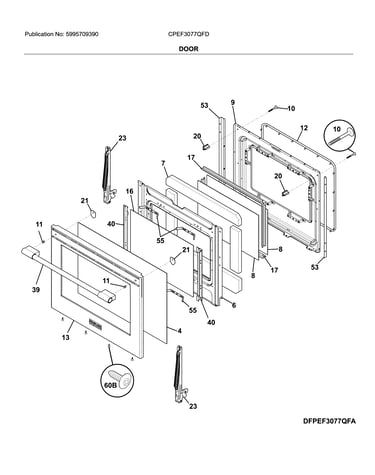

Door diagram

Range oven door inner glass

Part #316117502

Replaced by #5304503232

?
Manufacturer substitution
This part replaces 316117502. Substitute parts can look different from the original.
BEST SELLER
$74.27
7% OFF Phone Price : $80.27
In Stock
Terminal Block 5303935061
#62

Body diagram

Terminal block

Part #5303935061

Replaced by #5304409888

?
Manufacturer substitution
This part replaces 5303935061. Substitute parts can look different from the original.
BEST SELLER
$9.64
9% OFF Phone Price : $10.64
In Stock
Range Indicator Light Lens (replaces 316437800) 316557300
#46

Backguard diagram

Range indicator light lens (replaces 316437800)

Part #316557300

BEST SELLER
$12.86
13% OFF Phone Price : $14.86
In Stock
Range Indicator Light 316022500
#14

Backguard diagram

Range indicator light

Part #316022500

BEST SELLER
$40.21
13% OFF Phone Price : $46.21
In Stock
Range Oven Door Lock Motor And Switch Assembly 316464300
#89

Body diagram

Range oven door lock motor and switch assembly

Part #316464300

Replaced by #5304528973

?
Manufacturer substitution
This part replaces 316464300. Substitute parts can look different from the original.
BEST SELLER
$41.22
13% OFF Phone Price : $47.22
In Stock
Range Oven Relay Control Board 316472802
#97

Body diagram

Range oven relay control board

Part #316472802

Replaced by #316472807

?
Manufacturer substitution
This part replaces 316472802. Substitute parts can look different from the original.
BEST SELLER
$260.79
$12.00 OFF Phone Price : $272.79
In Stock
Range Dual Radiant Surface Element (replaces 316282102, 318198941, 389087301) 316282101
#15B

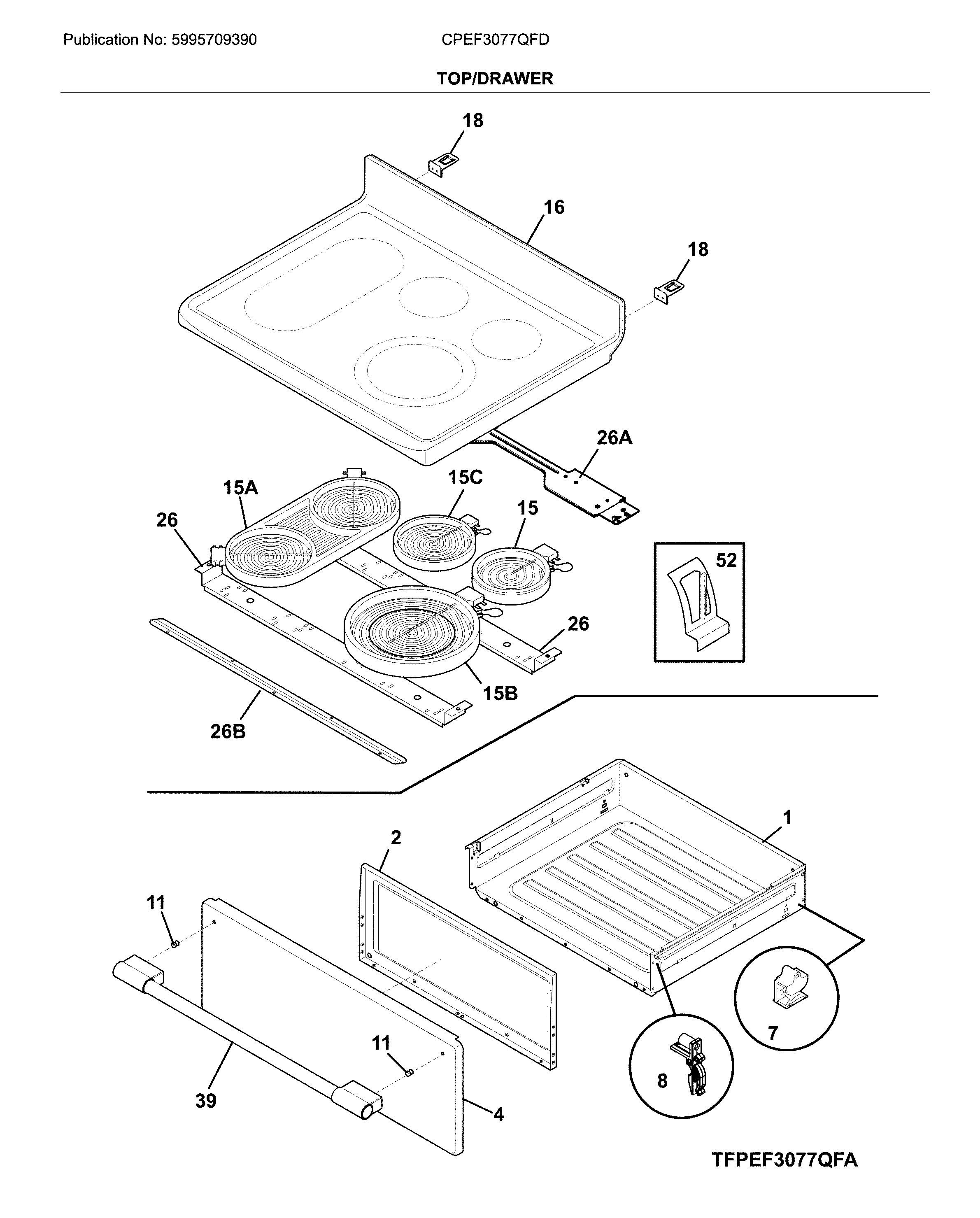

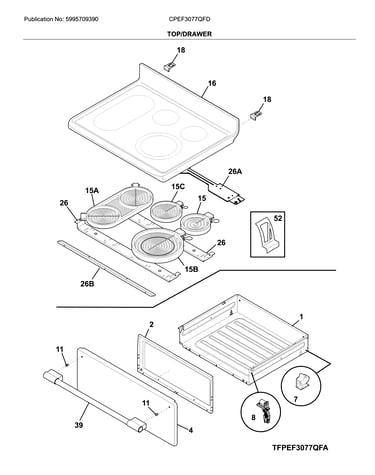

Top/drawer diagram

Range dual radiant surface element (replaces 316282102, 318198941, 389087301)

Part #316282101

BEST SELLER
$172.14
7% OFF Phone Price : $184.14
In Stock
