Amana
Electric Wall Oven

Model # 880.120 Official Amana wall oven

Here are the diagrams and repair parts for Official Amana 880120 wall oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 134 parts  |
Insulation, Cavity Back M63D20
#36B

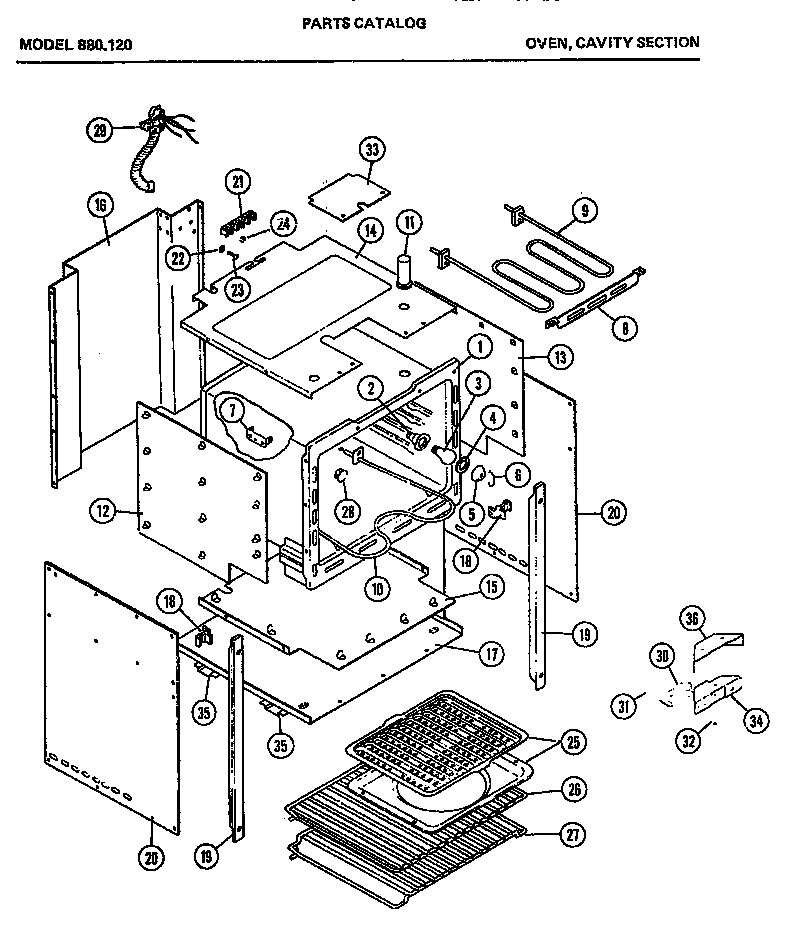

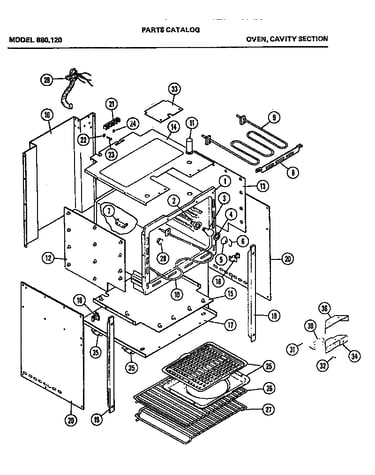

Oven cavity diagram

Insulation, cavity back

Part #M63D20

The manufacturer no longer makes this part, and there's no substitute part

Cam, Door Lock (includes Spring Pin And Pushnut) M2D394
#38

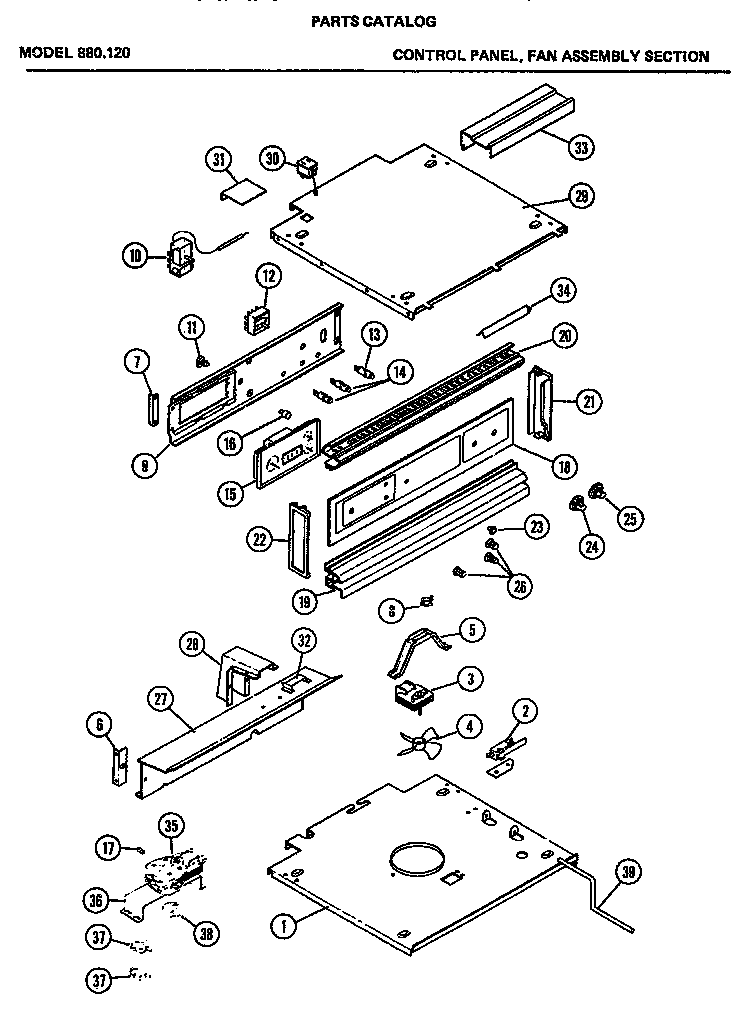

Control panel fan assembly section diagram

Cam, door lock (includes spring pin and pushnut)

Part #M2D394

The manufacturer no longer makes this part, and there's no substitute part

Insulator, Switch M5D245

#NI

All parts diagram

Insulator, switch

Part #M5D245

The manufacturer no longer makes this part, and there's no substitute part

Thermostat Knob M6D209
#25

Control panel fan assembly section diagram

Thermostat knob

Part #M6D209

The manufacturer no longer makes this part, and there's no substitute part

Broil Element (240 V.) M61D47
#9A

Oven cavity diagram

Broil element (240 v.)

Part #M61D47

The manufacturer no longer makes this part, and there's no substitute part

Insulation, Air Wash M63D17
#14

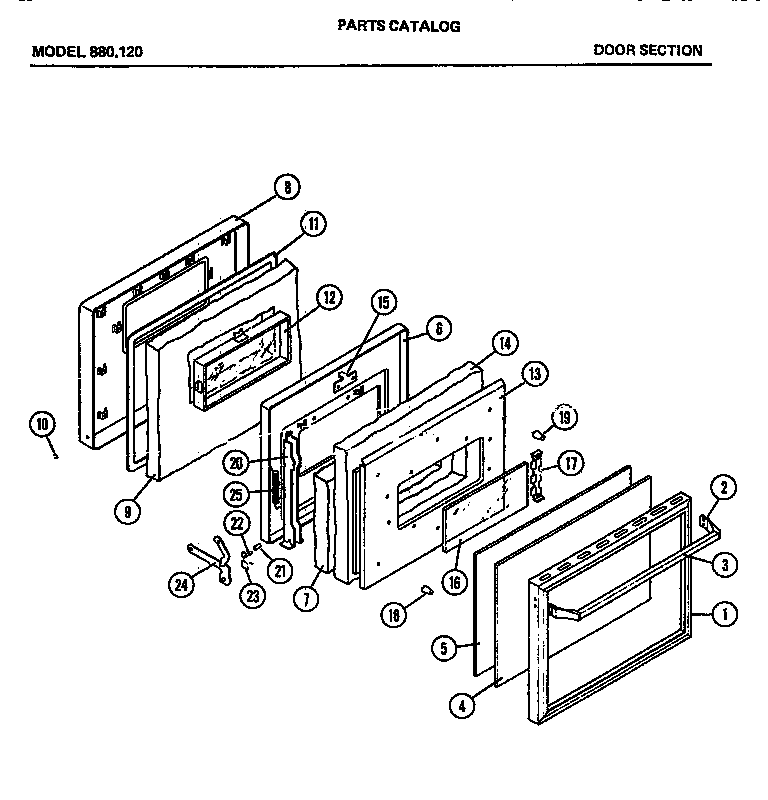

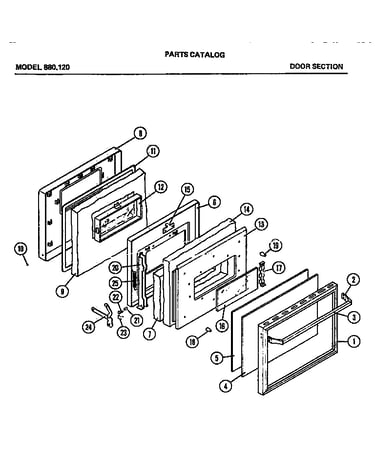

Door section diagram

Insulation, air wash

Part #M63D17

The manufacturer no longer makes this part, and there's no substitute part

Channel Assembly, Hinge (includes Ref. Nos. 21 & 22) M52D146
#20A

Door section diagram

Channel assembly, hinge (includes ref. nos. 21 & 22)

Part #M52D146

The manufacturer no longer makes this part, and there's no substitute part

Oven Light Lens Retainer M1D690
#6

Oven cavity diagram

Oven light lens retainer

Part #M1D690

The manufacturer no longer makes this part, and there's no substitute part

Bake Element (240 V.) M61D48
#10A

Oven cavity diagram

Bake element (240 v.)

Part #M61D48

The manufacturer no longer makes this part, and there's no substitute part

Grounding Screw M1D705
#23

Oven cavity diagram

Grounding screw

Part #M1D705

The manufacturer no longer makes this part, and there's no substitute part
