GE
Dryer

Model # DPSF505EW0WW Official GE electric dryer

Here are the diagrams and repair parts for Official GE DPSF505EW0WW electric dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

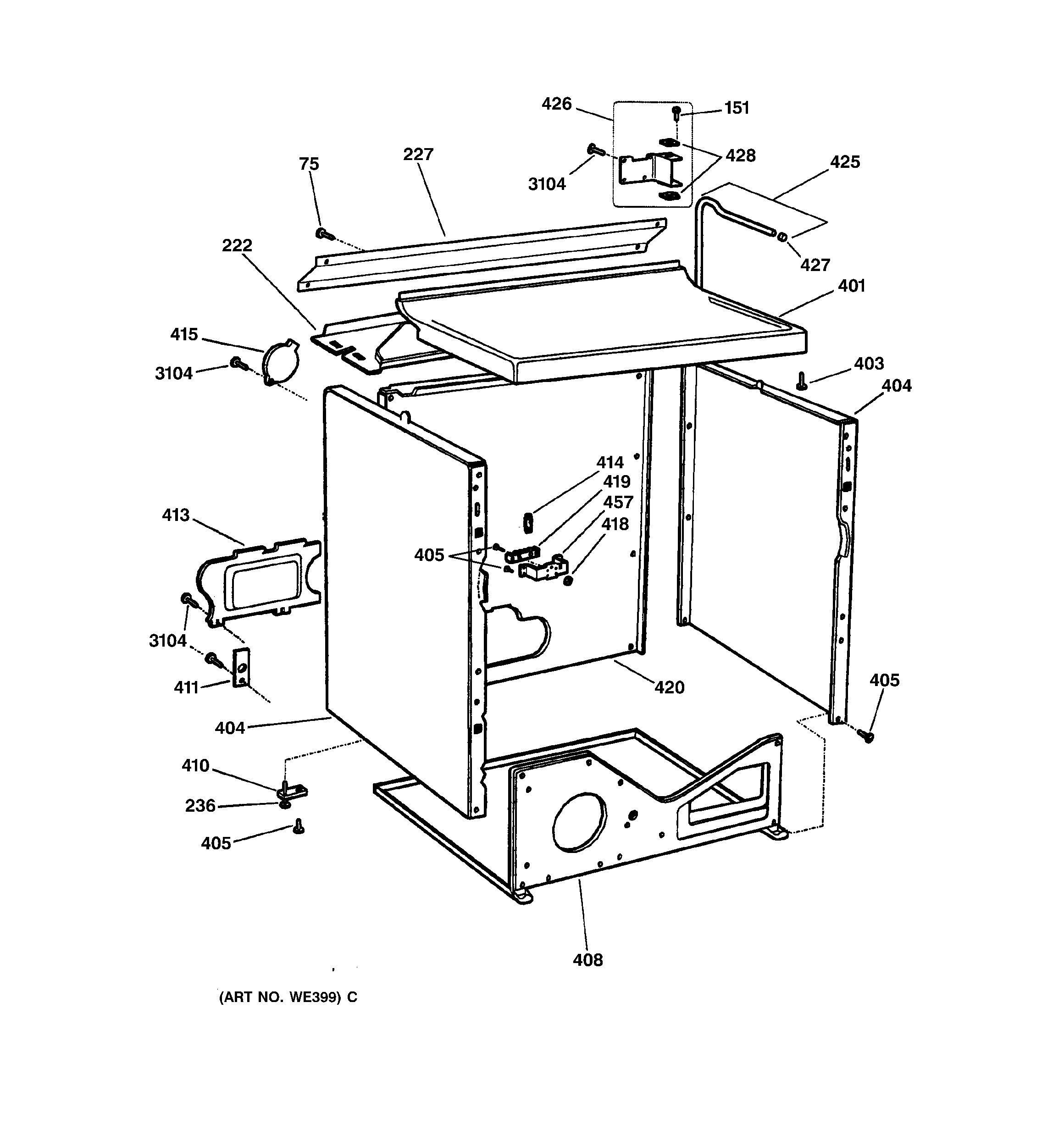

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 128 parts  |

Drive Belt WE12M0022
#213

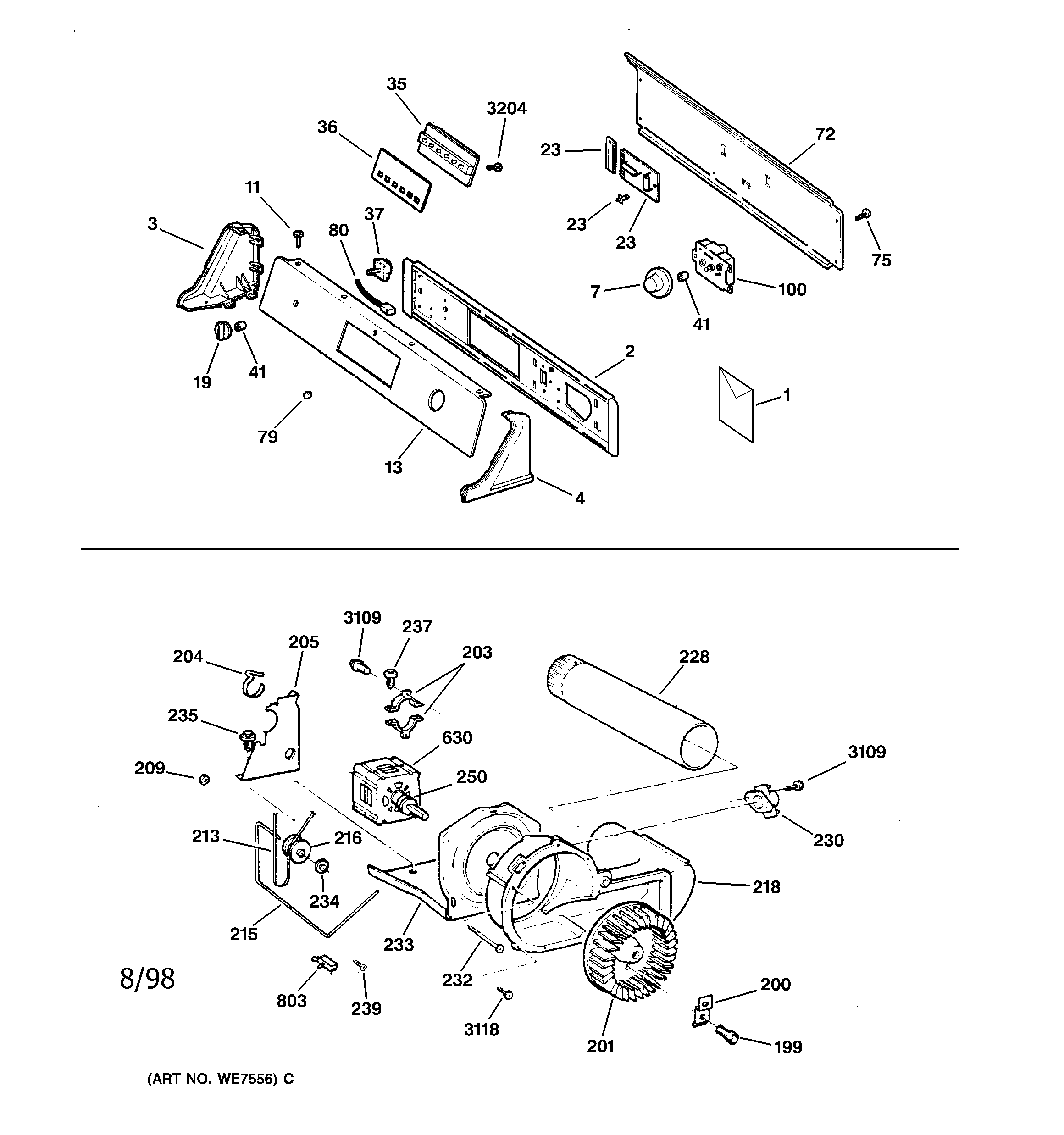

Backsplash, blower & motor diagram

Drive belt

Part #WE12M0022

Replaced by #WE03X29897

?
Manufacturer substitution
This part replaces WE12M0022. Substitute parts can look different from the original.
BEST SELLER
$30.53
14% OFF Phone Price : $35.53
In Stock
Slide Drum WE01M0333
#316

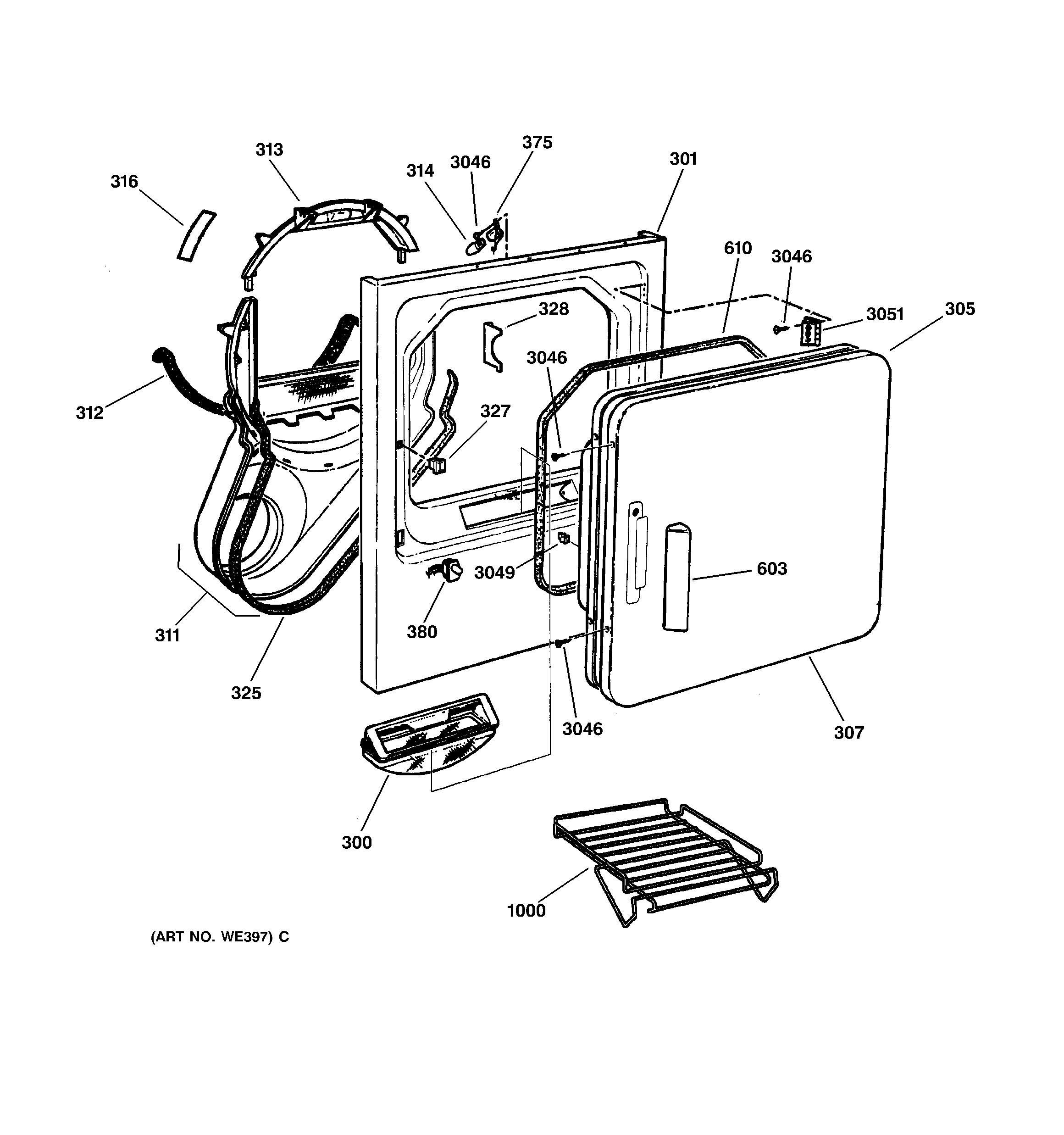

Front panel & door diagram

Slide drum

Part #WE01M0333

Replaced by #WE1M504

?
Manufacturer substitution
This part replaces WE01M0333. Substitute parts can look different from the original.
BEST SELLER
$20.70
19% OFF Phone Price : $25.70
In Stock
Slide Drum WE01M0316
#316

Front panel & door diagram

Slide drum

Part #WE01M0316

Replaced by #WE1M1067

?
Manufacturer substitution
This part replaces WE01M0316. Substitute parts can look different from the original.
BEST SELLER
$14.83
12% OFF Phone Price : $16.83
In Stock
Drum Bearing WE03M0020
#313

Front panel & door diagram

Drum bearing

Part #WE03M0020

Replaced by #WE3M26

?
Manufacturer substitution
This part replaces WE03M0020. Substitute parts can look different from the original.
BEST SELLER
$33.11
13% OFF Phone Price : $38.11
In Stock
Felt WE09M0015
#312

Front panel & door diagram

Felt

Part #WE09M0015

Replaced by #WE09X27634

?
Manufacturer substitution
This part replaces WE09M0015. Substitute parts can look different from the original.
BEST SELLER
$7.77
11% OFF Phone Price : $8.77
In Stock
Idler Pulley WE12M0008
#216

Backsplash, blower & motor diagram

Idler pulley

Part #WE12M0008

Replaced by #WE12X83

?
Manufacturer substitution
This part replaces WE12M0008. Substitute parts can look different from the original.
BEST SELLER
$28.34
15% OFF Phone Price : $33.34
In Stock
Air Duct WE14M0079
#311

Front panel & door diagram

Air duct

Part #WE14M0079

Replaced by #WE14X25080

?
Manufacturer substitution
This part replaces WE14M0079. Substitute parts can look different from the original.
BEST SELLER
$92.35
5% OFF Phone Price : $97.35
In Stock
Knob Clip WE01X0980
#41

Backsplash, blower & motor diagram

Knob clip

Part #WE01X0980

Replaced by #WH01X10106

?
Manufacturer substitution
This part replaces WE01X0980. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$9.17
10% OFF Phone Price : $10.17
In Stock
Timer Knob WE1M443
#7

Backsplash, blower & motor diagram

Timer knob

Part #WE1M443

Replaced by #WE1M654

?
Manufacturer substitution
This part replaces WE1M443. Substitute parts can look different from the original.
BEST SELLER
$30.06
14% OFF Phone Price : $35.06
In Stock
Thermostat Center WE4M0181
#506

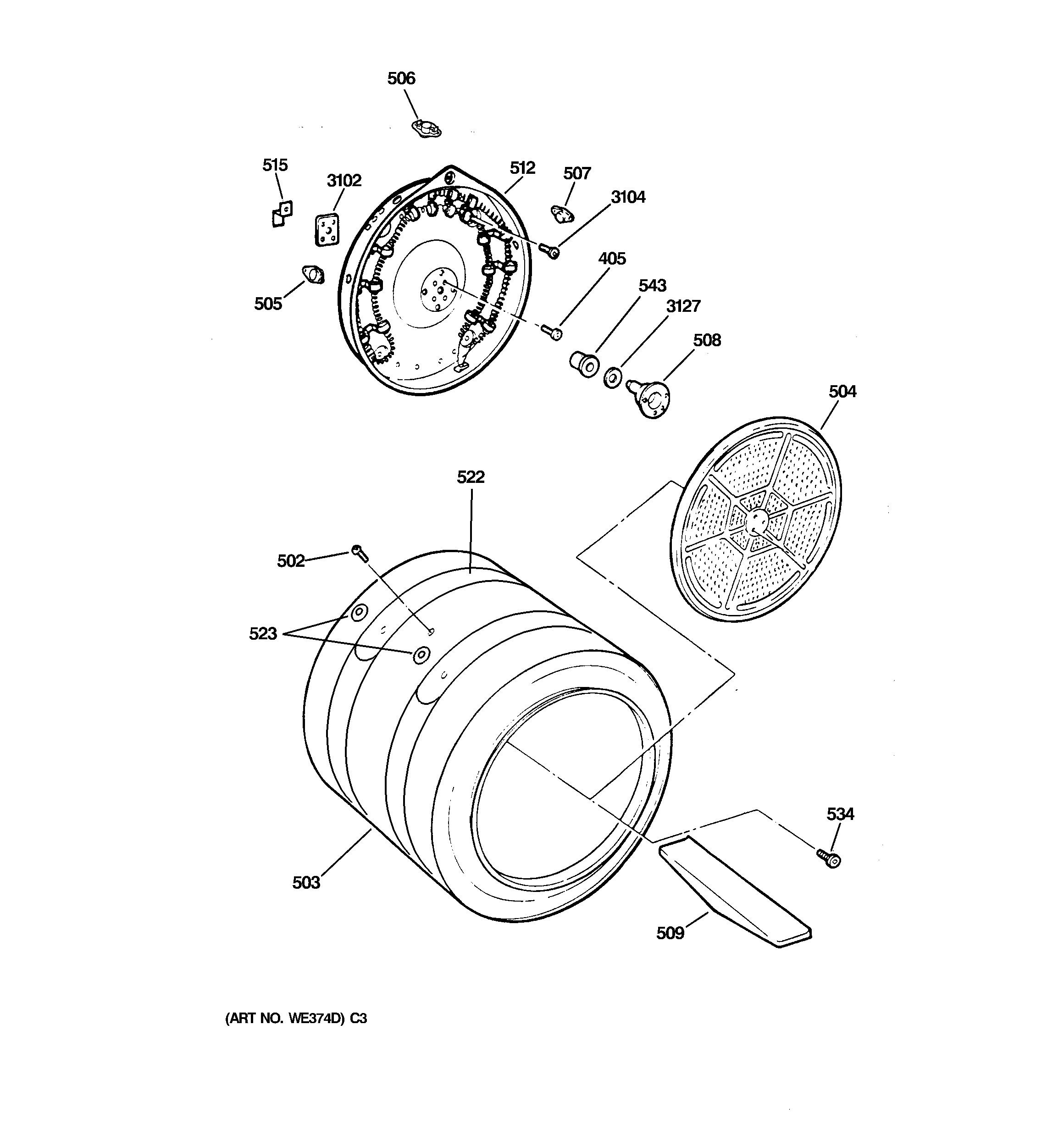

Drum diagram

Thermostat center

Part #WE4M0181

Replaced by #WE4M181

?
Manufacturer substitution
This part replaces WE4M0181. Substitute parts can look different from the original.
BEST SELLER
In Stock
