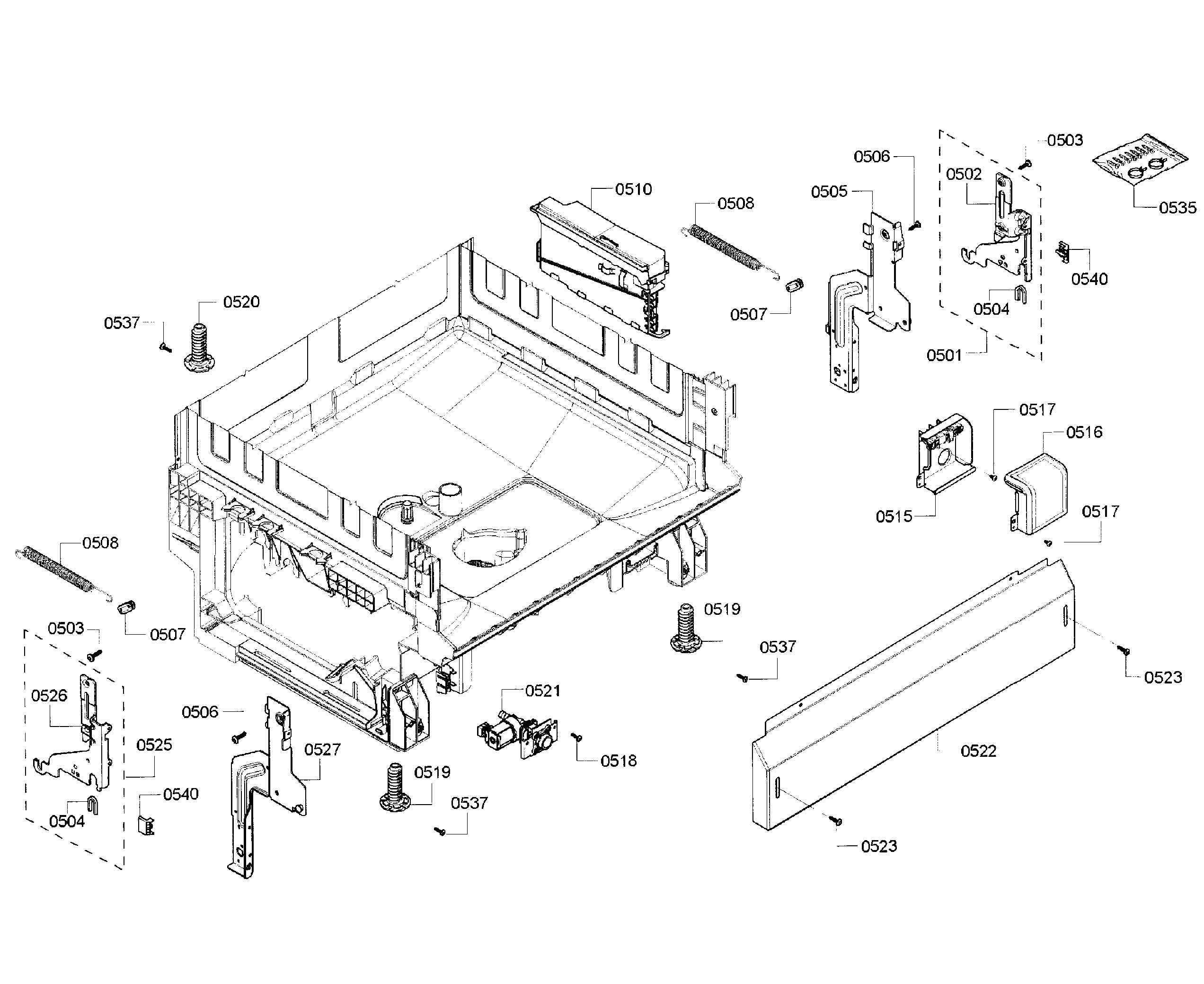

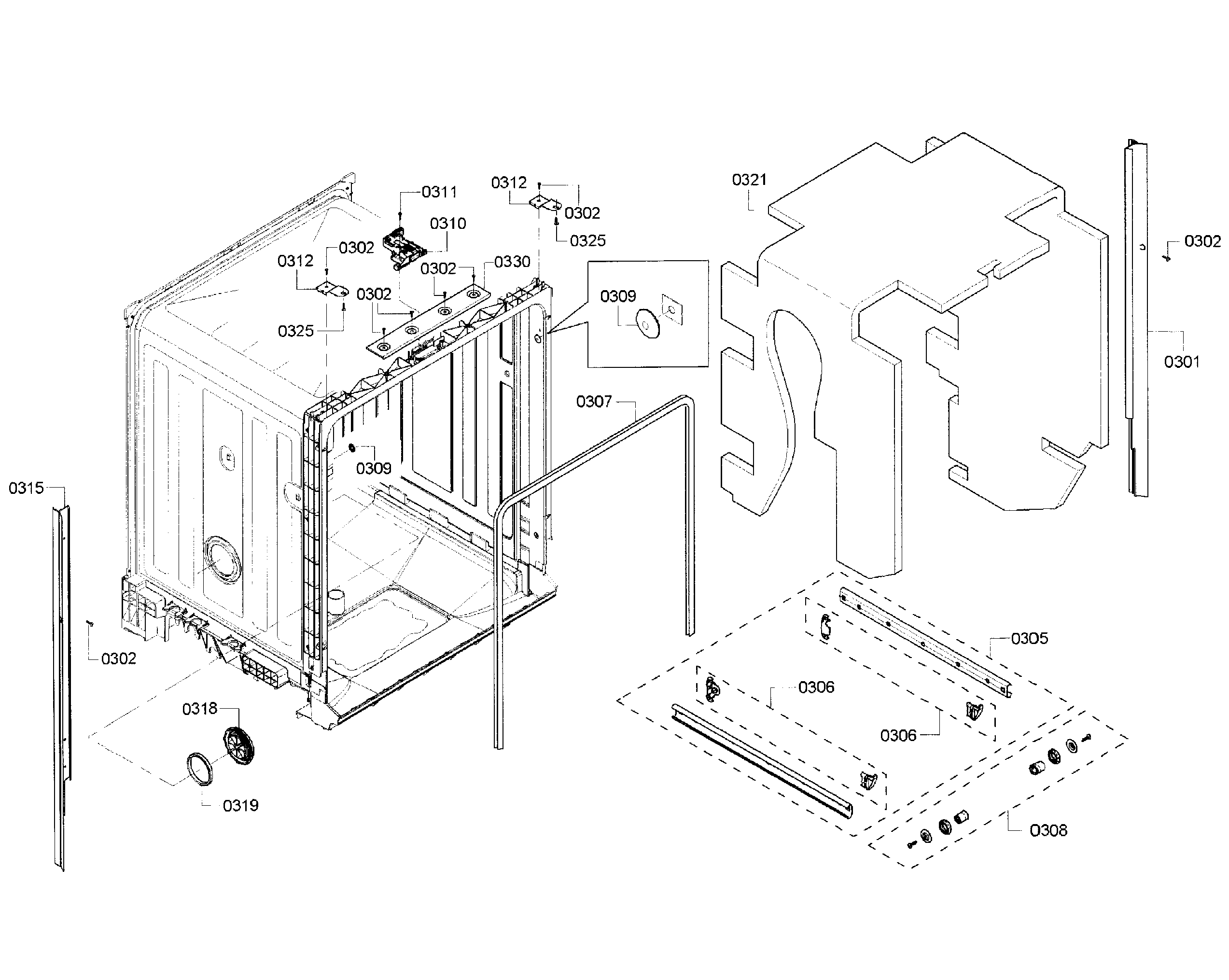

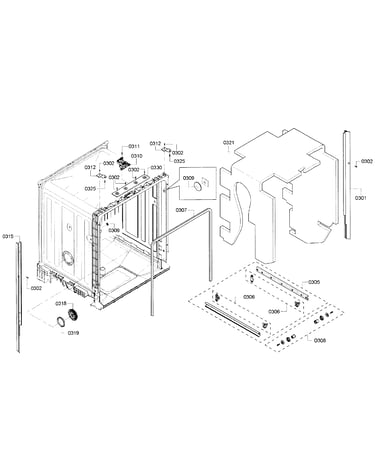

Kenmore Elite 63013909011 dishwasher Parts

Yes, repairing a Kenmore Elite dishwasher like model 63013909011 is usually worth it when the problem is a common wear item (leak, no fill, no drain, door not latching) and the repair cost is reasonable; it is less worthwhile when multiple major components are failing or the unit has chronic performance issues.

Quick way to decide (cost vs. value)

Use this simple rule: if the repair is under about 50% of the cost of a comparable replacement dishwasher, repair is the better value.

• Repair is typically worth it when:
  • The dishwasher is cleaning well overall and has one clear failure
  • The issue is a single part such as a valve, drain hose, or door seal
  • You can confirm the symptom using the troubleshooting steps in the owner's manual
  • There is no repeated leaking or electrical issue
• Replacement is typically the better choice when:
  • You have multiple symptoms (leaking plus not draining plus not starting)
  • The tub or inner door is damaged or corroded
  • You have repeated control or wiring problems

Common repairs that are often cost-effective on 63013909011

These are frequent, straightforward fixes that can restore normal operation.

Symptom	What to check first	Part that commonly fixes it
Won’t fill	Water supply turned on; cycle selected; door latched	Dishwasher water inlet valve 00622058
Won’t drain	Drain path and air gap; kinked hose	Drain pump 00611332 or dishwasher drain hose 00668108

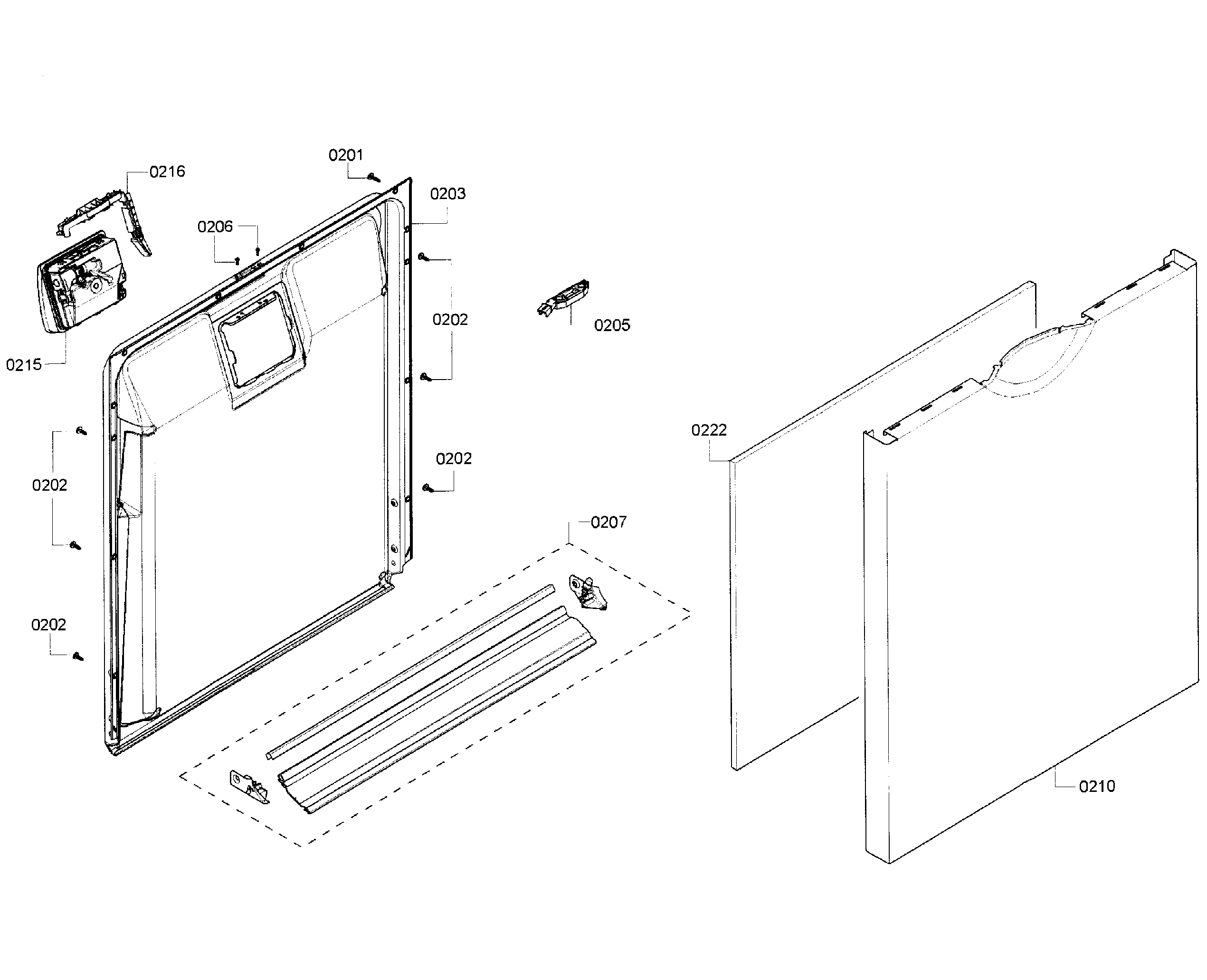

Leaks at the door	Door seal condition; debris on sealing surfaces	Sealing 00645141
Won’t start	Door fully latched; delay start; power interruption	Dishwasher door latch assembly 00611312

Why it matters

A targeted repair can extend the life of your Kenmore dishwasher for years and prevent secondary damage (for example, a small leak can lead to floor damage and mold growth). The manual also recommends knowing how to shut off incoming water and power before service, which helps you troubleshoot safely. See the installation guide for shutoff and installation-related details.

Last updated: February 2026

To test the heating element in your Kenmore Elite dishwasher model 63013909011, we shut off power, access the heater wiring, and measure resistance across the heater terminals with a multimeter. A typical good reading is about 15 to 30 ohms; an open or far-out-of-range reading indicates a failed heater.

Safety first (before any testing)

Follow the electrical safety guidance in the installation guide and always work with the circuit de-energized.

• Turn OFF the dishwasher circuit breaker (do not rely on the door switch)
• Confirm power is off before touching wiring
• Shut off the water supply if you need to pull the dishwasher out
• Keep electrical and water lines separated under the dishwasher
• Use insulated meter probes and a stable work light

How we test the heating element with a multimeter

1. Disconnect power at the breaker.
2. Remove the lower toe panel to access components (common access point on many Kenmore dishwashers).
3. Locate the heater terminals and pull the wire connectors off (note positions).
4. Set the multimeter to ohms (Ω).
5. Touch one probe to each heater terminal.

What the readings mean

Meter result	What it means	Next step
15 to 30 Ω	Heater circuit is typically OK	Check wiring, control, and heat-related sensors
OL / no continuity	Heater is open (failed)	Replace the heating element
Near 0 Ω	Heater may be shorted	Replace the heating element and inspect wiring

If the heater tests good but water still does not heat

This model uses a concealed heating element for sanitizing temperatures and drying; other factors can still prevent heating.

• Run hot water at the sink before starting; incoming water should be 120°F

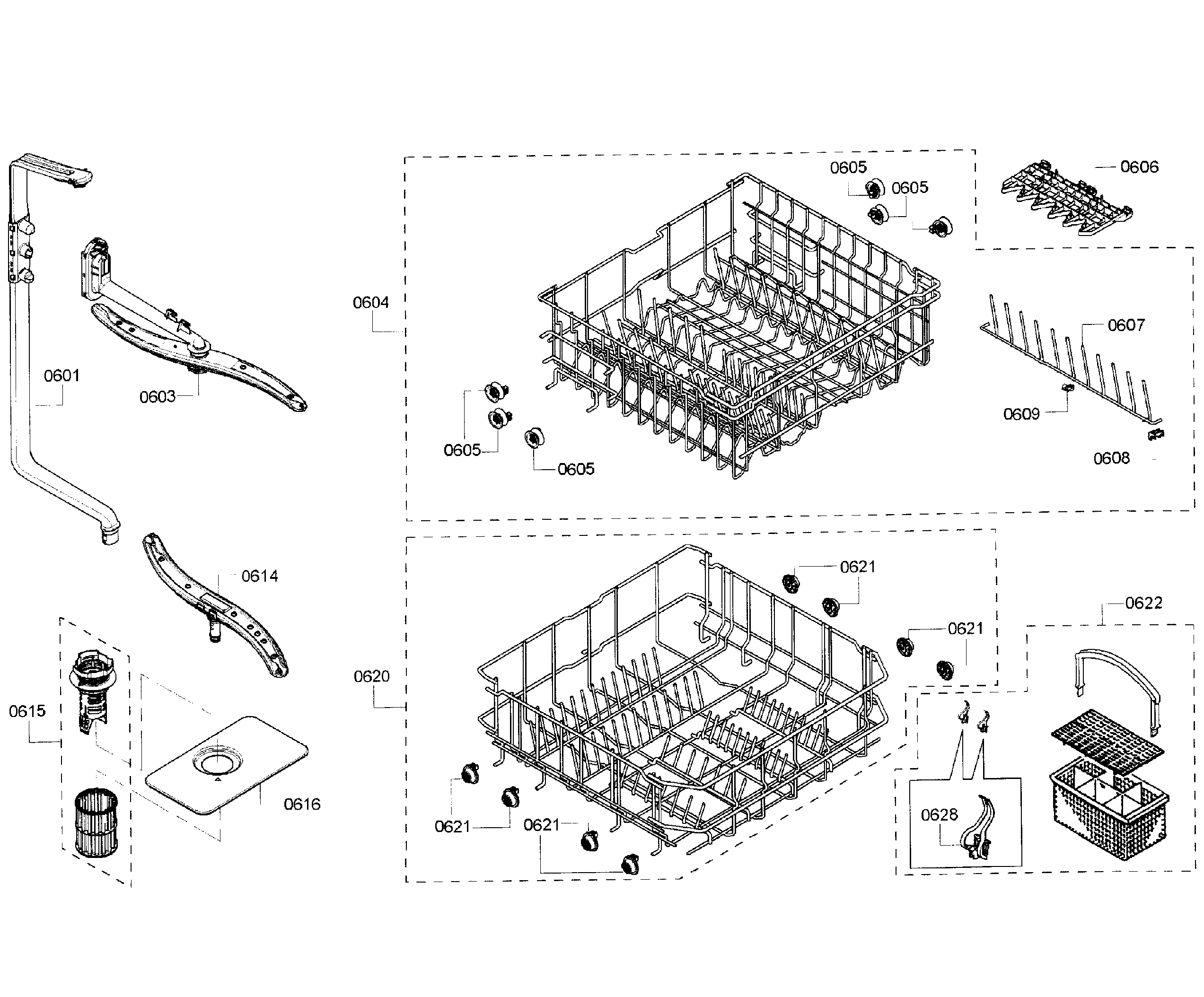

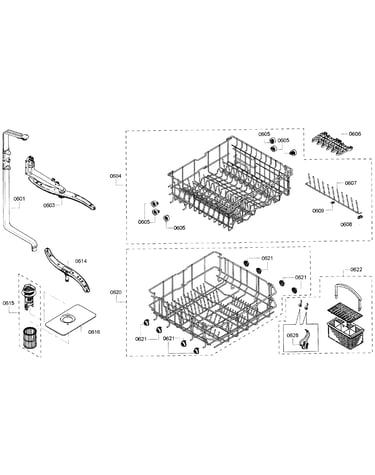

• Clean the filter system and make sure spray arms spin freely
• Use rinse aid and a heated dry or sanitize option (if selected on your cycle)
• Check for stored fault codes using Kenmore he dishwasher error codes

Why it matters

A working heater improves cleaning by raising wash temperature and improves drying at the end of the cycle. When the heater is open, you commonly get cooler wash water, poor soil removal, and consistently wet dishes.

Last updated: February 2026

On a Kenmore Elite dishwasher model 63013909011, an E09 code points to a heating problem, most commonly a failed heater circuit (the concealed heating element or the wiring/control that powers it). Start by resetting power, then check for heating-related symptoms like cool wash water and poor drying; see the owner's manual for model-specific diagnostics.

What you’ll notice when E09 is related to heating

• Dishes come out wet or cool even with heated dry options
• Cycle seems to run longer than normal (unit keeps trying to heat)
• Sanitized light may not illuminate after a sanitizing cycle
• Water does not feel warm during the wash portion
• Error appears after the unit has been running for a while

Quick checks we recommend first

1. Power reset: Turn off the breaker for 2 minutes, then restore power.
2. Confirm hot water supply: This dishwasher’s cycle times assume about 120°F incoming water; if the supply is cooler, heating time increases and performance drops.
3. Run a normal cycle empty: Listen for normal wash action and confirm the unit fills and circulates.
4. Check drying basics: Make sure rinse aid is used; the manual notes rinse agent affects drying performance.

Parts that commonly relate to heating and sensing

E09 can be triggered by a heater fault, but it can also show up when the dishwasher cannot confirm proper heating due to sensing or control issues.

What could be involved	What it affects	What to do next
Heater circuit (concealed heating element)	Water temperature rise, sanitizing, drying	Inspect wiring and connections; test heater circuit if you’re using a meter
Electronic control	Commands heater on/off	Check for loose connectors; consider control failure if heater tests good
Water condition sensing	Cycle adjustments based on soil/water	If cleaning is inconsistent, check the turbidity sensor

If you’re troubleshooting cleaning performance along with E09, the sensor 00611323 (turbidity sensor) is one of the components that helps the dishwasher adjust cycle length and water changes.

Why it matters

This model uses a concealed heating element and sensor-driven cycles; when the dishwasher cannot heat correctly, you typically see poor drying, long cycles, and sanitizing results that do not complete as expected.

Last updated: February 2026

On a Kenmore Elite dishwasher model 63013909011, the F4E1 error code points to a communication problem between the main electronic control and the circulation (wash) pump. Start by checking the wiring connections; if the error returns after securing the harness, the pump or control may need replacement (confirm the exact procedure in the owner's manual).

What to check first (fast, no-parts steps)

• Reset power to the dishwasher at the breaker for 1 minute, then restore power.
• Make sure the door closes fully and latches; a poor latch can interrupt operation.
• Remove the toe panel and inspect for loose plugs or pinched wires at the pump area.
• Reseat connectors (unplug and firmly reconnect) between the control and pump.
• Look for moisture in the base; some models use a water shut-off feature that can change behavior when water is detected.

Likely causes and what they mean

What you find	What it usually indicates	What we do next
Loose or corroded connector	Intermittent communication	Clean and reseat connections, then test a short cycle
Damaged wiring harness	Signal loss between control and pump	Repair/replace harness if damaged
Error returns immediately after reset	Failed pump electronics or control output	Test components; replace the failed part

Parts that commonly relate to this symptom

If troubleshooting points to a failed control or a pump-related electrical issue, these model-matched parts are commonly involved:

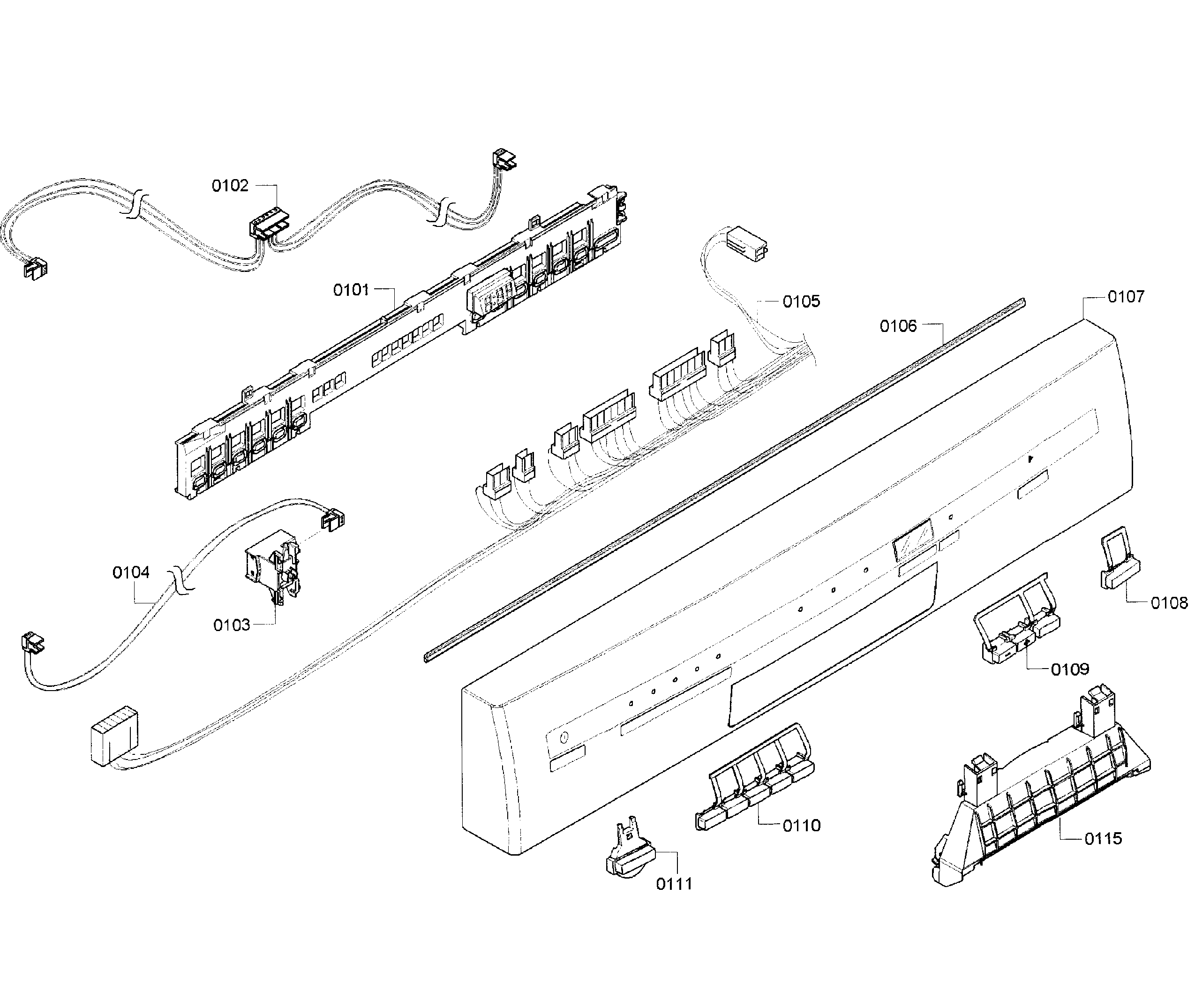

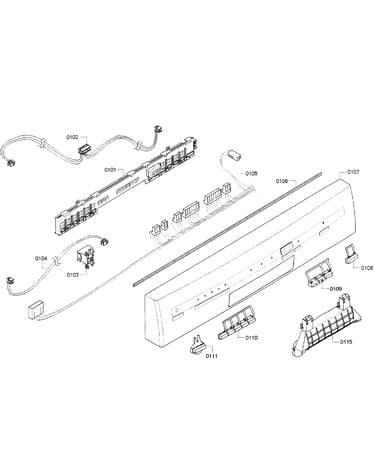

• Dishwasher electronic control board 00700375 (main control)

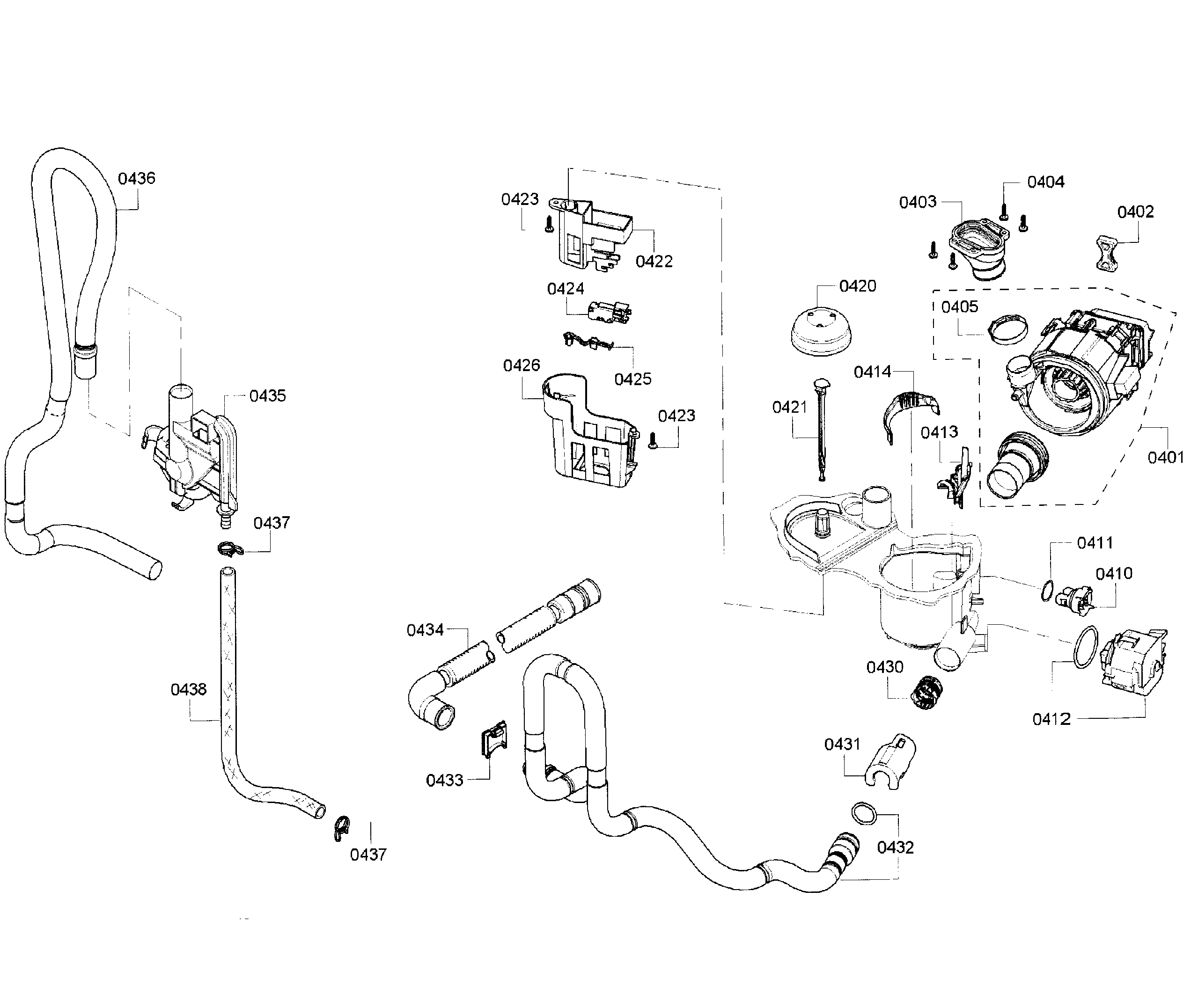

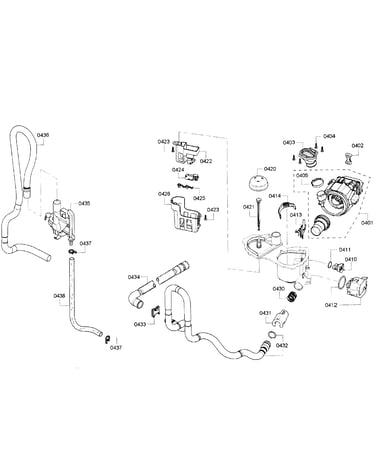

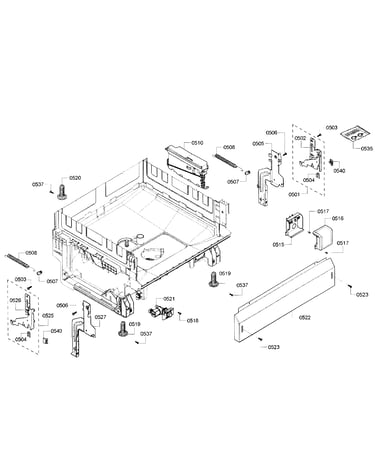

• Circulation pump assembly (listed in the parts diagram for your model)

Why it matters

When the control cannot reliably “talk” to the circulation pump, the dishwasher may stop mid-cycle, drain unexpectedly, or fail to wash. Fixing the connection issue early helps prevent repeat shutdowns and poor cleaning.

Last updated: February 2026

To reset (cancel) a running cycle on your Kenmore Elite dishwasher model 63013909011, use the control panel CANCEL function and let the dishwasher drain; when the cycle is canceled and draining finishes, the control is reset so you can select a new cycle. Steps are shown in the owner's manual.

Reset steps for model 63013909011 (cycle cancel and reset)

• Open the door.
• Press and hold CANCEL until the active wash indicator turns off.
• Close the door.
• Wait while the dishwasher drains completely.
• When the cycle-canceled indicator comes on, the dishwasher is reset and ready.

If the control is frozen: power reset

Use this when the keypad will not respond after canceling.

• Turn the dishwasher off.
• Switch off power at the breaker or remove the fuse.
• Leave power off for 2 minutes.
• Restore power.
• Select a cycle and press START.

What a reset helps, and what to check next

A reset clears a stuck cycle state and lets the electronic control accept a new selection. If the same problem returns, check the likely cause.

• Will not start: confirm the door latches; a failing latch can prevent operation (see dishwasher door latch assembly 00611312).
• No fill: verify the shutoff valve is open; if still dry, the inlet valve can be the issue.
• Will not drain: check for a kinked or clogged drain path; inspect the drain hose routing.
• Repeating beeps or lights: look up the fault pattern in the error code charts.

Symptom after reset	Most common next check	Related part (if needed)
Won’t start	Door fully latched	Dishwasher door latch assembly 00611312
No water entering	Water supply on, inlet screen clear	Dishwasher water inlet valve 00622058
Won’t drain	Drain hose routing, blockage	Dishwasher drain pump 00611332

Why it matters

Canceling the cycle the correct way protects the pump during draining and prevents hot water from splashing when you open the door mid-cycle.

Last updated: February 2026
