Kenmore 103754630 gas range Parts
Here are the diagrams and repair parts for Kenmore 103754630 gas range, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part
SELECT DIAGRAM
Browse Parts for 103754630 Ranges

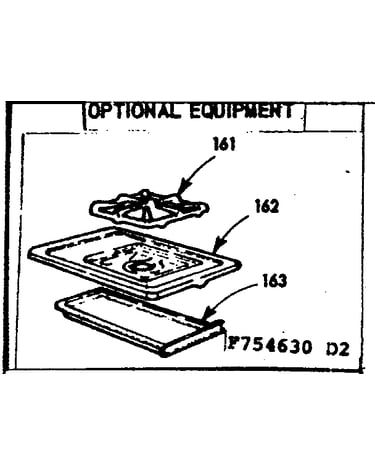

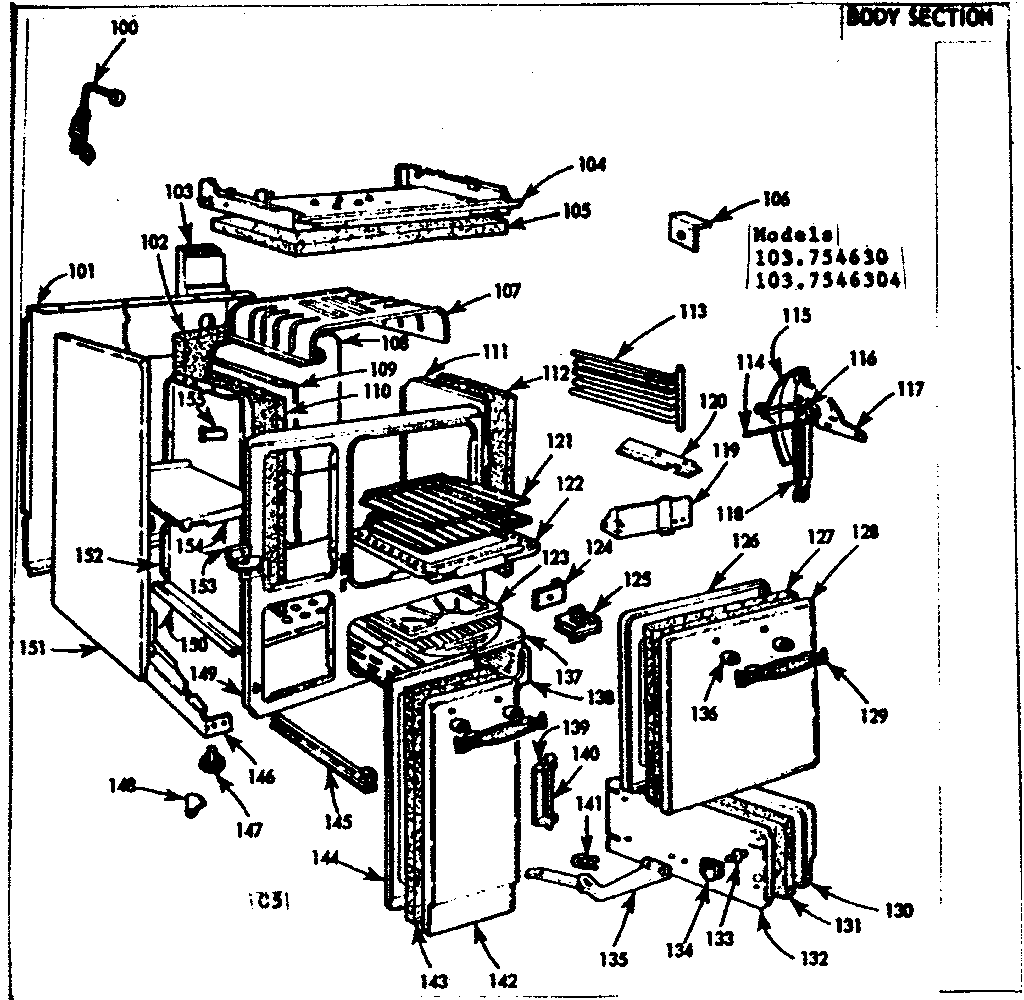

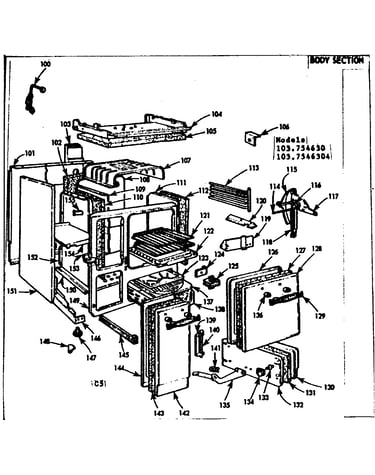

Body section diagram
Drawer Guide
Part #97820This item is not returnableIn Stock$3.99
Qty

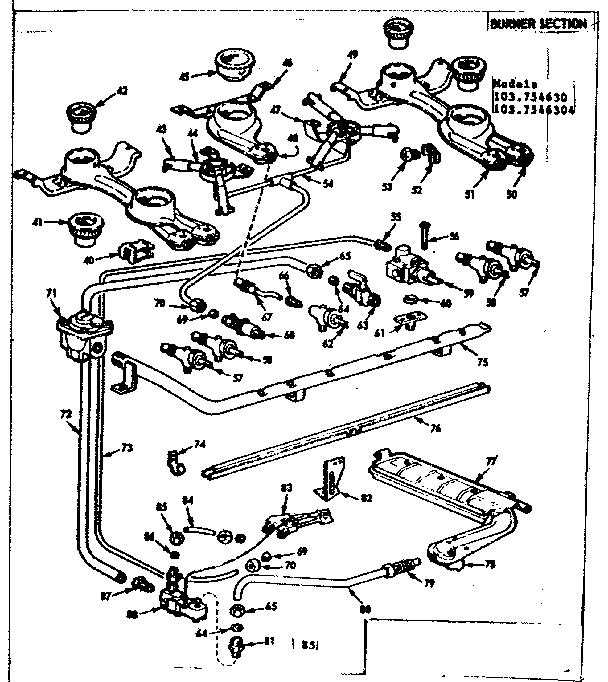

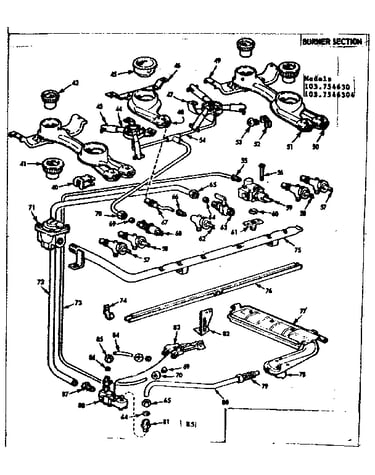

Burner section diagram
Sleeve Ball
Part #23587Replaced by #GM120430
Manufacturer substitutionThis part replaces 23587. Substitute parts can look different from the original.In Stock$27.68QtyBurner section diagram
Loxit Nut
Part #79719Replaced by #100108370
Manufacturer substitutionThis part replaces 79719. Substitute parts can look different from the original.In Stock$64.56QtyBody section diagram
Insulation
Part #102201Replaced by #WB2X9652
Manufacturer substitutionThis part replaces 102201. Substitute parts can look different from the original.In Stock$129.22QtyBurner section diagram
Loxit Nut
Part #79673Replaced by #WB1X1120
Manufacturer substitutionThis part replaces 79673. Substitute parts can look different from the original.In Stock$48.97QtyBody section diagram
Drawer Broil
Part #101032
The manufacturer no longer makes this part, and there's no substitute part
Body section diagram
Door Panel
Part #100313
The manufacturer no longer makes this part, and there's no substitute part

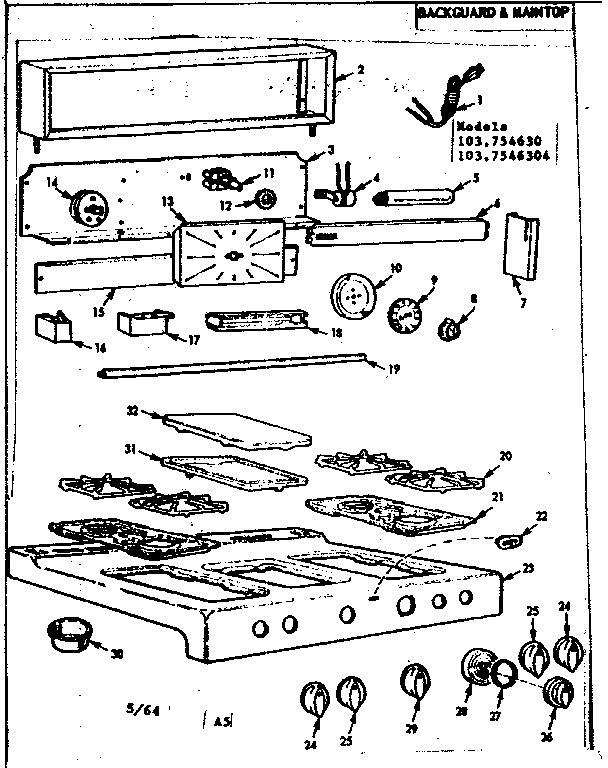

Backguard & maintop diagram
Griddl Plate
Part #70292
The manufacturer no longer makes this part, and there's no substitute part
Burner section diagram
Manifold
Part #102995
The manufacturer no longer makes this part, and there's no substitute part
Burner section diagram
Extension Valve
Part #98695
The manufacturer no longer makes this part, and there's no substitute part
