Whirlpool JZ2350 ice maker Parts
Here are the diagrams and repair parts for Whirlpool JZ2350 ice maker, as well as links to manuals and error code tables, if available.
Installation guideBy Schematic
By Part

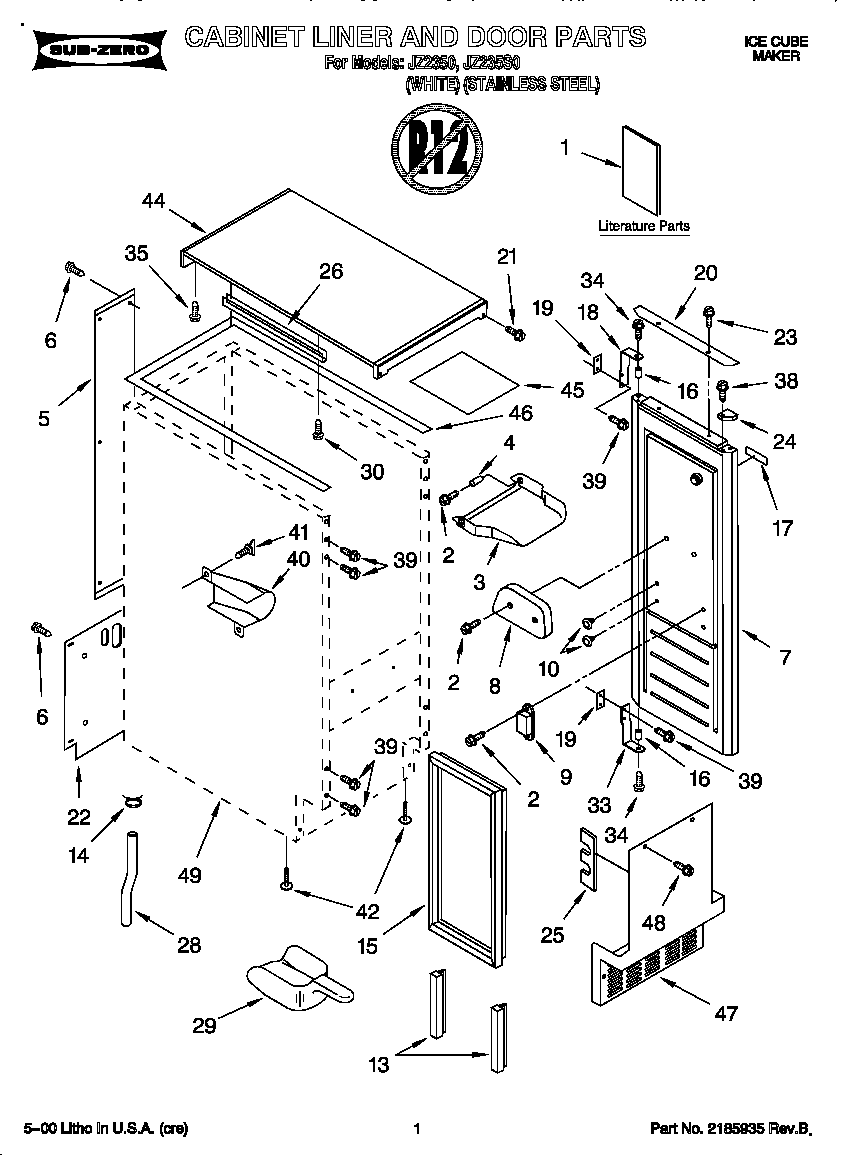

SELECT DIAGRAM
Browse Parts for JZ2350 Ice Maker

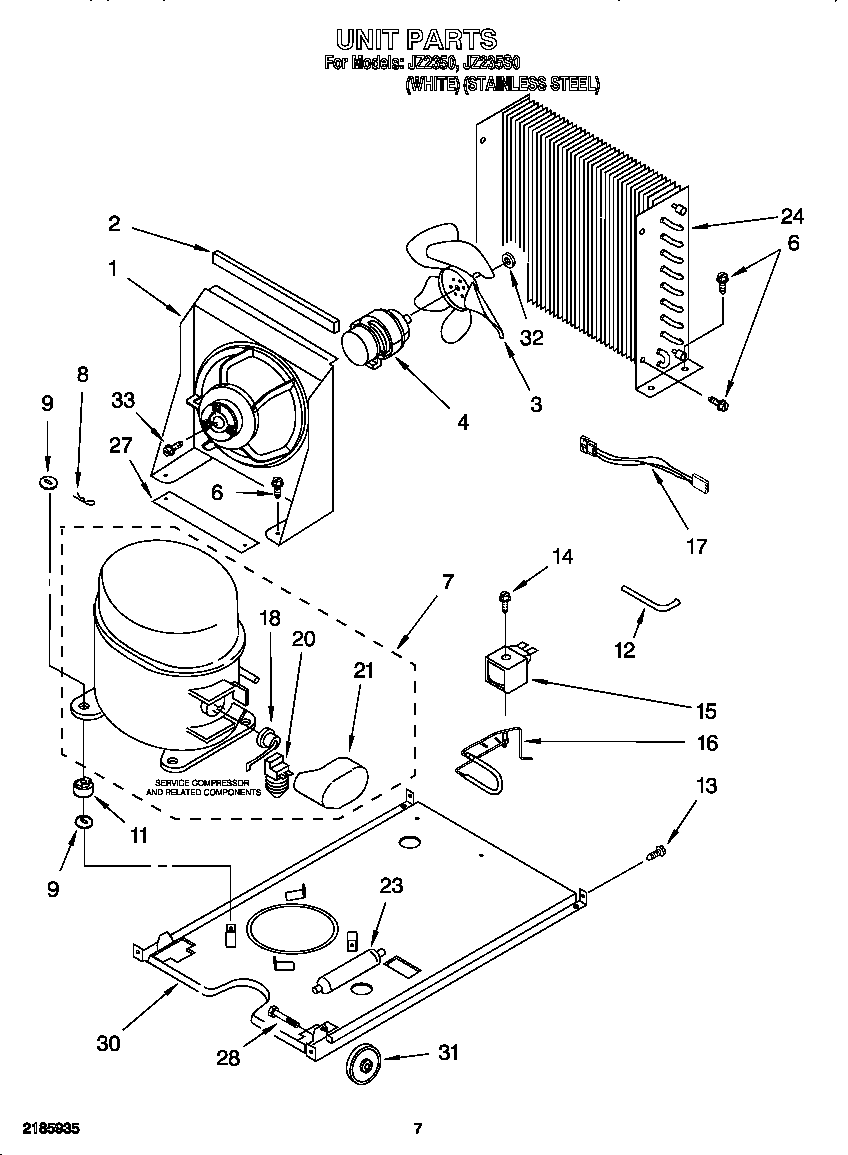

Unit diagram
Drier
Part #2180801Replaced by #W10843121
Manufacturer substitutionThis part replaces 2180801. Substitute parts can look different from the original.In Stock$34.5715% OFF Phone Price : $40.57
Qty

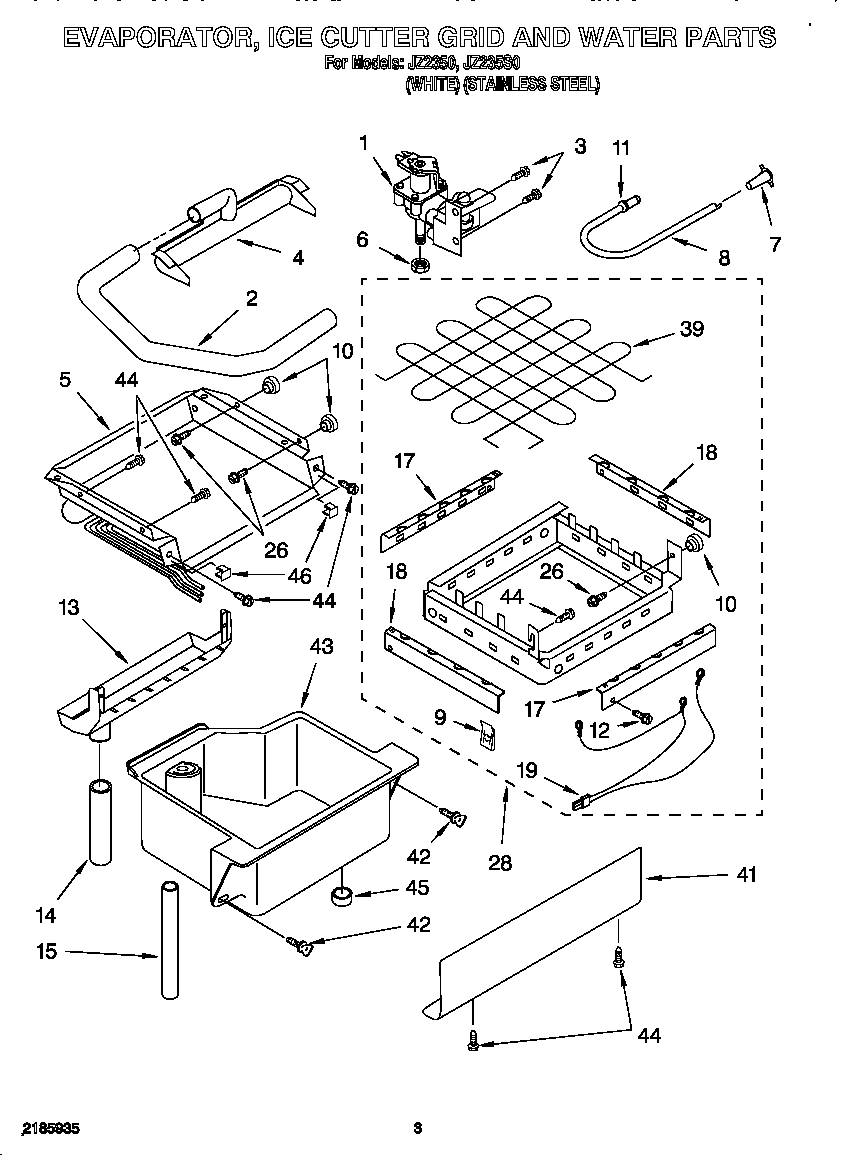

Evaporator, ice cutter grid diagram
Water Tube
Part #2174662Replaced by #W10823511
Manufacturer substitutionThis part replaces 2174662. Substitute parts can look different from the original.In Stock$37.4814% OFF Phone Price : $43.48Qty#NI
All parts diagram
Cement
Part #797403Replaced by #WP279368
Manufacturer substitutionThis part replaces 797403. Substitute parts can look different from the original.In Stock$52.1810% OFF Phone Price : $58.18QtyUnit diagram
Compressor
Part #2176659Replaced by #W10309988

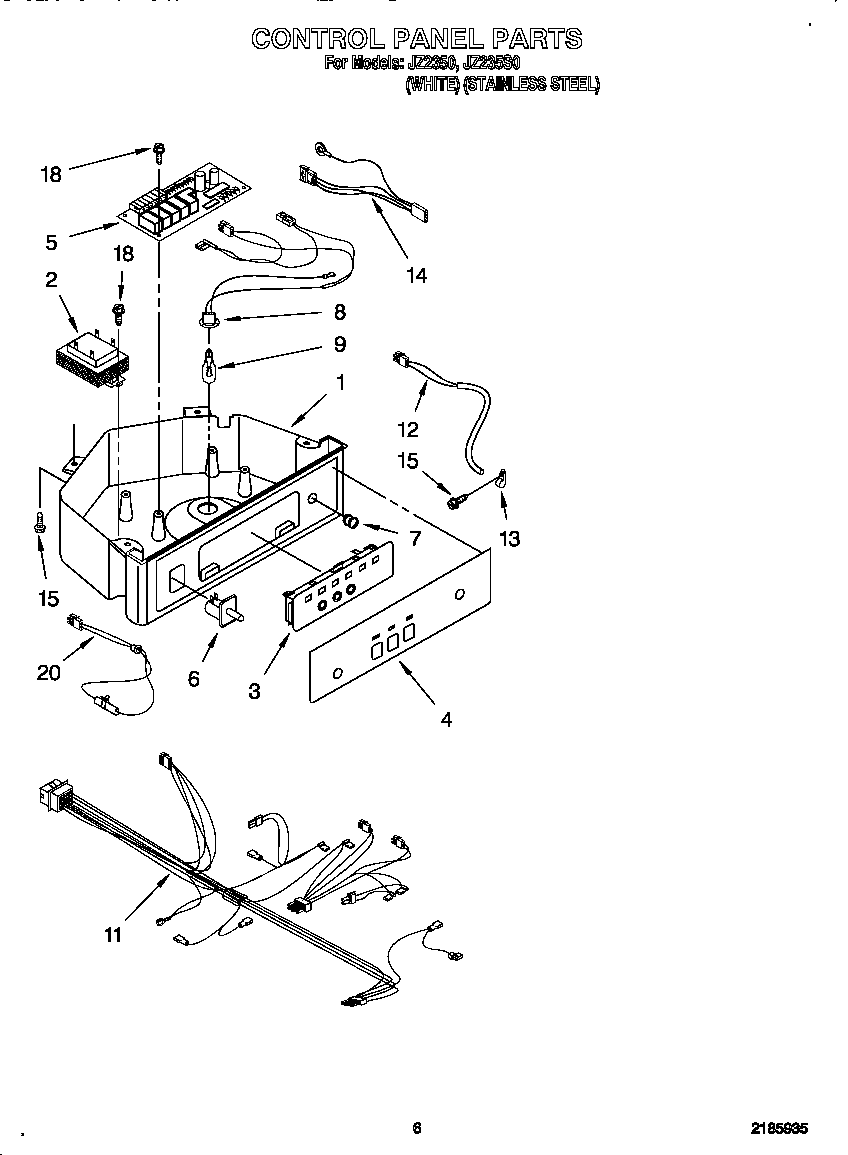

Manufacturer substitutionThis part replaces 2176659. Substitute parts can look different from the original.In Stock$335.76$12.00 OFF Phone Price : $347.76QtyControl panel diagram
Refrigerator Door Switch
Part #2149705Replaced by #WP2149705
Manufacturer substitutionThis part replaces 2149705. Substitute parts can look different from the original.In Stock$38.5013% OFF Phone Price : $44.50QtyControl panel diagram
Thermostat
Part #2185679Replaced by #WPW10503764
Manufacturer substitutionThis part replaces 2185679. Substitute parts can look different from the original.In Stock$72.088% OFF Phone Price : $78.08Qty#NI
All parts diagram
Refrigerator Service Valve
Part #978025Replaced by #WP978025
Manufacturer substitutionThis part replaces 978025. Substitute parts can look different from the original.In Stock$41.1813% OFF Phone Price : $47.18QtyEvaporator, ice cutter grid diagram
Refrigerator Water Tube Fitting
Part #627018Replaced by #WP627018
Manufacturer substitutionThis part replaces 627018. Substitute parts can look different from the original.This item is not returnableIn Stock$8.9810% OFF Phone Price : $9.98QtyEvaporator, ice cutter grid diagram
Evaporator
Part #2208328Replaced by #WPW10218037
Manufacturer substitutionThis part replaces 2208328. Substitute parts can look different from the original.In Stock$477.70$12.00 OFF Phone Price : $489.70QtyEvaporator, ice cutter grid diagram
Cutter Grid
Part #2185614Replaced by #WP2313637
Manufacturer substitutionThis part replaces 2185614. Substitute parts can look different from the original.In Stock$208.385% OFF Phone Price : $220.38Qty
RECOMMENDED MAINTENANCE PARTS AND ACCESSORIES
Sears Refrigerator Permagum Sealer
Part #212643
This item is not returnable
In Stock
$28.03
36% OFF Was : $43.86
Qty
Ice Maker Recirculation Pump Cover
In Stock
$94.99
Qty
Foam Pad
In Stock
$7.70
11% OFF Phone Price : $8.70
Qty
Hinge
In Stock
$95.97
Qty
Most common symptoms to help you fix your freestanding ice makers
Choose a symptom to see related ice maker repairs.
Main causes: water supply problems, control board failure, weak recirculation pump, clogged water distributer, faulty cu…
Main causes: dirty evaporator plate, untreated water supply, food items being stored in ice storage bin…
Main causes: wiring failure, broken cutting grid, faulty electronic control board…
Main causes: bad bin thermistor, condenser fan failure, faulty control board…
Main causes: failing compressor, bad condenser fan motor, faulty drain pump, bad recirculation pump, water supply proble…
Main causes: cracked water supply line, leaky drain line, broken drain pump, cracked water reservoir, leaky ice bin…
Main causes: bad electronic control board, water supply problems, faulty recirculation pump, sealed system failure, brok…
Main causes: lack of electrical power, bad power cord, wiring failure, bad control board, faulty bin thermistor, bad eva…
Most common repair guides to help fix your freestanding ice makers
These step-by-step repair guides will help you safely fix what’s broken on your ice maker.
How to replace a freestanding ice maker cutter grid
When the cutting grid is broken, ice cubes don’t drop into the ice bin. Use the steps in this repair guide to replace a…
Repair time and Difficulty
15 minutes or less
How to replace a freestanding ice maker recirculation pump
If your ice maker isn’t making ice, the pump could be the problem. Here’s how to replace it. …
Repair time and Difficulty
45 minutes or less
How to replace a freestanding ice maker electronic control board
When the electronic control board won’t activate the ice maker components, follow these steps to install a new one.…
Repair time and Difficulty
45 minutes or less
Effective articles & videos to help repair your freestanding ice makers
Use the advice and tips in these articles and videos to get the most out of your ice maker.
Learn about all the convenient features on our Sears PartsDirect website that make your parts purchases easier.…
Learn how to use a multimeter to check for wiring problems in an appliance that's not working…
See what troubleshooting steps to take with your freestanding ice maker before calling for repair.…
