Husqvarna
Gas Walk-Behind Mower

Model # 5521CHVB Official Husqvarna lawn mower

Here are the diagrams and repair parts for Official Husqvarna 5521CHVB lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 109 parts  |
Belt, 21-in 532189028
#47

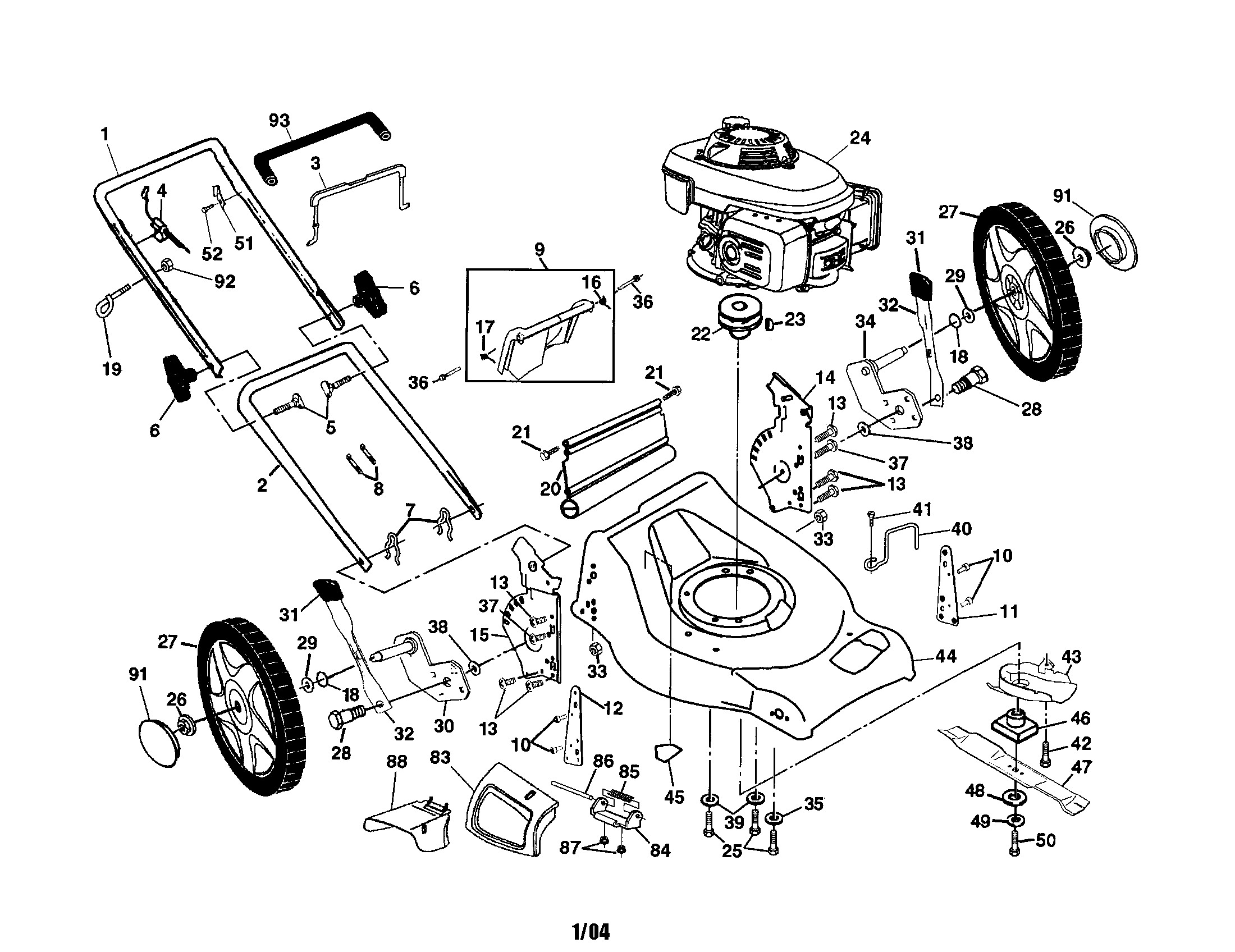

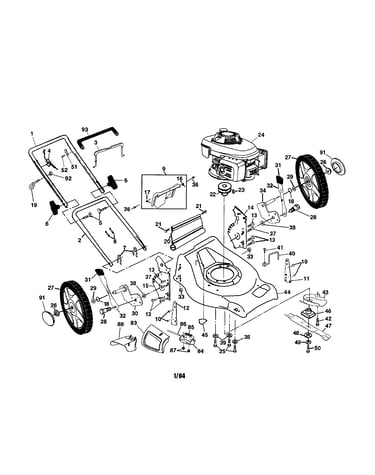

Engine/housing/handle/wheels diagram

Belt, 21-in

Part #532189028

Replaced by #189028

?
Manufacturer substitution
This part replaces 532189028. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$11.41 |
15% OFF Phone Price : $13.41
In Stock
Hex Nut 532083923
#26

Engine/housing/handle/wheels diagram

Hex nut

Part #532083923

Replaced by #532409149

?
Manufacturer substitution
This part replaces 532083923. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Hex Flange Nut 532132010
#31

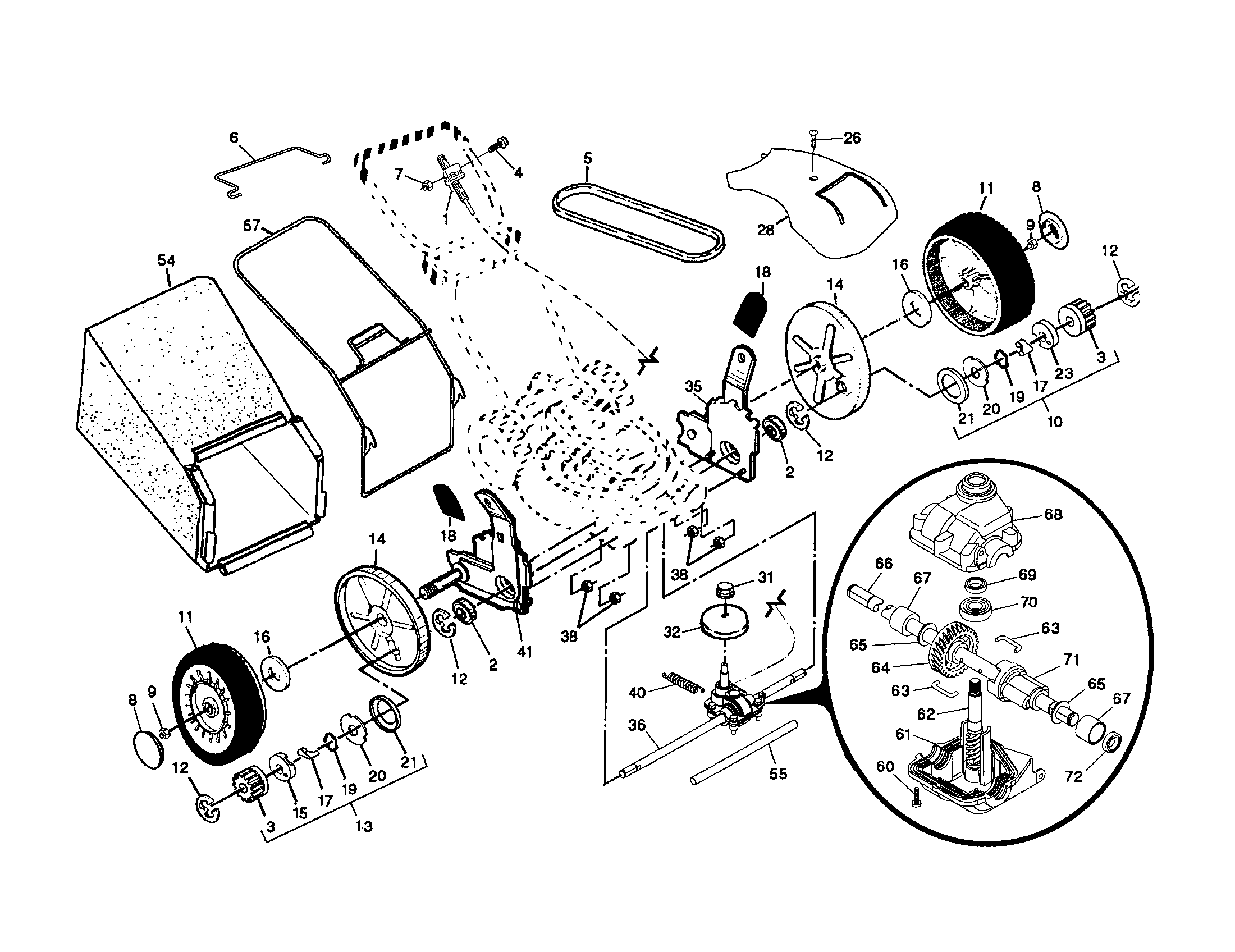

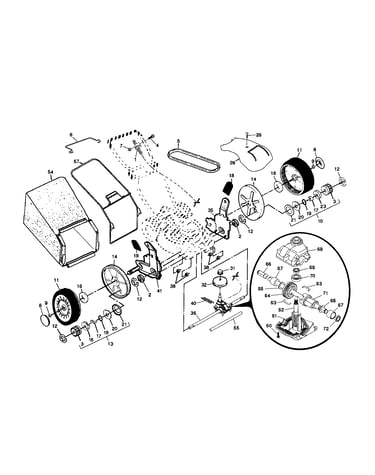

Wheels/tires/bag/belt/drive cover diagram

Hex flange nut

Part #532132010

Replaced by #532409149

?
Manufacturer substitution
This part replaces 532132010. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Hex Flange Nut 532145212
#9

Wheels/tires/bag/belt/drive cover diagram

Hex flange nut

Part #532145212

Replaced by #532409149

?
Manufacturer substitution
This part replaces 532145212. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Lawn Mower Handle Knob (replaces 180453, 189713x418, 442571x428) 532185577
#6

Engine/housing/handle/wheels diagram

Lawn mower handle knob (replaces 180453, 189713x418, 442571x428)

Part #532185577

BEST SELLER
$10.64 |
16% OFF Phone Price : $12.64
In Stock
Dust Cover 532189403
#14

Wheels/tires/bag/belt/drive cover diagram

Dust cover

Part #532189403

Replaced by #581840401

?
Manufacturer substitution
This part replaces 532189403. Substitute parts can look different from the original.
BEST SELLER
$7.98 |
11% OFF Phone Price : $8.98
Back Order
Lawn Tractor Hex Lock Nut 873800500
#33

Engine/housing/handle/wheels diagram

Lawn tractor hex lock nut

Part #873800500

Replaced by #596040501

?
Manufacturer substitution
This part replaces 873800500. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$2.16
Back Order
Pawl.drive.2 532175098
#17

Wheels/tires/bag/belt/drive cover diagram

Pawl.drive.2

Part #532175098

Replaced by #175098

?
Manufacturer substitution
This part replaces 532175098. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Lawn Mower Drive Pinion Torsion Spring (replaces 188291) 532188291
#19

Wheels/tires/bag/belt/drive cover diagram

Lawn mower drive pinion torsion spring (replaces 188291)

Part #532188291

BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Torsion Spring 532175285
#85

Engine/housing/handle/wheels diagram

Torsion spring

Part #532175285

Replaced by #193000

?
Manufacturer substitution
This part replaces 532175285. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.49 |
15% OFF Phone Price : $6.49
In Stock
