GE JKP54GP1BG electric wall oven Parts
Here are the diagrams and repair parts for GE JKP54GP1BG electric wall oven, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part
SELECT DIAGRAM
Browse Parts for JKP54GP1BG Ranges
#253

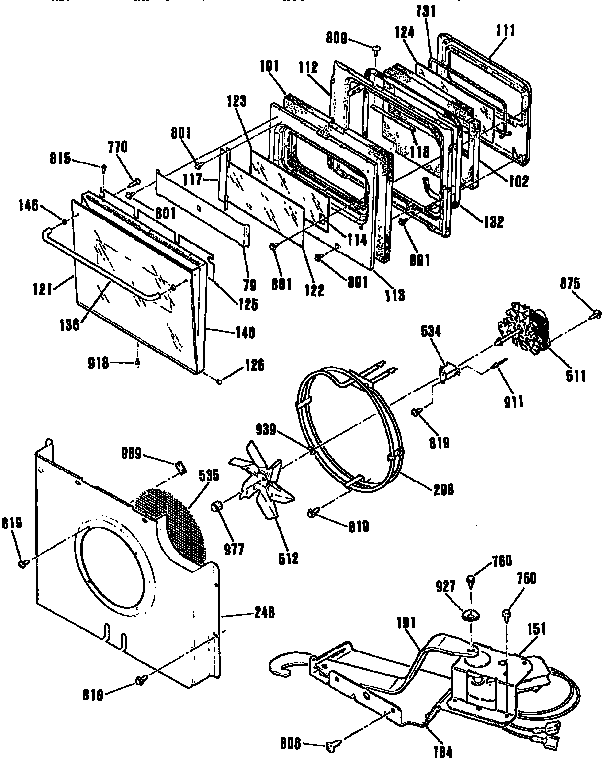

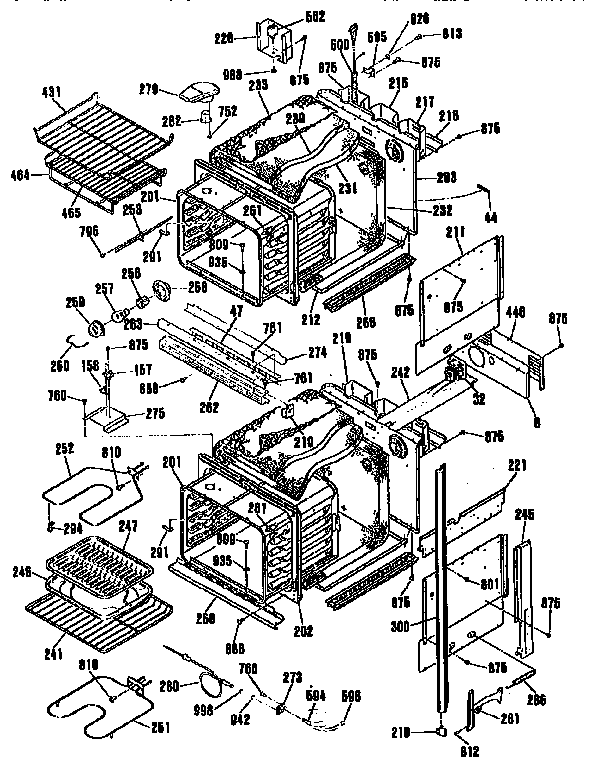

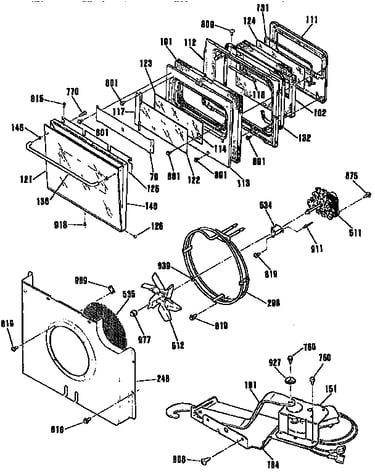

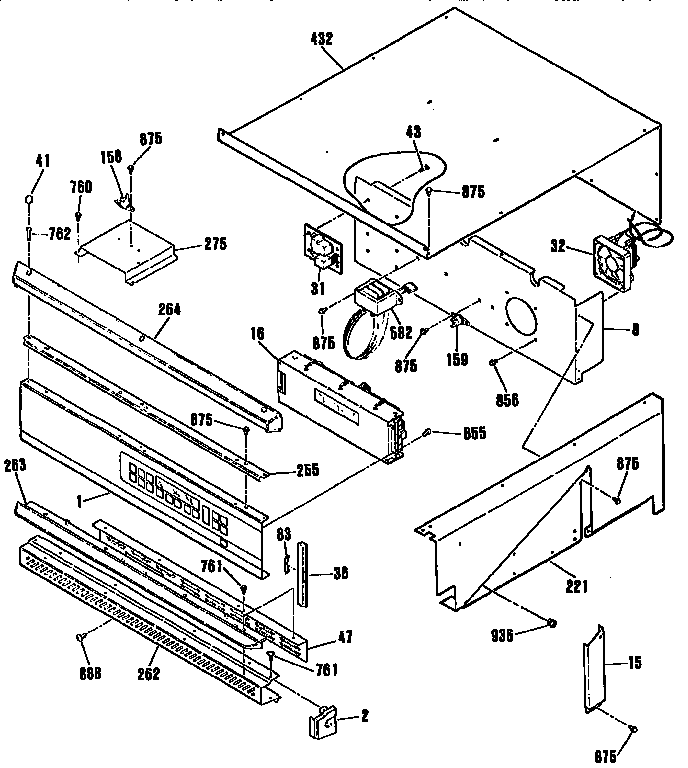

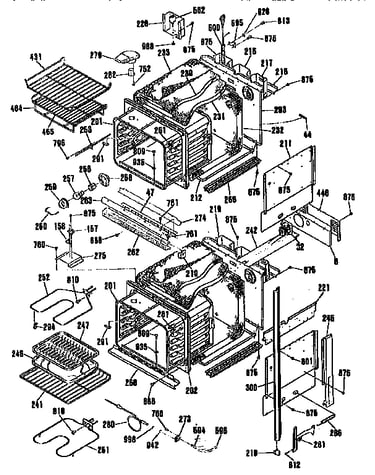

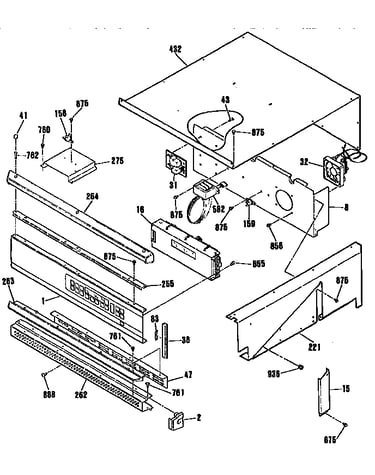

All parts diagram
Sensorasm
Part #WB20X0106Replaced by #WB21X5301
Manufacturer substitutionThis part replaces WB20X0106. Substitute parts can look different from the original.In Stock$128.509% OFF Phone Price : $140.50
Qty
#252
All parts diagram
G.e. Range Broil Element
In Stock$71.848% OFF Phone Price : $77.84Qty#251
All parts diagram
G.e. Range Bake Element
In Stock$70.438% OFF Phone Price : $76.43Qty#251A
All parts diagram
Bake Element
Part #WB44K5008Replaced by #WB44K5013
Manufacturer substitutionThis part replaces WB44K5008. Substitute parts can look different from the original.In Stock$70.438% OFF Phone Price : $76.43Qty#856
All parts diagram
Screw
Part #WB01X1293Replaced by #WB1X1293
Manufacturer substitutionThis part replaces WB01X1293. Substitute parts can look different from the original.This item is not returnableIn Stock$9.869% OFF Phone Price : $10.86Qty#151
All parts diagram
Lock Motor
Part #WB26K5030Replaced by #WB49T10020
Manufacturer substitutionThis part replaces WB26K5030. Substitute parts can look different from the original.In Stock$145.498% OFF Phone Price : $157.49Qty#512
All parts diagram
Fan Blade
Part #WB26K5040Replaced by #WB2X8351
Manufacturer substitutionThis part replaces WB26K5040. Substitute parts can look different from the original.This item is not returnableIn Stock$25.7419% OFF Phone Price : $31.74Qty#810
All parts diagram
Screw-10-32
Part #WB01X1135Replaced by #WB1X1130
Manufacturer substitutionThis part replaces WB01X1135. Substitute parts can look different from the original.In Stock$9.869% OFF Phone Price : $10.86Qty#259
All parts diagram
Wall Oven Light Lens
Part #WB36X0389Replaced by #WB36X192
Manufacturer substitutionThis part replaces WB36X0389. Substitute parts can look different from the original.This item is not returnableIn Stock$15.3912% OFF Phone Price : $17.39Qty#131
All parts diagram
Seal
Part #WB02X9381Replaced by #WB2X9168
Manufacturer substitutionThis part replaces WB02X9381. Substitute parts can look different from the original.This item is not returnableIn Stock$18.3910% OFF Phone Price : $20.39Qty
