Kenmore
Canister Vacuum

Model #11629812990 Kenmore canister vacuum

Here are the diagrams and repair parts for Kenmore 11629812990 canister vacuum, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profileOwner’s manual

Showing 10 of 66 parts

Vacuum Cord Reel Assembly

#3

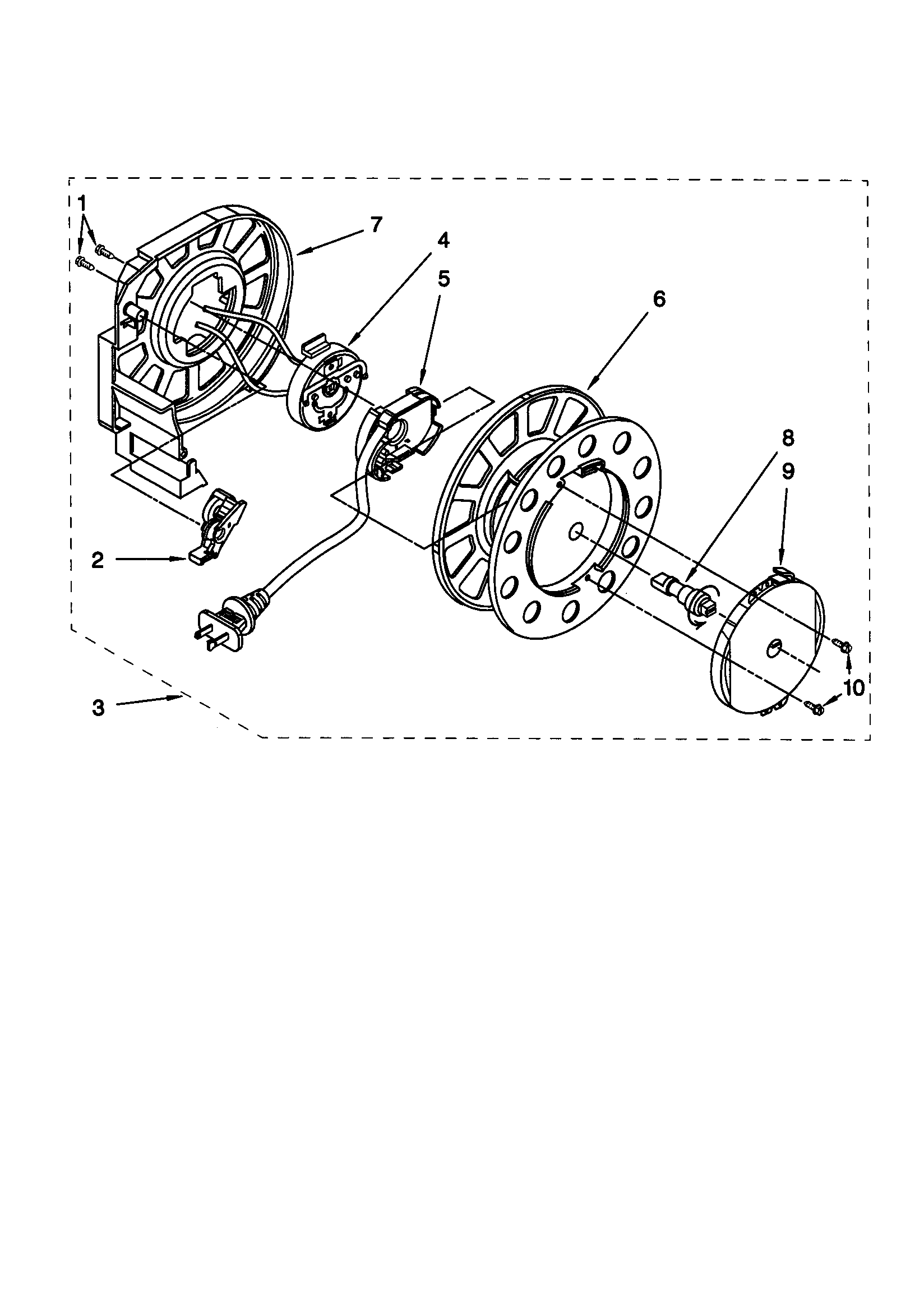

Power cord reel Diagram

Vacuum cord reel assembly

Part #8195114
?
Manufacturer substitution
This part replaces 4370923. Substitute parts can look different from the original.
This part replaces 4370923
$45.19

In Stock

Vacuum Bag Mount Assembly

#33

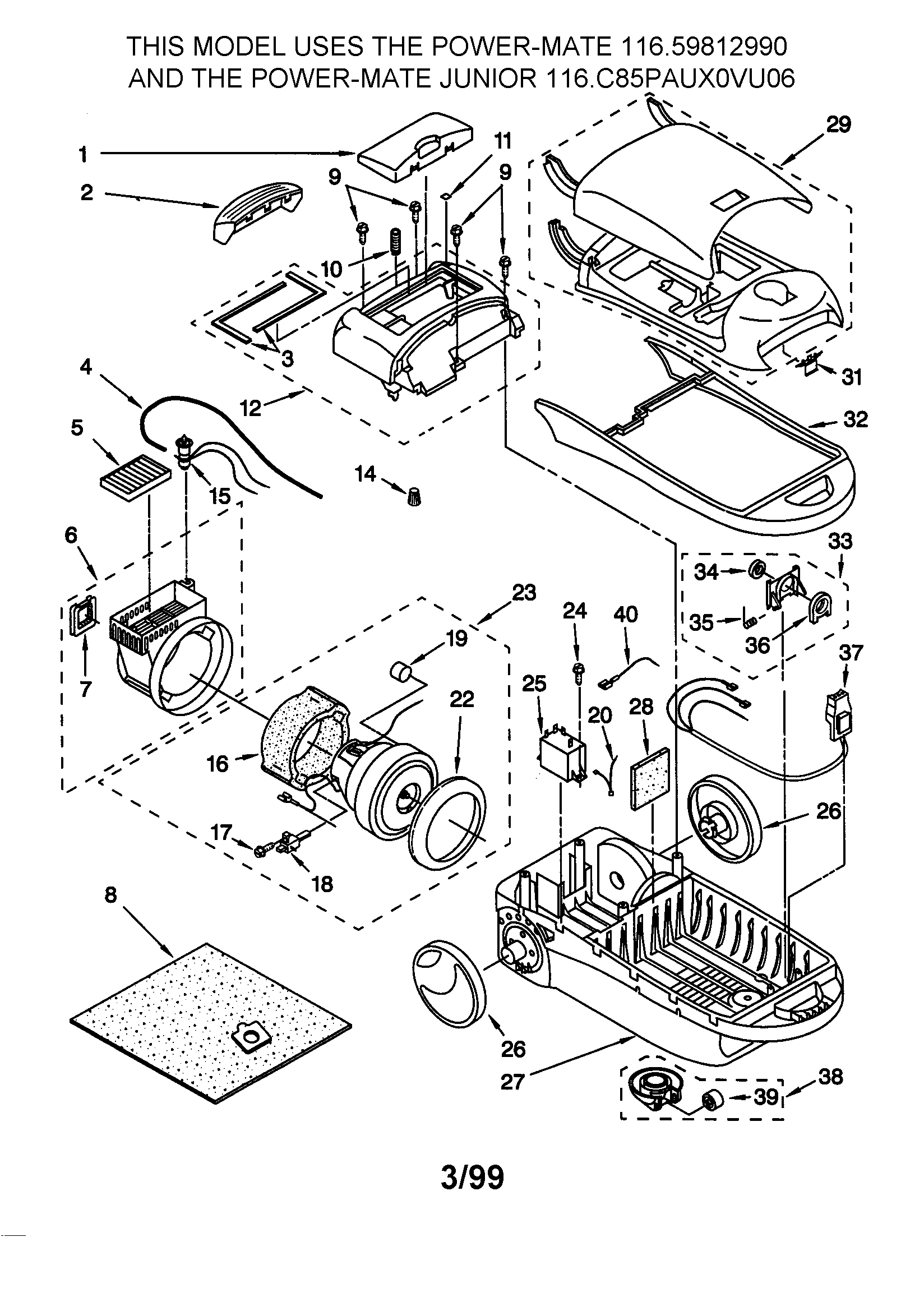

Vacuum cleaner Diagram

Vacuum bag mount assembly

Part #4370617
?
Manufacturer substitution
This part replaces 4370617. Substitute parts can look different from the original.
This part replaces 4370617
$15.45

Back Order

Vacuum Wire Harness

#24

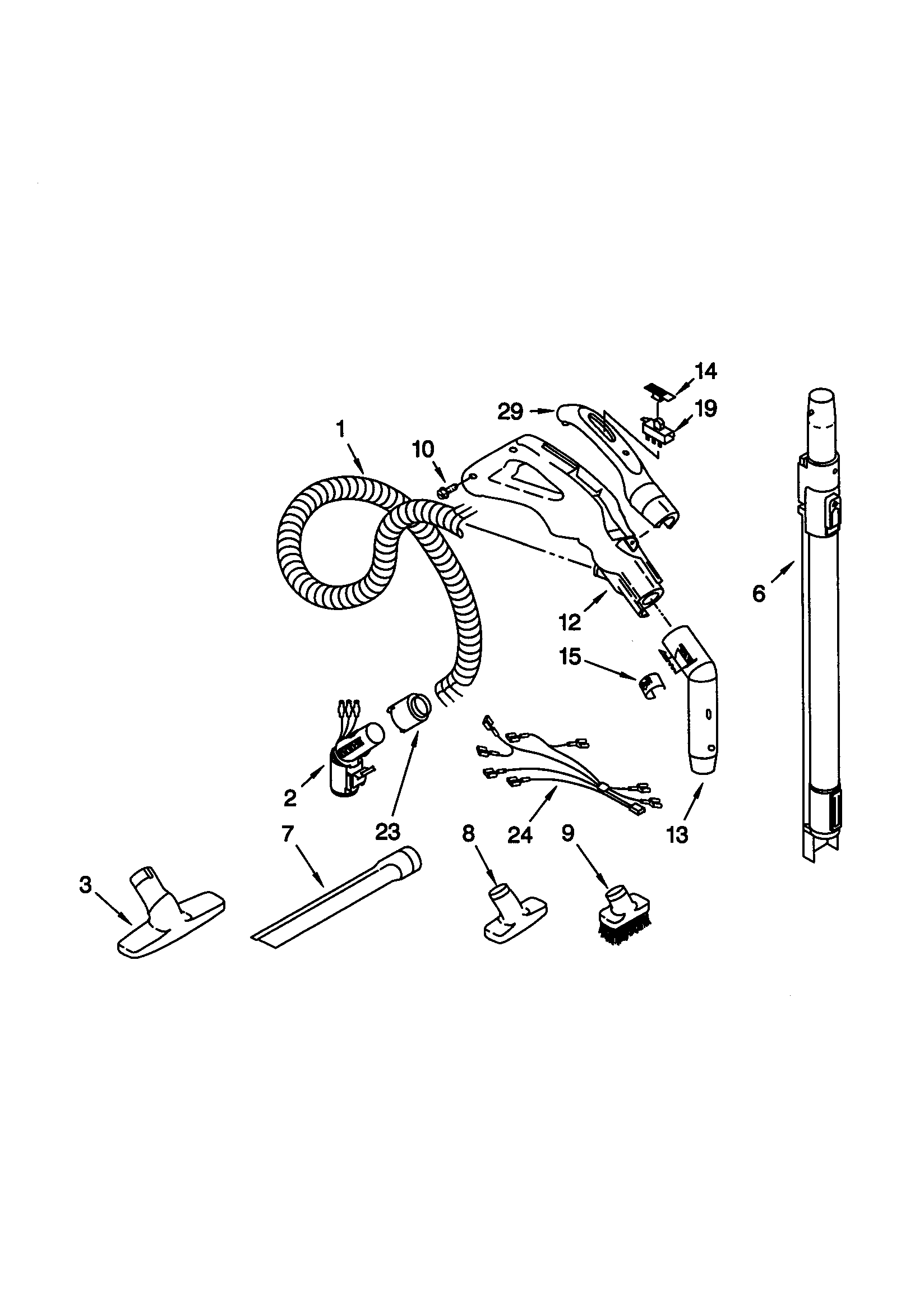

Hose and attachment Diagram

Vacuum wire harness

Part #4370561
?
Manufacturer substitution
This part replaces 4370561. Substitute parts can look different from the original.
This part replaces 4370561
$19.30

In Stock

Vacuum Foam Filter

#28

Vacuum cleaner Diagram

Vacuum foam filter

Part #86883
?
Manufacturer substitution
This part replaces 4370609. Substitute parts can look different from the original.
This part replaces 4370609

Get free shipping with Automatic Reorder

$23.29

In Stock

Vacuum Hose Adapter

#23

Hose and attachment Diagram

Vacuum hose adapter

Part #4370325
?
Manufacturer substitution
This part replaces 4370325. Substitute parts can look different from the original.
This part replaces 4370325
This item is not returnable
$4.37

In Stock

Vacuum Wand Assembly

#6

Hose and attachment Diagram

Vacuum wand assembly

Part #KC99PCPMZV06
?
Manufacturer substitution
This part replaces 4370972. Substitute parts can look different from the original.
This part replaces 4370972
$116.33

In Stock

Vacuum Cord Reel Contact Disk and Power Cord

#5

Power cord reel Diagram

Vacuum cord reel contact disk and power cord

Part #4370695
?
Manufacturer substitution
This part replaces 4370695. Substitute parts can look different from the original.
This part replaces 4370695
$35.65

In Stock

Vacuum Hose

#1

Hose and attachment Diagram

Vacuum hose

Part #4369467
?
Manufacturer substitution
This part replaces 4370560. Substitute parts can look different from the original.
This part replaces 4370560
$51.93

In Stock

Vacuum Hose Swivel

#2

Hose and attachment Diagram

Vacuum hose swivel

Part #4370563
?
Manufacturer substitution
This part replaces 4370563. Substitute parts can look different from the original.
This part replaces 4370563
$21.90

In Stock

Kenmore Vacuum HEPA Cloth Bag, Type C and Q, 2-pack

#8

Vacuum cleaner Diagram

Kenmore vacuum hepa cloth bag, type c and q, 2-pack

Part #50557
?
Manufacturer substitution
This part replaces 4370680. Substitute parts can look different from the original.
This part replaces 4370680
$21.01

In Stock

Symptoms common to all vacuum cleaners

Choose a symptom to see related vacuum cleaner repairs.

Main causes: damaged vacuum hose, clogged motor air filter, bad suction motor
Main causes: lack of power, bad power cord, drive motor failure, wiring failure
Main causes: weak suction motor, vacuum bag is full, clog in suction air path, dirty exhaust filter, leaky vacuum hose
Main causes: broken drive belt, damaged brush roll, tripped brush roll motor overload, bad brush roll motor, wiring failure
