Maytag A511S washer/dryer Parts
Here are the diagrams and repair parts for Maytag A511S washer/dryer, as well as links to manuals and error code tables, if available.
Error Codes
By Schematic
By Part

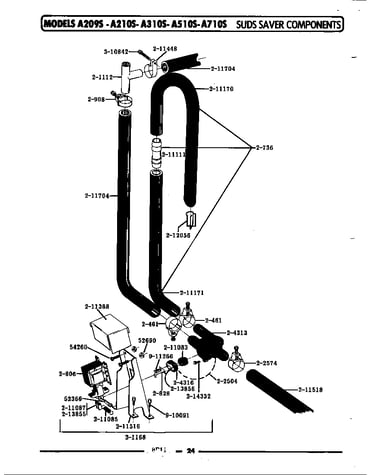

SELECT DIAGRAM
Browse Parts for A511S Washer/Dryer
Bleach Inlet
Part #214437
The manufacturer no longer makes this part, and there's no substitute part
Bolt, Grindi
Part #015629
The manufacturer no longer makes this part, and there's no substitute part

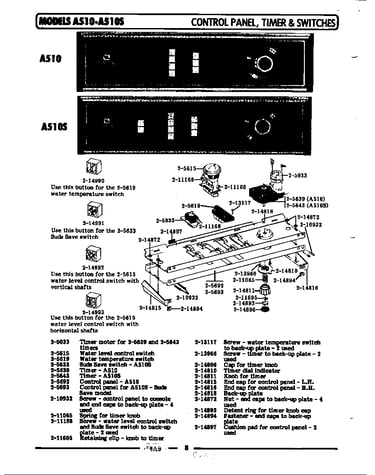

Control panel,timer & switches diagram
Top Cover-wh
Part #205537
The manufacturer no longer makes this part, and there's no substitute part

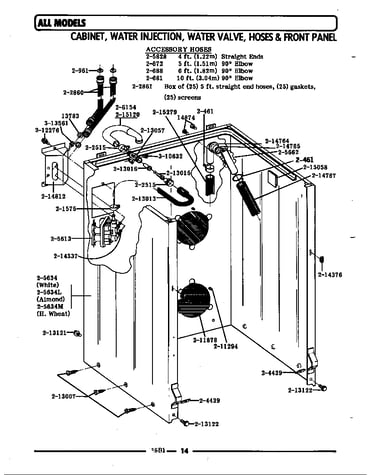

Cbnt,water inj & valve,hoses & frt panel diagram
Inlet Washer
Part #013783
The manufacturer no longer makes this part, and there's no substitute part

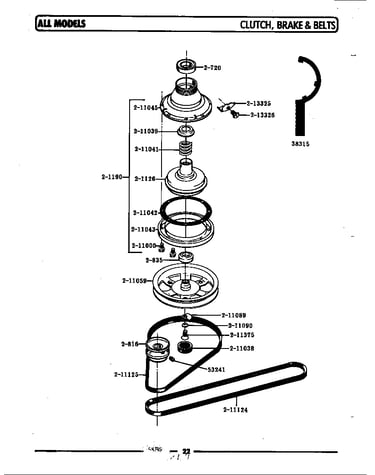

Clutch, brake & belts diagram
Bracket Housing
Part #211045
The manufacturer no longer makes this part, and there's no substitute part

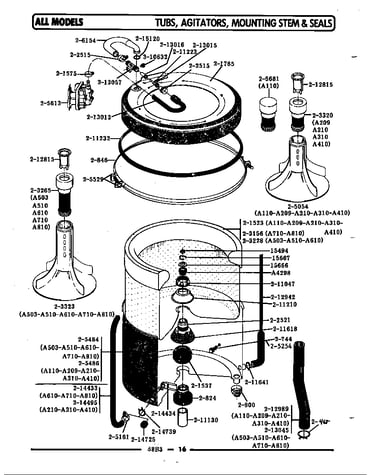

Tub, agitator, mounting stem & seal diagram
Washer Tub Cover Clamp
Part #200846
The manufacturer no longer makes this part, and there's no substitute part

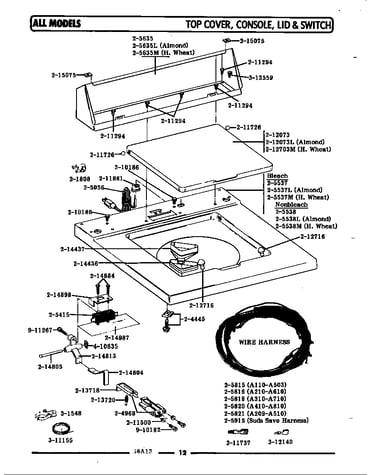

Top cover, console & lid switch diagram
Clamp, Groun
Part #301548
The manufacturer no longer makes this part, and there's no substitute part

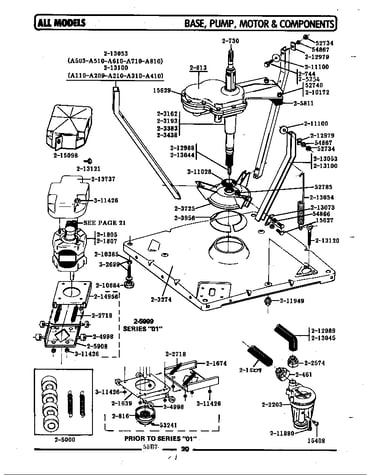

Base, pump, motor & components diagram
Motor Shield
Part #215098
The manufacturer no longer makes this part, and there's no substitute part

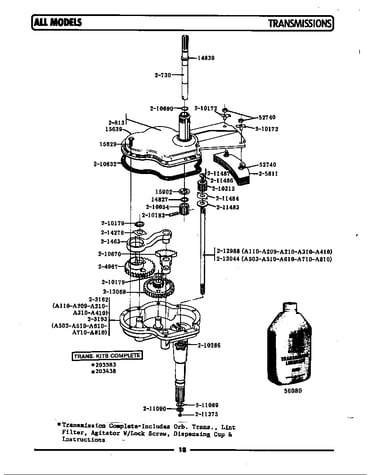

Transmissions diagram
Washer-cente
Part #014827
The manufacturer no longer makes this part, and there's no substitute part
Top cover, console & lid switch diagram
Grommet, Cor
Part #211881
The manufacturer no longer makes this part, and there's no substitute part
