How much does it cost to replace a riding lawn mower engine?
Replacing the engine on a Craftsman riding tractor like model 917287013 typically costs $800 to $3,000+ total (engine plus labor). The biggest price drivers are the engine type, whether the replacement is new or rebuilt, and the labor time to swap and set up controls, wiring, and belts; see the 917287013 owner's manual for model-specific service and safety guidance.
Typical cost breakdown
- Engine (new): $600 to $2,000+
- Engine (rebuilt/used): $300 to $1,200
- Labor: $300 to $900 (often 4 to 8 hours)
- Shop supplies and incidentals: $25 to $100
- Optional add-ons: battery, fuel line, filters, spark plug, blades, belts
| Scenario | What you pay for | Typical total |
|---|---|---|
| DIY swap | Engine plus your time | $300 to $2,000+ |
| Shop installs customer-supplied engine | Labor plus incidentals | $350 to $1,000 |
| Shop supplies and installs engine | Engine plus labor | $800 to $3,000+ |
When engine replacement makes sense
Engine replacement is usually the right call when the tractor chassis, transaxle, and deck are in good shape, but the engine has major internal damage (low compression, thrown rod) or repeated no-start issues after normal tune-up steps.
Quick checks before you commit
We recommend ruling out common “no start” causes first:
- Battery charge and clean terminals
- Starter circuit and solenoid operation (a click with no crank often points here)
- Fresh fuel and a clean fuel filter
- Spark plug condition and tight plug wire connection
- Air filter and cooling fins free of debris
If the starter circuit is the issue, replacing the lawn tractor starter solenoid 582042802 can be far less expensive than an engine.
Why it matters
An engine swap is one of the highest-cost repairs on a riding mower. Confirming the failure mode first helps you avoid replacing the engine when the real problem is a starting component, fuel delivery issue, or maintenance item.
Last updated: February 2026

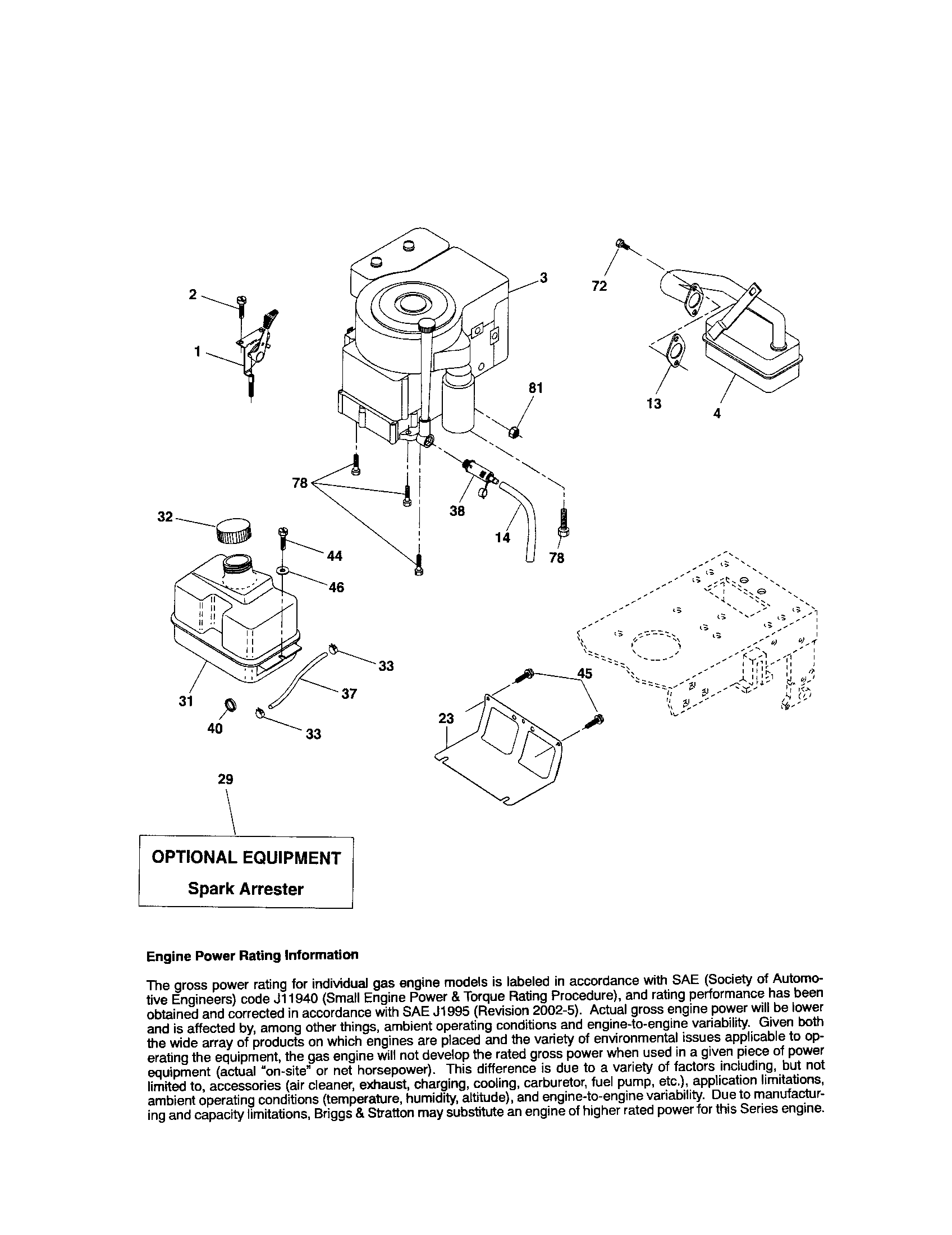

What engine does Craftsman riding mower use?
The Craftsman riding mower model 917287013 uses a low-emission gasoline engine; this tractor series is commonly equipped with a single-cylinder, vertical-shaft engine in the 15.5 HP class. For the exact engine identification (model, type, and code), we match the numbers stamped on your engine to the specifications in the 917287013 owner's manual.
How to identify the exact engine on your tractor
Use the engine’s ID tag, not the tractor hood decal. On most Craftsman front-engine lawn tractors, the engine label is on the blower housing, valve cover, or near the starter.
- Turn the engine off and let it cool completely
- Lift the hood and locate the engine manufacturer label
- Write down the model, type, and code (or spec number)
- Compare those numbers to the engine section in the manual
- Use the engine ID when ordering tune-up parts (air filter, spark plug, fuel filter)
What we can confirm from the model documentation
The operator’s manual for this tractor family calls out a 15.5 HP, 38-inch mower configuration and notes the engine is a low-emission design that may operate differently than older engines.
| Item | What to use | Why |
|---|---|---|
| Tractor model | 917287013 | Identifies the correct chassis, deck, and controls |
| Engine ID | Engine model/type/code | Identifies the correct engine parts and specs |
| Horsepower class | 15.5 HP (typical for this manual) | Helps narrow engine family, not a parts match by itself |
Why it matters
Ordering by “Craftsman riding mower engine” alone often leads to the wrong parts because multiple engines can be used across similar tractors. The engine ID ensures you get the right maintenance items and starting-system parts.
Related part that affects starting (not the engine itself)
If the engine clicks but will not crank, the starting circuit is a common place to check; the lawn tractor starter solenoid 582042802 is one of the key components in that circuit.
Last updated: February 2026
What kind of oil do you use in a Craftsman lawn tractor?
For Craftsman lawn tractor model 917287013, use high-quality 4-cycle (4-stroke) detergent engine oil. Choose the SAE viscosity based on your outdoor temperature range; the manual includes an oil viscosity chart and the correct fill and checking procedure in the 917287013 owner's manual.
Recommended oil type and viscosity
Use oil intended for 4-cycle small engines (not 2-cycle mix oil). Then match viscosity to the season:
- Use the SAE viscosity listed for your temperature range (see the manual chart)
- Use detergent engine oil made for gasoline engines
- Do not mix oil with gasoline (this tractor uses a 4-cycle engine)
- Check oil with the tractor on level ground
- Fill only to the FULL mark on the dipstick; do not overfill
How to check and add oil (quick steps)
- Park on level ground; shut the engine off and let it cool.
- Remove the oil fill cap/dipstick, wipe clean, reinstall and tighten.
- Remove again and read the level.
- Add oil slowly until it reaches the FULL mark.
Oil viscosity selection (typical guidance)
Use the manual for the exact recommendation; these are common choices for many riding mower engines:
| Temperature range | Common SAE choice | What you will notice |
|---|---|---|
| Cold weather | 5W-30 | Easier starting, faster lubrication |
| Mild to hot weather | SAE 30 | Strong protection at operating temperature |
Why it matters
Correct viscosity helps the engine lubricate quickly at startup and maintain a protective oil film when hot. That reduces wear, improves starting, and supports consistent power while mowing.
Last updated: February 2026
What year did Craftsman make the 917287013?
Craftsman model 917287013 is part of the 917.28701 tractor series shown in the documentation, which places it in the early-to-mid 2000s era of Craftsman lawn tractors. For the most accurate build date, we use the product identification label details referenced in the 917287013 owner's manual.
How to pinpoint the exact year for 917287013
We date Craftsman 917-series tractors by matching the model and serial information on the tractor to the manufacturer’s production records.
- Lift the seat and look for the model and serial label (often on the frame under the seat or near the rear fender pan).
- Confirm the model format; the manual shows Model No. 917.28701, which aligns with 917287013.
- Write down the serial number exactly as printed.
- Check the engine model and type on the engine tag (Briggs & Stratton or Kohler tags are common on this platform).
- Use the manual’s product identification and service guidance to keep the tractor configured correctly after any repairs.
Quick guide: what you can use to date it
| What you find | Where it is | How it helps |
|---|---|---|
| Model number (917287013) | ID label under seat/frame | Confirms the correct tractor family |
| Serial number | Same ID label | Best indicator for production run |
| Engine model/type code | Engine shroud/tag | Helps narrow the engine’s build date |
Why it matters
Knowing the year helps us match the correct parts diagrams and maintenance specs (belts, deck hardware, electrical parts). For example, starting and no-crank issues often trace back to battery cables, safety interlocks, or the lawn tractor starter solenoid 582042802 rather than the ignition switch itself.
Related maintenance tip
If you are chasing a click-no-start symptom while dating the tractor, follow the same diagnostic flow we use in riding lawn mower engine clicks but doesnt turn over video.
Last updated: February 2026
