On the Whirlpool WDF110PABB4, the F8 E4 error means water is detected in the base pan (drip tray), which trips the float switch. Drying the base pan clears the code, but it returns until you stop the leak that put water there.

Quick steps to clear F8 E4

• Turn off power at the breaker.
• Shut off the water supply under the sink.
• Remove standing water from the tub so it does not spill when the unit is moved.
• Pull the dishwasher out slightly and dry the base pan until the float drops.
• Restore power and run a short cycle while watching for fresh water in the base.

Find the leak source (most common checks)

• Fill leak: supply connection, inlet tubing, or valve area
• Wash leak: sump area, circulation path, or hose connections
• Drain leak: drain hose routing, clamps, or drain pump area

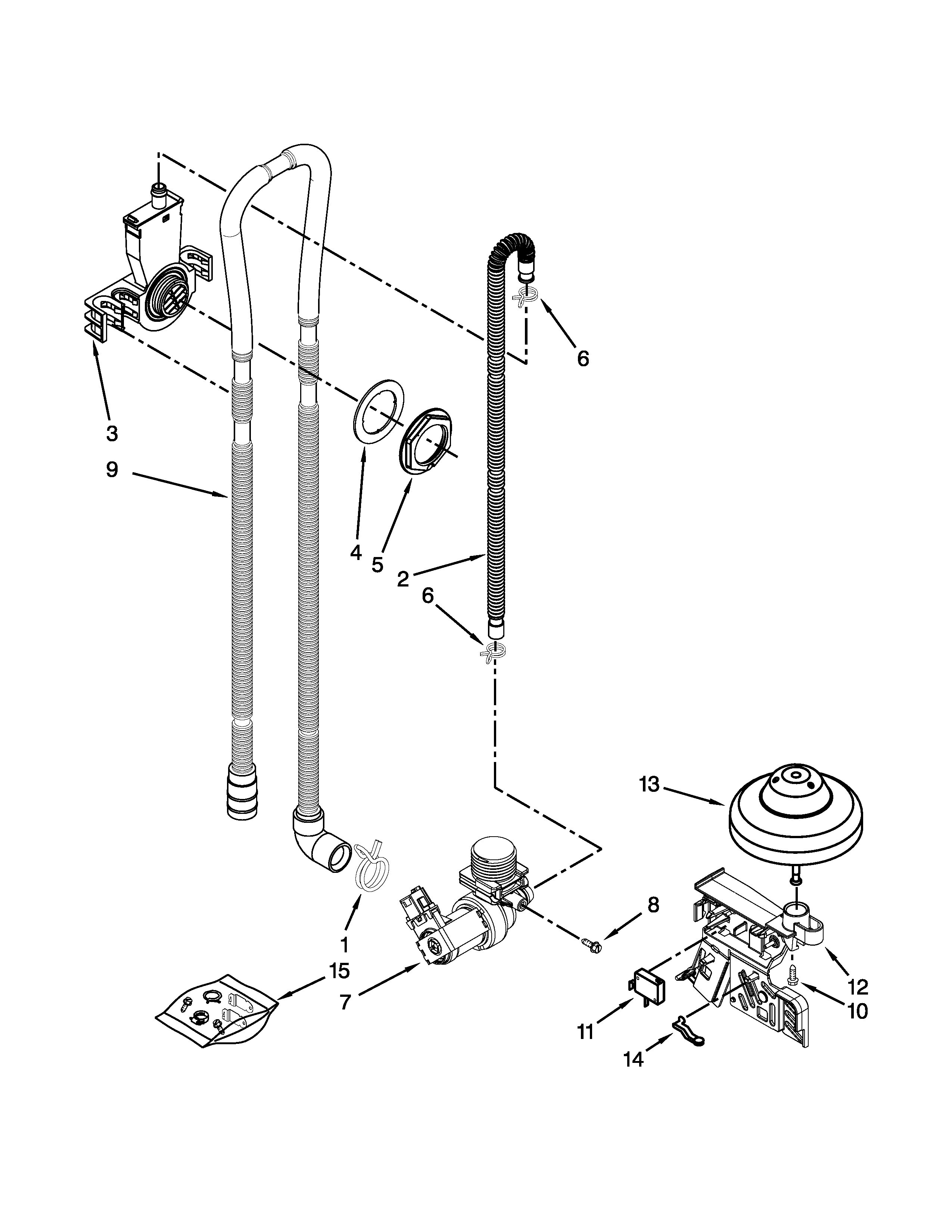

If the base is wet near the fill components, replacing the dishwasher water inlet valve W11175771 often solves the problem on this model.

Symptom-to-area guide

When you see water	Most likely area	What to inspect first
During fill only	Inlet valve or inlet tubing	Valve body, fittings, tubing cracks
Mid-cycle (wash)	Sump or circulation hose	Hose clamps, grommets, seepage at joints
During drain	Drain hose or drain pump	Hose connection, high loop, pump outlet

Why it matters

Water in the base pan can keep the dishwasher from running normally and repeated leaking can damage cabinets or flooring. Clearing the water resets operation, but fixing the leak prevents repeat F8 E4 errors.

For control behavior and safe shutoff steps, follow the WDF110PABB4 owner's manual. For code definitions and related diagnostics, use Whirlpool he dishwasher error codes. You can also find model-matched parts on this page or search by model on Sears PartsDirect.

Last updated: February 2026

On Whirlpool dishwashers like model WDF110PABB4, a leak condition is commonly indicated by an F2 fault (often shown as F2/E2 on some displays). This code points to water detected where it should not be, so we focus on finding the source of the leak and drying the base area.

What to do first (safe, quick checks)

• Turn off power at the breaker before inspecting underneath.
• Shut off the water supply valve to the dishwasher.
• Pull the toe-kick/access panel and look for standing water in the base.
• Check the door gasket area for debris, tears, or a folded seal.
• Look for drips at the inlet connection, drain hose, and pump area.
• If the unit recently moved, confirm it is level and not tipped forward.

Common leak sources on WDF110PABB4

Leaks usually come from a few places: the fill system, drain system, or sump/pump seals.

Where you see water	Most likely cause	Parts that often relate
Front corners or down the door	Door seal issue, oversudsing, loading spray deflection	Cleaning and loading practices; check manual guidance
Left side near water line	Loose fitting or failing inlet valve	Dishwasher water inlet valve W11175771
Under center of tub	Sump seal, hose connection, or pump grommet	Dishwasher pump grommet WPW10538166
Water appears after draining	Drain hose split, loose clamp, or drain pump leak	Dishwasher drain hose 8269144A, dishwasher drain pump W10876537

Why it matters

A leak code is the dishwasher protecting your kitchen and the machine. Water in the base can trigger the float system, stop the cycle, and lead to repeated no-start or drain-only behavior until the leak is fixed and the base is dry.

Helpful references for this model

• Use the owner's manual for safety notes (grounding, tip-over warnings) and care steps that help prevent leaks caused by residue or improper filter installation.
• If you need to identify additional seals, hoses, or panels not listed above, use the parts list for WDF110PABB4 or search by model at Sears PartsDirect.

Last updated: February 2026

The most common Whirlpool dishwasher problem we see is poor draining, usually caused by a dirty filter area, a restricted drain path (air gap or hose), or a failing drain component. On the Whirlpool WDF110PABB4, start with filter cleaning and basic drain checks from the owner's manual.

Most common issues (and what they look like)

• Not draining: standing water in the bottom after the cycle
• Not cleaning well: food debris left on dishes, weak spray action
• Not drying: dishes come out wet, especially plastics
• Won’t start or stops mid-cycle: cycle pauses, then ends or won’t run
• Leaks: water under the unit or at the door

Quick checks we recommend first (WDF110PABB4)

1. Clean the filters and make sure the upper filter assembly is fully seated and locked.
2. Check the drain air gap (if your setup has one) and clean it if the dishwasher isn’t draining well.
3. Confirm the door is fully closed and latched; many cycles pause normally, but an unlatched door stops operation.
4. Verify power: reset a tripped breaker or replace a blown fuse.
5. Make sure the water shutoff valve is on.
6. If the Clean light is flashing, press down on the overfill protection float to ensure it moves freely.

Common causes and likely parts

Symptom	Most likely cause	Parts on this model page that often relate
Water left in tub	Clogged drain path or weak drain pump	Dishwasher drain pump W10876537, dishwasher drain hose 8269144A
Slow fill or no fill	Restricted supply or failed inlet valve	Dishwasher water inlet valve W11175771
Poor wash performance	Circulation issue, restriction, or pump problem	Wash pump W10846093, dishwasher circulation pump-to-sump hose W10445975
White residue, odor	Buildup from detergent and soils	Follow monthly cleaning guidance in the owner's manual

Why it matters

Drain and wash issues can cascade: leftover water and debris reduce cleaning performance, can trigger error conditions, and can shorten the life of pumps, hoses, and seals. Regular filter cleaning is the simplest way to prevent repeat problems.

Ordering the right replacement part

We list model-matched parts for Whirlpool WDF110PABB4 on this page; for additional Whirlpool dishwasher parts by model number, search on Sears PartsDirect.
