On a Frigidaire FRS6LR5EM8 side-by-side refrigerator, a 5Y EF error typically points to an evaporator fan or airflow problem. We fix it by safely power-cycling the refrigerator, clearing any ice buildup that can block the fan, and then checking the fan circuit and related components if the code returns.

Quick fixes to try first

• Unplug the refrigerator (or turn off power at the breaker) for safety.
• Keep doors closed and allow time for any frost to melt; heavy frost can stop the evaporator fan.
• Make sure food packages are not blocking the cold air vents (air must circulate to maintain temperatures).
• Restore power and let temperatures stabilize; adjust controls gradually after the unit runs.
• If the error comes back, move to component checks below.

What to check if the code returns

The evaporator fan moves cold air through both compartments. If it is stalled, noisy, or not running, the refrigerator can warm up and trigger fan-related errors.

• Listen for the evaporator fan running when the compressor is on (freezer area).
• Inspect for ice contacting the fan blade; clear ice and confirm the blade spins freely.

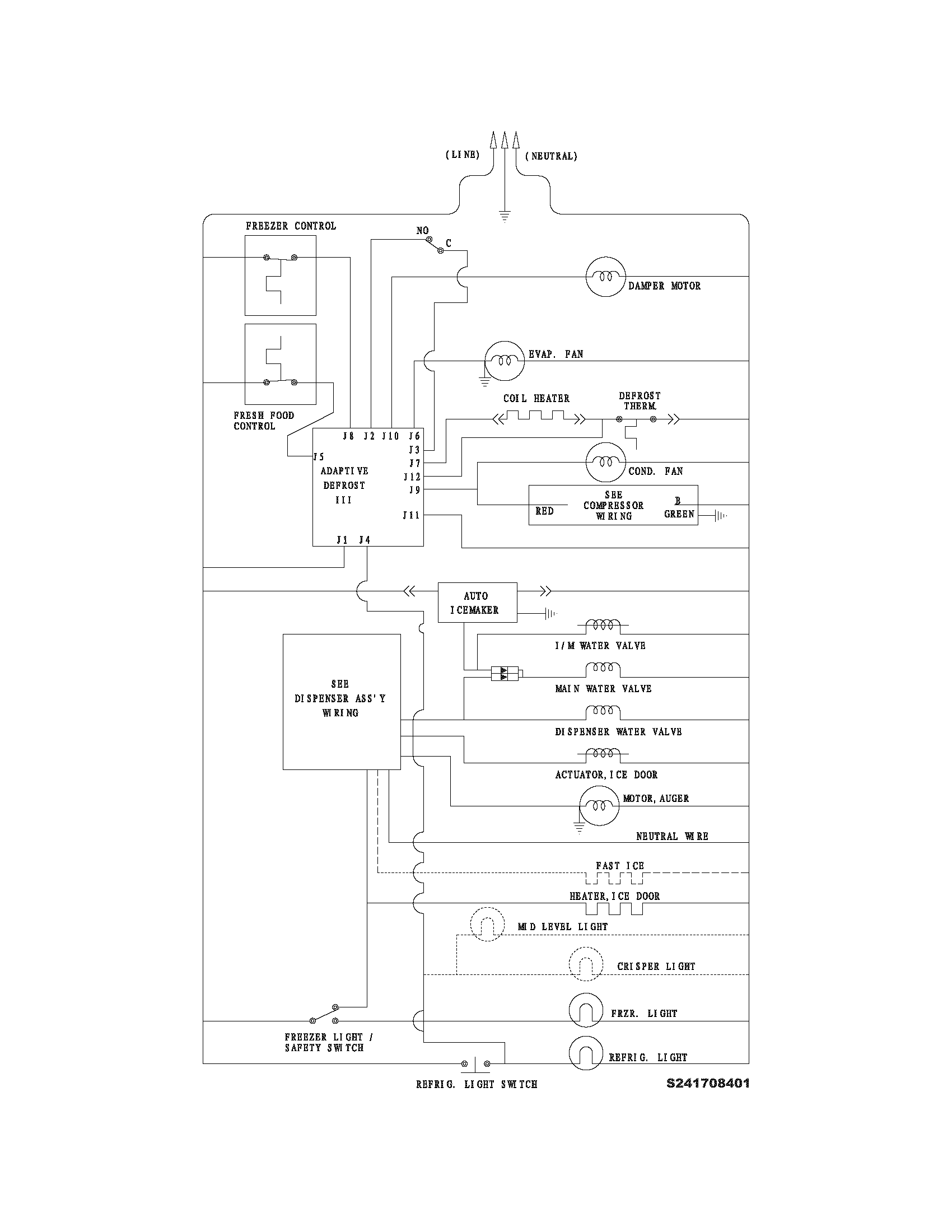

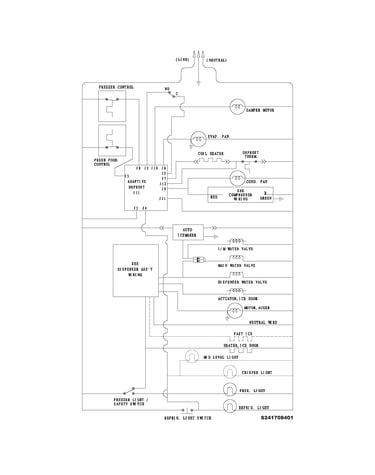

• Check wiring connections at the fan and control area for looseness or damage.
• If the fan blade is cracked or rubbing, replace the blade.

Helpful DIY guidance: Frigidaire refrigerator error codes and how to fix your evaporator cooling fan.

Parts that commonly relate to airflow and icing

If you find a failed part during diagnosis, these are common matches for airflow and frost issues on this model:

Symptom you see	Likely area	Example part on this model
Fan runs but airflow is weak/noisy	Fan blade interference or damage	Refrigerator evaporator fan blade 5308000010
Heavy frost buildup returns quickly	Defrost system issue	Refrigerator defrost bi-metal thermostat 5303918214

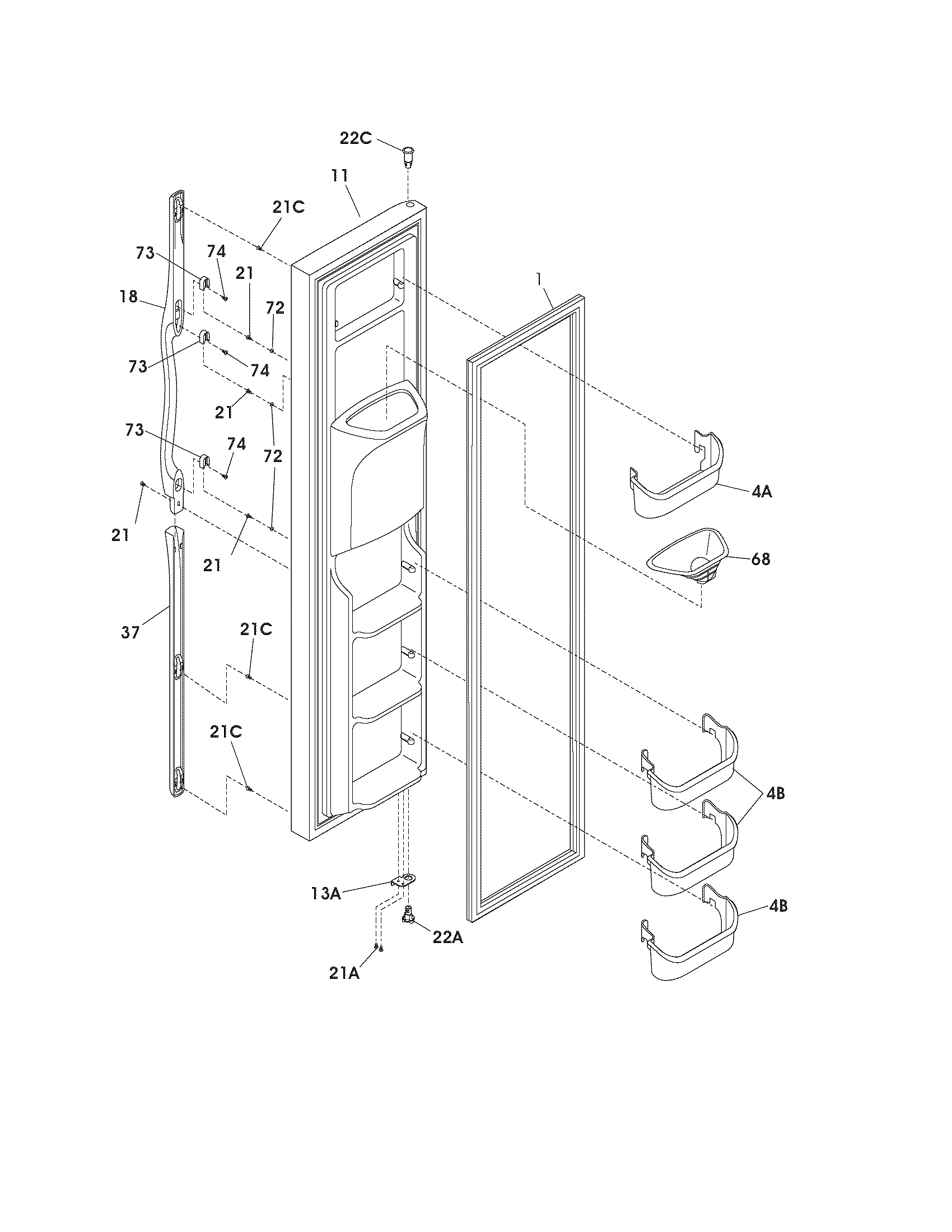

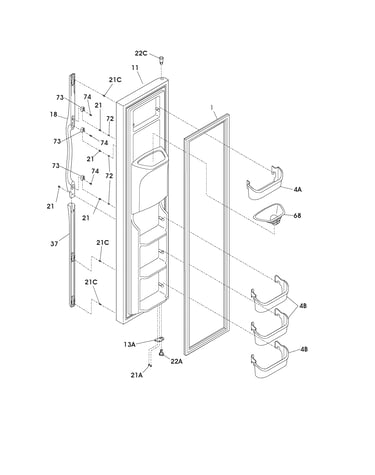

Door not sealing, frost near edges	Door gasket leak	Refrigerator freezer gasket 241786014

Why it matters

Your FRS6LR5EM8 relies on a fan to circulate air and keep temperatures stable. When airflow is blocked (ice, vent blockage, bad fan), food temperatures rise, run time increases, and frost problems often get worse.

Reference settings and operating notes

• After restoring power, allow 8 to 12 hours of cool-down time before expecting normal temperatures.
• Adjust temperature controls in small increments and allow about 24 hours to stabilize.

For model-specific control locations and airflow guidance, use the owner's manual.

Last updated: February 2026

Your Frigidaire side-by-side refrigerator’s model number is printed on the appliance ID label; on model FRS6LR5EM8, it’s typically found inside the fresh food compartment on a side wall or near the ceiling. Match the full model number exactly when ordering parts.

Where to look on the refrigerator

Check these common label locations first:

• Inside the refrigerator compartment on the left or right side wall
• On the ceiling of the fresh food compartment near the light
• Behind the crisper drawers on the side wall
• Along the door frame (hinge side) when the refrigerator door is open
• On the back exterior panel (less common, but possible)

What the label looks like

The ID label usually includes several fields. Use the model number for diagrams and part fit.

Label field	What it’s used for	Example you might see
Model number	Identifies the exact refrigerator design	FRS6LR5EM8
Serial number	Production tracking	Varies
Electrical ratings	Power requirements	Varies

Why it matters

Frigidaire model numbers can look similar across a series, but parts like a water filter, door gasket, or ice maker components can change by revision. Using the exact model number helps us match the correct diagrams and replacement parts the first time.

Quick tip for parts matching

Once you confirm the model number, compare the part description and ID on the parts list. For example, this model uses the refrigerator filter WFCB when you are replacing the water filter.

For more label-location details and model-specific guidance, use the FRS6LR5EM8 owner's manual.

Last updated: March 2026

The average lifespan of a Frigidaire side-by-side refrigerator like model FRS6LR5EM8 is 13 years. Keeping airflow clear, maintaining door seals, and staying on top of water and ice system maintenance helps the refrigerator reach that service life.

What affects lifespan the most

These items have the biggest impact on how long a side-by-side refrigerator runs reliably:

• Condenser airflow and cleanliness (dust buildup makes the compressor work harder)
• Door gasket condition and door alignment (warm air leaks increase run time)
• Defrost system performance (frost buildup restricts evaporator airflow)
• Water quality and filter changes (protects the inlet valve and ice maker)
• Stable temperatures (freezer near 0°F, fresh food near 37°F)

Typical lifespan by major system

System	Typical service life	What you notice when it’s failing
Compressor and sealed system	10 to 20 years	Warm temps, long run times, poor cooling
Fans (evaporator/condenser)	8 to 15 years	Noise, weak airflow, uneven temps
Ice maker and water valve	5 to 10 years	No ice, slow fill, leaking
Door gaskets	5 to 10 years	Moisture, frost, warm spots near doors

Maintenance that pays off

We recommend these routine steps to help FRS6LR5EM8 reach its expected lifespan:

• Vacuum the condenser area regularly and keep vents unobstructed
• Replace the water filter on schedule; this model uses the refrigerator filter WFCB

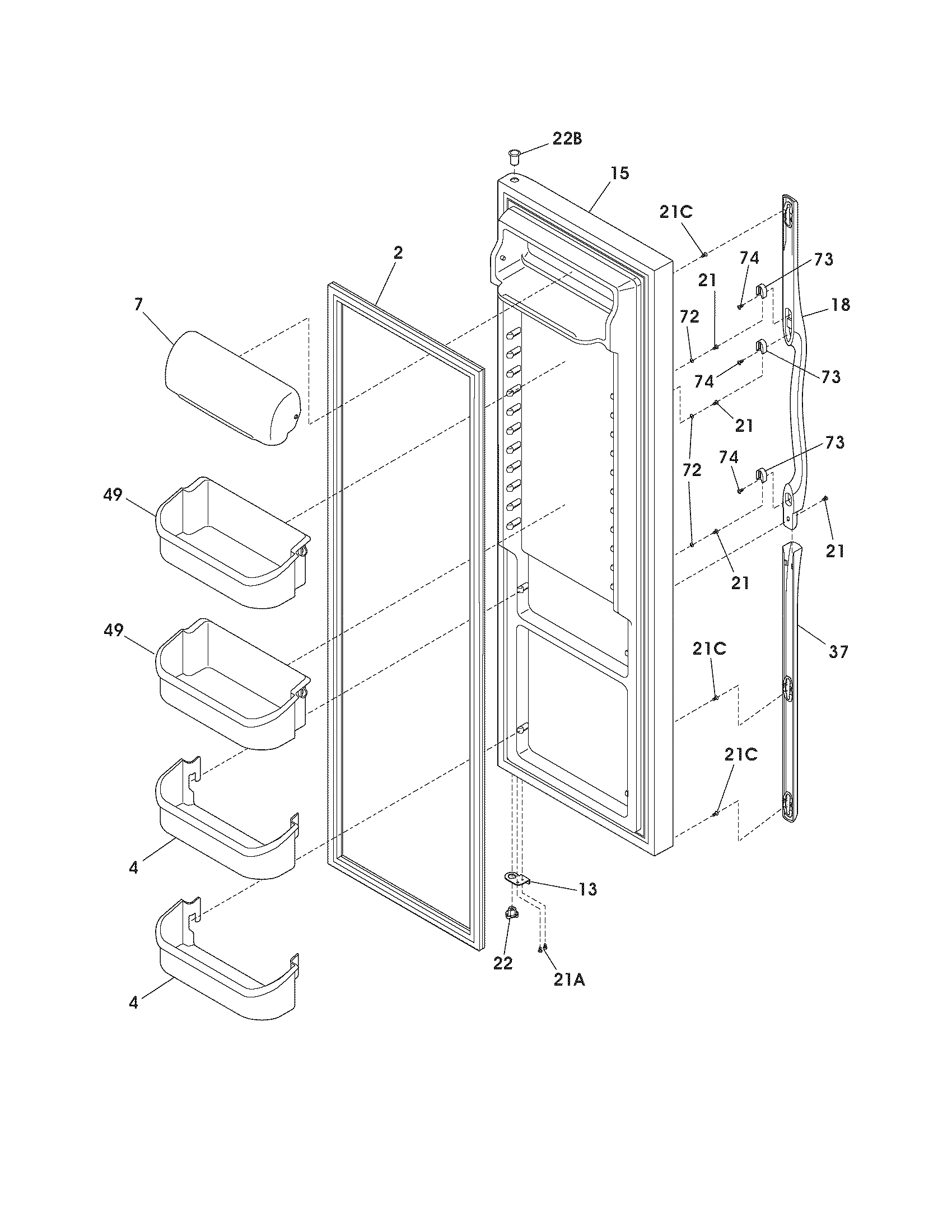

• Inspect and clean the door seals; replace if torn or not sealing (see refrigerator gasket 241786013 if the fresh food door gasket is worn)
• Keep the freezer from overpacking so the evaporator fan can move air
• If you see frost on the back freezer panel, address defrost issues early

Why it matters

Most “early failures” are actually airflow, sealing, or water-supply problems that force longer run times and accelerate wear on the compressor, fans, and defrost components.

For model-specific care and operating guidance, follow the maintenance recommendations in the FRS6LR5EM8 owner's manual.
