Craftsman 9178330 32" riding lawn mower Parts
Here are the diagrams and repair parts for Craftsman 9178330 32" riding lawn mower, as well as links to manuals and error code tables, if available.
By Schematic
By Part

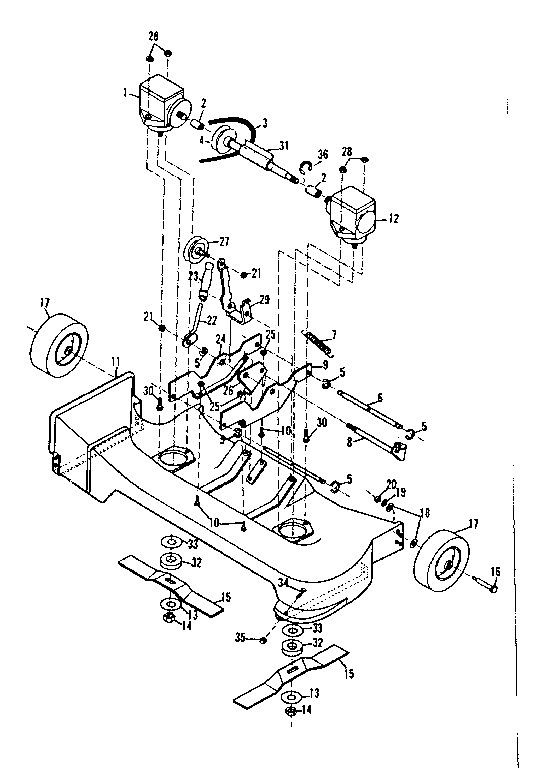

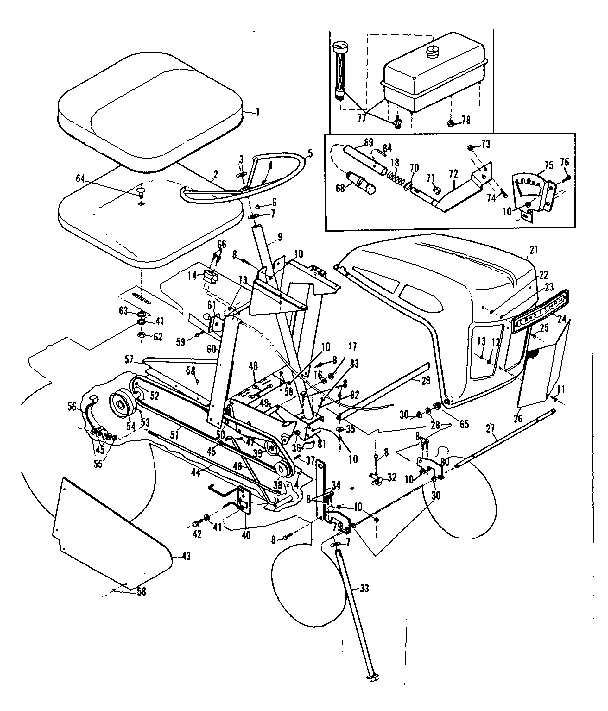

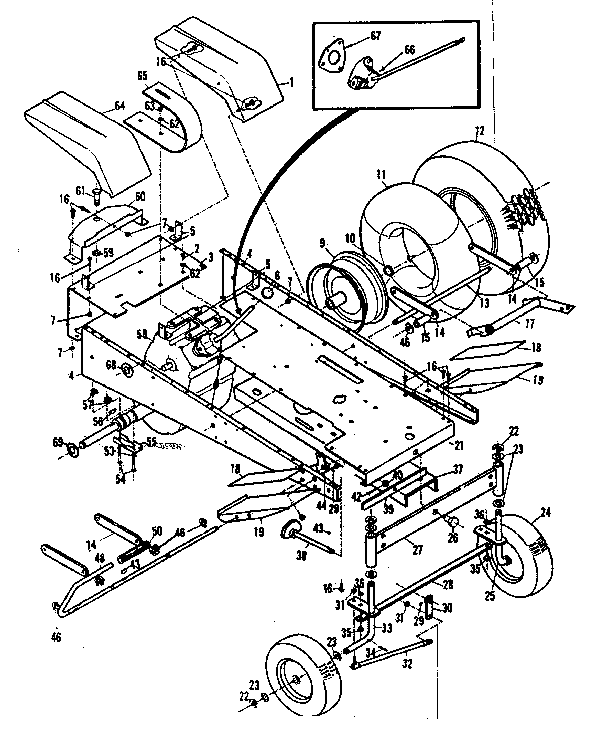

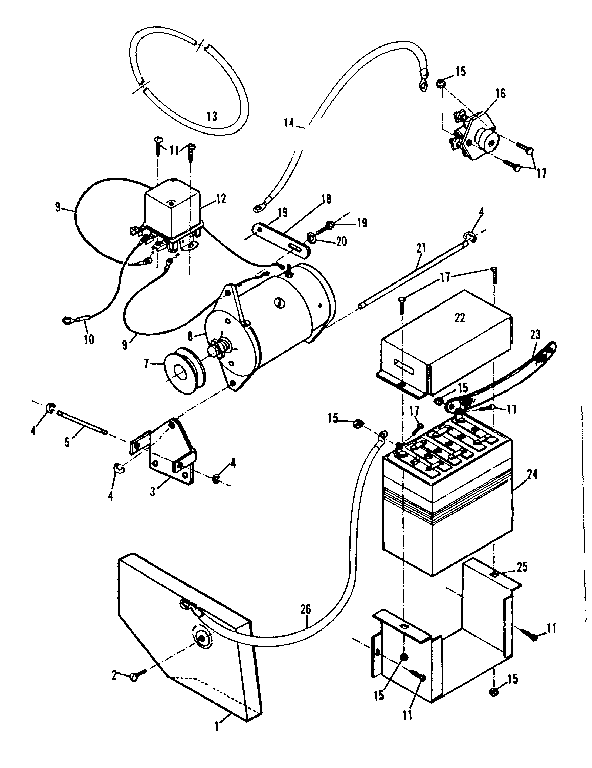

SELECT DIAGRAM
Browse Parts for 9178330 Riding Mowers & Tractors

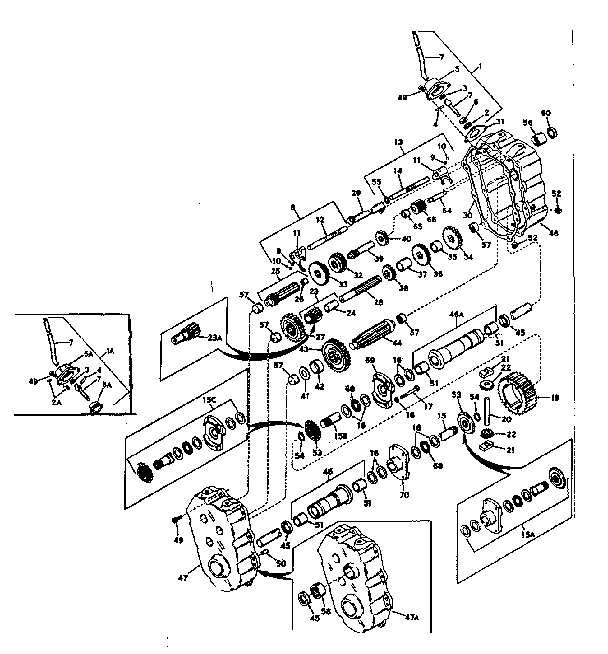

Transaxle diagram
Pinion
Part #778041Replaced by #778041
Manufacturer substitutionThis part replaces 778041. Substitute parts can look different from the original.In Stock$92.07
Qty

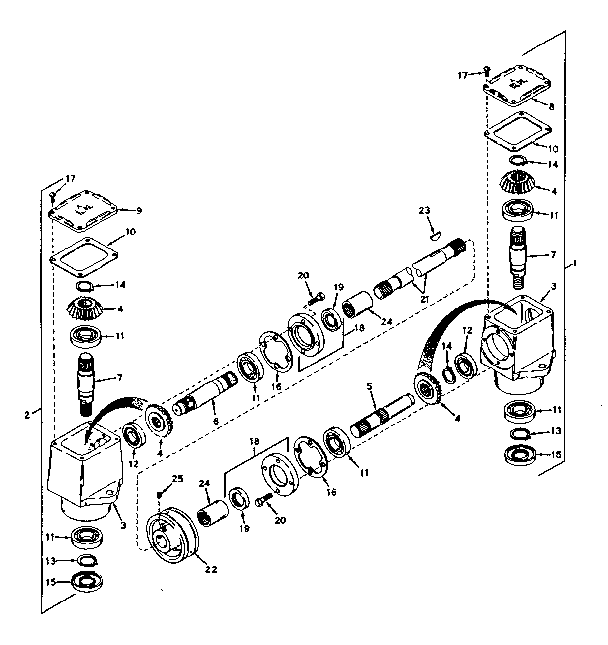

Right angle drive diagram
Gasket
Part #788030Replaced by #788030B
Manufacturer substitutionThis part replaces 788030. Substitute parts can look different from the original.This item is not returnableIn Stock$6.09QtyTransaxle diagram
Housing Assembly
Part #782023Replaced by #782023A
Manufacturer substitutionThis part replaces 782023. Substitute parts can look different from the original.In Stock$129.40QtyRight angle drive diagram
Gasket
Part #788028Replaced by #788028
Manufacturer substitutionThis part replaces 788028. Substitute parts can look different from the original.This item is not returnableIn Stock$6.09QtyRight angle drive diagram
Lh Cover
Part #772035Replaced by #772035
Manufacturer substitutionThis part replaces 772035. Substitute parts can look different from the original.In Stock$17.46QtyRight angle drive diagram
Output Shaft
Part #776042Replaced by #776042
Manufacturer substitutionThis part replaces 776042. Substitute parts can look different from the original.In Stock$49.82QtyTransaxle diagram
Washer
Part #780042Replaced by #780042
Manufacturer substitutionThis part replaces 780042. Substitute parts can look different from the original.This item is not returnableIn Stock$4.60QtyTransaxle diagram
Spring
Part #792003Replaced by #792003
Manufacturer substitutionThis part replaces 792003. Substitute parts can look different from the original.This item is not returnableIn Stock$4.37QtyTransaxle diagram
Differential Carrier
Part #774028Replaced by #774028A
Manufacturer substitutionThis part replaces 774028. Substitute parts can look different from the original.In Stock$87.93QtyTransaxle diagram
Ball
Part #792004Replaced by #792004
Manufacturer substitutionThis part replaces 792004. Substitute parts can look different from the original.This item is not returnableIn Stock$4.37Qty
