Kenmore 9114842990 electric double oven Parts
Here are the diagrams and repair parts for Kenmore 9114842990 electric double oven, as well as links to manuals and error code tables, if available.
Error Codes
By Schematic
By Part
SELECT DIAGRAM
Browse Parts for9114842990 Wall Ovens

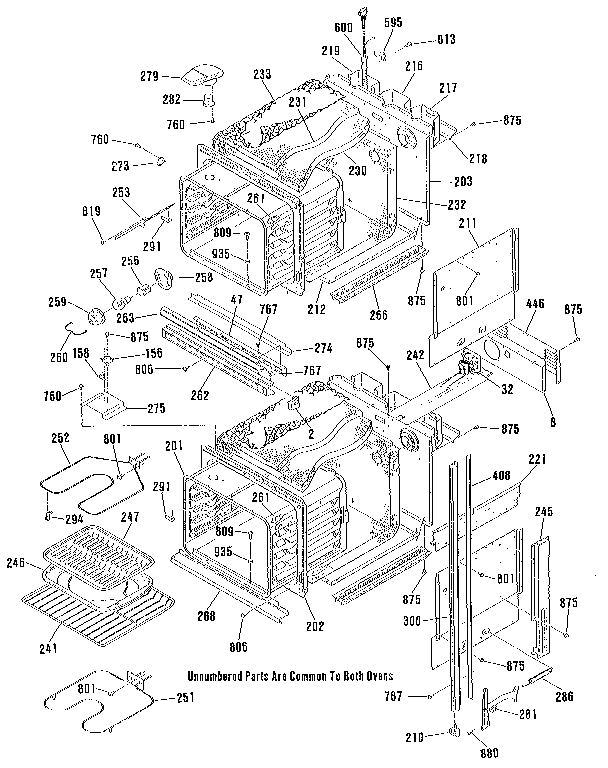

Body section diagram
Cabinet
Part #344859Replaced by #WB63K5085
Manufacturer substitutionThis part replaces 344859. Substitute parts can look different from the original.In Stock$103.56
Qty
Body section diagram
Aluminum Washer
Part #21067Replaced by #WB1X1201
Manufacturer substitutionThis part replaces 21067. Substitute parts can look different from the original.In Stock$31.24QtyBody section diagram
Cover Control Wire
Part #347496Replaced by #WB34K5082
Manufacturer substitutionThis part replaces 347496. Substitute parts can look different from the original.In Stock$35.99QtyVnt Tr E Cap
Part #346009Replaced by #WB36K5107

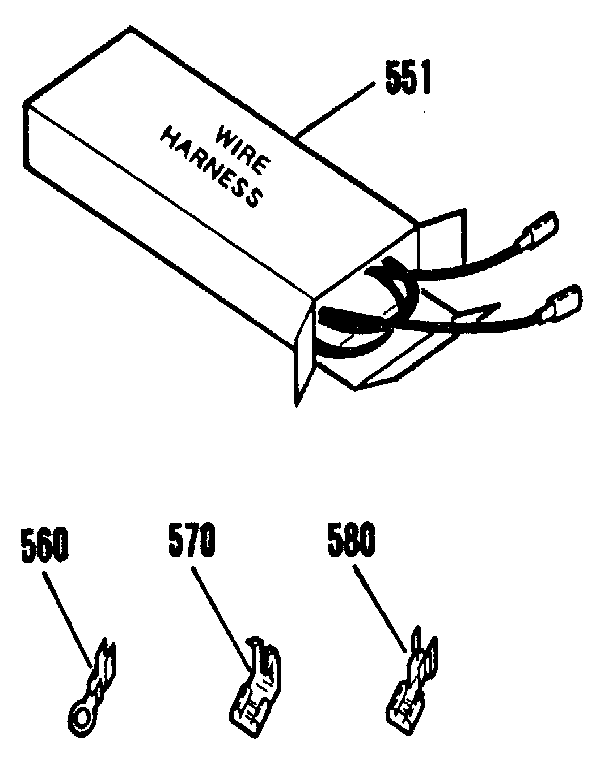

Manufacturer substitutionThis part replaces 346009. Substitute parts can look different from the original.In Stock$103.83QtyWire harnesses and components diagram
Main Wiring Harness
Part #345067Replaced by #WB18K5220
Manufacturer substitutionThis part replaces 345067. Substitute parts can look different from the original.In Stock$195.58QtyControl section diagram
Limit Switch
Part #346958Replaced by #WB24K5085
Manufacturer substitutionThis part replaces 346958. Substitute parts can look different from the original.In Stock$56.4710% OFF Phone Price : $62.47

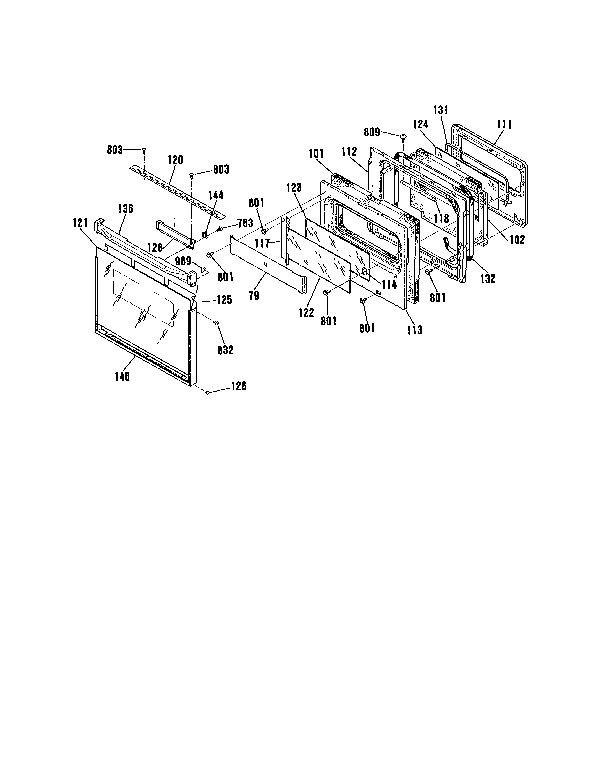

QtyDoor section diagram
Retainer
Part #345646Replaced by #WB2M1
Manufacturer substitutionThis part replaces 345646. Substitute parts can look different from the original.In Stock$31.79QtyBody section diagram
Limit Switch
Part #348018Replaced by #WB24K5049
Manufacturer substitutionThis part replaces 348018. Substitute parts can look different from the original.In Stock$83.307% OFF Phone Price : $89.30QtyBody section diagram
Cover Wire Element
Part #344926Replaced by #WB34K5069
Manufacturer substitutionThis part replaces 344926. Substitute parts can look different from the original.In Stock$46.2711% OFF Phone Price : $52.27QtyWire harnesses and components diagram

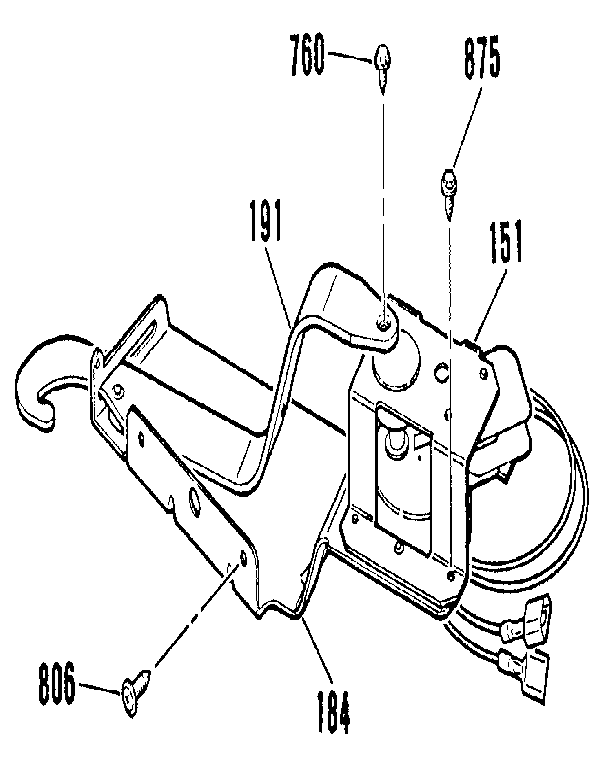

Lck Mtr Harn
Part #344898Replaced by #WB18K5210
Manufacturer substitutionThis part replaces 344898. Substitute parts can look different from the original.In Stock$99.66Qty
