Kenmore
Canister Vacuum

Model #11620403 Kenmore vacuum cleaner & attachment set

Here are the diagrams and repair parts for Kenmore 11620403 vacuum cleaner & attachment set, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profile

    Showing 10 of 56 parts

    Screw

    #57

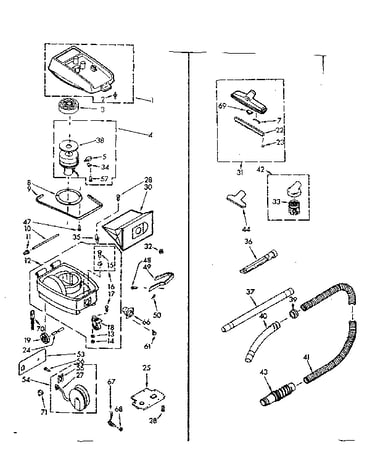

    Unit parts Diagram

    Screw

    Part #674038

    The manufacturer no longer makes this part, and there's no substitute part

    Vacuum Crevice Tool

    #36

    Unit parts Diagram

    Vacuum crevice tool

    Part #52631
    ?
    Manufacturer substitution
    This part replaces 722553. Substitute parts can look different from the original.
    This part replaces 722553
    This item is not returnable
    $7.07

    In Stock

    Screw

    #17

    Unit parts Diagram

    Screw

    Part #107697

    The manufacturer no longer makes this part, and there's no substitute part

    Lock Washer

    #13

    Unit parts Diagram

    Lock washer

    Part #138473

    The manufacturer no longer makes this part, and there's no substitute part

    Switch

    #67

    Unit parts Diagram

    Switch

    Part #763058

    The manufacturer no longer makes this part, and there's no substitute part

    Washer Screw

    #48

    Unit parts Diagram

    Washer screw

    Part #WP355515
    ?
    Manufacturer substitution
    This part replaces 681074. Substitute parts can look different from the original.
    This part replaces 681074
    This item is not returnable
    $3.27

    In Stock

    Screw

    #56

    Unit parts Diagram

    Screw

    Part #680722

    The manufacturer no longer makes this part, and there's no substitute part

    Vacuum Upholstery Nozzle

    #44

    Unit parts Diagram

    Vacuum upholstery nozzle

    Part #52651
    ?
    Manufacturer substitution
    This part replaces 722118. Substitute parts can look different from the original.
    This part replaces 722118
    This item is not returnable
    $5.49

    In Stock

    Hex Nut

    #14

    Unit parts Diagram

    Hex nut

    Part #134530

    The manufacturer no longer makes this part, and there's no substitute part

    Thread-Forming Screw, 8-pack

    #28

    Unit parts Diagram

    Thread-forming screw, 8-pack

    Part #STD610805
    ?
    Manufacturer substitution
    This part replaces 680642. Substitute parts can look different from the original.
    This part replaces 680642
    This item is not returnable
    $2.70

    In Stock

    Symptoms common to all vacuum cleaners

    Choose a symptom to see related vacuum cleaner repairs.

    Main causes: damaged vacuum hose, clogged motor air filter, bad suction motor
    Main causes: lack of power, bad power cord, drive motor failure, wiring failure
    Main causes: weak suction motor, vacuum bag is full, clog in suction air path, dirty exhaust filter, leaky vacuum hose
    Main causes: broken drive belt, damaged brush roll, tripped brush roll motor overload, bad brush roll motor, wiring failure
