White-Westinghouse GF420HXD4 gas range - lw32488170 Parts
Here are the diagrams and repair parts for White-Westinghouse GF420HXD4 gas range - lw32488170, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part
SELECT DIAGRAM
Browse Parts for GF420HXD4 Ranges

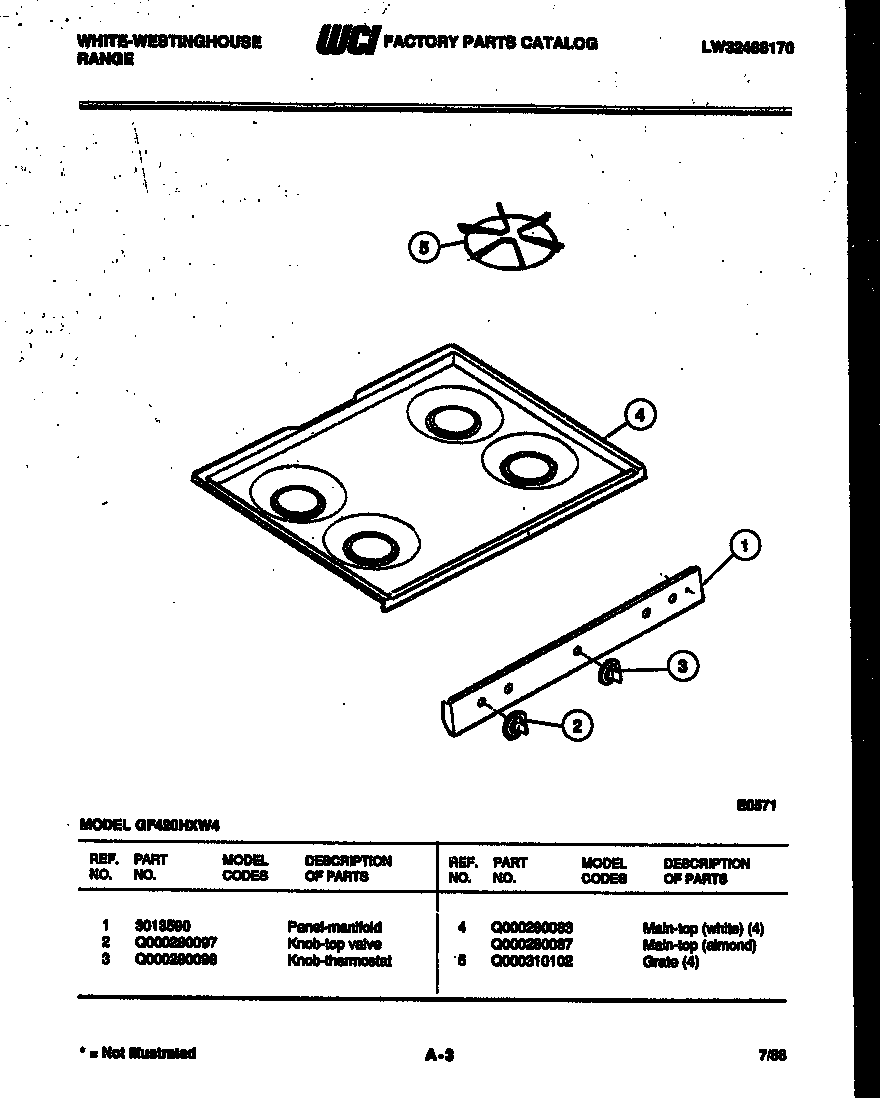

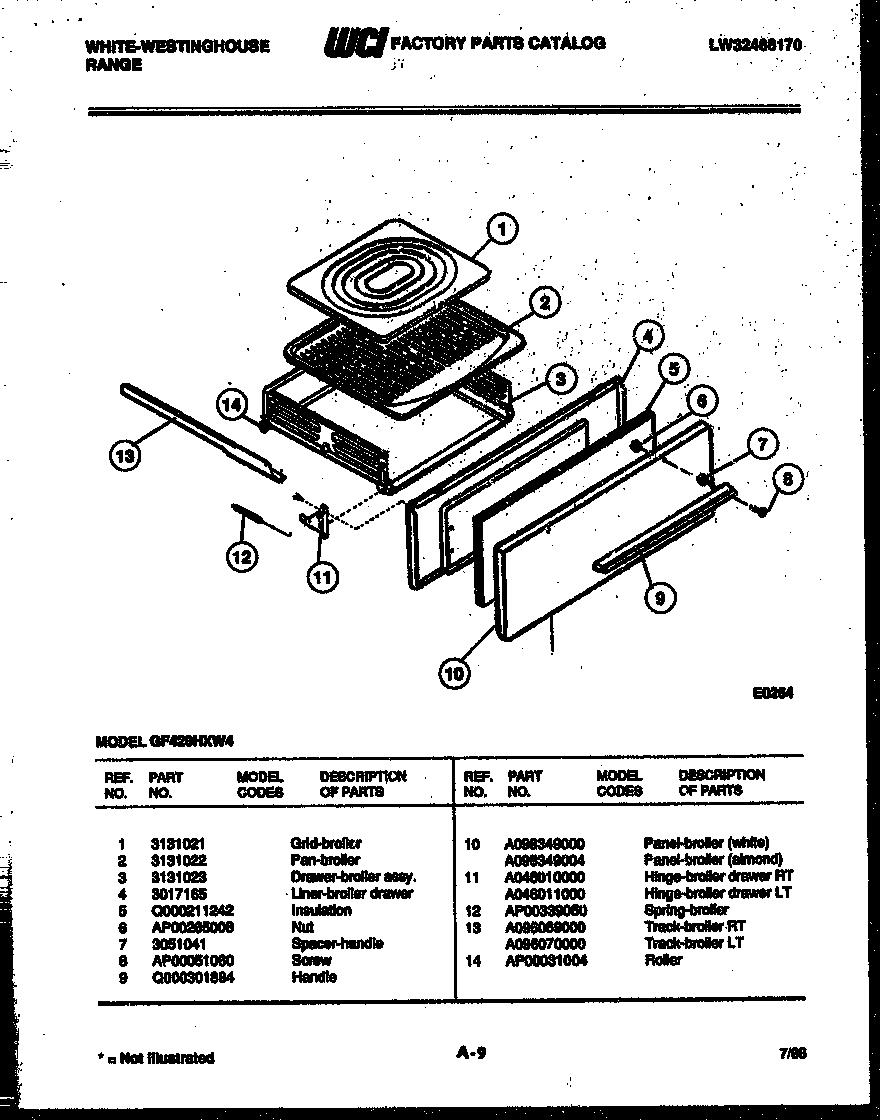

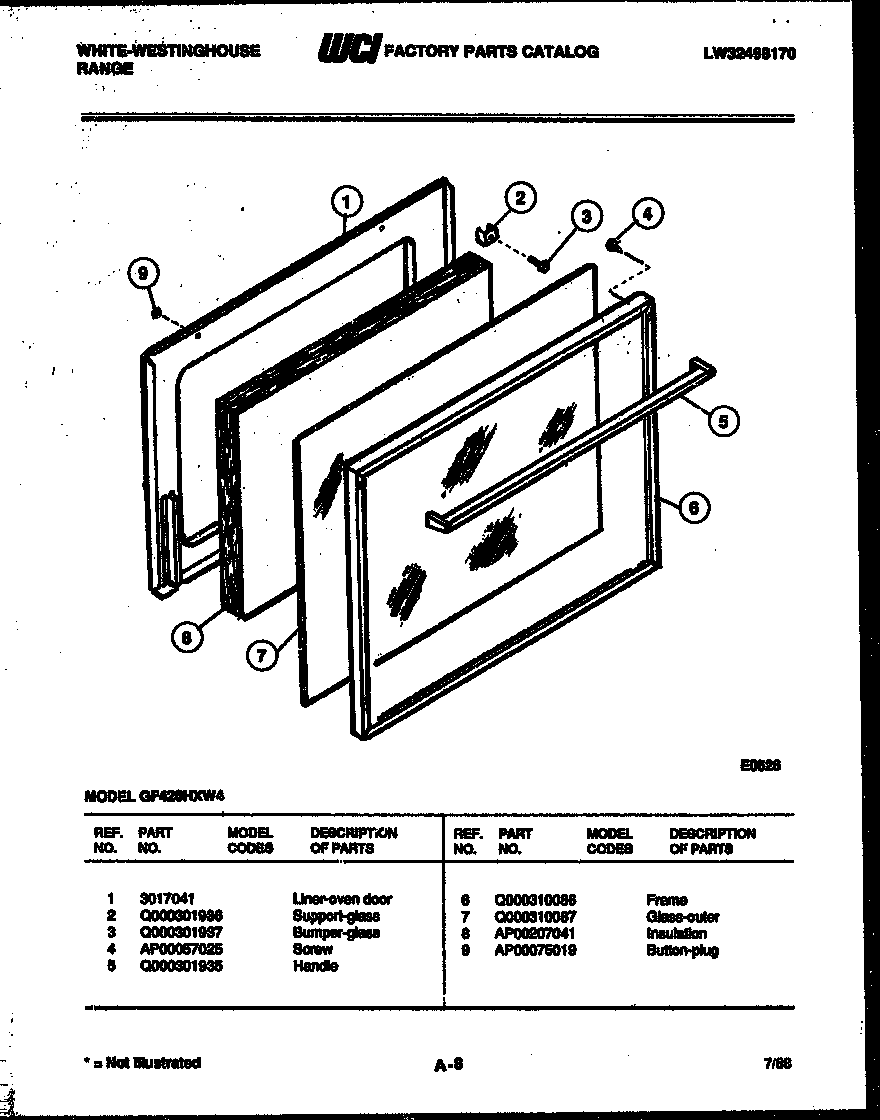

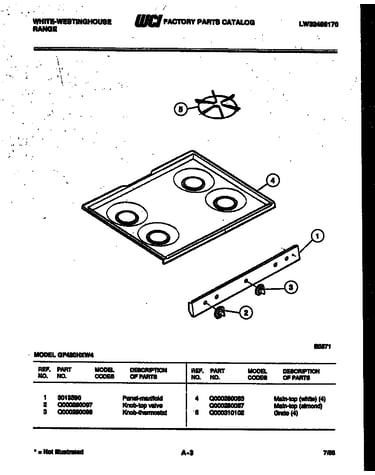

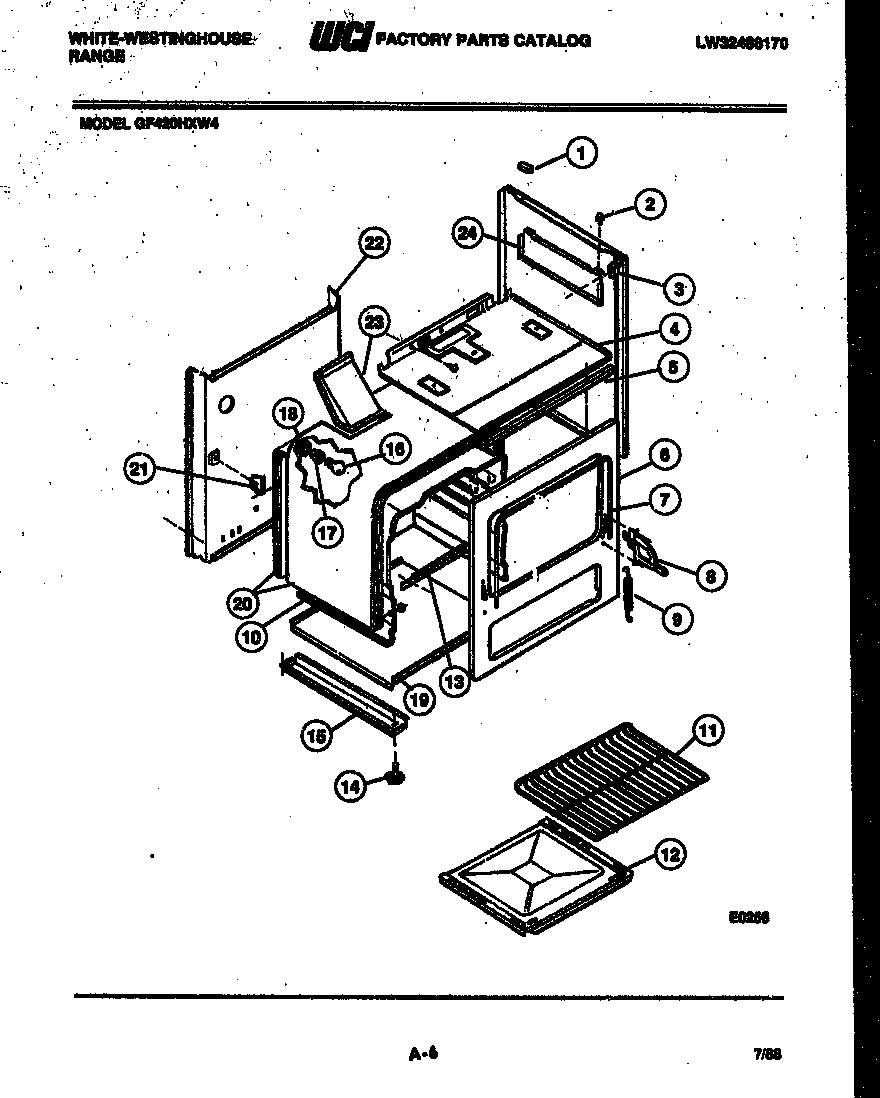

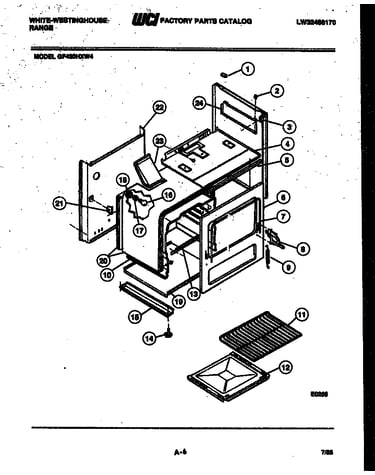

Body parts diagram
Receptacle
Part #3009410Replaced by #316116400
Manufacturer substitutionThis part replaces 3009410. Substitute parts can look different from the original.In Stock$51.0911% OFF Phone Price : $57.09
Qty
Body parts diagram
Light Bulb/l
Part #3051082Replaced by #316538904
Manufacturer substitutionThis part replaces 3051082. Substitute parts can look different from the original.In Stock$18.4510% OFF Phone Price : $20.45QtyBurner, manifold and gas control diagram
Manifold
Part #Q000310059Replaced by #5303017164
Manufacturer substitutionThis part replaces Q000310059. Substitute parts can look different from the original.In Stock$111.30QtyBody parts diagram
Oven Support
Part #A074060000Replaced by #3051096
Manufacturer substitutionThis part replaces A074060000. Substitute parts can look different from the original.In Stock$26.00QtyBody parts diagram
Shield-bodys
Part #A061074000Replaced by #5303131054
Manufacturer substitutionThis part replaces A061074000. Substitute parts can look different from the original.In Stock$43.02Qty#NI
All parts diagram
Thermostat
Part #Q000301859
The manufacturer no longer makes this part, and there's no substitute part

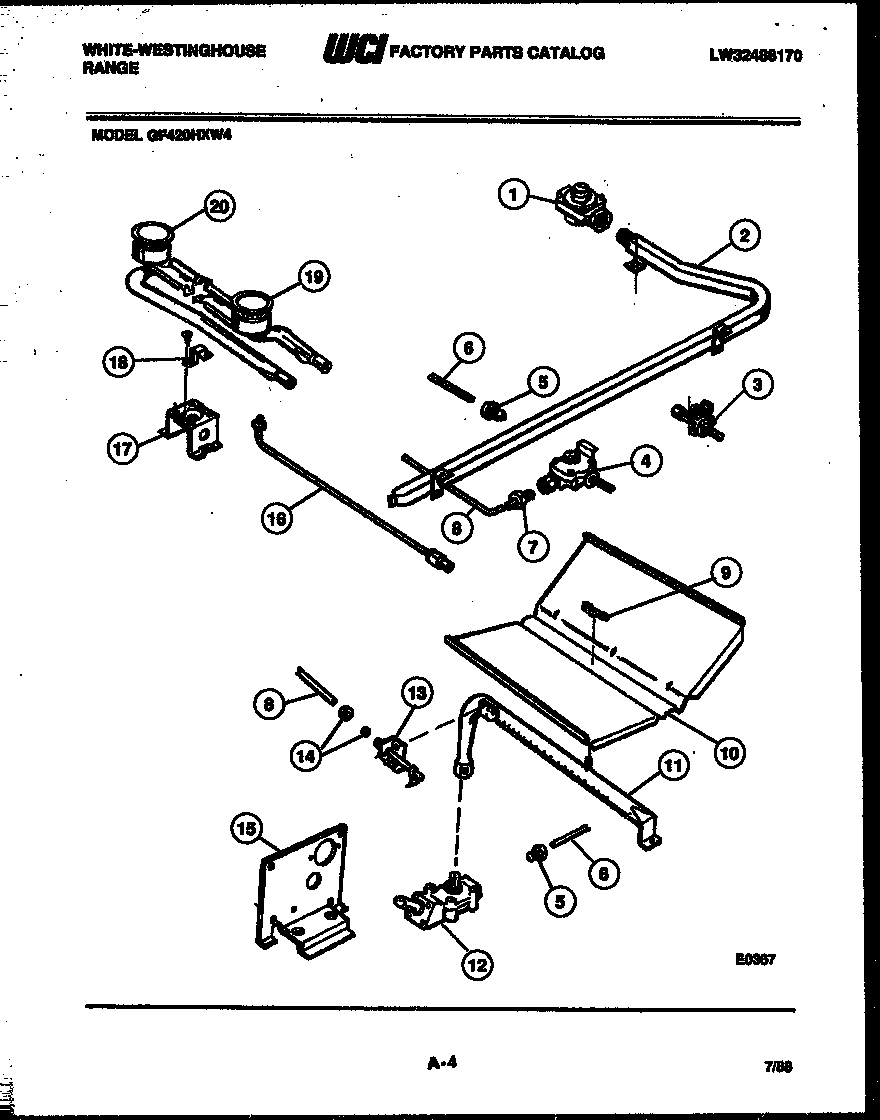

Burner, manifold and gas control diagram
Bracket-safe
Part #A074054000Replaced by #3131069

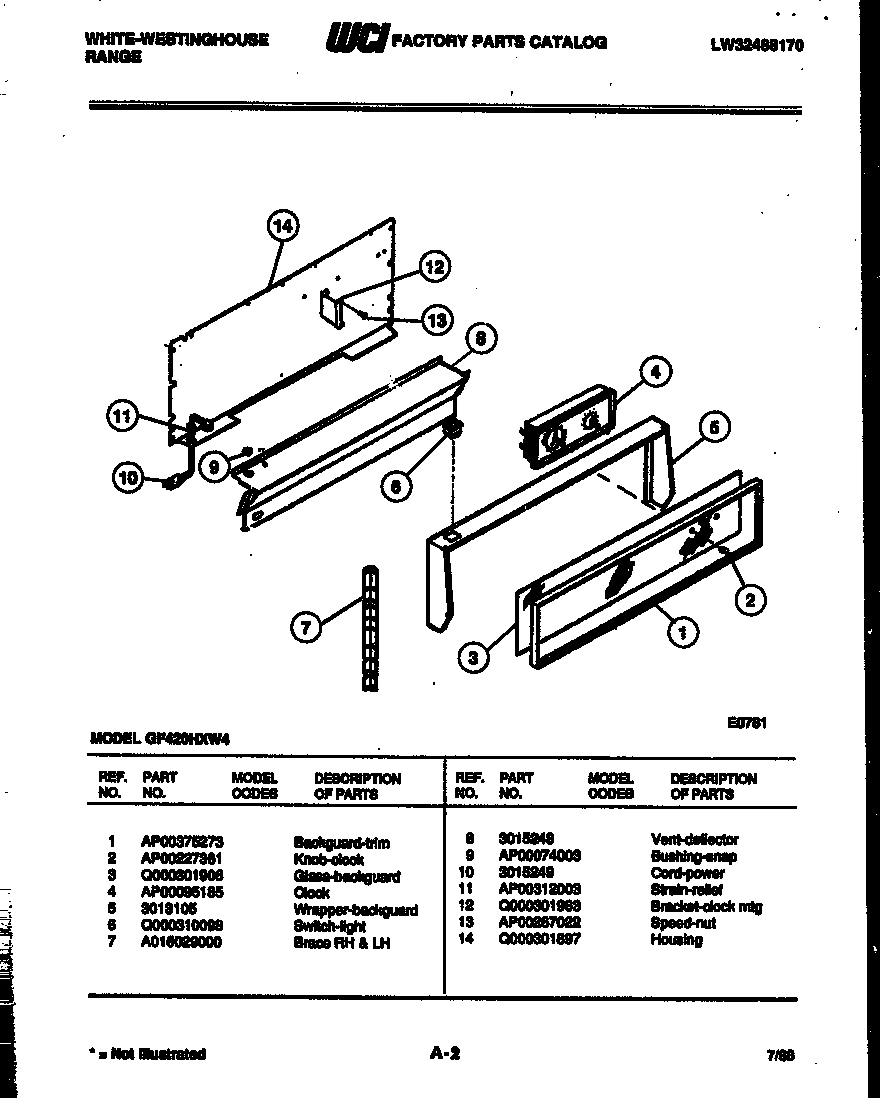

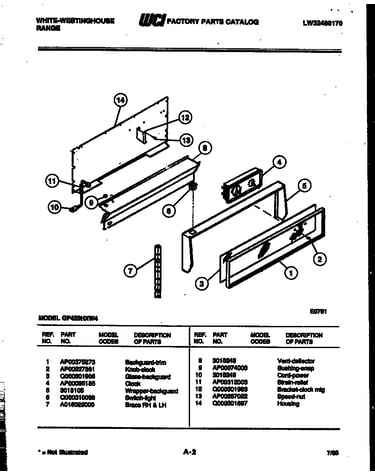

Manufacturer substitutionThis part replaces A074054000. Substitute parts can look different from the original.In Stock$33.74QtyBackguard diagram
Support
Part #A016029000Replaced by #5308013296
Manufacturer substitutionThis part replaces A016029000. Substitute parts can look different from the original.In Stock$31.41QtyBody parts diagram
Insulation
Part #3017171Replaced by #318285025
Manufacturer substitutionThis part replaces 3017171. Substitute parts can look different from the original.In Stock$210.45QtyBurner, manifold and gas control diagram
Burner
Part #Q002500102Replaced by #5303131079
Manufacturer substitutionThis part replaces Q002500102. Substitute parts can look different from the original.In Stock$145.72Qty
