Model # SWT520LM Official Speed Queen washer

Here are the diagrams and repair parts for Official Speed Queen SWT520LM washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

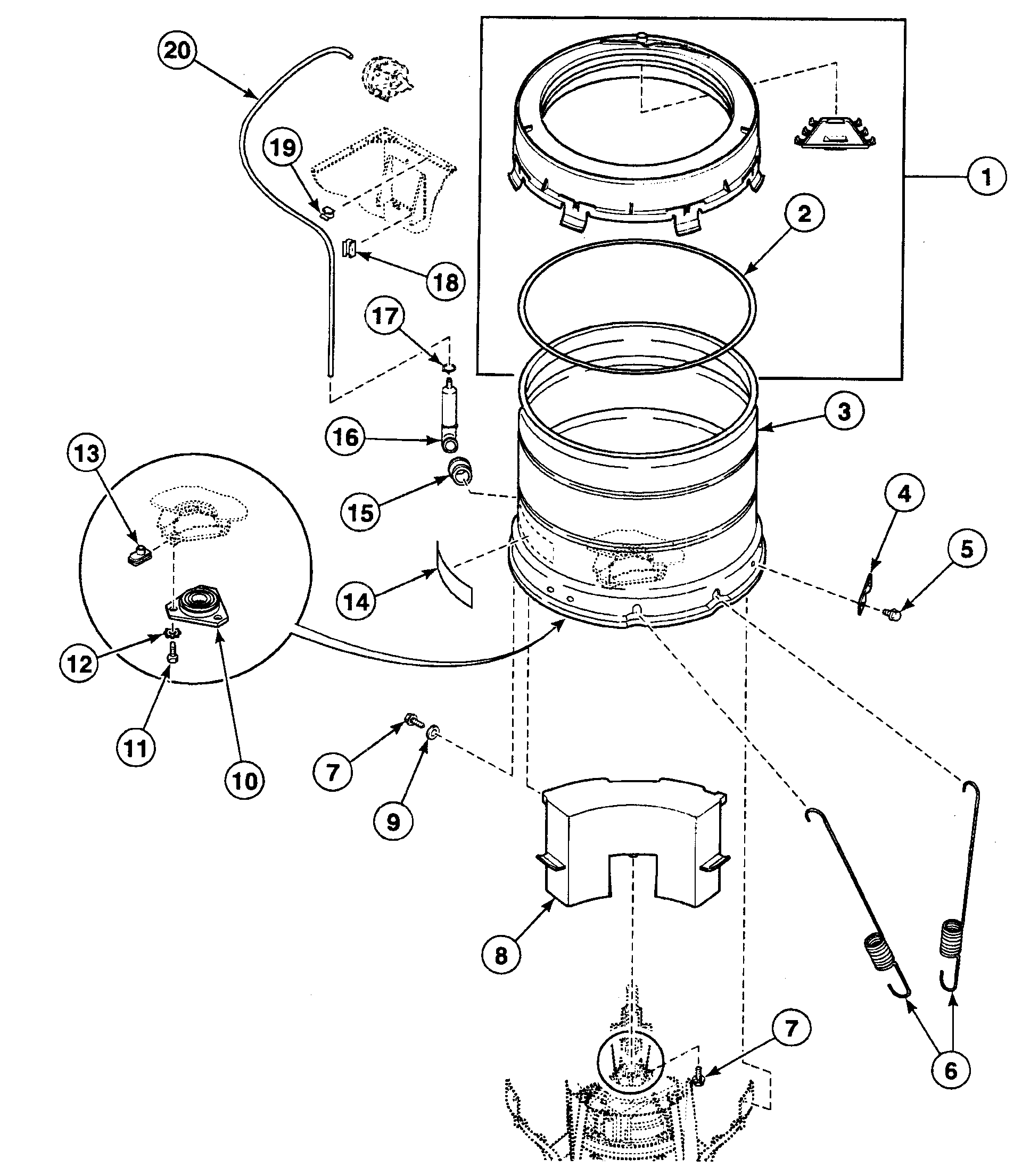

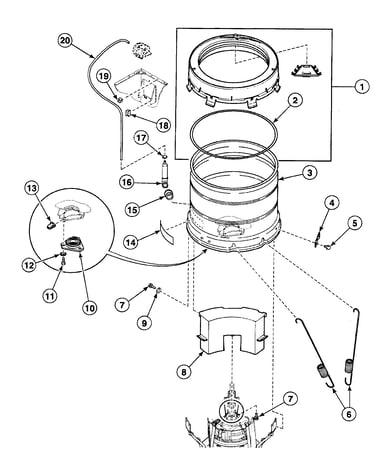

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 266 parts  |

Base Assembly 39788
#11

Cabinet diagram

Base assembly

Part #39788

The manufacturer no longer makes this part, and there's no substitute part

Coin Drop 38463
#1B

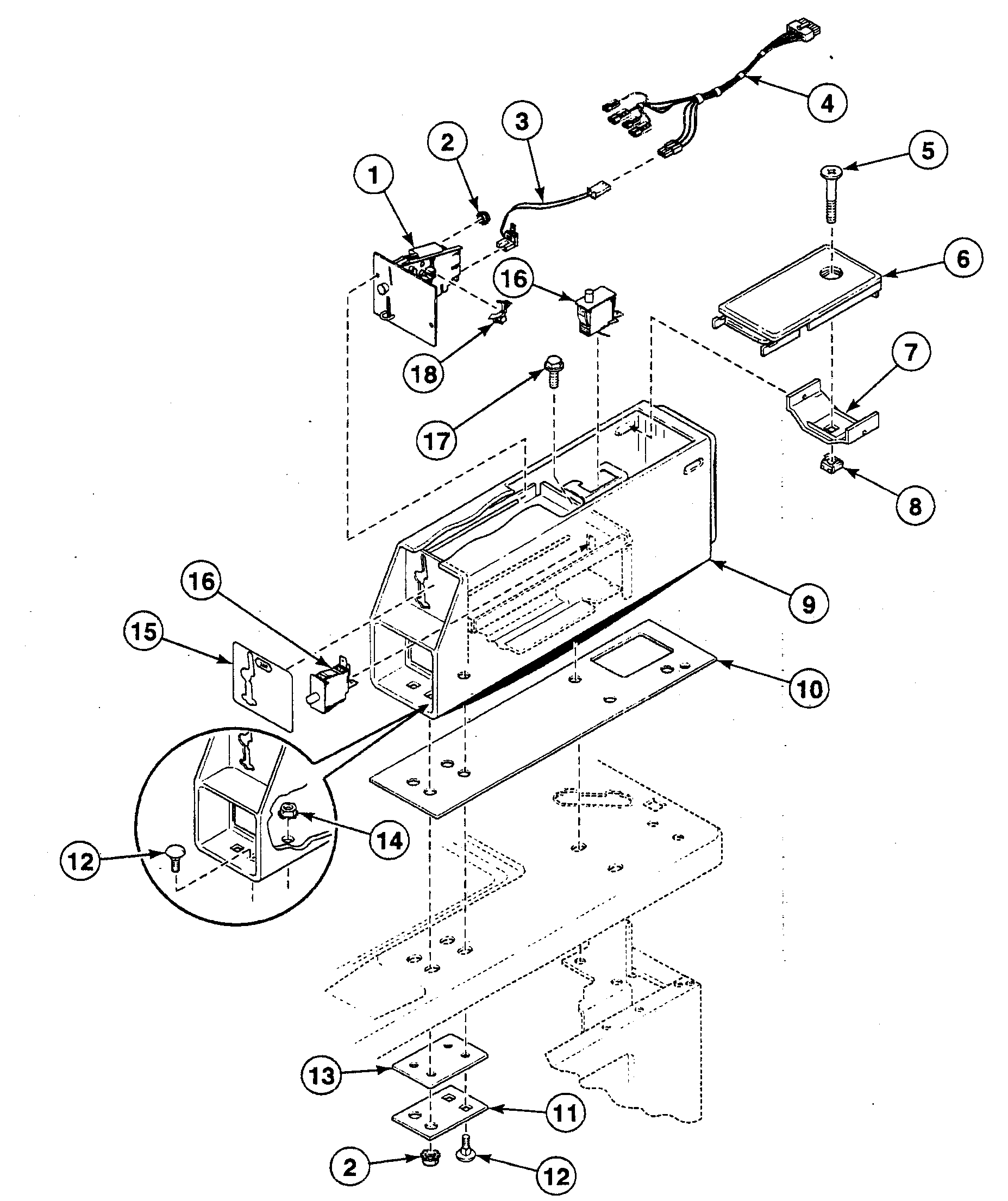

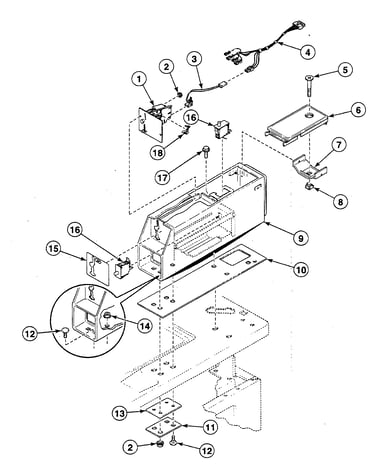

Meter case diagram

Coin drop

Part #38463

The manufacturer no longer makes this part, and there's no substitute part

Tool 273P4
#7

Tools 2 diagram

Tool

Part #273P4

The manufacturer no longer makes this part, and there's no substitute part

Washer Tub-to-pump Hose 38351
#6

Drain hoses diagram

Washer tub-to-pump hose

Part #38351

The manufacturer no longer makes this part, and there's no substitute part

Washer Agitator Screw And O-ring 39432
#11

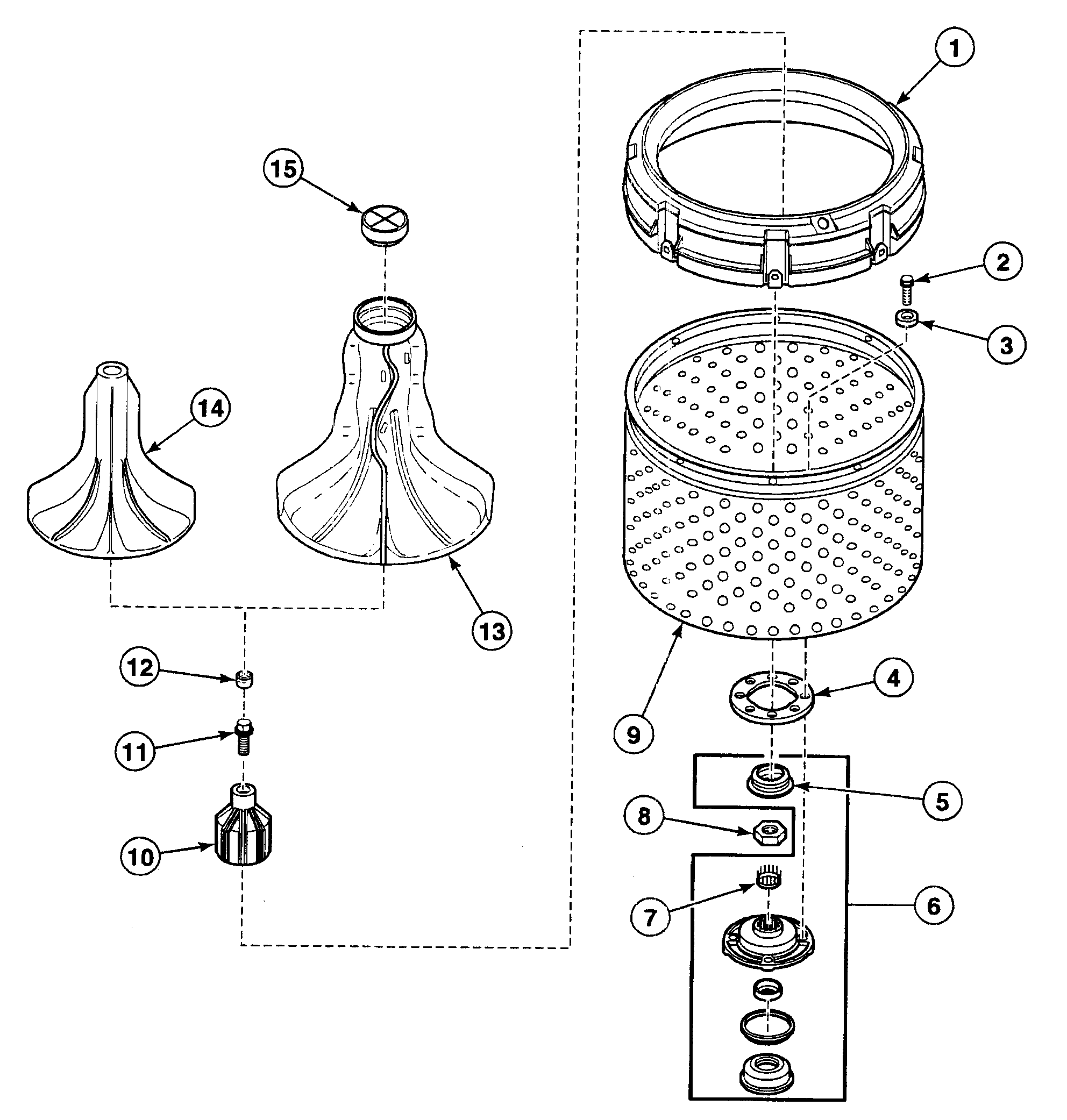

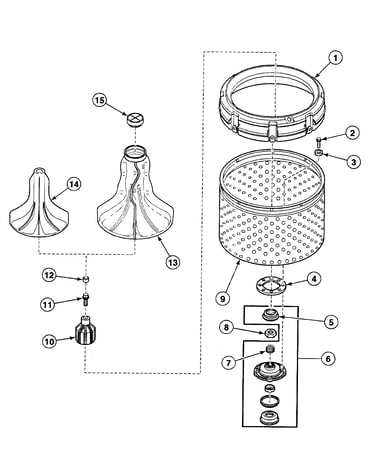

Agitator assy diagram

Washer agitator screw and o-ring

Part #39432

The manufacturer no longer makes this part, and there's no substitute part

Screw 23222
#5

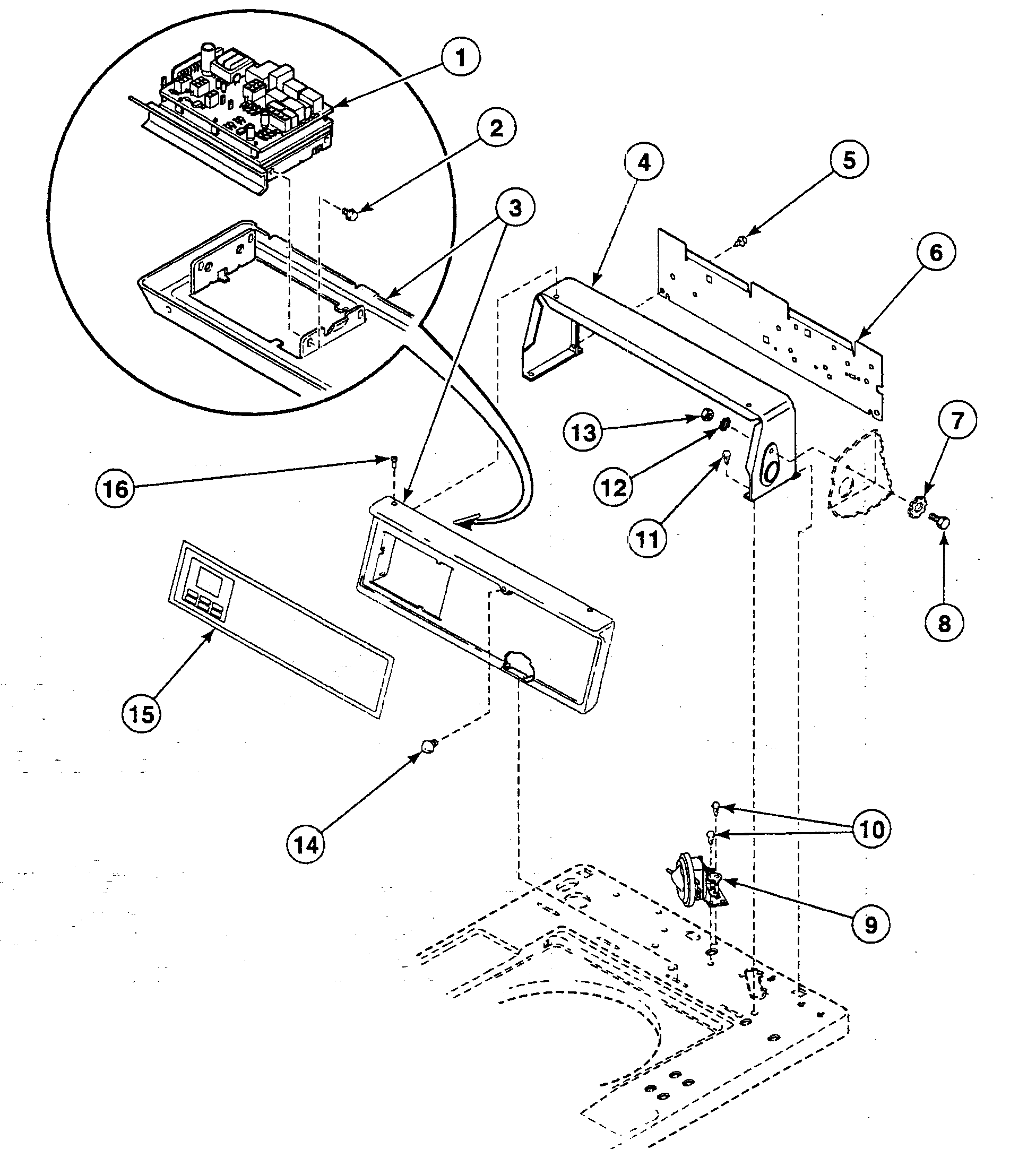

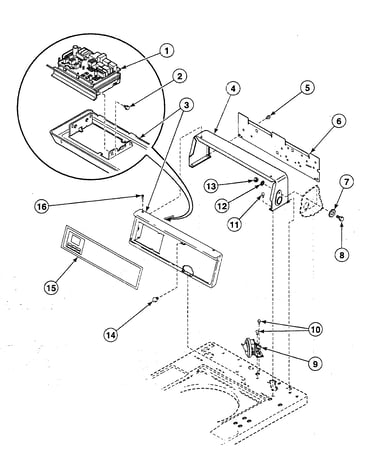

Control panel diagram

Screw

Part #23222

The manufacturer no longer makes this part, and there's no substitute part

Screw 39397
#9

Valve assy diagram

Screw

Part #39397

The manufacturer no longer makes this part, and there's no substitute part

Helix 38008
#10

Brake assy diagram

Helix

Part #38008

The manufacturer no longer makes this part, and there's no substitute part

Washer Drive Belt 38174
#19

Motor assy diagram

Washer drive belt

Part #38174

The manufacturer no longer makes this part, and there's no substitute part

Nut 29786
#2

Meter case diagram

Nut

Part #29786

The manufacturer no longer makes this part, and there's no substitute part
