Craftsman
Drill Press

Model # 113213810 Official Craftsman 12" drill press

Here are the diagrams and repair parts for Official Craftsman 113213810 12" drill press, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 83 parts  |

Nut (silver) 62636
#14

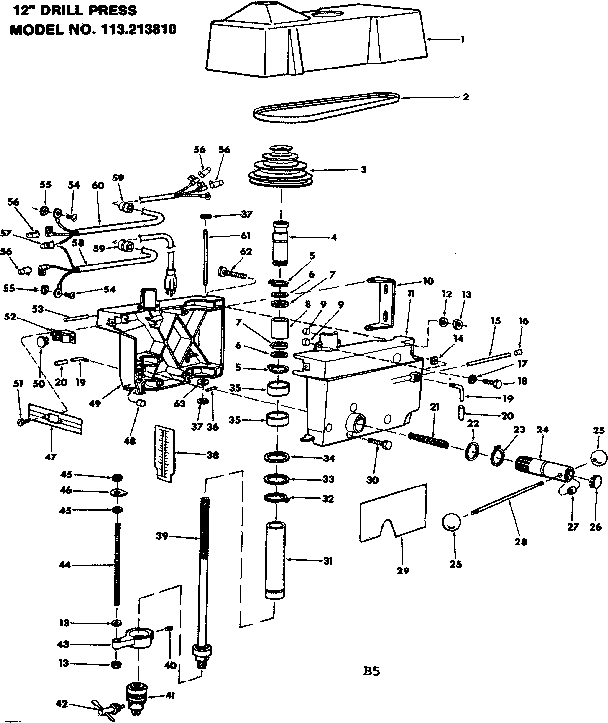

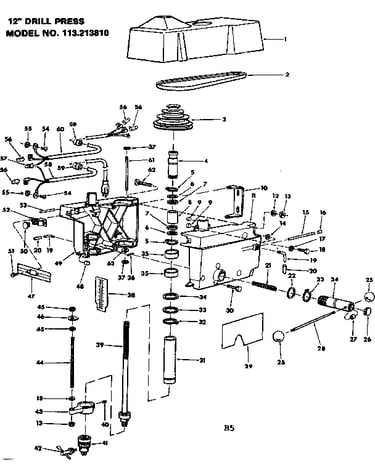

Spindle assembly diagram

Nut (silver)

Part #62636

The manufacturer no longer makes this part, and there's no substitute part

Washer STD551037
#9

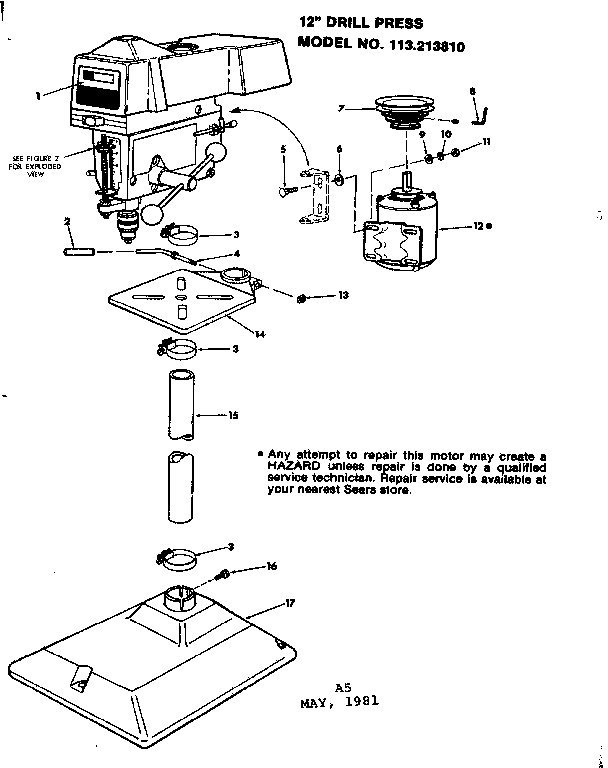

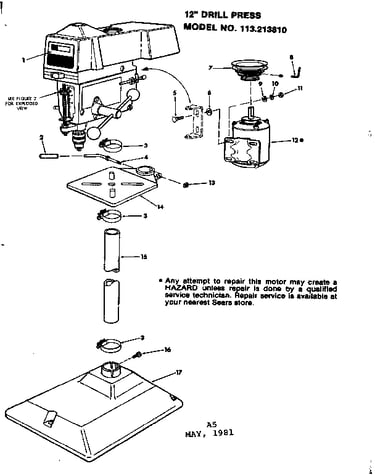

Unit diagram

Washer

Part #STD551037

The manufacturer no longer makes this part, and there's no substitute part

Washer 60134
#12

Spindle assembly diagram

Washer

Part #60134

The manufacturer no longer makes this part, and there's no substitute part

Push Nut 60208
#37

Spindle assembly diagram

Push nut

Part #60208

The manufacturer no longer makes this part, and there's no substitute part

Screw Hd Hex 186285
#62

Spindle assembly diagram

Screw hd hex

Part #186285

The manufacturer no longer makes this part, and there's no substitute part

Connector STD375006
#57

Spindle assembly diagram

Connector

Part #STD375006

The manufacturer no longer makes this part, and there's no substitute part

Roll Pin 453670
#36

Spindle assembly diagram

Roll pin

Part #453670

The manufacturer no longer makes this part, and there's no substitute part

Lock Washer, 5/16-in, 8-pack STD551131
#10

Unit diagram

Lock washer, 5/16-in, 8-pack

Part #STD551131

The manufacturer no longer makes this part, and there's no substitute part

Clamp STD316756
#3

Unit diagram

Clamp

Part #STD316756

The manufacturer no longer makes this part, and there's no substitute part

Relf Strain 62503
#59

Spindle assembly diagram

Relf strain

Part #62503

The manufacturer no longer makes this part, and there's no substitute part
