Model # ME21K7010DS/AA-00 Official Samsung microwave
Here are the diagrams and repair parts for Official Samsung ME21K7010DS-AA-00 microwave, as well as links to manuals and error code tables, if available.
There are a couple of ways to find the part or diagram you need:
- Click a diagram to see the parts shown on that diagram.
- In the search box below, enter all or part of the part number or the part’s name.
Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.
We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.
For DIY troubleshooting advice and repair guides, visit our repair help section.

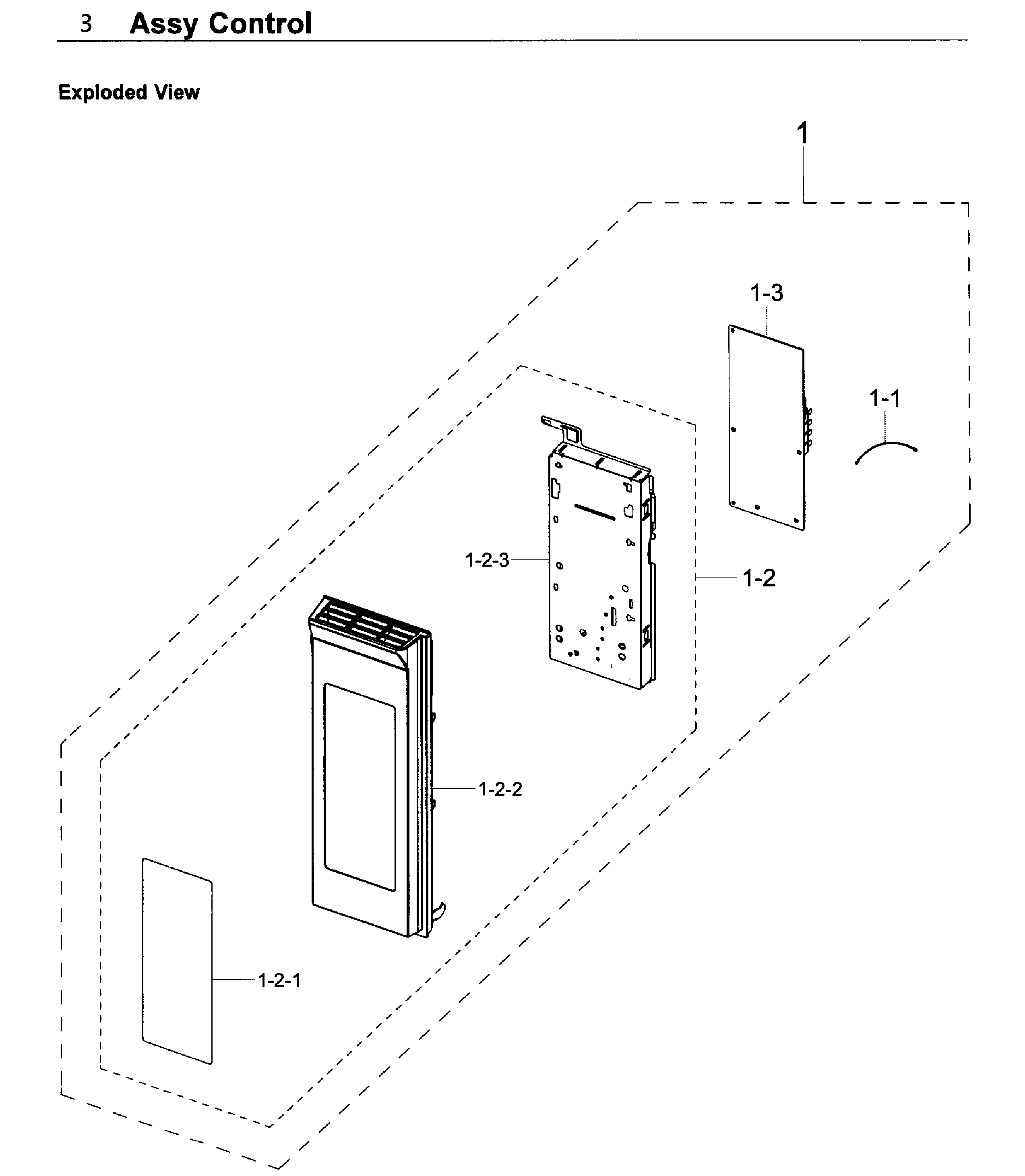

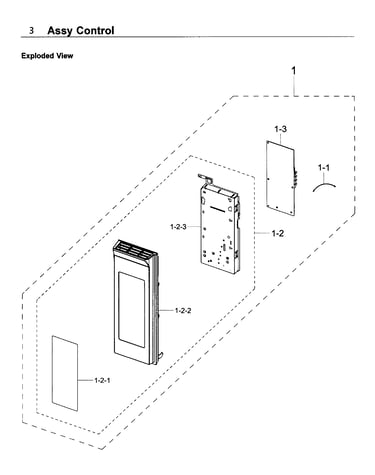

Model diagram and schematic
SEARCH WITHIN THIS MODEL
ALL PARTS
Showing 10 of 119 parts |
#5-3

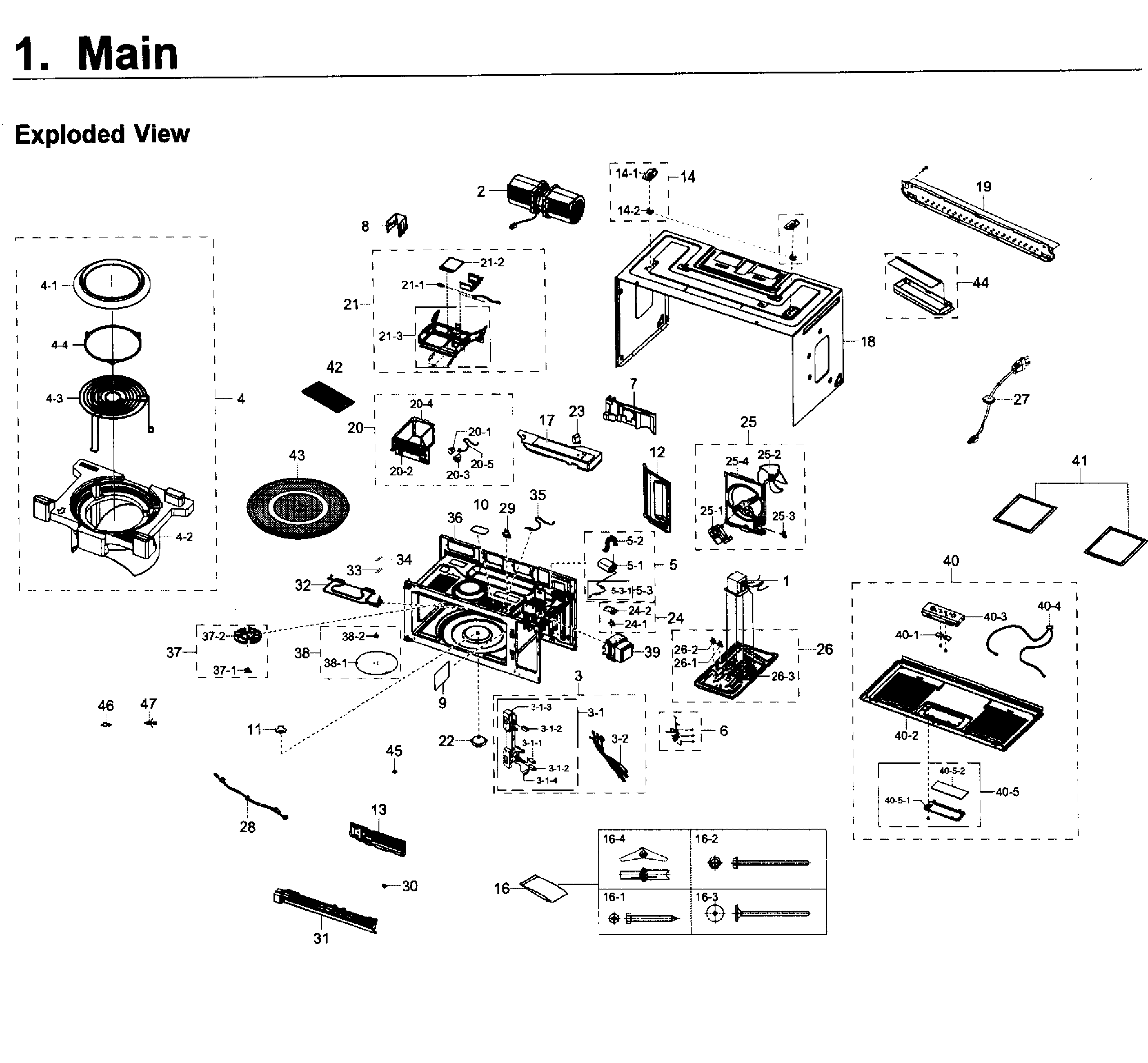

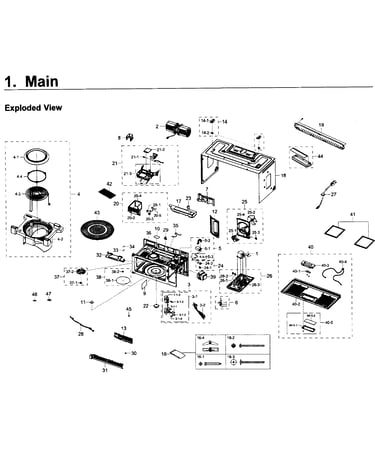

Main asy diagram
Microwave high-voltage diode (replaces de91-70063a, de91-70063b, de91-70063e)
Part #DE91-70063D
$17.40 |
10% OFF Phone Price : $19.40
In Stock
#3-1
Main asy diagram
Microwave door interlock support
Part #DE96-00414D
$37.98 |
14% OFF Phone Price : $43.98
In Stock
#1
Main asy diagram
Microwave high-voltage transformer
Part #DE26-00126A
$139.86 |
8% OFF Phone Price : $151.86
In Stock
#1-5

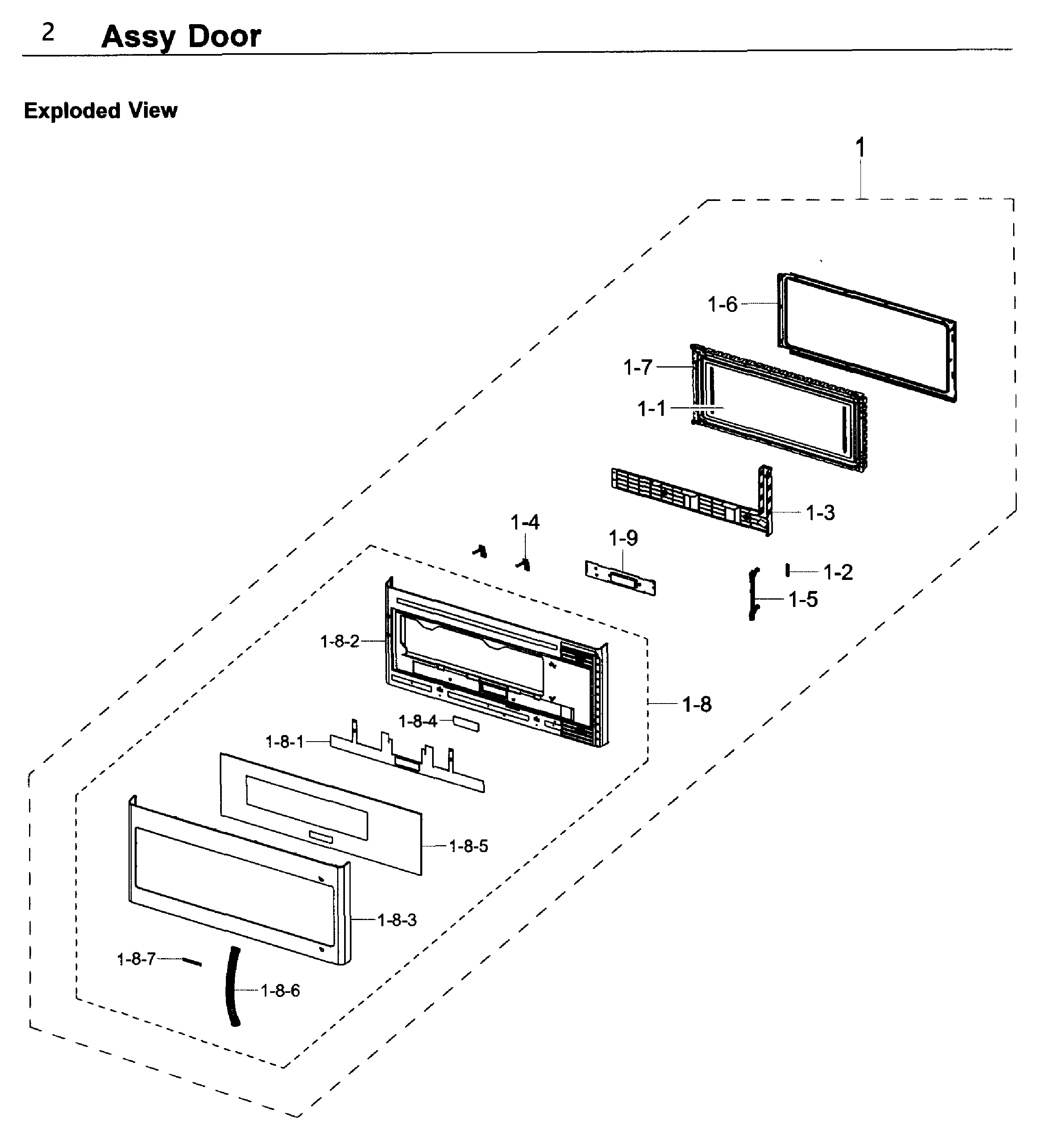

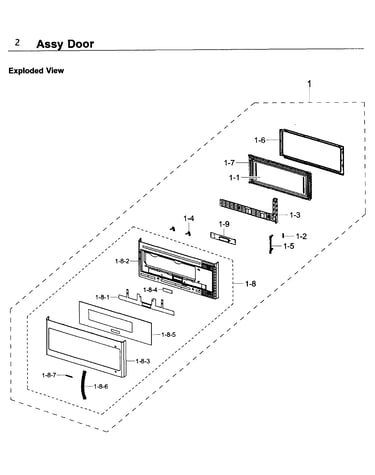

Door diagram
Microwave door latch
Part #DE64-01308A
Replaced by #DE64-00760A
?
Manufacturer substitution
This part replaces DE64-01308A. Substitute parts can look different from the original.
This item is not returnable
$23.15 |
21% OFF Phone Price : $29.15
In Stock
#24-1
Main asy diagram
Microwave thermostat (replaces de47-20007a)
Part #DE47-20007B
$14.09 |
12% OFF Phone Price : $16.09
In Stock
#3-11
Main asy diagram
Microwave door micro-switch
Part #3405-001033
$16.00 |
11% OFF Phone Price : $18.00
In Stock
#26-2
Main asy diagram
Range thermal cut-off (replaces de47-20117a)
Part #DE47-20034A
$18.56 |
10% OFF Phone Price : $20.56
In Stock
#22
Main asy diagram
Microwave turntable motor (replaces de31-10172b)
Part #DE31-10172C
Replaced by #DE31-10172D
?
Manufacturer substitution
This part replaces DE31-10172C. Substitute parts can look different from the original.
$104.98
In Stock
#1-6
Door diagram
Microwave door inner frame
Part #DE64-02777A
This item is not returnable
$29.46 |
17% OFF Phone Price : $35.46
In Stock
#26-1
Main asy diagram
Microwave thermostat (replaces de47-00050b)
Part #DE47-00050C
This item is not returnable
$16.47 |
11% OFF Phone Price : $18.47
In Stock
