Bosch HBN455AUC wall oven Parts
Here are the diagrams and repair parts for Bosch HBN455AUC wall oven, as well as links to manuals and error code tables, if available.
Installation guide
Owner’s manual
Error Codes
By Schematic
By Part

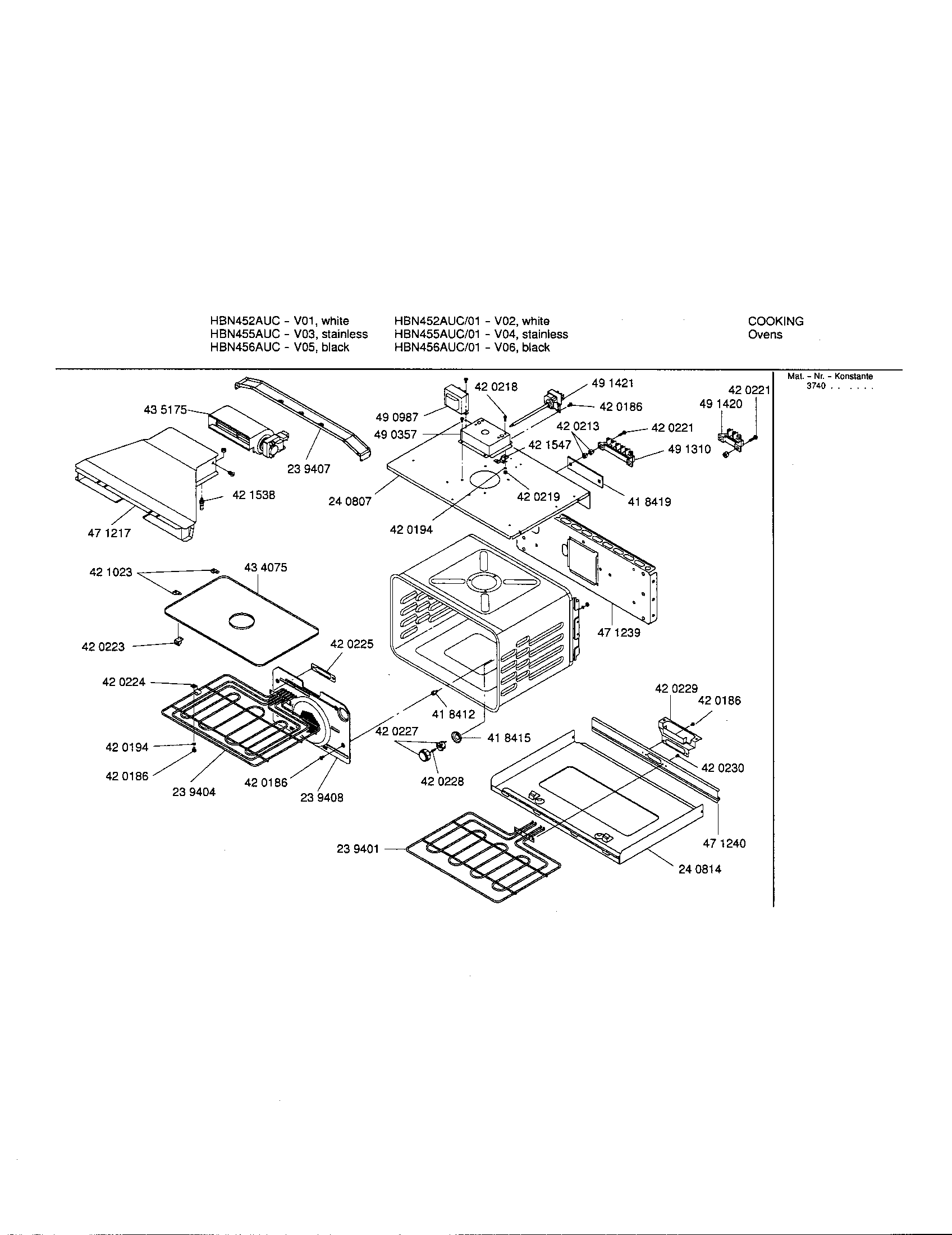

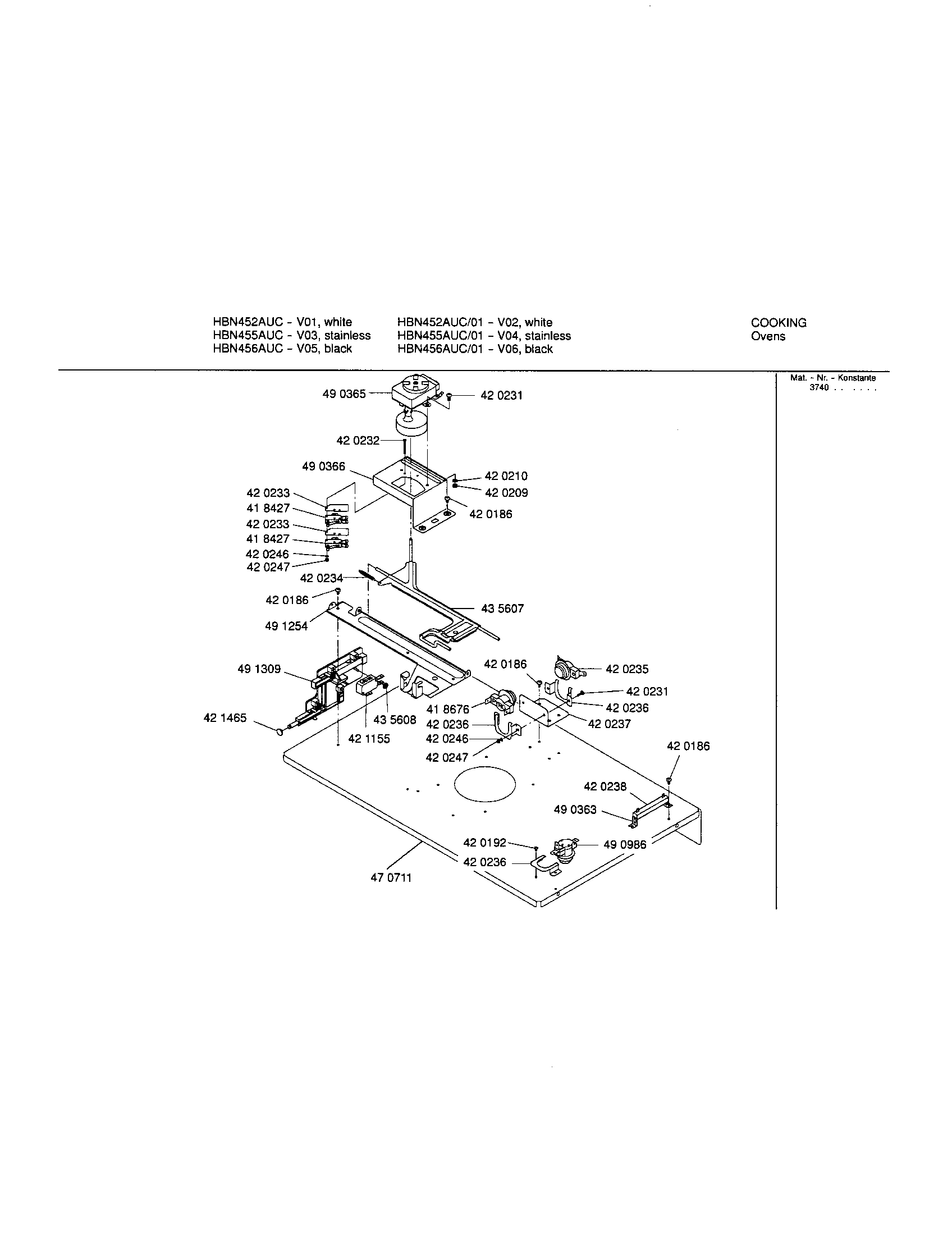

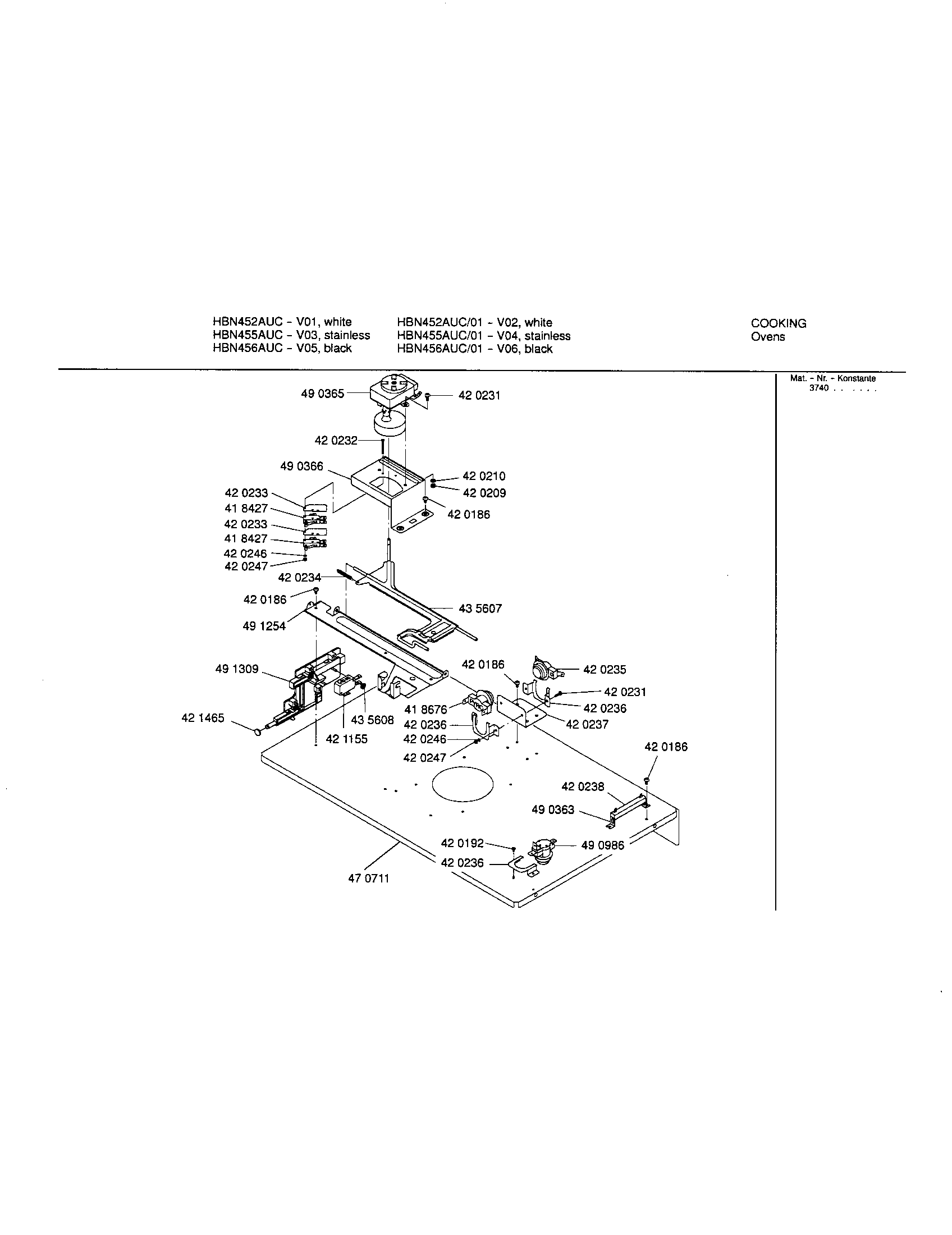

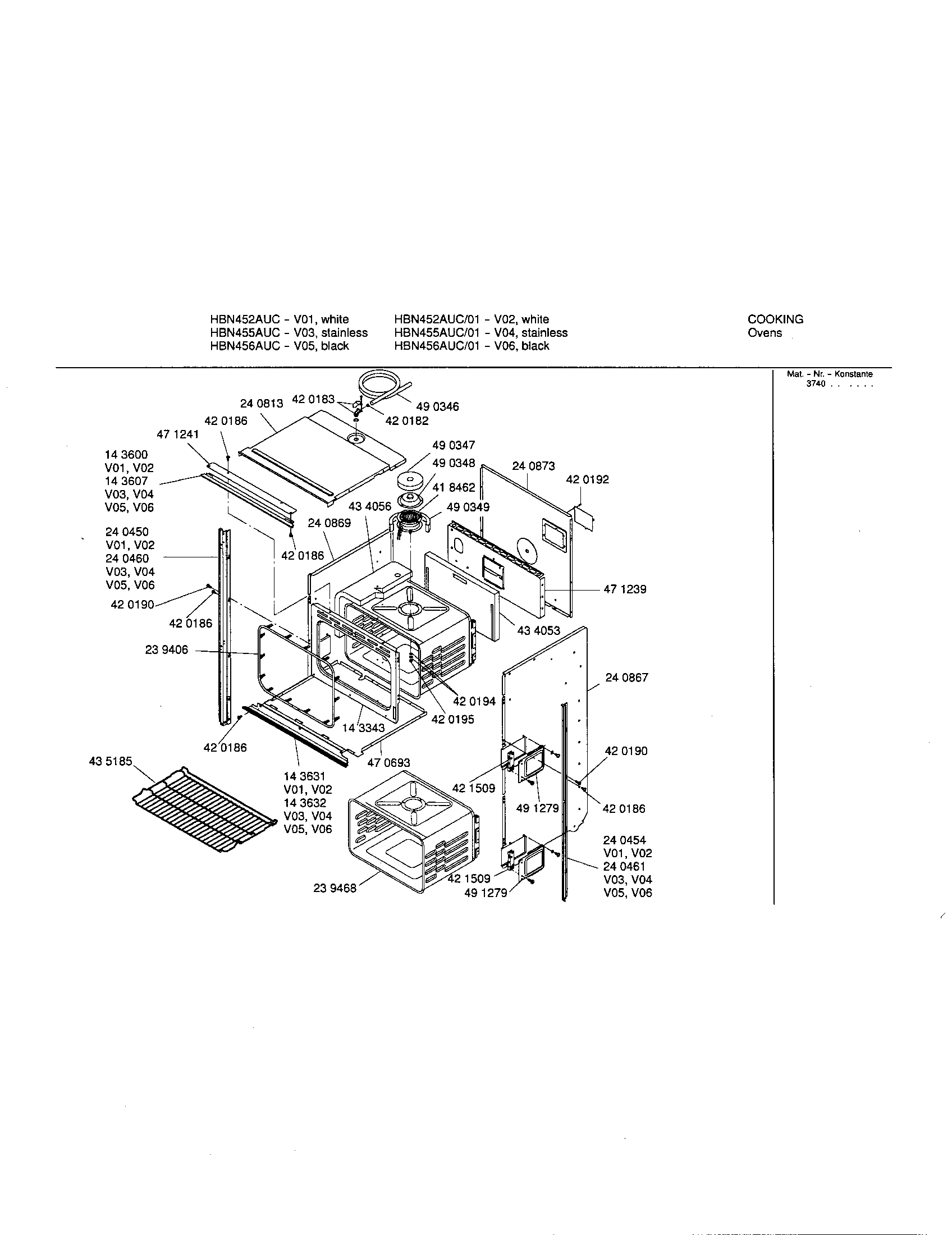

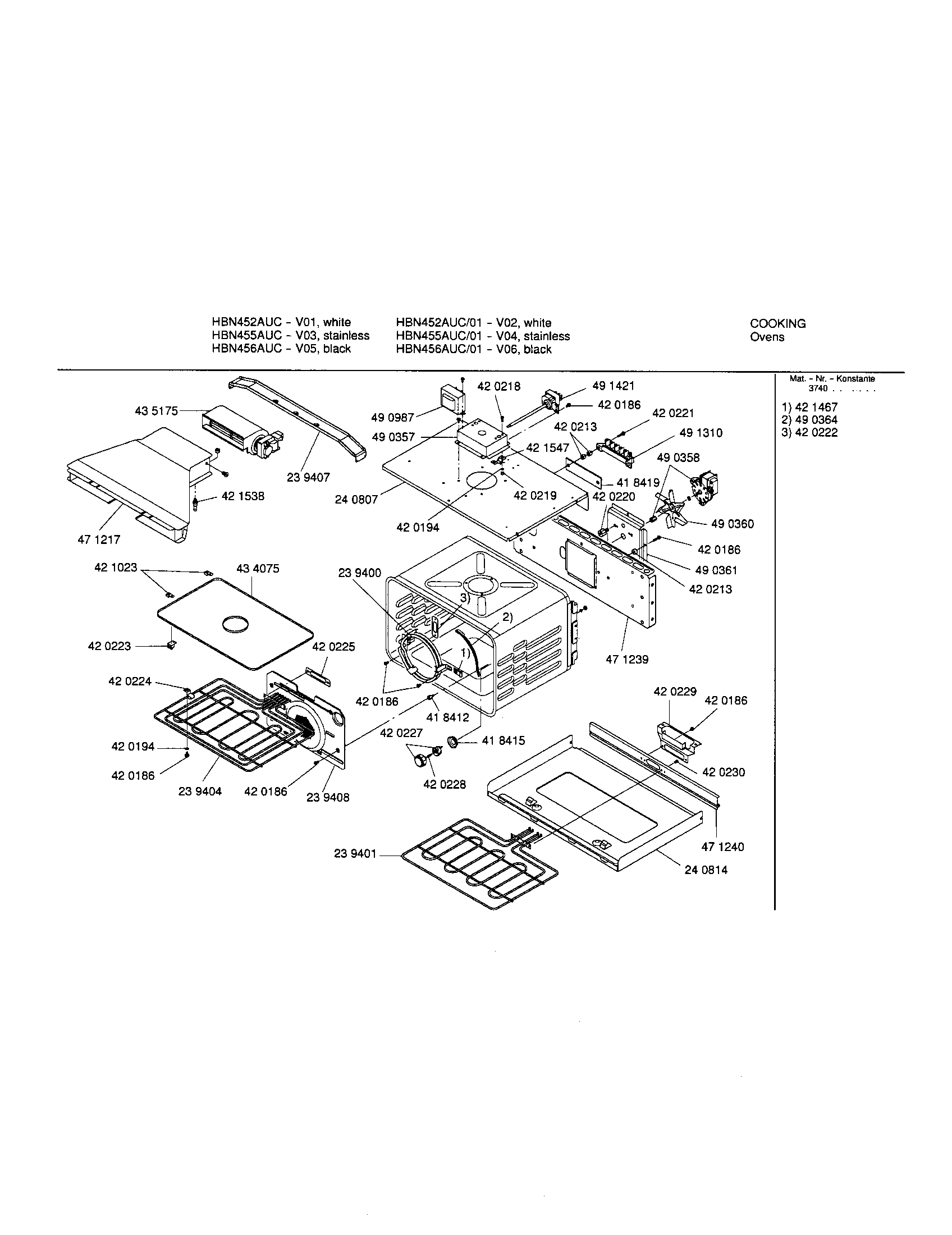

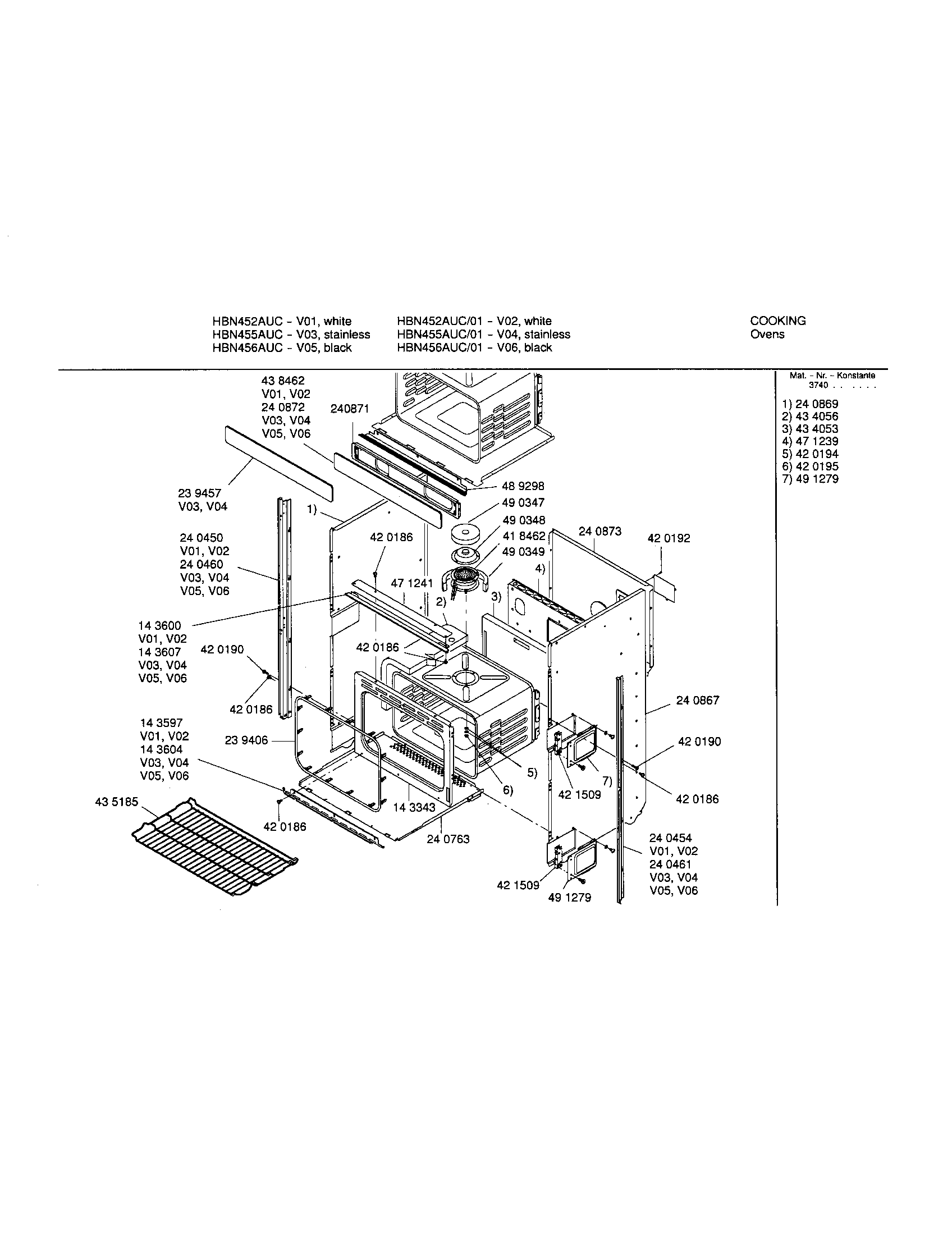

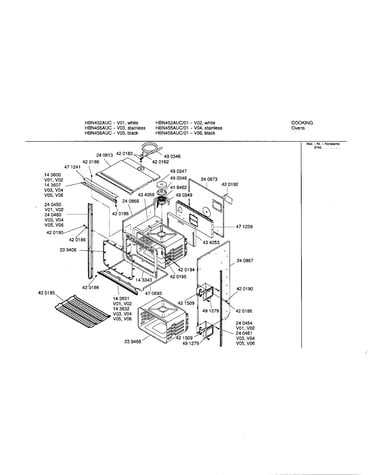

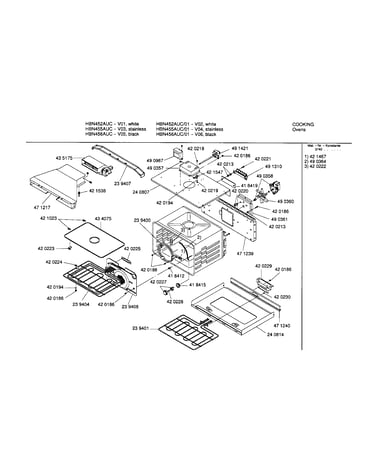

SELECT DIAGRAM
Browse Parts for HBN455AUC Wall Ovens
Oven Bulb
Part #420228Replaced by #00189351
Manufacturer substitutionThis part replaces 420228. Substitute parts can look different from the original.In Stock$25.7319% OFF Phone Price : $31.73
Qty
Wall Oven High-limit Thermostat
Part #418676
The manufacturer no longer makes this part, and there's no substitute part
Hinge
Part #491279
The manufacturer no longer makes this part, and there's no substitute part
Door
Part #490366
The manufacturer no longer makes this part, and there's no substitute part
Guide
Part #491254
The manufacturer no longer makes this part, and there's no substitute part

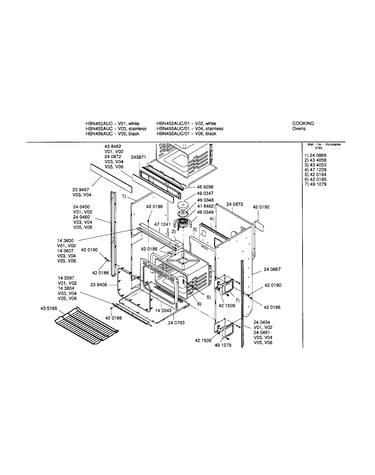

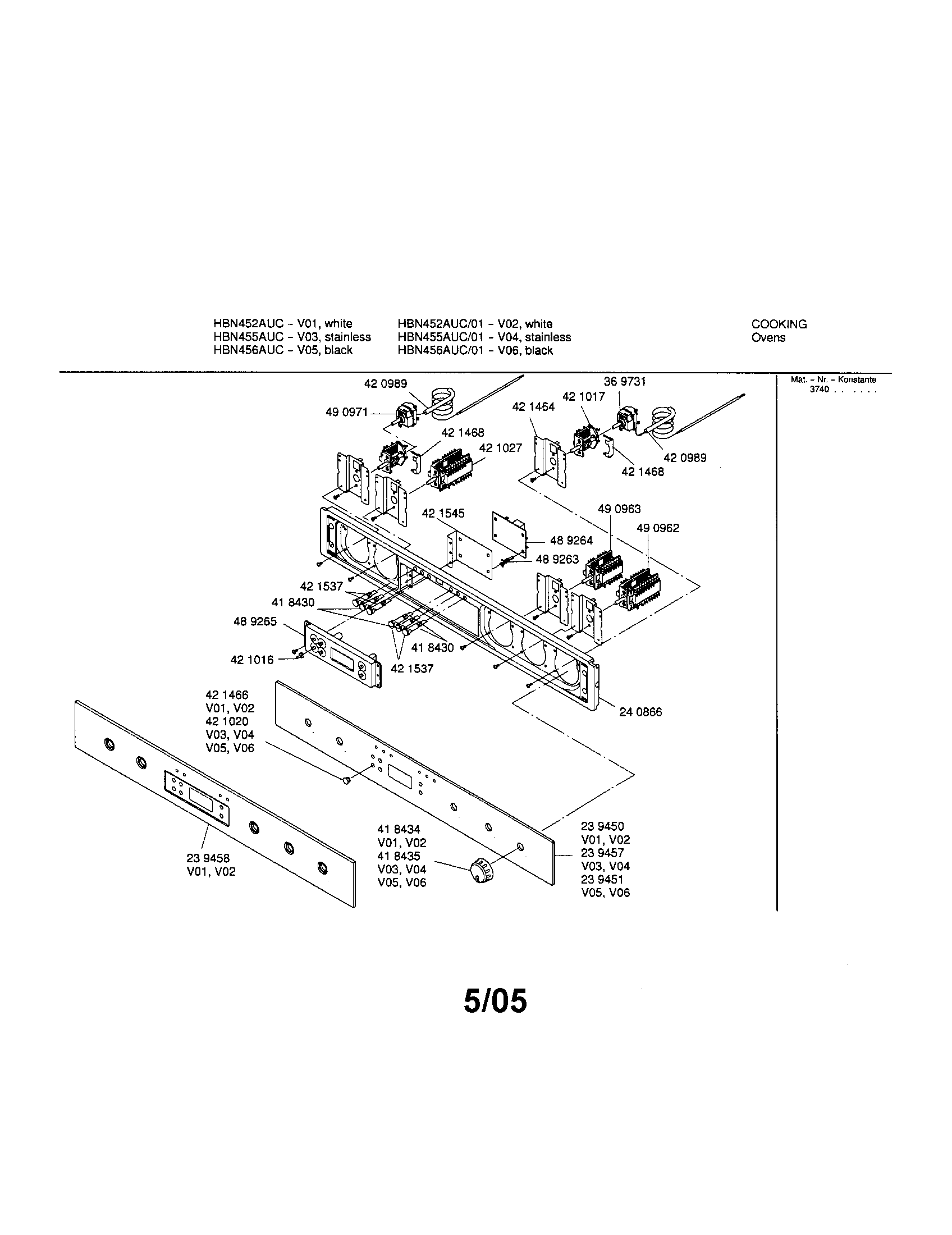

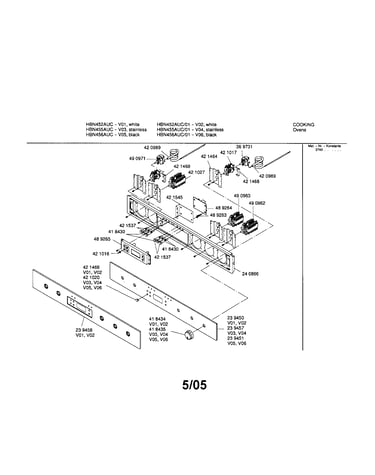

Fascia panel diagram
Wall Oven Selector Switch
Part #421017
The manufacturer no longer makes this part, and there's no substitute part
Screw
Part #420190
The manufacturer no longer makes this part, and there's no substitute part
Nut
Part #420247
The manufacturer no longer makes this part, and there's no substitute part
Terminal Block
Part #491310
The manufacturer no longer makes this part, and there's no substitute part

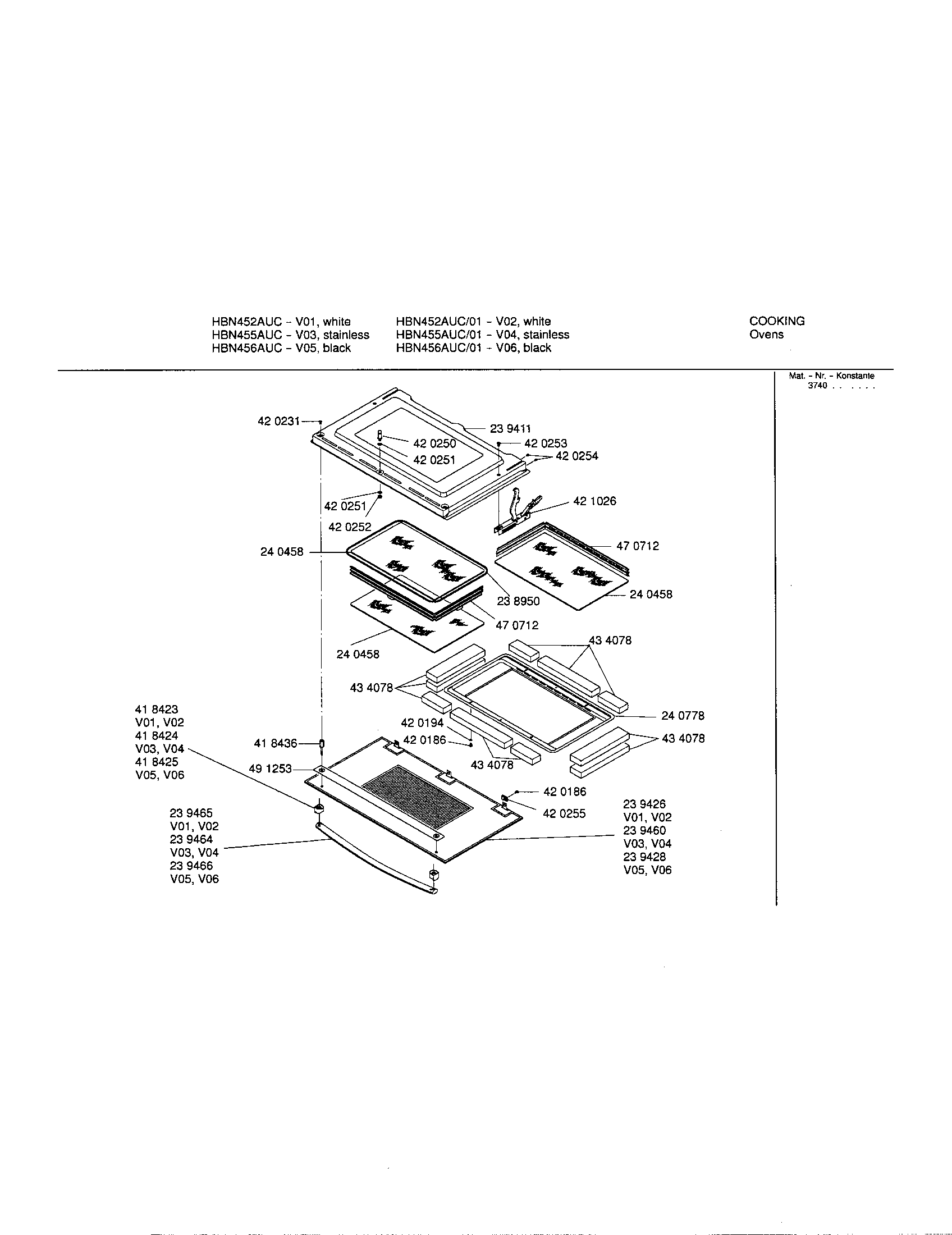

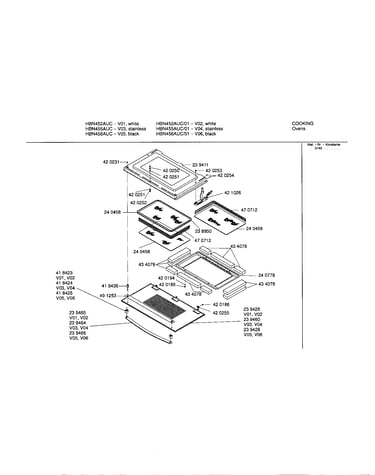

Lower door diagram
Oven Door
Part #420250
The manufacturer no longer makes this part, and there's no substitute part
