Kenmore
Canister Vacuum

Model #11627815700 Kenmore canister vacuum

Here are the diagrams and repair parts for Kenmore 11627815700 canister vacuum, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

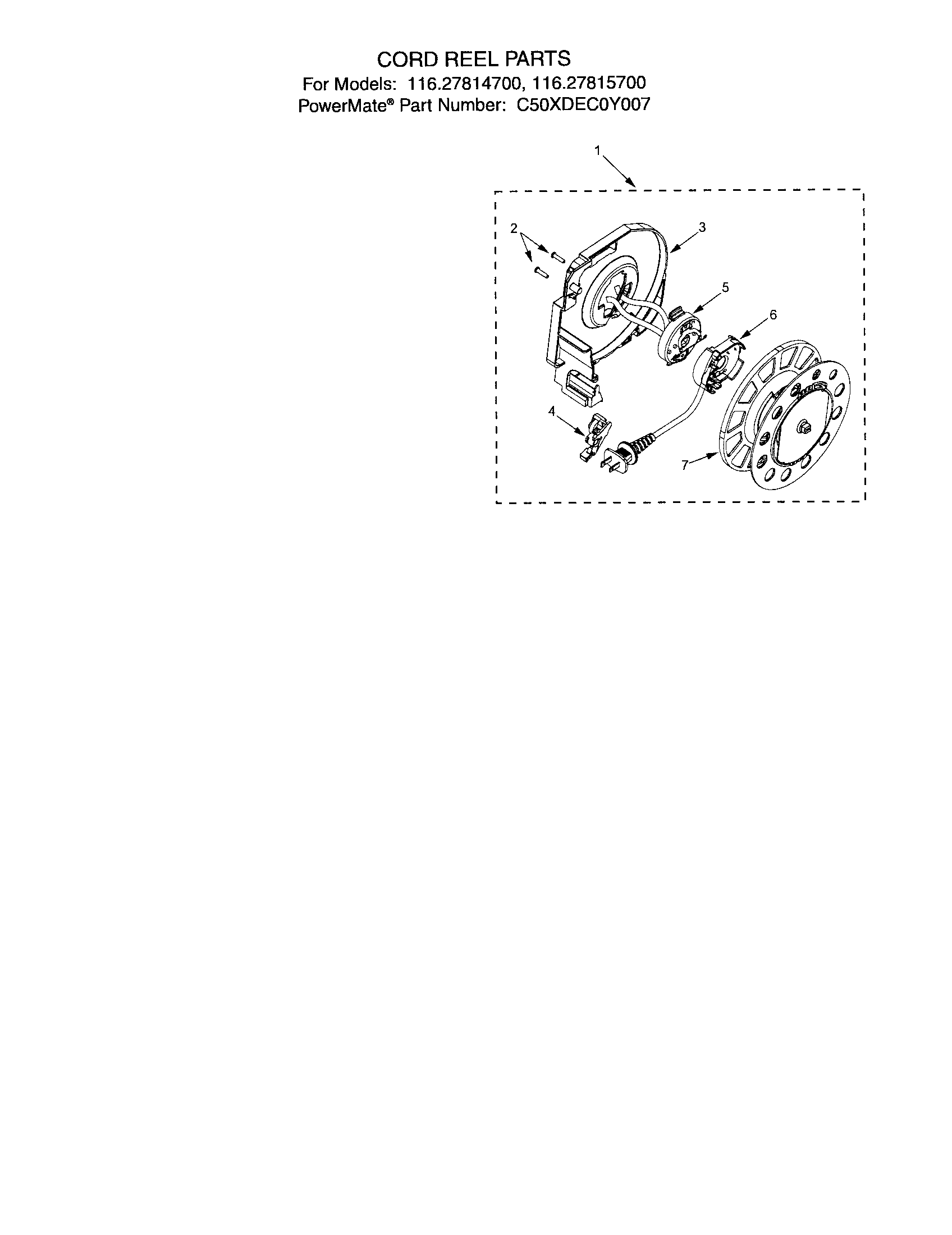

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profileOwner’s manual

Showing 10 of 131 parts

Vacuum Twist-On Wire Connector

#43

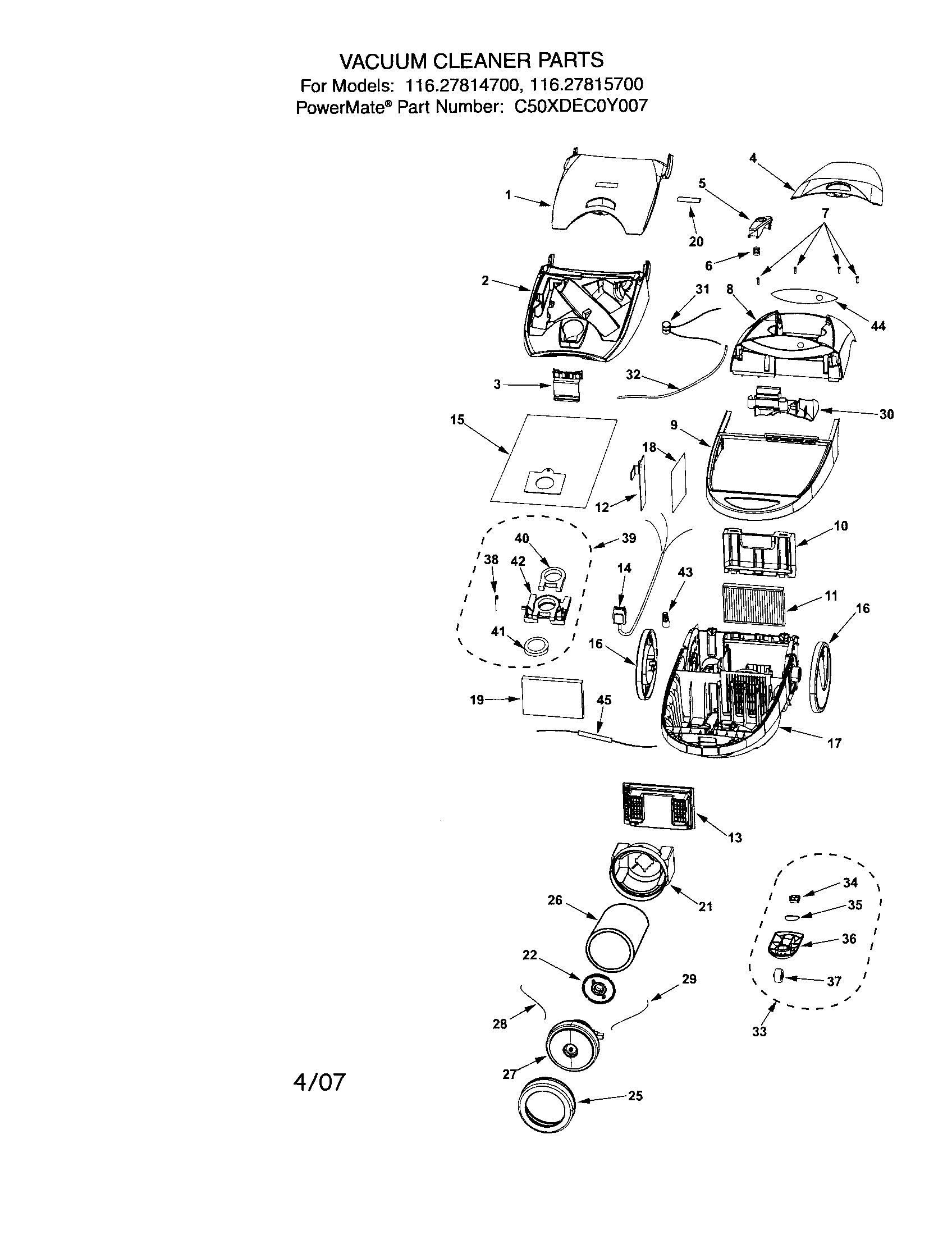

Vacuum cleaner Diagram

Vacuum twist-on wire connector

Part #KS4154460
This item is not returnable
$2.49

In Stock

Vacuum Combination Brush

#1

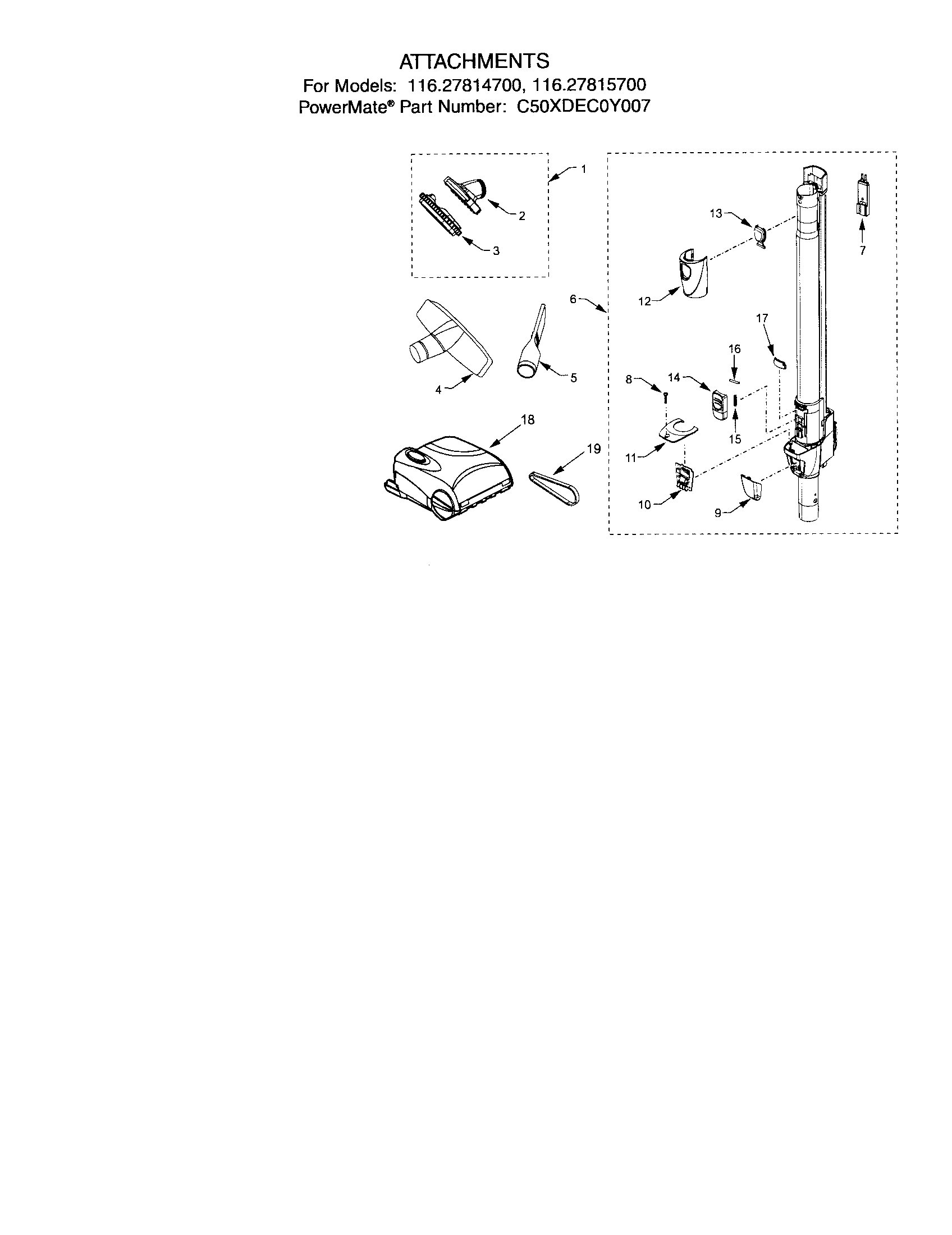

Attachments Diagram

Vacuum combination brush

Part #KC63RBZTZV07
?
Manufacturer substitution
This part replaces KC63RBZTZV07. Substitute parts can look different from the original.
This part replaces KC63RBZTZV07
$13.12

Back Order

Vacuum Dust Brush

#3

Attachments Diagram

Vacuum dust brush

Part #KC94QBZTZV07
?
Manufacturer substitution
This part replaces KC94QBZTZV07. Substitute parts can look different from the original.
This part replaces KC94QBZTZV07
$13.15

In Stock

Vacuum Hose Wire Harness

#12

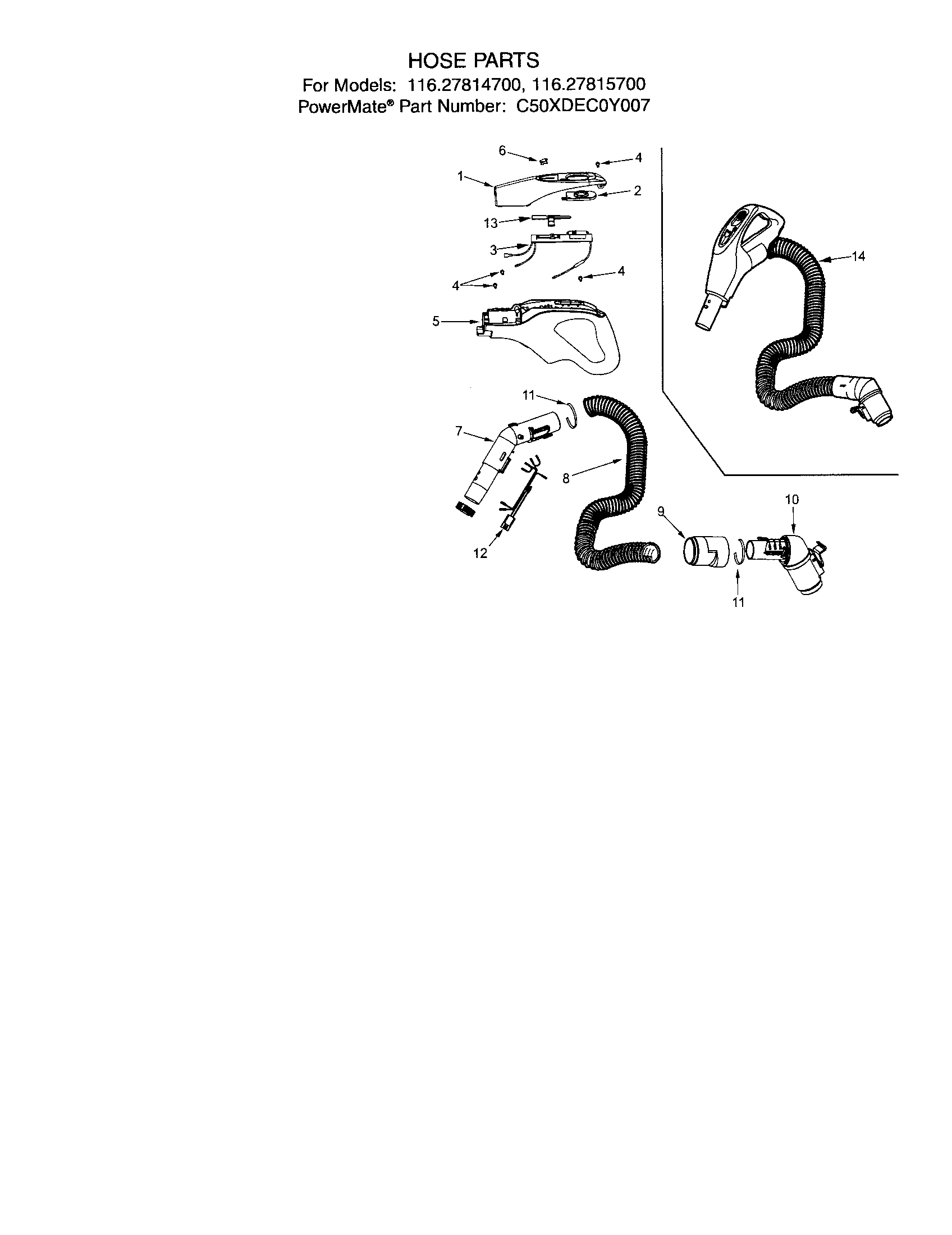

Hose Diagram

Vacuum hose wire harness

Part #KC37GBZRZV06
?
Manufacturer substitution
This part replaces KC37GBZRZV06. Substitute parts can look different from the original.
This part replaces KC37GBZRZV06
This item is not returnable
$5.98

In Stock

Vacuum Exhaust Filter

#11

Vacuum cleaner Diagram

Vacuum exhaust filter

Part #KC38KCEN1000

The manufacturer no longer makes this part, and there's no substitute part

Vacuum PowerMate Front Axle

#39

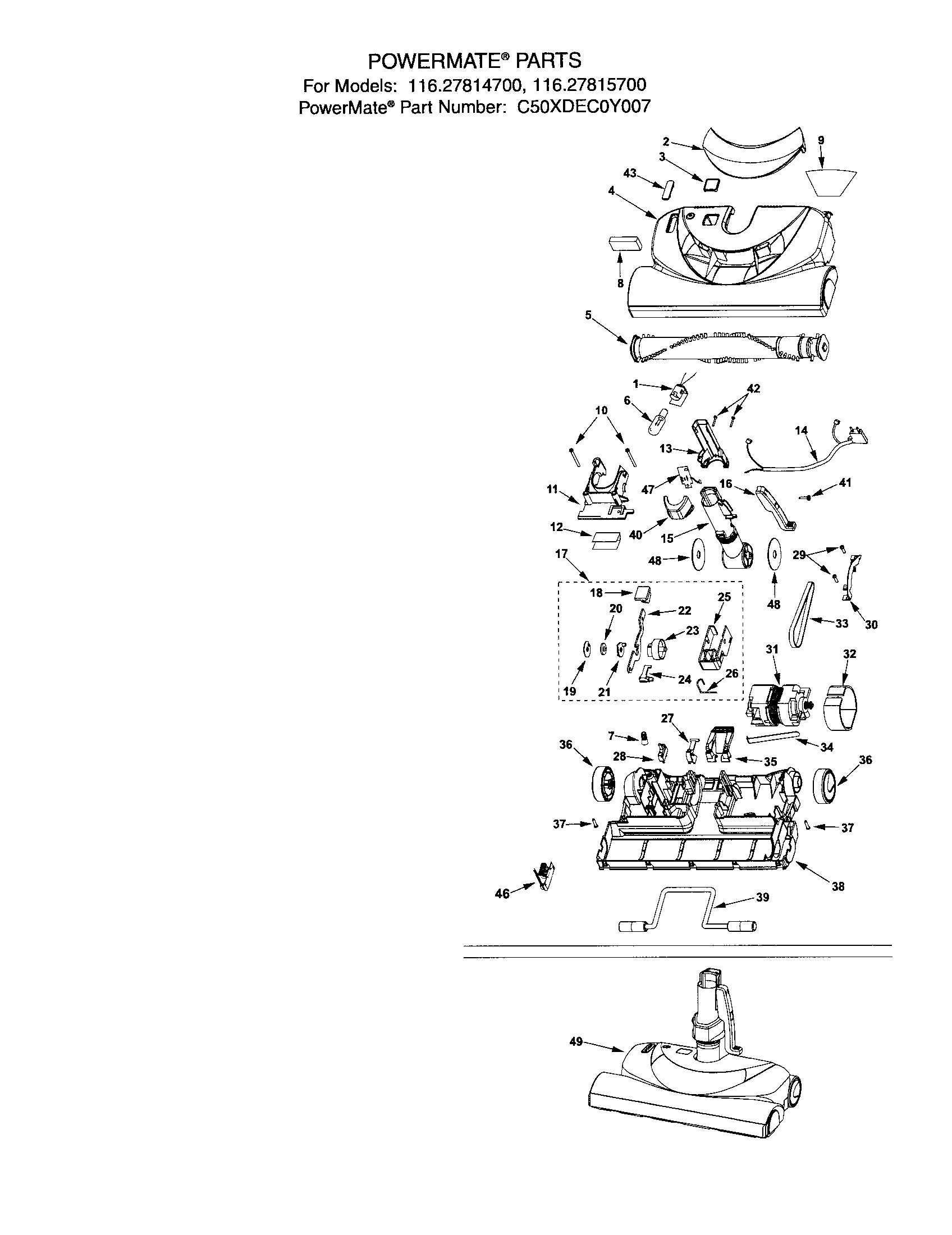

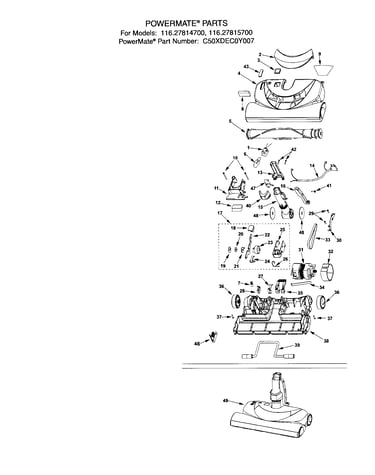

Powermate Diagram

Vacuum powermate front axle

Part #KS744029
?
Manufacturer substitution
This part replaces KS744029. Substitute parts can look different from the original.
This part replaces KS744029
This item is not returnable
$2.49

In Stock

Vacuum Height Adjuster Foot Pedal

#17

Powermate Diagram

Vacuum height adjuster foot pedal

Part #KC83MAKSZV06
?
Manufacturer substitution
This part replaces KC83MAKSZV06. Substitute parts can look different from the original.
This part replaces KC83MAKSZV06
This item is not returnable
$3.56

Back Order

Vacuum PowerMate Overload Protector

#28

Powermate Diagram

Vacuum powermate overload protector

Part #KC76FAXEZ000
?
Manufacturer substitution
This part replaces KC76FAXEZ000. Substitute parts can look different from the original.
This part replaces KC76FAXEZ000
$8.75

In Stock

Vacuum Motor

#27

Vacuum cleaner Diagram

Vacuum motor

Part #KC92FCJNZ000
?
Manufacturer substitution
This part replaces KC92FCJNZ000. Substitute parts can look different from the original.
This part replaces KC92FCJNZ000
$95.55

In Stock

Vacuum Crevice Tool

#5

Attachments Diagram

Vacuum crevice tool

Part #8175100
?
Manufacturer substitution
This part replaces 8175100. Substitute parts can look different from the original.
This part replaces 8175100
$14.48

In Stock

Symptoms common to all vacuum cleaners

Choose a symptom to see related vacuum cleaner repairs.

Main causes: damaged vacuum hose, clogged motor air filter, bad suction motor
Main causes: lack of power, bad power cord, drive motor failure, wiring failure
Main causes: weak suction motor, vacuum bag is full, clog in suction air path, dirty exhaust filter, leaky vacuum hose
Main causes: broken drive belt, damaged brush roll, tripped brush roll motor overload, bad brush roll motor, wiring failure

Repair guides for canister vacuums

July 1, 2013
By Lyle Weischwill
How to replace a vacuum suction motor

The suction motor on a vacuum creates the draw of air at the cleaning head that picks up dirt. If the vacuum won't run, give it a new life by replacing the suction motor. These steps explain how.

Repair difficulty
Time required
 15 minutes or less
July 1, 2013
By Lyle Weischwill
How to replace a vacuum beater bar

Replace the brush roll if the bristles ares worn or the cylinder is damaged.

Repair difficulty
Time required
 30 minutes or less
How to replace a vacuum power head ribbed drive belt

Some canister vacuums have a ribbed drive belt that spins the brush roll on a power brush attachment. If the brush roll slips, you can replace it using these instructions.

Repair difficulty
Time required
 30 minutes or less
