KitchenAid
Gas Range

Model # KGRS807SSS03 Official KitchenAid 30" gas freestanding range

Here are the diagrams and repair parts for Official KitchenAid KGRS807SSS03 30" gas freestanding range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

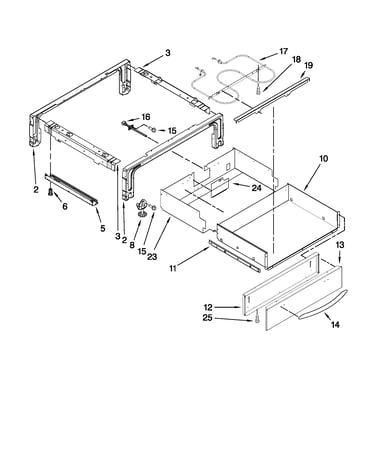

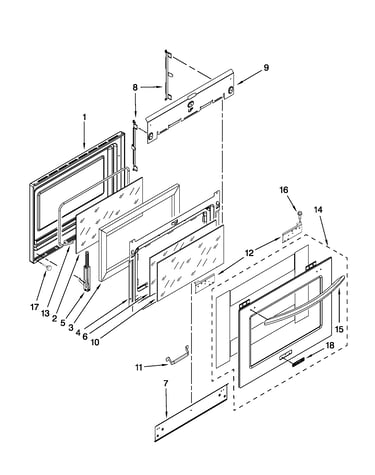

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 218 parts  |
Wall Oven Temperature Sensor W10131825
#29

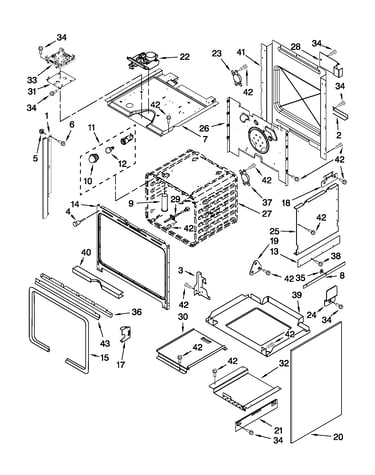

Oven parts diagram

Wall oven temperature sensor

Part #W10131825

Replaced by #WPW10131825

?
Manufacturer substitution
This part replaces W10131825. Substitute parts can look different from the original.
BEST SELLER
$64.91 |
8% OFF Phone Price : $70.91
In Stock
Spark Module 9758080
#10

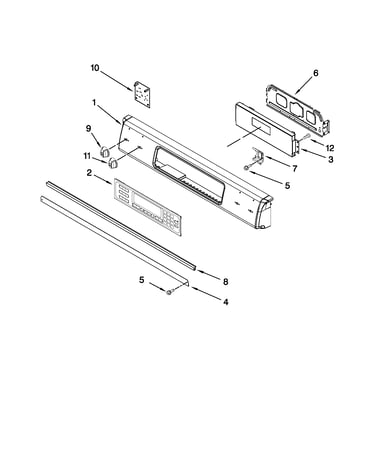

Control panel parts diagram

Spark module

Part #9758080

Replaced by #WPW10331686

?
Manufacturer substitution
This part replaces 9758080. Substitute parts can look different from the original.
BEST SELLER
$248.09 |
5% OFF Phone Price : $260.09
In Stock
Range Oven Igniter 8054129
#16

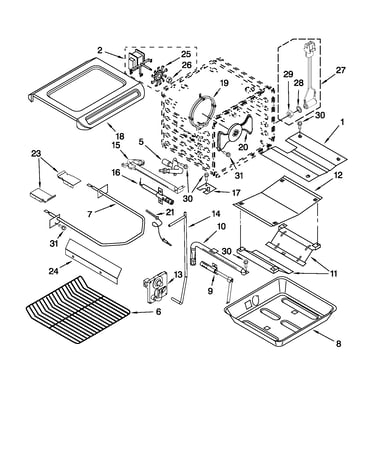

Internal oven parts diagram

Range oven igniter

Part #8054129

Replaced by #WP8054129

?
Manufacturer substitution
This part replaces 8054129. Substitute parts can look different from the original.
BEST SELLER
$66.23 |
8% OFF Was : $71.99
In Stock

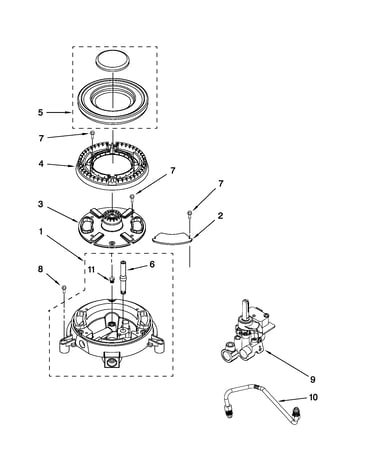

Burner Head 8286181
#24

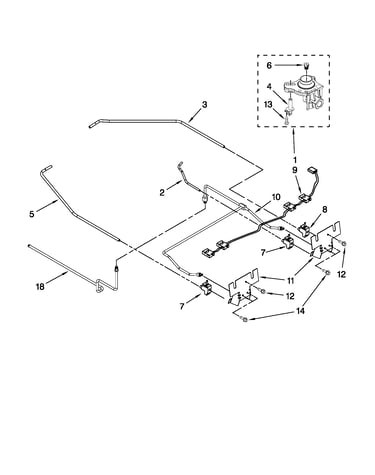

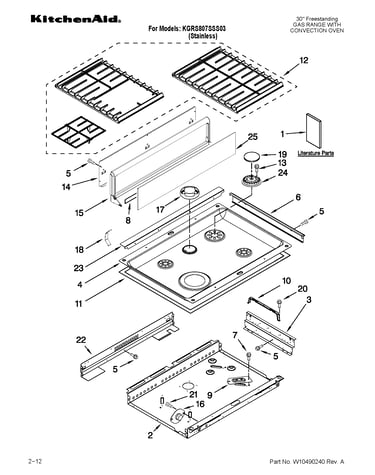

Cooktop parts diagram

Burner head

Part #8286181

Replaced by #WPW10406243

?
Manufacturer substitution
This part replaces 8286181. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$24.89 |
19% OFF Phone Price : $30.89
In Stock
Touch-up Paint (black) 72032
#NI

Optional parts (not included) diagram

Touch-up paint (black)

Part #72032

Replaced by #72032

?
Manufacturer substitution
This part replaces 72032. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$9.02 |
10% OFF Phone Price : $10.02
In Stock
Gas Burner Head 8286182
#24A

Cooktop parts diagram

Gas burner head

Part #8286182

Replaced by #WPW10406797

?
Manufacturer substitution
This part replaces 8286182. Substitute parts can look different from the original.
$38.61 |
13% OFF Phone Price : $44.61
In Stock
Range Screw 3196160
#21

Cooktop parts diagram

Range screw

Part #3196160

Replaced by #W10491985

?
Manufacturer substitution
This part replaces 3196160. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Range Oven Control Board And Clock 9762794
#3

Control panel parts diagram

Range oven control board and clock

Part #9762794

Replaced by #WP9762794

?
Manufacturer substitution
This part replaces 9762794. Substitute parts can look different from the original.
$327.59 |
$12.00 OFF Phone Price : $339.59
In Stock
Screw 3196537
Screw

Part #3196537

Replaced by #WP3196557

?
Manufacturer substitution
This part replaces 3196537. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Range Glass Touch Panel 9761566
#2

Control panel parts diagram

Range glass touch panel

Part #9761566

Replaced by #WP9761566

?
Manufacturer substitution
This part replaces 9761566. Substitute parts can look different from the original.
$227.41 |
5% OFF Phone Price : $239.41
In Stock
