Craftsman
Wet/Dry Vacuum

Model #113179255 Craftsman wet/dry vacuum

Here are the diagrams and repair parts for Craftsman 113179255 wet/dry vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

    Showing 10 of 31 parts

    Shop Vacuum Filter (Red Stripe)#16

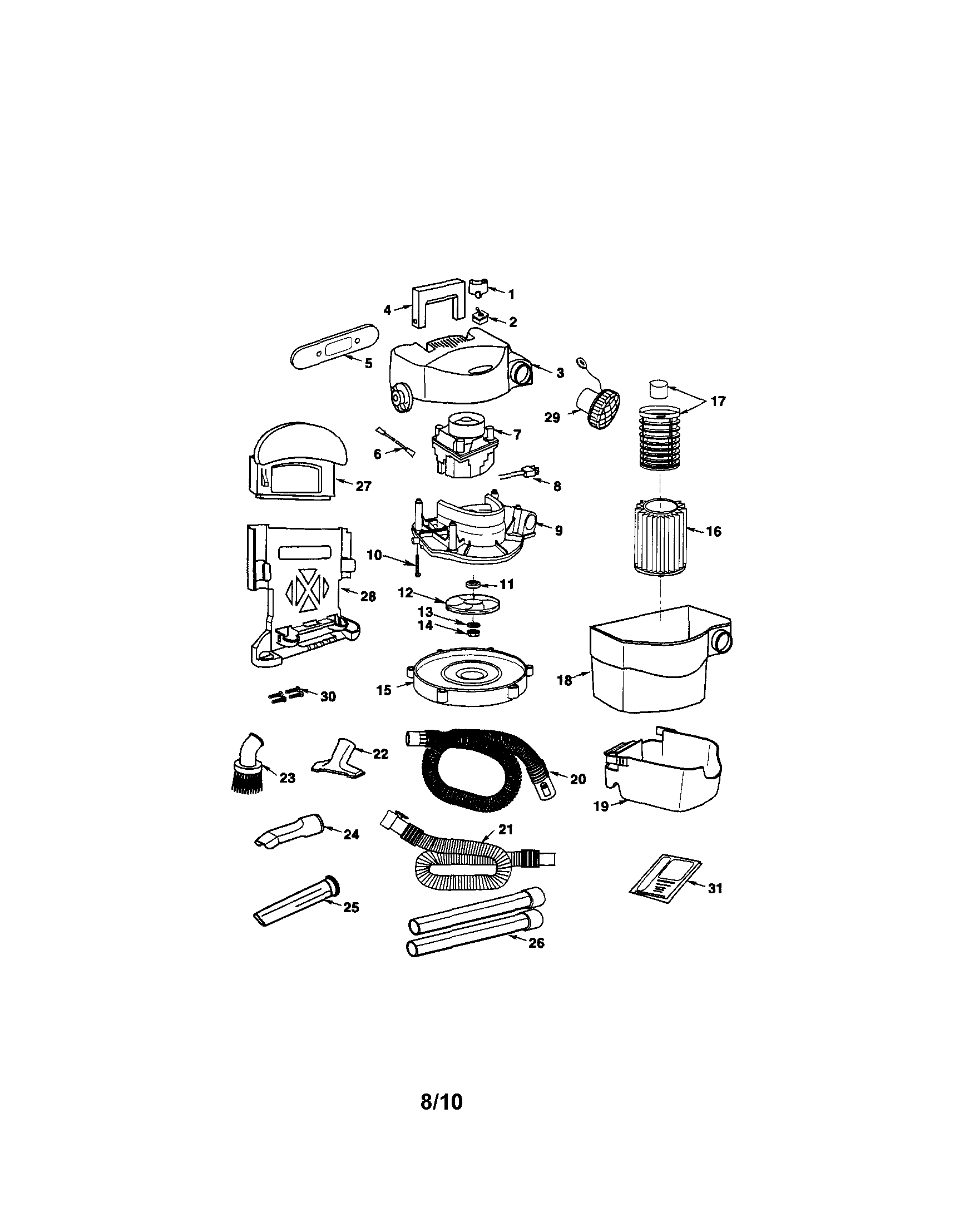

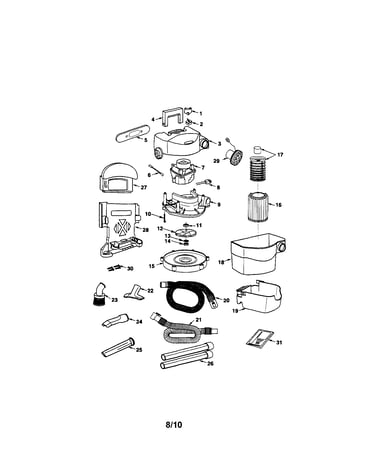

    Wet/dry vac Diagram

    Filter

    Part #17816
    Replaced by #551006114
    ?
    Manufacturer substitution
    This part replaces 17816. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $20.99
    Collector#15

    Wet/dry vac Diagram

    Collector

    Part #828838

    The manufacturer no longer makes this part, and there's no substitute part

    Lead Assembly#6

    Wet/dry vac Diagram

    Lead assembly

    Part #819260-5

    The manufacturer no longer makes this part, and there's no substitute part

    Lid Assembly#9

    Wet/dry vac Diagram

    Lid assembly

    Part #509863

    The manufacturer no longer makes this part, and there's no substitute part

    Shop Vacuum Motor Assembly#7

    Wet/dry vac Diagram

    Shop vacuum motor assembly

    Part #830239-1

    The manufacturer no longer makes this part, and there's no substitute part

    Shop Vacuum On/Off Switch#1

    Wet/dry vac Diagram

    Shop vacuum on/off switch

    Part #73180

    The manufacturer no longer makes this part, and there's no substitute part

    Retainer Crd#5

    Wet/dry vac Diagram

    Retainer crd

    Part #830666

    The manufacturer no longer makes this part, and there's no substitute part

    Shop Vacuum Hose#20

    Wet/dry vac Diagram

    Shop vacuum hose

    Part #830673

    The manufacturer no longer makes this part, and there's no substitute part

    Upper Storage Rack#27

    Wet/dry vac Diagram

    Upper storage rack

    Part #830670

    The manufacturer no longer makes this part, and there's no substitute part

    Accessory Storage Bin#19

    Wet/dry vac Diagram

    Accessory storage bin

    Part #830672

    The manufacturer no longer makes this part, and there's no substitute part
