Model # LGID2478SF0A Official Frigidaire dishwasher
Here are the diagrams and repair parts for Official Frigidaire LGID2478SF0A dishwasher, as well as links to manuals and error code tables, if available.

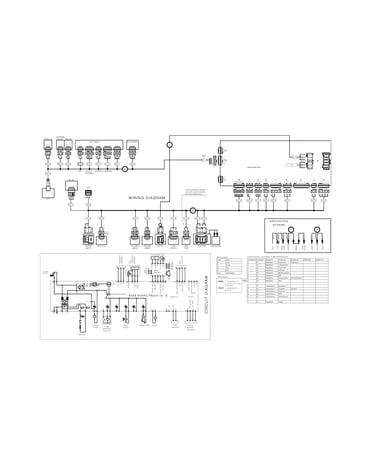

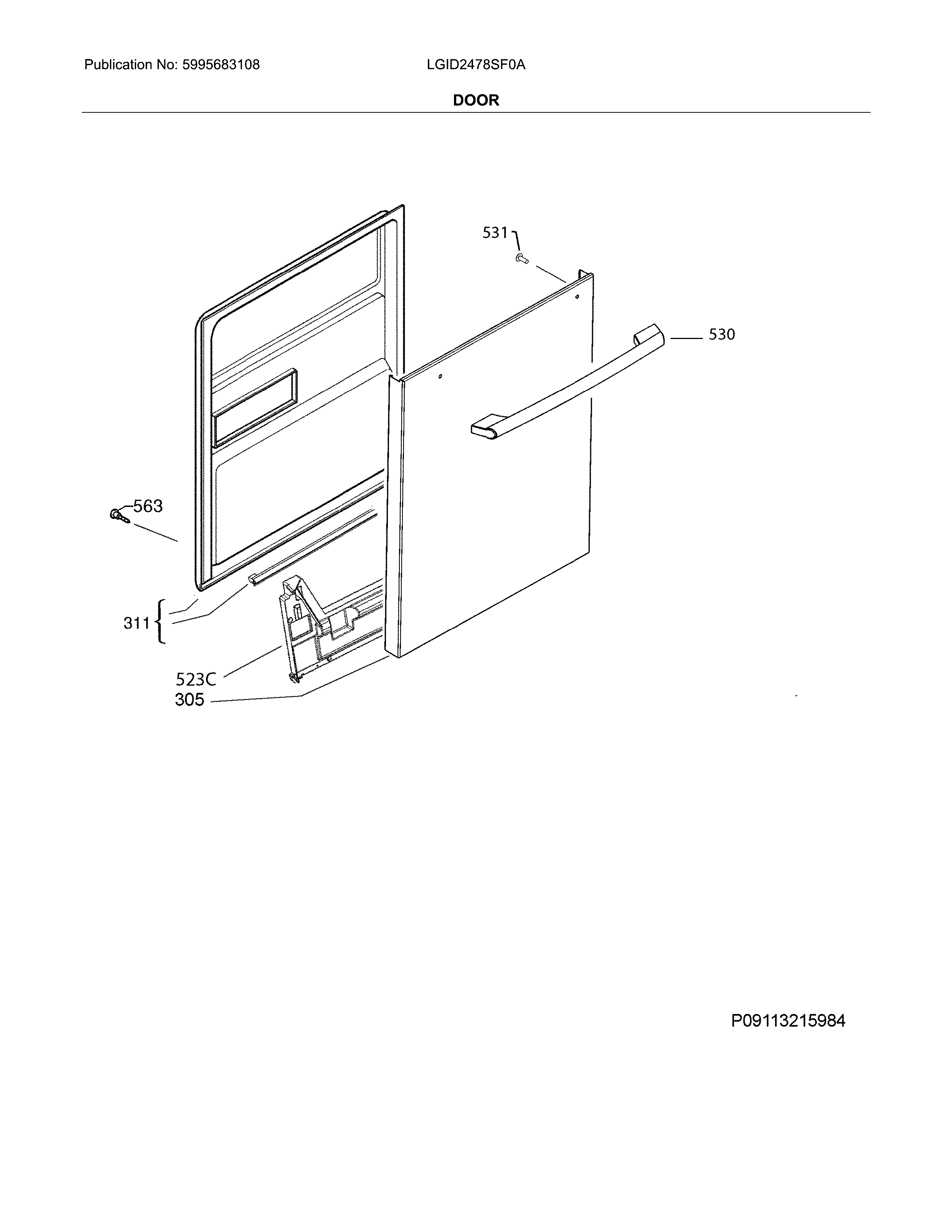

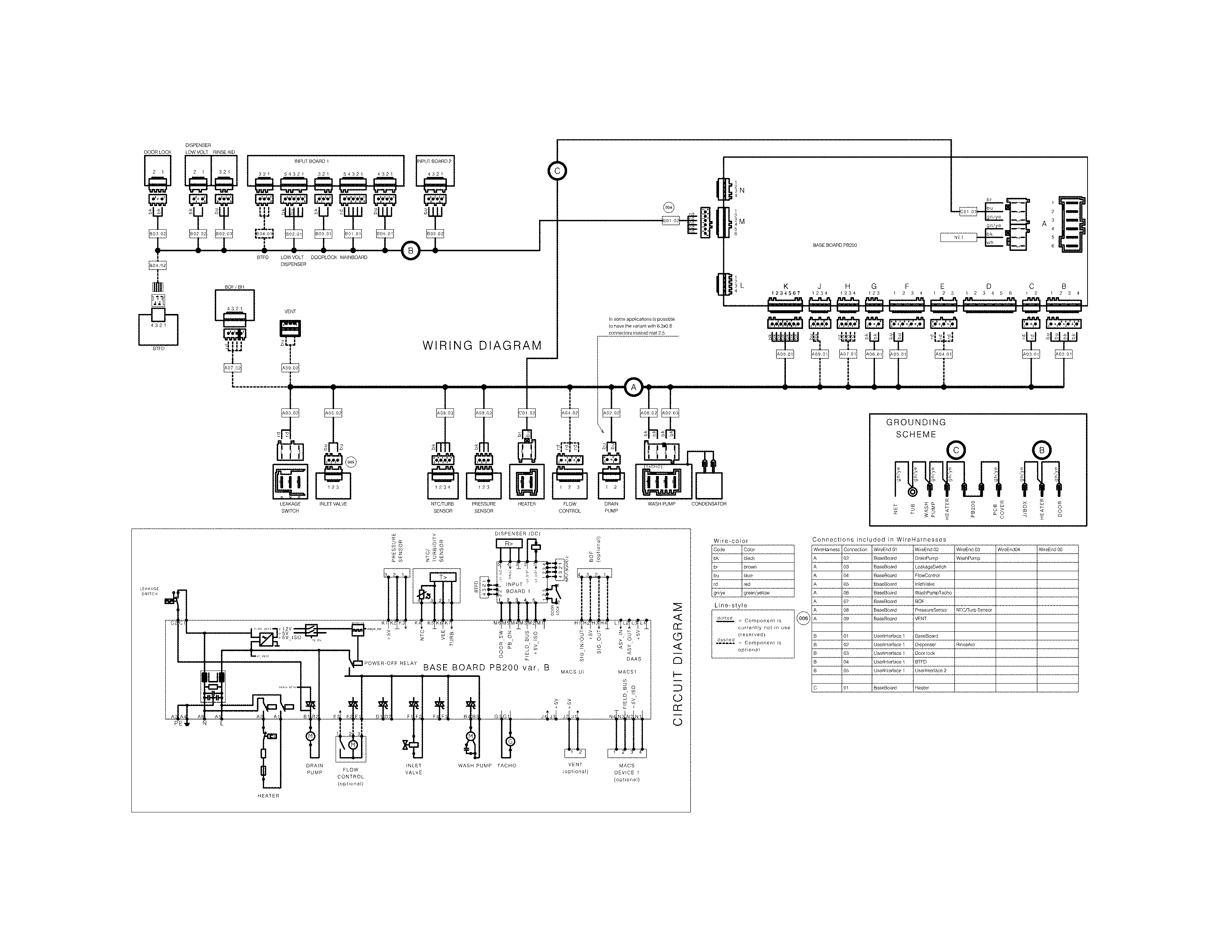

By Schematic
By Part
SELECT DIAGRAM
Browse Parts for
LGID2478SF0A Dishwasher
#510

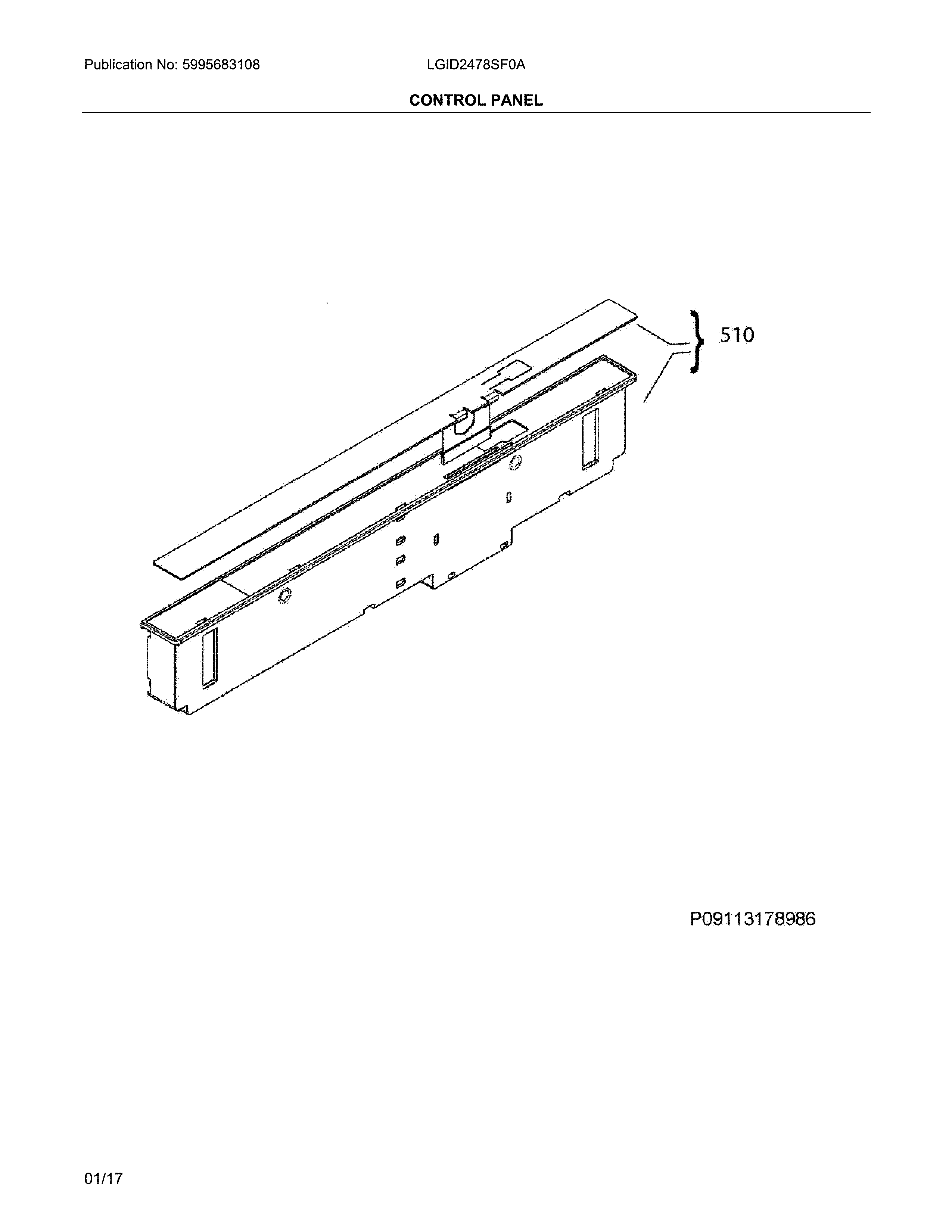

Control panel diagram
Dishwasher control panel
Part #117494801
Replaced by #117512430
?
Manufacturer substitution
This part replaces 117494801. Substitute parts can look different from the original.
$273.73 |
$12.00 OFF Phone Price : $285.73
In Stock
#5

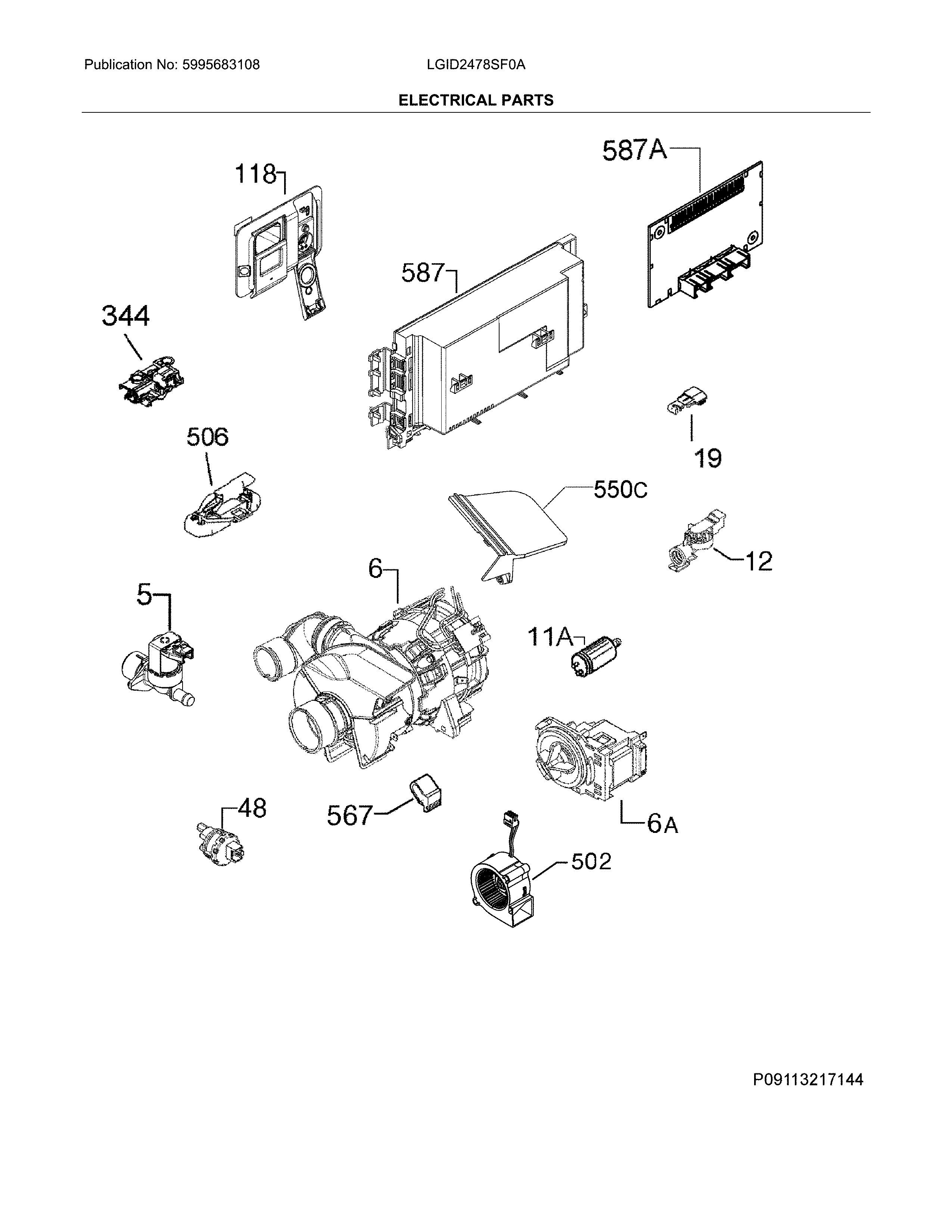

Electrical parts diagram
Dishwasher water inlet valve
Part #807445904
Replaced by #807445905
?
Manufacturer substitution
This part replaces 807445904. Substitute parts can look different from the original.
$108.40
In Stock
#587
Electrical parts diagram
Dishwasher user interface
Part #A06115601
This item is not returnable
$77.35 |
7% OFF Phone Price : $83.35
In Stock
#6A
Electrical parts diagram
Dishwasher drain pump
Part #A00044305
$92.28 |
6% OFF Phone Price : $98.28
In Stock
#130

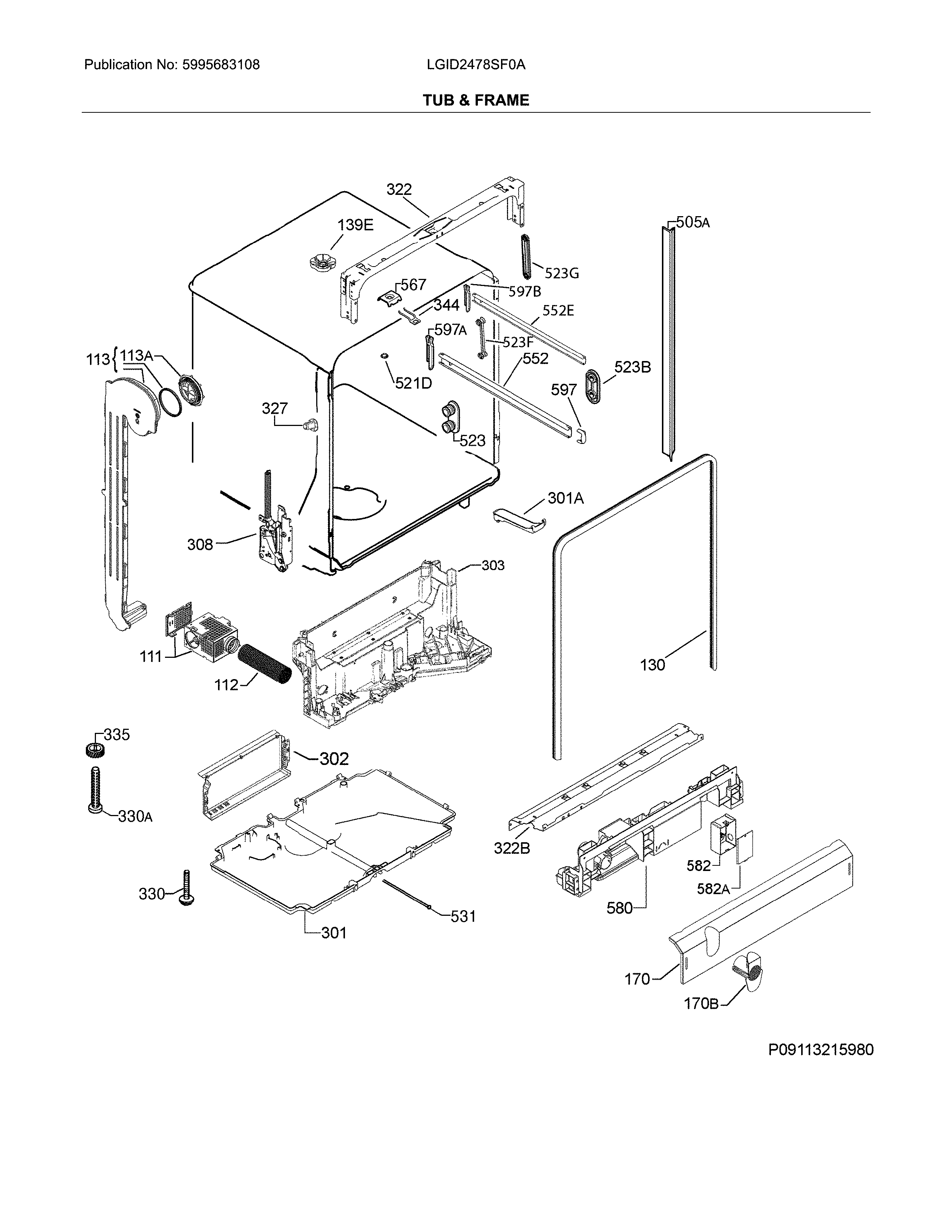

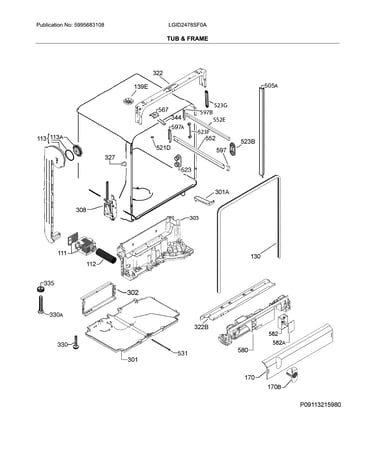

Tub & frame diagram
Crosley dishwasher door seal
Part #117158011
$36.43 |
14% OFF Phone Price : $42.43
In Stock
#48
Electrical parts diagram
Dishwasher turbidity sensor
Part #A00040101
Replaced by #A00040106
?
Manufacturer substitution
This part replaces A00040101. Substitute parts can look different from the original.
$50.17 |
11% OFF Phone Price : $56.17
In Stock
#139

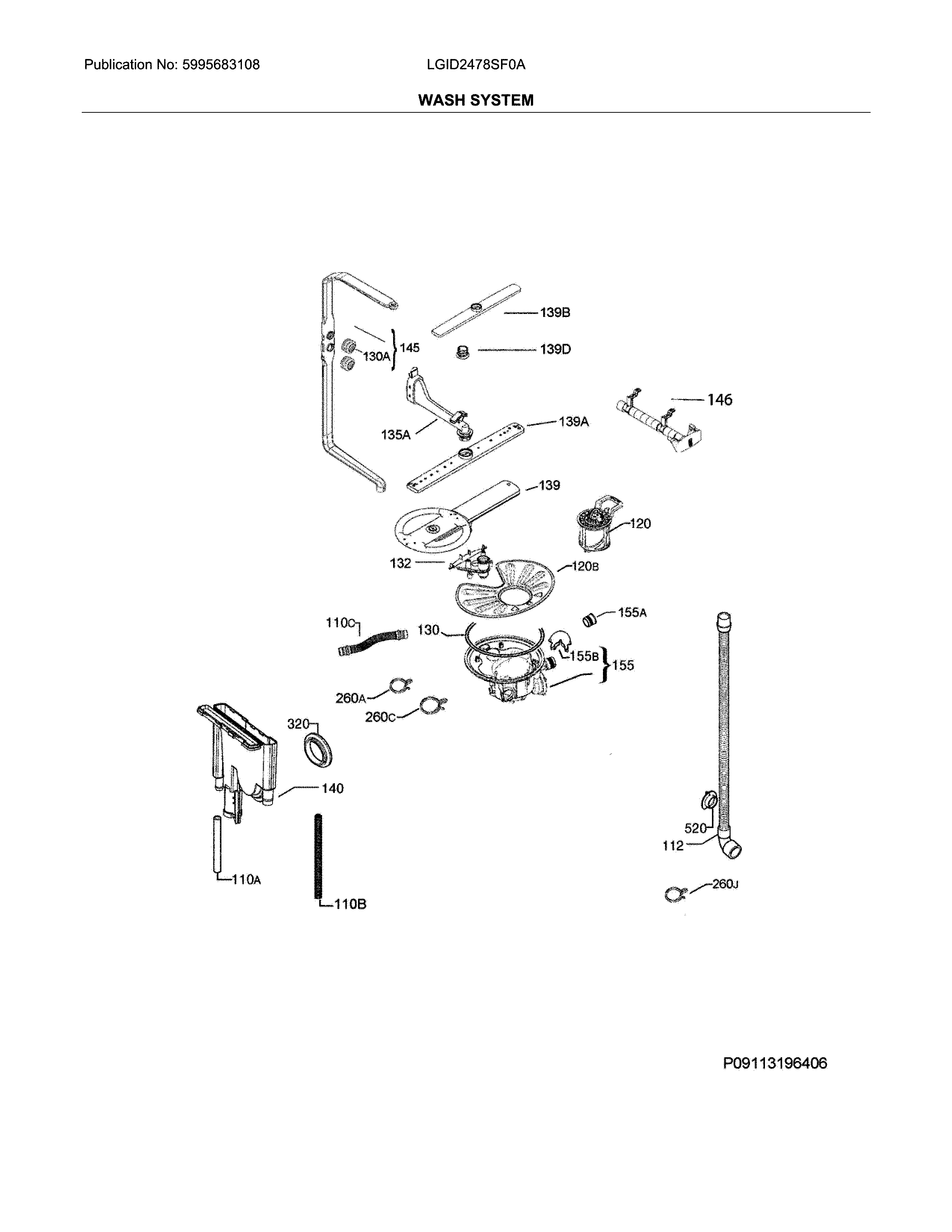

Wash system diagram
Crosley dishwasher upper spray arm bearing
Part #807035801
This item is not returnable
$47.60
In Stock
#118
Electrical parts diagram
Dispenser
Part #A00130305
Replaced by #A00130309
?
Manufacturer substitution
This part replaces A00130305. Substitute parts can look different from the original.
$112.59 |
10% OFF Phone Price : $124.59
In Stock
#143

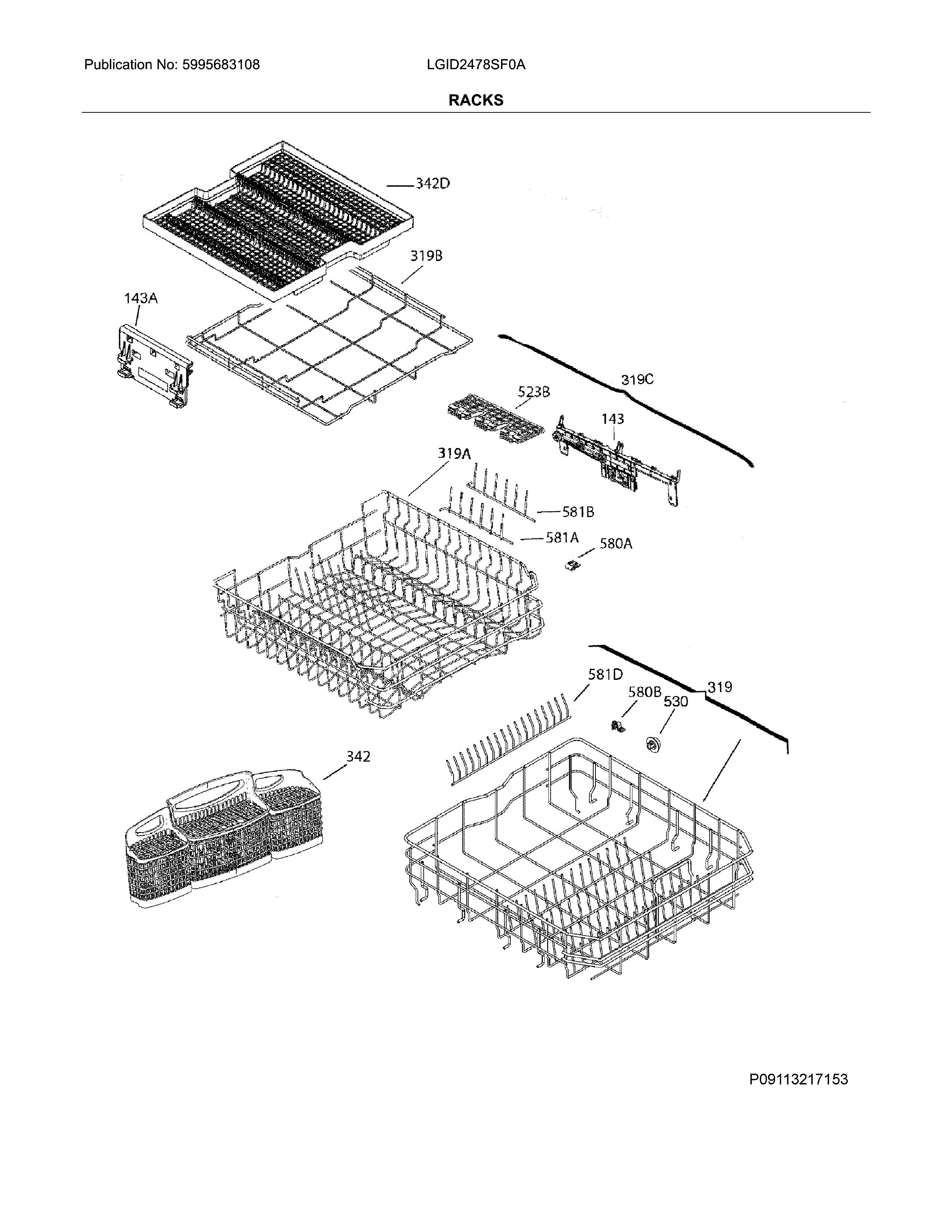

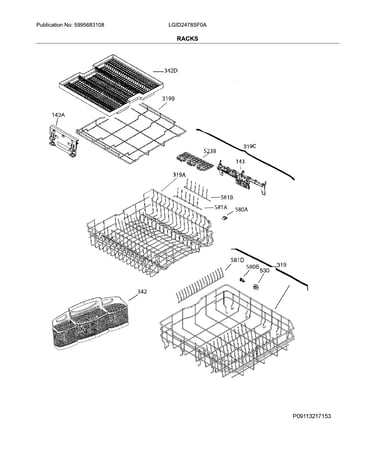

Racks diagram
Dishwasher dishrack adjuster, right
Part #808092518
$57.09 |
10% OFF Phone Price : $63.09
In Stock
#139
Wash system diagram
Crosley dishwasher spray arm assembly, upper
Part #807382106
$183.40
In Stock
