Model # DB7111N Official Speed Queen food waste disposer

Here are the diagrams and repair parts for Official Speed Queen DB7111N food waste disposer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

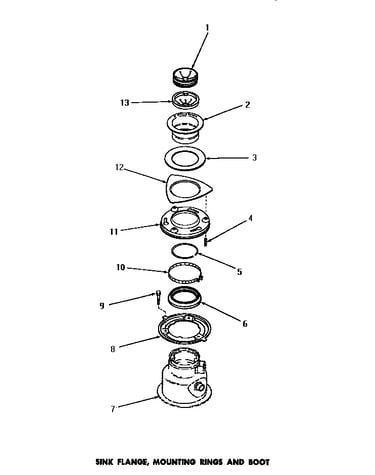

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 58 parts  |

Access Plate 80911
#18

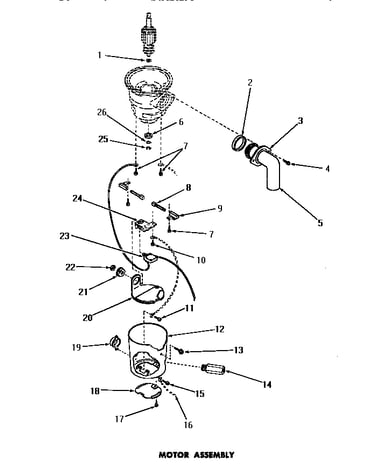

Motor assembly diagram

Access plate

Part #80911

The manufacturer no longer makes this part, and there's no substitute part

Thrust Washer 80903
#26

Motor assembly diagram

Thrust washer

Part #80903

The manufacturer no longer makes this part, and there's no substitute part

Flywheel And Impeller Assembly 80889
#18

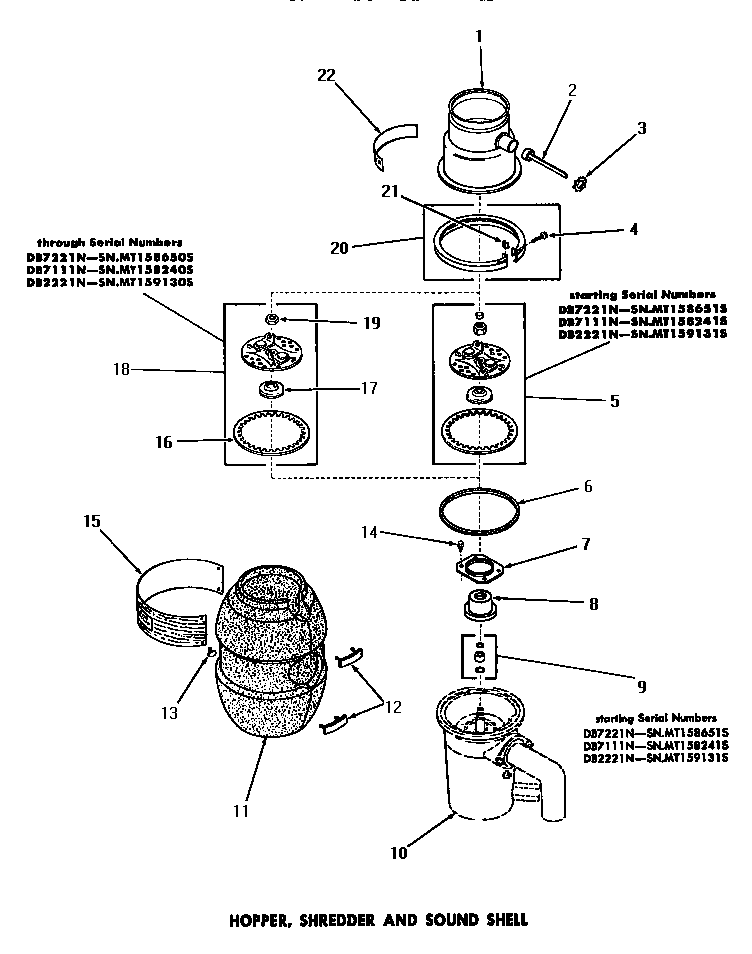

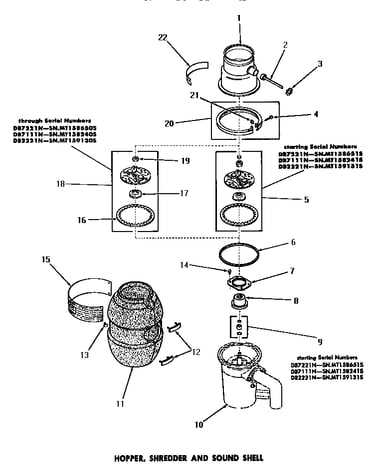

Hopper, shredder & sound shell diagram

Flywheel and impeller assembly

Part #80889

The manufacturer no longer makes this part, and there's no substitute part

Hex Head Screw 80912
#17

Motor assembly diagram

Hex head screw

Part #80912

The manufacturer no longer makes this part, and there's no substitute part

Retainer Ring 80905
#25

Motor assembly diagram

Retainer ring

Part #80905

The manufacturer no longer makes this part, and there's no substitute part

Bearing Retainer 80893
#7

Hopper, shredder & sound shell diagram

Bearing retainer

Part #80893

The manufacturer no longer makes this part, and there's no substitute part

For Phenolic Drain Elbow) 80885
#2A

Motor assembly diagram

For phenolic drain elbow)

Part #80885

The manufacturer no longer makes this part, and there's no substitute part

Speed Nut 80829
#21

Hopper, shredder & sound shell diagram

Speed nut

Part #80829

The manufacturer no longer makes this part, and there's no substitute part

Bushing And O-rings 80884
#9

Hopper, shredder & sound shell diagram

Bushing and o-rings

Part #80884

The manufacturer no longer makes this part, and there's no substitute part

Drain Plug 80830
#2

Hopper, shredder & sound shell diagram

Drain plug

Part #80830

The manufacturer no longer makes this part, and there's no substitute part
